    They once asked Hendrix what its like to be the best guitarist in the world? his reply was " I don't know ask Rory Gallagher"

  2. #2
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513
    Quote Originally Posted by tonyw View Post
    They once asked Hendrix what its like to be the best guitarist in the world? his reply was " I don't know ask Rory Gallagher"


    That just shows how humble Jimi Hendrix was, I watched a youtube video of him being interviewed on the Dick Cavett show, Dick Cavett asked him a question about being the best guitarist in the world, and Hendrix got all embarassed and said "How about the best guitarist sitting in this seat?", I think that sums it up.

  3. #3
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    haha Doc I looked for the interview Tony talked about and just watched the same Dick Cavett interview
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  4. #4
    Banned
    Join Date
    Dec 2015
    Posts
    1,171
    I think it was in Rolling Stone or the likes Wok. Probably the most humble man to play guitar was Rory, even Brian May pinched his sound.

  5. #5
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513
    Update:


    Last night I did a full build of my Strat so I could get it set up in order to do a demo clip, I let the guitar settle in during the night, I managed to get the intonation dialed-in pretty well, the bridge set so that it floated to enable pull-ups on the trem-bar, and after I installed the bone nut, I used my set of nut-slot files, a X10 magnifier, and a set of Feeler-Gauges to get my 1st Fret action down to .020 inch, the action at the 17th Fret is an even 2.5mm for each string, each pickup height was set to Fender specs for Noiseless pickups, oh and the neck relief is set to .010 inch at the 8th fret, I'm getting very little fret-buzz up and down the neck, the three Entwistle ASN57 pickups are sounding really nice and I am liking them alot.

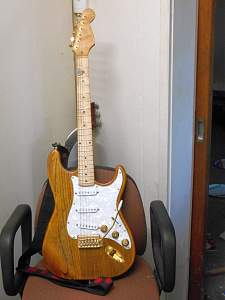

    I found that I didn't need to install any string-trees on the headstock with the Gold Grover Mini-lockers I have used, here's a pic of the guitar as it is now, built up and playable:


    Click image for larger version.

Name:	My PBG Strat_resized.jpg
Views:	219
Size:	223.4 KB
ID:	10475


    One thing I did notice was that the nut-slots seemed a bit too narrow for the 42-09 Gauge strings I used to string the guitar, because of this I'm experiencing tuning issues due to friction in the nut-slots, applying some Big Bends Nut Sauce Lubricant doesn't seem to help much, some strings go a bit sharp and others go a bit flat.


    I have swapped out the Gold Strap buttons for a couple of Ernie Ball Strap Locks.


    I must add that this doesn't mean that the build process has ended, this guitar can be regarded as a work in progress.
    Last edited by DrNomis_44; 12-04-2016 at 05:19 PM.

  6. #6
    GAStronomist FrankenWashie's Avatar
    Join Date
    Jan 2016
    Location
    Glebe, NSW
    Posts
    5,666
    Outstanding Fella! Brilliant job mate. how does it feel to play?

  7. #7
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513
    Quote Originally Posted by FrankenWashie View Post
    Outstanding Fella! Brilliant job mate. how does it feel to play?


    It feels pretty good to play the way it's set up, fretting chords down near the 1st Fret is pretty easy, Barre Chords are pretty easy to fret too, I'm liking the feel of the neck cause it feels pretty substantial, a bit like the necks on Fenders Standard-Strat models, all pickup settings get that Strat twang, or Quack, the Vitamin Q Tone Cap I used sounds good.


    It seems to like clean-ish sounds the most, it sounds good through my Boss BD-2 Blues Driver set to give a hint of breakup.


    I'll see if I can post some pics so you can see how I've got the action and the bridge set on my Strat shortly.
    Last edited by DrNomis_44; 12-04-2016 at 05:51 PM.

  8. #8
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513
    Okay, here's some pics so you can see how I have set the action and the bridge on my Strat:

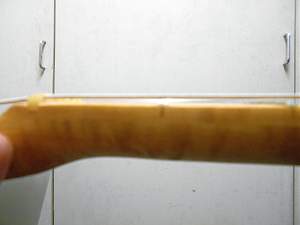

    Here's the action at the 1st Fret, it's only .020 inch between the top of the 1st Fret and the bottom of the string for each string:


    Click image for larger version.

Name:	S Setup1_resized.jpg
Views:	197
Size:	171.6 KB
ID:	10476

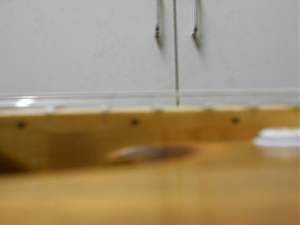

    Here's the action at the 17th fret, I have set it to an even 2.5mm for each string:


    Click image for larger version.

Name:	S Setup2_resized.jpg
Views:	222
Size:	166.8 KB
ID:	10477

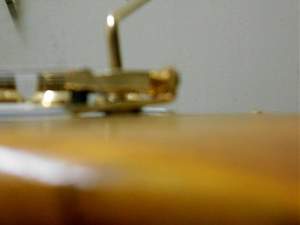

    And here's how I have set the bridge, tilted forward rather than flat against the body:


    Click image for larger version.

Name:	S Setup3_resized.jpg
Views:	189
Size:	194.7 KB
ID:	10478


    Setting the bridge so that it tilts forward is how Leo Fender intended the bridge to be set up, the gap between the end of the bridge and the body should be about 1/8th of an inch as per fender specs.


    Of course, you don't necessarily have to stick to Fender Specs.


    I know, some of the pics are a bit out of focus, I need to find out if the auto-focusing on my camera can be switched to manual.


    Update:


    Just found out that my camera does have a macro mode, so I'll see if I can take some better pics with it enabled.

    Update:

    Enabling Macro-Mode didn't seem to make much difference, oh well, at least I tried anyway.
    Last edited by DrNomis_44; 12-04-2016 at 06:58 PM.

  9. #9
    GAStronomist FrankenWashie's Avatar
    Join Date
    Jan 2016
    Location
    Glebe, NSW
    Posts
    5,666
    I reckon you both did a sterling effort on your first builds, all I can say is that you've both set the bar really high for all the first time builders. Not that I'm panicking about that or anything, me being on my first build and all..........(I wonder if I can retrofit my EXA with disco lights and chequered binding so late in the build?)

  10. #10
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513
    Quote Originally Posted by FrankenWashie View Post
    I reckon you both did a sterling effort on your first builds, all I can say is that you've both set the bar really high for all the first time builders. Not that I'm panicking about that or anything, me being on my first build and all..........(I wonder if I can retrofit my EXA with disco lights and chequered binding so late in the build?)

    Haha...cheers mate.
