    Hey Freaky, here's a wiring diagram for 2 pups, 3 way switch, one volume and one tone.
    I assume you will have a 3 way switch tele style ? This is a tele wiring diagram.
    If this isn't clear enough there are heaps more on google images click link below
    https://www.google.com.au/search?hl=...SnLG0m5HPWGfM:
    Last edited by wokkaboy; 24-10-2017 at 12:19 PM.
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  2. #2
    Member ILRGuitars's Avatar
    Join Date
    Nov 2016
    Location
    Sydney
    Posts
    385
    I agree with Waz. Looks great as is but maybe a chrome pickup ring around each pickup would set it off nicely.

  3. #3
    Looking good! Loving that blue colour, it really pops

    Sent from my A0001 using Tapatalk
    #1 TL-1 (+design creep): Finished! http://www.buildyourownguitar.com.au...ead.php?t=5567
    #2 STA-1 - Adding tru-oil onto the body http://www.buildyourownguitar.com.au...ead.php?t=7952

  4. #4

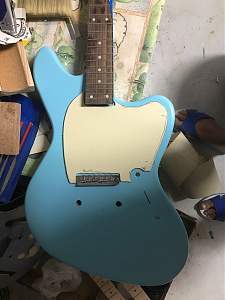

    Unfortunately the body had a middle pickup which has been filled, but the outline can still be seen so it really needs a pickguard. Plus I have already bought blank cream scratchplate blanks, cream pickups and cream knobs so I really want to make this work. BUT I don’t have any power tools at the minute

    Click image for larger version.

Name:	5AC41C72-B137-4463-883B-98B906938757.jpeg
Views:	185
Size:	331.2 KB
ID:	23261

    I’m struggling to get the curves smooth and the straight lines straight. With a bit more work I reckon I can get it looking better but there is nooooooo way I will be able to get the pickup cavities tidy. I have a plastic template for the single coil cavities and I reckon I can place them pretty well but it’ll be impossible to cut or sand them straight. Apart from “buy a router” or “don’t use a scratchplate” any one got any advice on how I can do it?
    R

  5. #5
    Overlord of Music Dedman's Avatar
    Join Date
    Mar 2016
    Location
    The "Fabulous" Gold Coast
    Posts
    3,566
    Have a talk with PabloPepper, master of all things plastic!
    Build 19 PSH-1 Kustom
    Build 18 HB-4S Kustom
    Build 17 WL-1 Kustom
    Build 16 TL-1TB Kustom
    Build 15 PBG-2-
    Build 14 FTD-1
    Build 13 RD-1 Kustom
    Build 12 DM-1S
    Build 11 MKA-2 -
    Build 10 Basic strat
    Build 9 JM Kustom
    Build 8 FV-1G
    Build 7 ES-2V
    Build 6- Community prototype
    Build 5 LP-1LQ
    Build 4 ES-5V
    Build 3 JR-1
    Build 2 GD-1
    Build 1 TLA-1

  6. #6
    After a few months off it’s time to get back to it. Pablo is in the process of helping me with a custom scratchplate for this kit. Although bad news is it was covered with a cloth and left in the shed, the heat has imprinted the cloth into the lacquer.



    If you have followed this thread you will have seen that the lacquer didn’t take to some spots of the colour



    These combined I have made the decision to to strip to the bare wood and start again. I toyed with doing a relic and sanding the problem spots but this won’t be the last time I spray a guitar so I want more practice and get it right! So out with the heat gun this weekend!


    Sent from my iPhone using Tapatalk

  7. #7
    Quote Originally Posted by Freakystyley View Post
    Pablo is in the process of helping me with a custom scratchplate for this kit.
    Well that's probably the best option.
    To get the edges straight I try and get a flat plain of sandpaper glued to a ruler and sand the length of the slot as much at once as possible.
    I'm currently trying another Bronco bass mod with a sheet of MDF I got from the big green shed.
    I'll probably put about 5 coats of Molotov clear on and then buff it smooth.

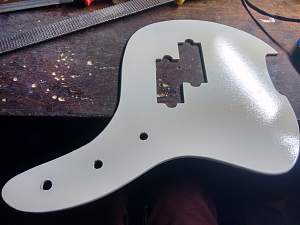

    Click image for larger version.

Name:	bronco white.jpg
Views:	186
Size:	257.7 KB
ID:	27071
    Would you believe the blue you have there is what I had in mind.

    cheers, Mark.
    Last edited by king casey; 22-06-2018 at 04:23 PM.

  8. #8


    Fun fun fun



    When spraying the neck does everyone mask off the side bit of the fretboard or just the front?


    Sent from my iPhone using Tapatalk

  9. #9
    Overlord of Music Dedman's Avatar
    Join Date
    Mar 2016
    Location
    The "Fabulous" Gold Coast
    Posts
    3,566
    Yep, mask the side too!
    Build 19 PSH-1 Kustom
    Build 18 HB-4S Kustom
    Build 17 WL-1 Kustom
    Build 16 TL-1TB Kustom
    Build 15 PBG-2-
    Build 14 FTD-1
    Build 13 RD-1 Kustom
    Build 12 DM-1S
    Build 11 MKA-2 -
    Build 10 Basic strat
    Build 9 JM Kustom
    Build 8 FV-1G
    Build 7 ES-2V
    Build 6- Community prototype
    Build 5 LP-1LQ
    Build 4 ES-5V
    Build 3 JR-1
    Build 2 GD-1
    Build 1 TLA-1

  10. Liked by: Andyxlh

  11. #10
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    10,547
    Mask the side if using colour, but the sides are normally clear coated along with the rear of the neck, otherwise you'll end up with a paint+clear coat ridge on the side of the neck which feels awkward.
