First Guitar build Ever, Starting with a scratchie.

[robin]

Wow Farnzie! First build and its a scratchy. You sure like a challenge huh.

That is looking truly amazing. I envy you your skills mate. Keep up the good work, I can't wait to see how this progresses. And thanks for keeping a detailed build diary for us mere mortals.

rob

[wokkaboy]

Nice work on the side dot markers Farnzie. Look nice and uniform

[keloooe]

Mate for someone with no previous wood working experience this is turning out absolutely perfectly (not meaning to jinx your build here), can't wait to see it strung up one day!

[farnzie]

Mate for someone with no previous wood working experience this is turning out absolutely perfectly (not meaning to jinx your build here), can't wait to see it strung up one day!

Thanks buddy, appreciate the kind words.

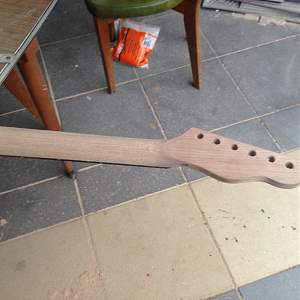

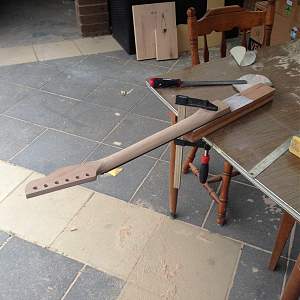

Up date from where i left off, i have been working on getting the neck completed this week after work each night before it gets dark, i shaped the neck, was trying to copy my real fender usa strat neck thickness, it ended up a little thinner but i think its still ok for a first try, i took off most off the excess wood with a 40 grit flappy disk on a grinder then went at it with a rasp and file. .

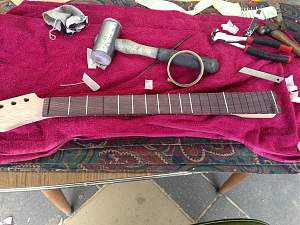

After that came the frets, im positive i did the process for the frets wrong but i got there in the end, i wanted to glue the frets in so what i did was mask up each side of the fret slot, ran some super glue along the fret slot the quickly pulled the tape off and then smashed the fret in the slot. the first few were a little difficult but once i got the idea of what i was doing it wasnt to bad, this was my set up.
i had my radius block under the red towel so my neck had something solid to hit it against.
After that i filled down the edges and put a little bevel on them, ill do a final fret leveling and crown after i put my finish on it.
ill post some pick of the neck in the next post.

[farnzie]

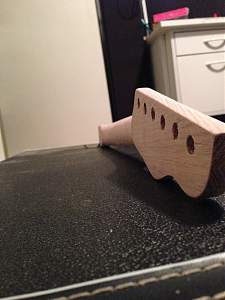

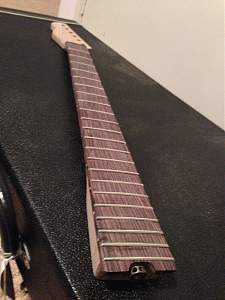

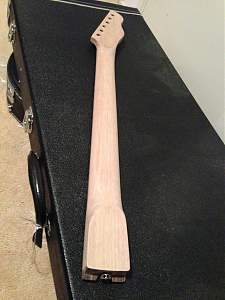

Some pics

[andrewdosborne]

Farnzie, your doing a great job on this. Inspirational

[wokkaboy]

sensational looking neck Farnzie, keep up the good work

[farnzie]

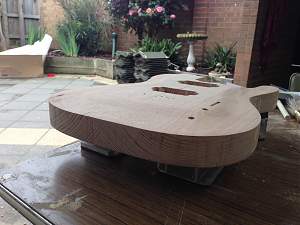

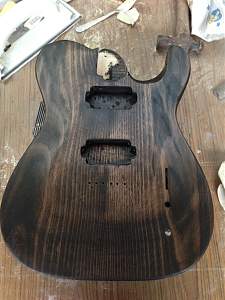

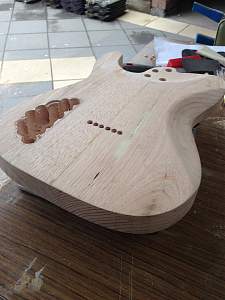

i have done some more work on the guitar, now that i have my neck pretty much sorted out i could move on to the body blank that i made a few weeks ago, i have done all the routing , and have done the carve, belly cut, neck carve, i have routed the control cavity's and grain filled. i have also put on my first coat of stain, which is ment to be ebony but is more of a brown, im wondering if i should not of grain filled to allow the timber to soak up more of the stain but to late now. ill post up some pics.

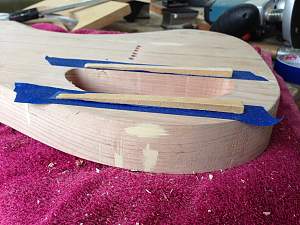

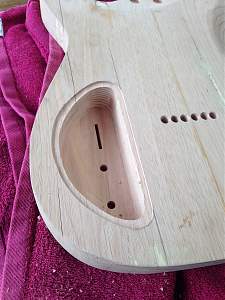

Because of the carve on the front i had to route my control cavity on a 5 mm angle to keep a 6 mm thickness. this was how i did it, worked out perfect.

[stan]

holy cow, mate you are doing a ripper job

[wokkaboy]

Farnzie I'm blown away you are a natural builder you must have got the knack at birth. Looks stunning. Love the dark stain colour
