Thread: First build - TL1 Ian Rodness

  1. #41
    GAStronomist FrankenWashie's Avatar
    Join Date
    Jan 2016
    Location
    Glebe, NSW
    Posts
    5,666
    Hi Ian, if you can locate the chip, just glue it back into place. CA glue or Titebond, either way you will need to get it into place and then put some clamping pressure on it and leave it for a couple of hours, a day if using Titebond.

    Didi that happen while you were sanding the face of the headstock?
    FrankenLab
    Hand crafting guitars, because Death Rays are expensive.


  2. #42
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    10,547
    That's a shame. Enough wood left so it won't affect the nut's support, but you really need to try and fix it to get the look right. Did you keep the bit that broke off? If not, you could try and fashion a replacement from a small piece of maple (and maybe use a chisel to square off the broken edge so that it is easier to fit). If you've shaped the headstock then you may still have the offcuts lying around. If you haven't shaped the headstock, then now would be the time to do it and use a piece to fill the gap. It's not going to be an invisible fix, but it shouldn't be that obvious.

  3. #43
    Member
    Join Date
    Jul 2017
    Location
    Ajax, ontario
    Posts
    28
    Quote Originally Posted by Simon Barden View Post
    That's a shame. Enough wood left so it won't affect the nut's support, but you really need to try and fix it to get the look right. Did you keep the bit that broke off? If not, you could try and fashion a replacement from a small piece of maple (and maybe use a chisel to square off the broken edge so that it is easier to fit). If you've shaped the headstock then you may still have the offcuts lying around. If you haven't shaped the headstock, then now would be the time to do it and use a piece to fill the gap. It's not going to be an invisible fix, but it shouldn't be that obvious.
    Hi Simon. I do have the pieces...yes pieces....that small chip broke into 2 on the way out. It'll likely be impossible to get those back into place properly. Using a piece from the headstock is a great idea....didn't think of that, so thanks.

  4. #44
    Member
    Join Date
    Jul 2017
    Location
    Ajax, ontario
    Posts
    28

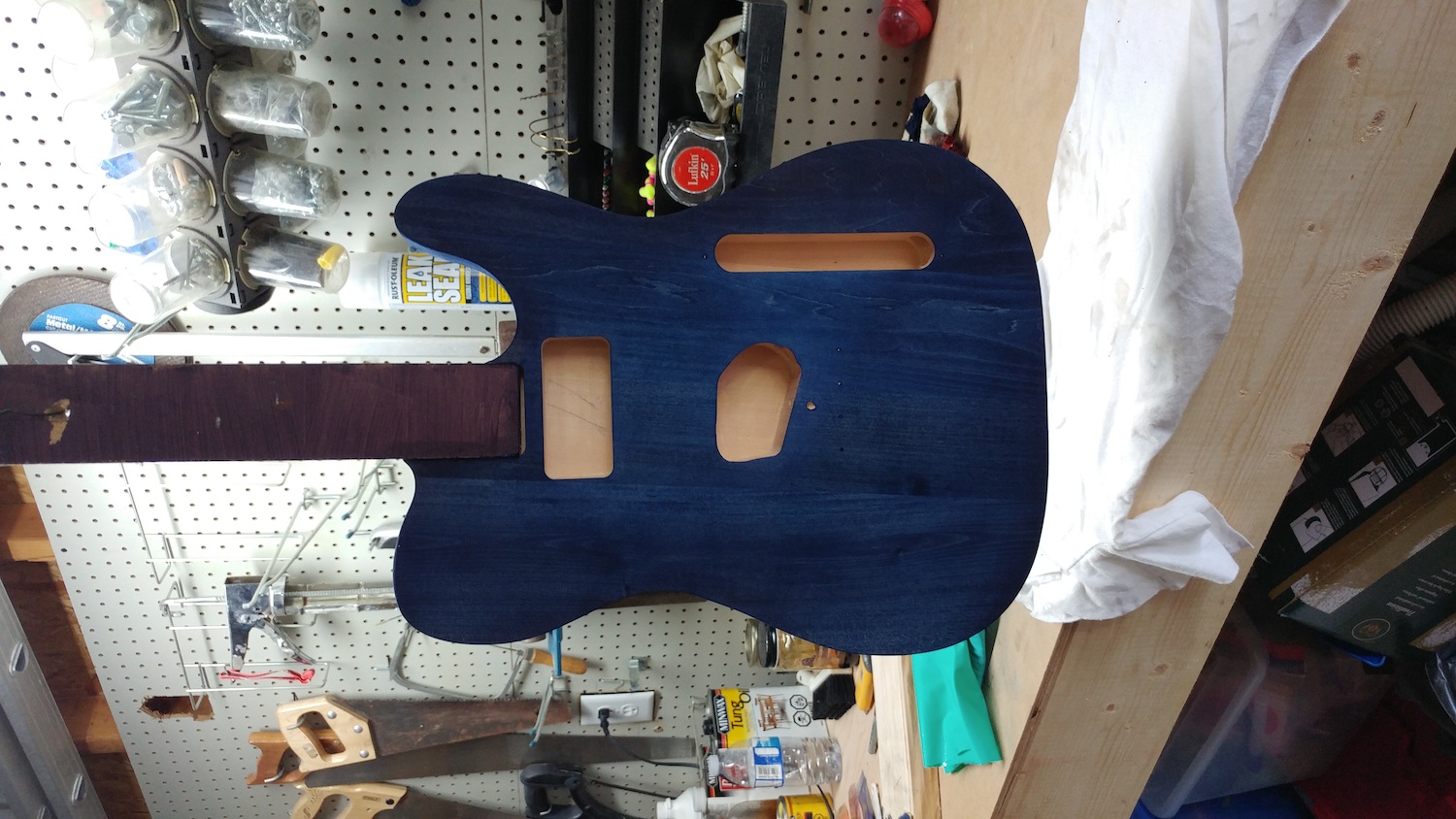

    So it took me a while to decide on the finish, but after ordering a variety of dye powders, I decided on this. Click image for larger version.

Name:	stained.jpg
Views:	362
Size:	378.2 KB
ID:	21604
    I'm going to fine tune this, and add some shine. Then on to the neck (I think?)

  5. #45
    Overlord of Music Fretworn's Avatar
    Join Date
    May 2013
    Location
    Hornsby Area, Sydney, NSW
    Posts
    3,951
    I like it Ian, it will look great under a glassy clear top coat.
    Current:
    GTH-1

    Completed:
    AST-1FB
    First Act ME276 (resurrected curb-side find)
    ES-5V
    Scratchie lapsteel
    Custom ST-1 12 String
    JBA-4
    TL-1TB
    Scratch Lapsteel
    Meinl DIY Cajon
    Cigar Box lap steel

    Wishing:
    Baritone
    Open D/Standard Double 6 twin neck

  6. #46
    Member
    Join Date
    Jul 2017
    Location
    Ajax, ontario
    Posts
    28
    Hi guys. Finished with the finish on the body, leveling the frets, and finishing the neck, and now. I still need to attach the neck, and wondering what the best method is to secure the neck in position as I'm drilling pilot holes. Any suggestions are very welcome.
    In the meantime, I'm on to the shielding and wiring. I have some copper tape in my kit, and and wondering if I just go ahead and cut the tape first to line the cavities, or is it advised to line the cavities, and then cut out the excess?
    Feeling pretty good about my first build so far.......
    thanks everyone......

  7. #47
    Member ILRGuitars's Avatar
    Join Date
    Nov 2016
    Location
    Sydney
    Posts
    385
    G'day mate.

    Copper Tape: I usually cut the tape first, then line from the top of the cavity downwards. Much easier to push into place and keeps those nasty sharp knives away from your nice finished top.

    Attaching the neck: I assume you have already measured the scale length and have the bridge mounting holes in the correct position. Fix the bridge and tuning pegs, attach the top and bottom 'E' strings to centre the neck, clamp ( I use the neck plate as a guide if the neck holes on the body aren't pre-drilled) and drill. Easy peasey!

  8. #48
    Member ILRGuitars's Avatar
    Join Date
    Nov 2016
    Location
    Sydney
    Posts
    385
    This video might help too.

    https://www.youtube.com/watch?v=-azQ5FMzeXA

  9. #49
    Member
    Join Date
    Jul 2017
    Location
    Ajax, ontario
    Posts
    28
    thanks! the simplest methods are often the best. This didn't cross my mind at all. Thanks for the input ILRguitars!

  10. #50
    Member
    Join Date
    Jul 2017
    Location
    Ajax, ontario
    Posts
    28

    wiring issue

    almost done, and pretty happy with the results, but wondering if anyone knows why my high E and G strings are considerably more quiet when hooked up to the amp. This is true of all 3 settings, so I'm reasonably more sure this is a wiring issue, so I'm wondering if anyone has any experience with something like this?
    Last edited by ianrodness; 30-08-2017 at 09:38 AM.
