    Anyhoo, moving right along....

    A bit of progress today, after a late start (10:30 am)........

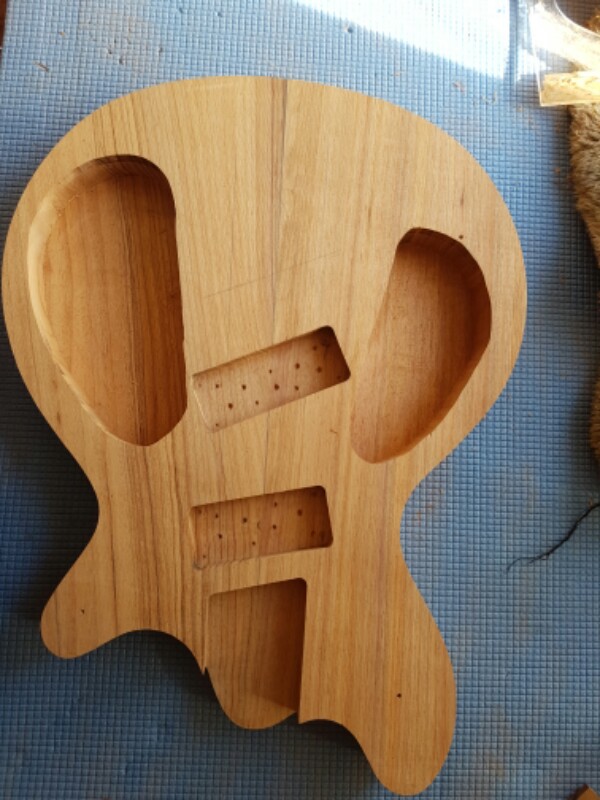

    Routed neck pocket and body cavities then fired up the bandosaurus and cut the shape.
    Cleaned it up on the router table, nearly removing a finger in the process.
    Pro tip: Dont get distracted when using the router table....
    Spent a bit of time pfaffing around routing the pup holes.. tried a new method using straight edges rather than a template. Wont bother doing that again.......

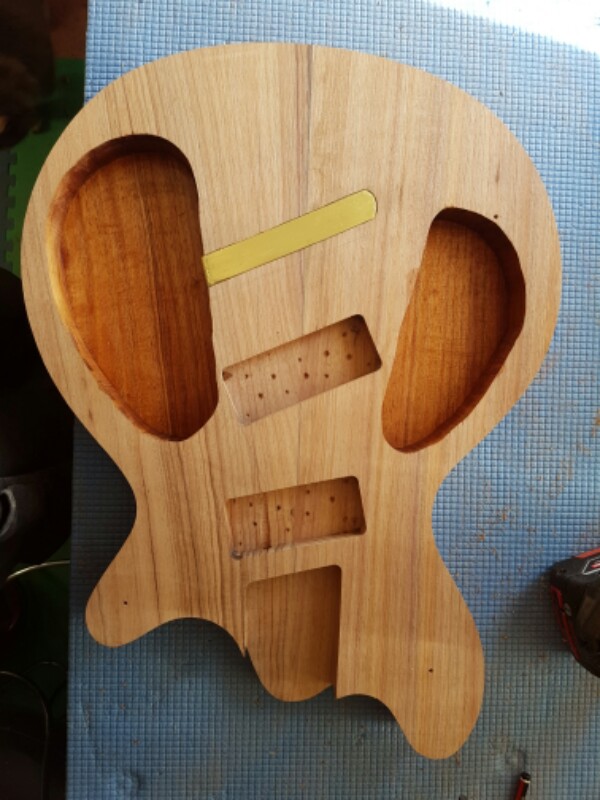

    Next up was routing a shallow groove for the earth plate, will talk more about that later.
    Shellac applied to body cavities then rough cut the drop top.

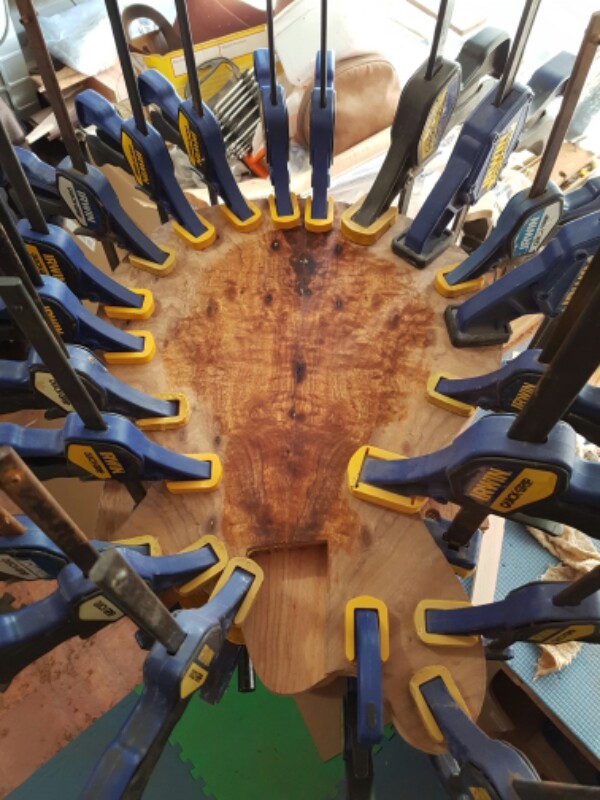

    Glued top on. I do this in two stages, using a backstop to locate the first half then when the first half is glued and clamped I glue the second half on.
    Clamps off and a wipe down with damp rag to pop the figure. Very noice, just wish I could remember what the timber is.... think it is Bloodwood or Flood Gum.........
    Then split a few off cuts to make pup covers and surrounds.
    5pm, time for a well earned beer.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	20160530_153122-600x800.jpg
Views:	190
Size:	97.8 KB
ID:	11658   Click image for larger version.

Name:	20160531_141209-600x800.jpg
Views:	181
Size:	106.4 KB
ID:	11659   Click image for larger version.

Name:	20160531_152336-600x800.jpg
Views:	185
Size:	101.7 KB
ID:	11660   Click image for larger version.

Name:	20160531_120503-600x800.jpg
Views:	188
Size:	103.9 KB
ID:	11661   Click image for larger version.

Name:	20160531_154826-800x600.jpg
Views:	171
Size:	97.4 KB
ID:	11662


    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....

  2. #42
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    ....................
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	20160531_162159-600x800.jpg
Views:	162
Size:	122.1 KB
ID:	11663   Click image for larger version.

Name:	20160531_170200-600x800.jpg
Views:	164
Size:	123.0 KB
ID:	11664   Click image for larger version.

Name:	20160531_164735-600x800.jpg
Views:	159
Size:	126.1 KB
ID:	11665   Click image for larger version.

Name:	20160529_182911-600x800.jpg
Views:	162
Size:	60.0 KB
ID:	11666

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....

  3. #43
    Interesting... so, bridge screws through the drop top and into/through the grounding plate = grounded bridge. Tricky!
    Scott.

  4. #44
    Overlord of Music andrewdosborne's Avatar
    Join Date
    May 2014
    Location
    Sydney, NSW
    Posts
    2,751
    Looking good DB, I especially like the look of the last picture!
    Current Projects
    #Planning 5 String Bass

  5. #45
    Moderator Brendan's Avatar
    Join Date
    Apr 2013
    Location
    Perth, WA
    Posts
    3,444
    Tasty!

    Hey Ponch - heard that you've got a movie coming out http://www.imdb.com/title/tt0493405/?ref_=nv_sr_2

  6. #46
    Overlord of Music andrewdosborne's Avatar
    Join Date
    May 2014
    Location
    Sydney, NSW
    Posts
    2,751
    Haha too funny Brendan that's why I've had little time so far this year for guitar building!

    Sent from my SM-T700 using Tapatalk
    Current Projects
    #Planning 5 String Bass

  7. #47
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    Awesome progress todaz DB!
    Looking very nice. Not much clearance between chambers and bridge pup cavity!
    Ponch think they meant to put Andrew Osborne as the actor for Frank Poncherello!
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  8. #48
    Member Muzza's Avatar
    Join Date
    Jan 2016
    Location
    Sunshine Coast
    Posts
    487
    Quote Originally Posted by dingobass View Post
    Click image for larger version.

Name:	dingoclamps.jpg
Views:	216
Size:	122.1 KB
ID:	11675
    Maaaaate. You're letting the team down. I reckon you could've squeezed at least another 6 clamps in there!
    first build PRS-1TS in progress...
    http://www.buildyourownguitar.com.au...ead.php?t=4937

    second build PRS-1Q in progress...
    http://www.buildyourownguitar.com.au...ead.php?t=4956

  9. Liked by: dingobass, wazkelly

  10. #49
    Overlord of Music andrewdosborne's Avatar
    Join Date
    May 2014
    Location
    Sydney, NSW
    Posts
    2,751
    Yeah what's going on, my agent has let me down he must have thought I was too busy booking folk shopping at the big green shed!

    Sent from my GT-I9506 using Tapatalk
    Last edited by andrewdosborne; 01-06-2016 at 07:09 AM.
    Current Projects
    #Planning 5 String Bass

  11. #50
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    Quote Originally Posted by Muzza View Post
    Maaaaate. You're letting the team down. I reckon you could've squeezed at least another 6 clamps in there!
    Hahahahahahaha!
    I would have but as is always the case, not enough clamps.... No matter how many of the buggers you own, it always seems that you need at least another dozen :/
