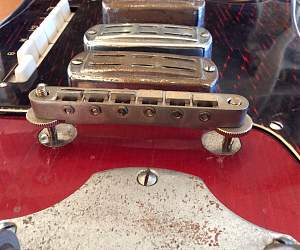

New bridge in place
Binding and finish needs some work
Patch spot slowly being built back up on the head fascia
New bridge in place
Binding and finish needs some work
Patch spot slowly being built back up on the head fascia
If plan A fails, remember that you still have 25 letters left.

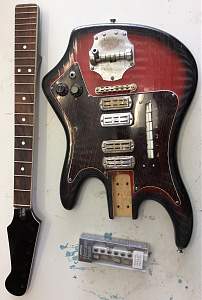

Frets look like they have seen some playing particularly down near the nut end.
just ordered Behlen nitro black and clear jet spray from https://www.guitaraust.com.au/ (from an earlier DB post). Do I need sanding sealer or anything else? Its only small sections on the sides of the neck that need patching.
The frets are jumbo's so there's plenty left on them to work with when it comes to leveling and polishing.
If plan A fails, remember that you still have 25 letters left.
I haven't died, just doing other stuff.

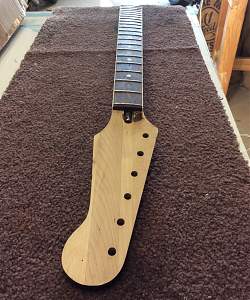

The neck has been sprayed, just waiting for the paint to dry before cutting back and polishing. I probably should be working on the frets now, but inspired by others cigar box guitars, I'm half way through this:
If plan A fails, remember that you still have 25 letters left.

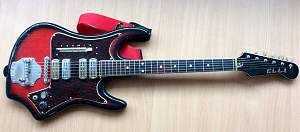

Finally got the neck and everything else back on the guitar. Plugged her in just to see what it was like and... only the middle pickups are working, although they sound great. So, more work to go.
I need opinions. Should I try to find the fault in the other pickups or re-wind them, and then while it's all happening, is it worth upgrading pots, caps, etc?
If plan A fails, remember that you still have 25 letters left.
Hey Andrew, so the 2 middle pups work ? Sounds like you need to do more fault finding and work out of the neck and bridge pups work. If the existing electronics look old and possibly faulty would be worth upgrading some of it. Have you posted a pic of under the pickguard ?
Current Builds and status
scratch end grain pine tele - first clear coat on !
JBA-4 - assembled - final tweaks
Telemonster double scale tele - finish tobacco burst on body and sand neck
Completed builds
scratch oak.rose gum Jazzmaster - assembled needs setup
MK-2 Mosrite - assembled - play in
Ash tele with Baritone neck - neck pup wiring tweaks and play in
Originally Posted by AndrewA
Finally got the neck and everything else back on the guitar. Plugged her in just to see what it was like and... only the middle pickups are working, although they sound great. So, more work to go.
I need opinions. Should I try to find the fault in the other pickups or re-wind them, and then while it's all happening, is it worth upgrading pots, caps, etc?
First thing I would do is check each of the pickups for continuity with a Digital Multimeter, each one should measure somewhere within about 10k Ohms if they are still good, a reading of OL on the highest resistance range will indicate a break in the pickup's winding somewhere.
When I had the guitar in bits I did a continuity test from the pickups, through the switch to the jack and seemed ok. Should have tested the pickups at the same time, will have to do that next.
Sent from my GT-I9506 using Tapatalk
If plan A fails, remember that you still have 25 letters left.

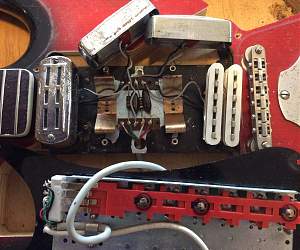

Guitar guts time. The switch probably needs a good clean, but seems to work ok. Sure enough, when I tested the pickups, the neck and bridge showed open circuits. I might take a look and see if I can find the fault before resorting to a rewind.
If plan A fails, remember that you still have 25 letters left.
