GR-1SF Stage Guitar

[Swinging Beef]

Wiring harness is done.
Bleargh... theres three hours of my life and a thousand hail mary's worth of cussin done.


Ive checked for continuity and shorts with a multimeter, but if anyone else wants to tell me how to check if all the pots and switches are working using a multimeter, I would be much obliged.

[Swinging Beef]

wokka... sticker was just knocked up using shapes in Excel, its inspired by a bunch of ones I saw online and in guitar shops, by peering in the holes of old geetars.
I rubbed it down with a used teabag, too, to give it that aged appearance.
(Who said those treasure maps in primary school were a waste of time? )

[Nickosaurus]

you can alligator clip pickups to the circuit and follow the passive current using the Ohm setting on your multimeter through the circuit. Follow from pickup leads -> pick up selector -> Vpot lug 1 -> Vpot lug 2 -> Tpot lug 1 -> Tpot lug 2 -> output tip.

That's how I've done it in the past. Not the most electrically inclined (but learning...) so if anyone has better suggestions I won't be offended

[andrewdosborne]

Beef, coming along very nicely. Love the sticker and looks like you've scored a premium flame maple neck!

Sent from my GT-I9506 using Tapatalk

[Swinging Beef]

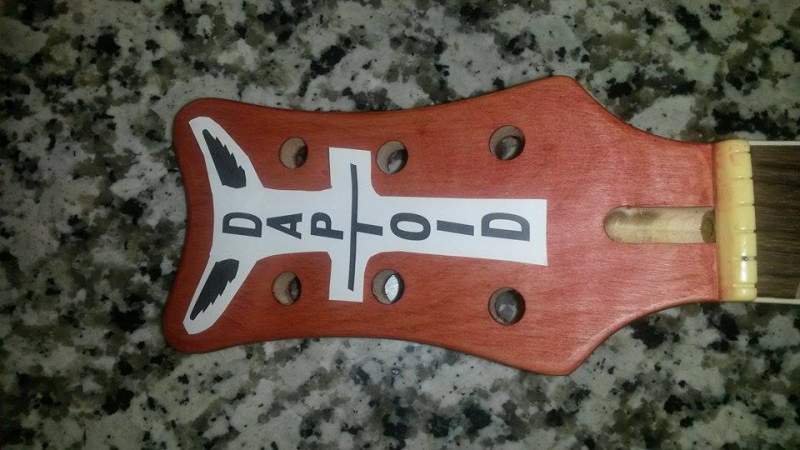

Sending this logo off to the printer to get a decal made up now I know the sizing works.

[wokkaboy]

that logo fits the shape really nicely Beef, nicely done.
So will the lettering be black like the mock logo ?
Should look really cool, make sure you try and apply it straight !
Will it be a waterslide decal logo ?

[stan]

nice work Beefy, that wiring looks neat. I like the logo and it is full of retro goodness, nice job

[Swinging Beef]

http://www.guitar-decals.com/crown-d...rl-effect.html

Its a custom job from these guys, using this material.
I hope it comes in looking as good as I plan.
Fungus crust! (as our New Zealand friends say)

I dont think it matters if its not straight... I mean... the headstock isnt actually symmetrical
AND!
Look at the lettering on the real deal!
Its a bit kooky
http://s183.photobucket.com/user/vir...stock.jpg.html

[Swinging Beef]

Now.. who knows where I can get me some MOP style pick guard material.
Because I would like to redo the truss rod and pickguard to suit.
The stuff on ebay looks good, but our friendly Chinese sellers descriptions do not match the photos, which is a bit annoying.

[stan]

Realparts have some and Aussie stock
Dont know what it is like, but I have been pleased with previous purchases from them:

http://www.realparts.com.au/pickguar...rd-sheets.html
