Woks The #10 is Mango.
tempates are from Potvin Guitars in Canada. thought I would start with some proper templates until I get out of the measure 100 times, freak out, leave for a day, measure twenty times , cut once cycle - will look at doing someting a bit different. Really good qual templates 1'2 " MDF
Tony
holy cow Tony you really have some quality timbers there, good work. I thought the templates looked like they had been cut by CNC they look perfect ! A good tip DB gave me was rub thin superglue over the cutting edges of the templates and they will last longer. Also good tip check your router depths regularly to make sure the bearing is running on the template edge. Otherwise you could destroy your blanks and the template !
Current Builds and status
scratch end grain pine tele - first clear coat on !
JBA-4 - assembled - final tweaks
Telemonster double scale tele - finish tobacco burst on body and sand neck
Completed builds
scratch oak.rose gum Jazzmaster - assembled needs setup
MK-2 Mosrite - assembled - play in
Ash tele with Baritone neck - neck pup wiring tweaks and play in

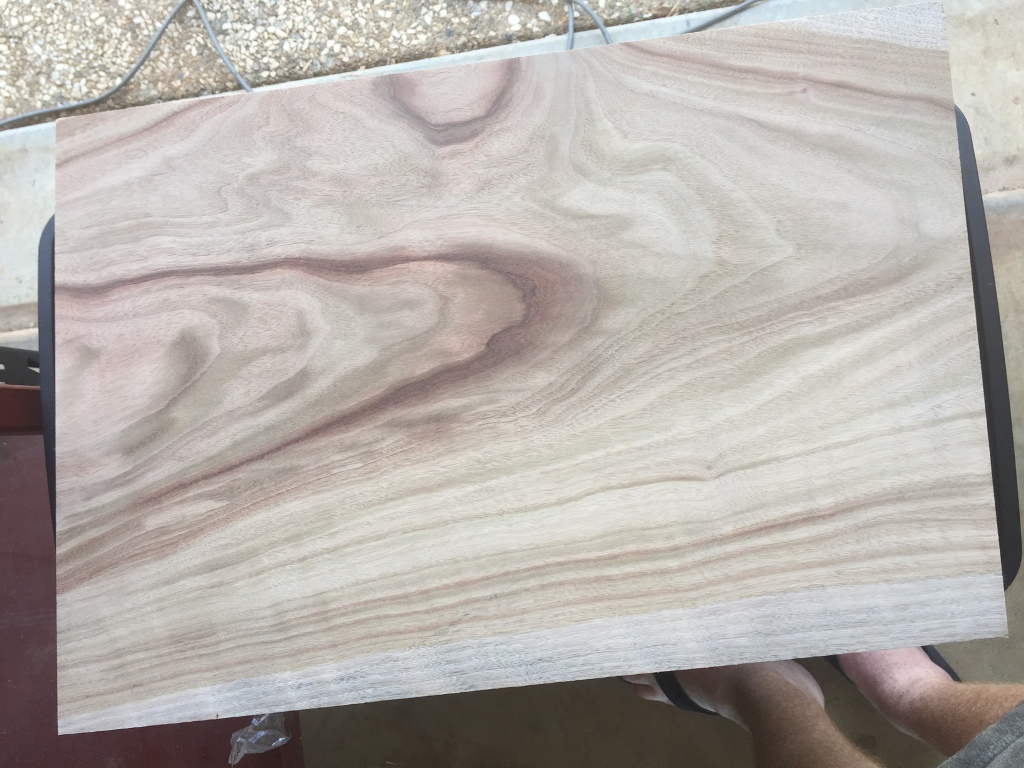

Wow Tony, looks amazing. Don't you dare cover up that wood grain. I have bookmarked your supplier, I might have to take a trip up there one day. But for the time being I will have to stick to pine.
Watching this build with great interest and envy.
rob
So did some more on the scratchie.

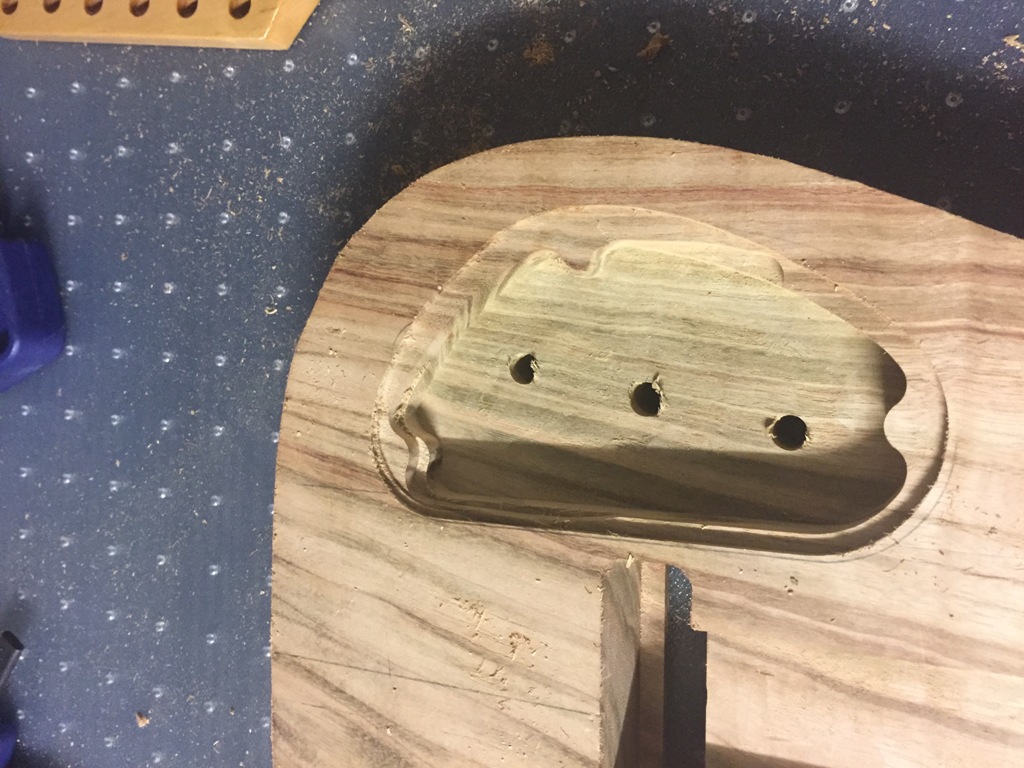

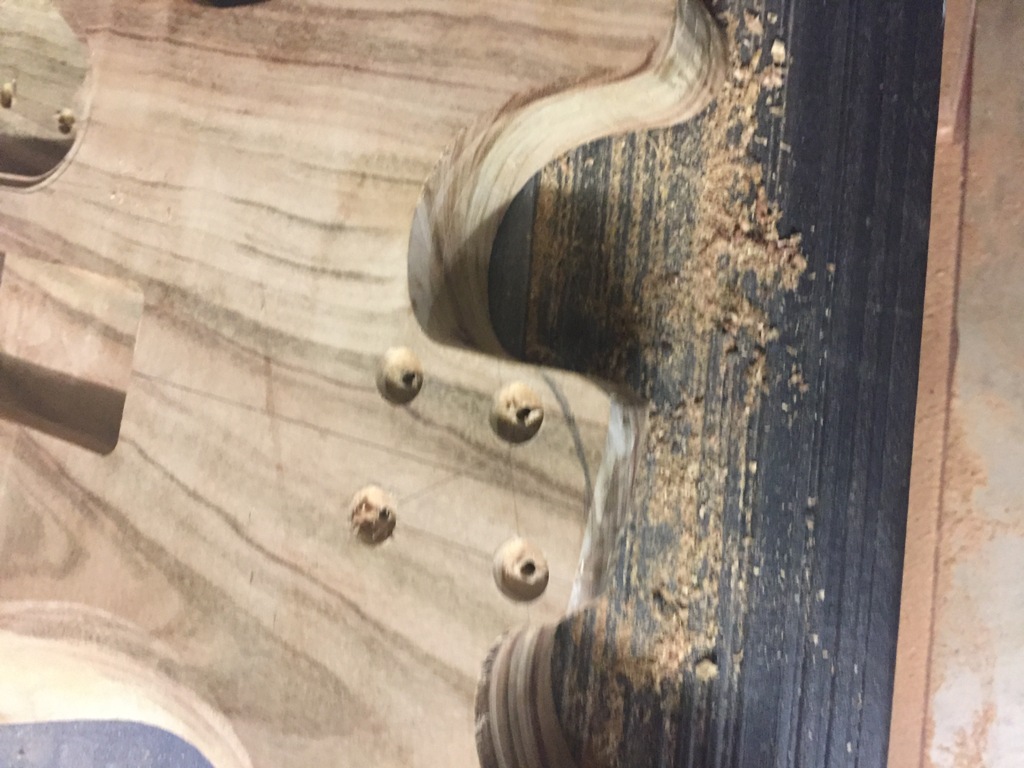

Routed the control cavity out, and had a few "learnings" in the process. Using template tape to hold in place and didnt realise that the template was slowly sliding on the body, in part being too heavy handed and not letting the bit do the work and the tape not so good with humidity. (Mainly heavy handed)
Managed to rectify but now is a little off centre from original plan.
Filed down the body for belly cut and arm taper. before a full day of sanding.( So over sanding)
Tony

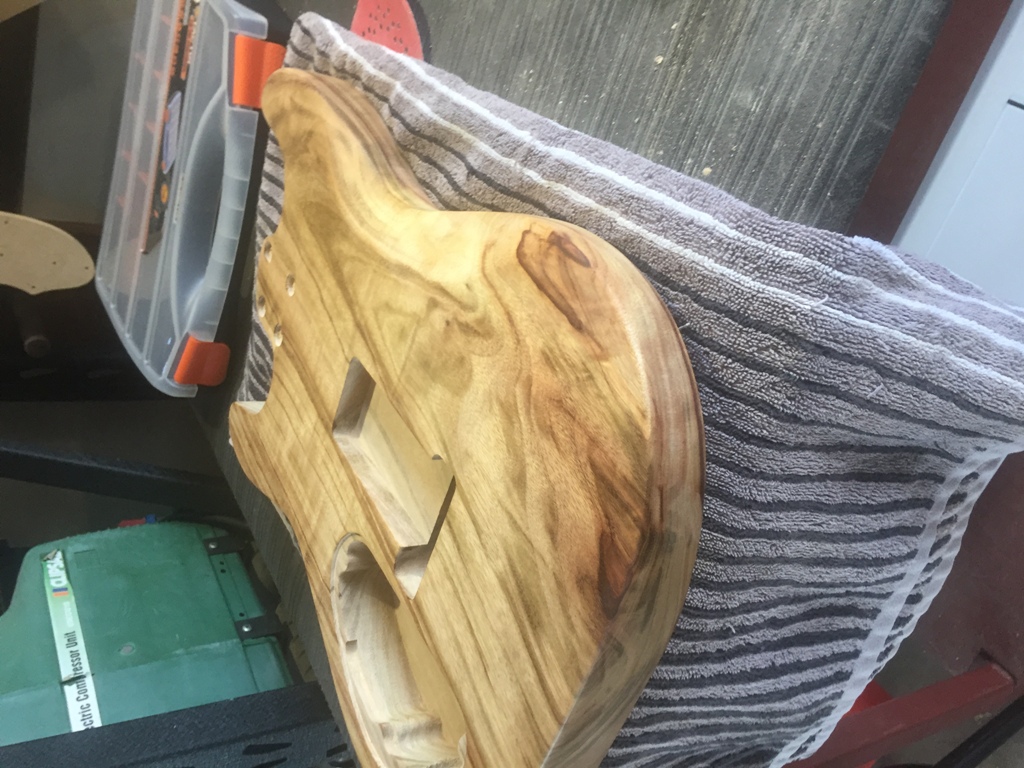

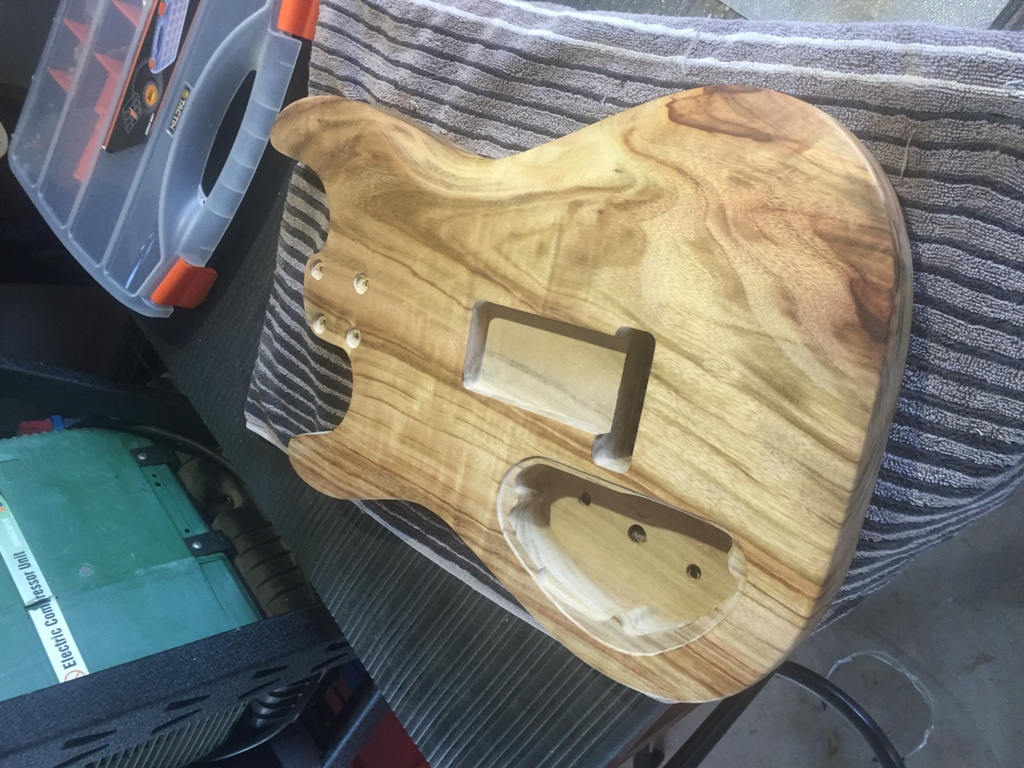

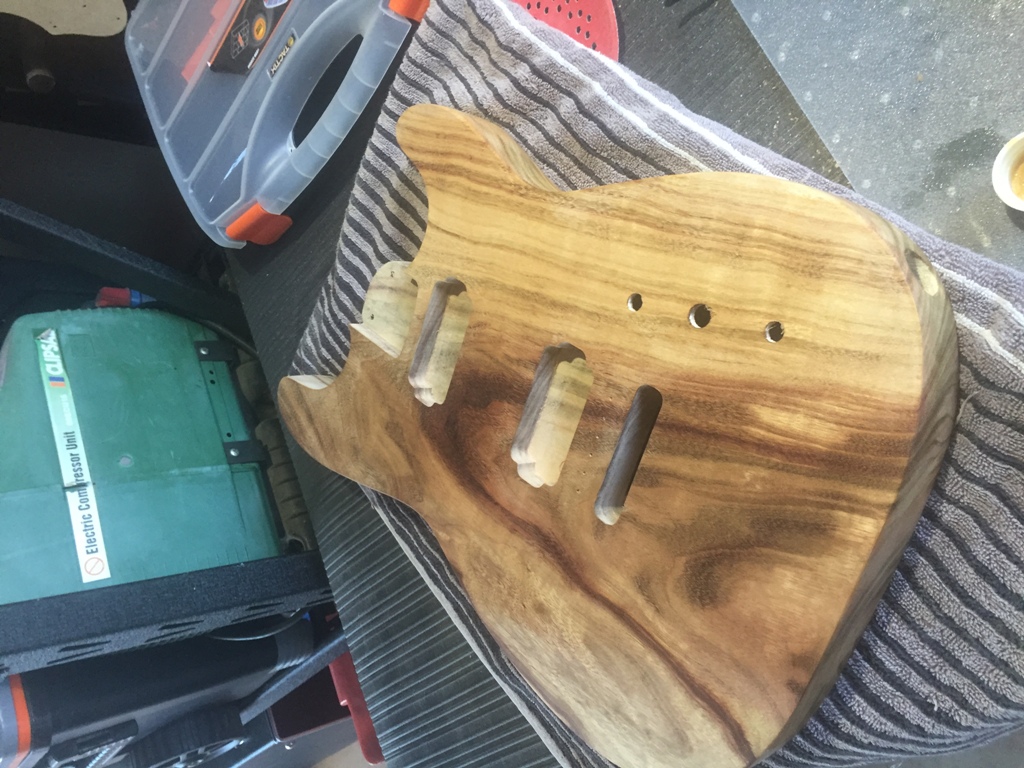

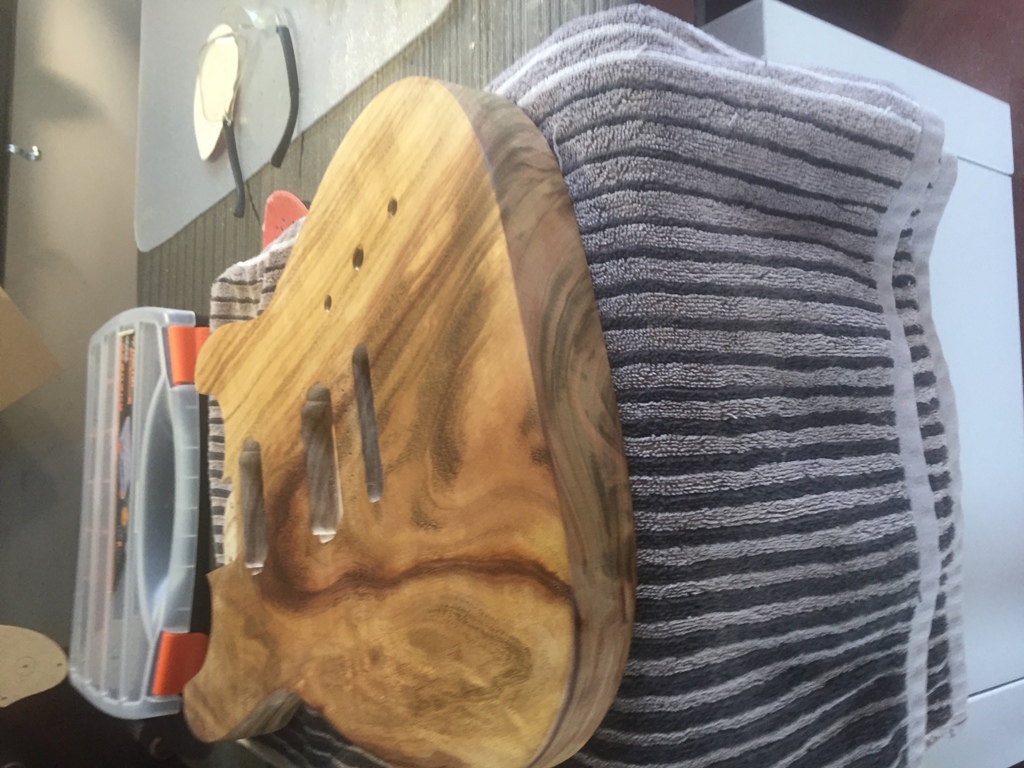

Once finished sanding applied a thin coat of TO.
Tony
Wow this is going to look great
Current build and status
First build = JB4 (Complete)http://www.buildyourownguitar.com.au...ead.php?t=6692
Second Build = Non PBG SG (Complete) http://www.buildyourownguitar.com.au...ead.php?t=6827
Third Build = Impatiently deciding
Nice work Tony it's looking a treat
Current Builds and status
scratch end grain pine tele - first clear coat on !
JBA-4 - assembled - final tweaks
Telemonster double scale tele - finish tobacco burst on body and sand neck
Completed builds
scratch oak.rose gum Jazzmaster - assembled needs setup
MK-2 Mosrite - assembled - play in
Ash tele with Baritone neck - neck pup wiring tweaks and play in
Am watching this build closely , as I plan my own scratchy. Its looking terrific
Awesome work and very nice wood grain
Sent from Android Nougat
Current Projects
#Planning 5 String Bass
Hi Tony, love how the grain looks with the light TO coat.
# 1 - EX-5 https://goo.gl/fQJMqh
# 2 - EX-1 https://goo.gl/KSY9W9
# 3 - Non PBG Tele https://goo.gl/W14G5g
# 4 - Non PBG J Bass https://goo.gl/FbBaFy
# 5 - TL-1AR GOTM Aug 2017 https://goo.gl/sUh14s
# 6 - MMB-4 Runner-up GOTM Oct 2018https://goo.gl/gvrPkp
# 7 - ES-1 Runner-up GOTM Aug 2018https://goo.gl/T9BEY8
