That looks amazing, especially the hand painted front!
That looks amazing, especially the hand painted front!
A tragic figure. I notice you decided not to use "Free Form Guitar" as you're Youtube introduction to Mr Kath.Originally Posted by darwinswrong
Current:
GTH-1
Completed:
AST-1FB
First Act ME276 (resurrected curb-side find)
ES-5V
Scratchie lapsteel
Custom ST-1 12 String
JBA-4
TL-1TB
Scratch Lapsteel
Meinl DIY Cajon
Cigar Box lap steel
Wishing:
Baritone
Open D/Standard Double 6 twin neck
free form is great however when I heard this https://www.youtube.com/watch?v=Z44ei3Q8e6k this man deserves so much more Guitar recognition.
Kath was a monster, for sure.
'As long as there's, you know, sex and drugs, I can do without the rock and roll.'
I read somewhere that he couldn't read or write music notation, but when he wrote songs he used to sing all the parts to each guy in the band. He had all the whole arrangement, including the brass in his head.
So is this the Tele you want to copy?
Current:
GTH-1
Completed:
AST-1FB
First Act ME276 (resurrected curb-side find)
ES-5V
Scratchie lapsteel
Custom ST-1 12 String
JBA-4
TL-1TB
Scratch Lapsteel
Meinl DIY Cajon
Cigar Box lap steel
Wishing:
Baritone
Open D/Standard Double 6 twin neck
Yeah that is the one . I want to do the stickers with a Pin up of my wife mind you and change the other ones as well
I am having a problem with the Wiring of my Strat , I do not understand the 5 way switch so I will probably replace it with a Standard 5 way switch as I cannot get the Bridge pick up wired . I changed the Pick ups with Texas Specials and I have Neck and Middle working but the tones are wonky and the bridge is not working
Hi Darwin, please post a couple of close up pics of the wiring we may be able to help. Resident wiring guru Weirdbits should be able to help. Is the bridge pup correctly earthed and makes a good join to the switch ? Might also help to please post the wiring diagram you are using. Cheers
Current Builds and status
scratch end grain pine tele - first clear coat on !
JBA-4 - assembled - final tweaks
Telemonster double scale tele - finish tobacco burst on body and sand neck
Completed builds
scratch oak.rose gum Jazzmaster - assembled needs setup
MK-2 Mosrite - assembled - play in
Ash tele with Baritone neck - neck pup wiring tweaks and play in

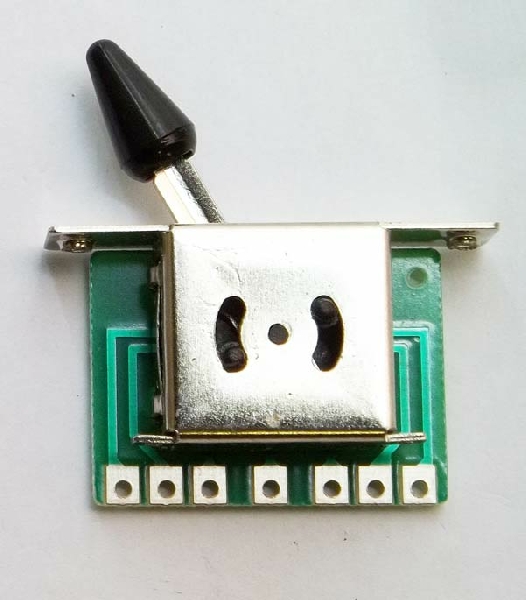

............1...2...3.....0.....4...5...6
1. Neck pickup
2. Middle pickup
3. Bridge pickup
0. Out to volume (common)
4. Neck tone
5. Middle tone
6. no connection
(or link 4 & 5 as neck/middle tone and connect to 6 for a bridge tone etc.)
Ground the switch via tab on the switch body, if not grounded by pickguard shielding.
Last edited by WeirdBits; 29-06-2016 at 03:06 PM. Reason: spacing
Scott.
Actually foun d out what the problem was bridge pick up wasn't connecting to the switch . So after re soldering the switch and wire I also did a Shim to the neck as the saddles were looking like stilts so I was able to lower saddles and it seems to be sounding fine
