  1. #1
    Yeah I'll stop at 4, the tin says 2 coats is sufficient, and it's supposed to be a satin finish anyway, which is what I was after. I'll have a close look and decide for sure then if I'm happy with it, but so far that's the plan.

  2. #2
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    good stuff Ian, how did you apply the floorseal oil, rag or brush ? Does it self level ?
    I'm sure you have added another product to DB's list of entry to the naughty room products !
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  3. #3
    I pretty much used the same technique DB used in his dingotone demonstration videos, just a small cloth folded up and dipped in, it gave a nice thin coat that seemed to level well, I just made sure there were no drips or ridges anywhere after each coat.

    Truth be told I'm surprised no one has tried this stuff out before, maybe it's a new product, or maybe it's the fact I'm a first time builder, I don't have any preconceived ideas of what I "should" be using.

  4. #4
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    good one Ian, sure its been out there for a while, just no one has looked into what's in it and not recognised it as a possible clear coat
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  5. #5
    GAStronomist stan's Avatar
    Join Date
    Aug 2013
    Location
    Geelong, Vic
    Posts
    5,290
    you're getting good result Ian, am following this one

  6. #6

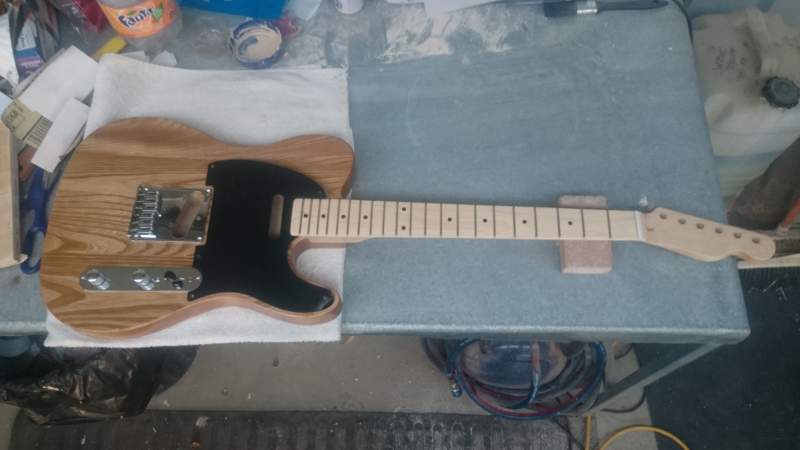

    It's been a nice warm week here, the finish is curing nicely, I will probably start fitting up the neck and bridge on Monday (got to love a public holiday!), but couldn't resist a sneak peek

    Click image for larger version.

Name:	2015-01-23 19.03.56.jpg
Views:	197
Size:	32.1 KB
ID:	1519

  7. #7
    With a quiet long weekend, I managed to get it finished over a couple of days.

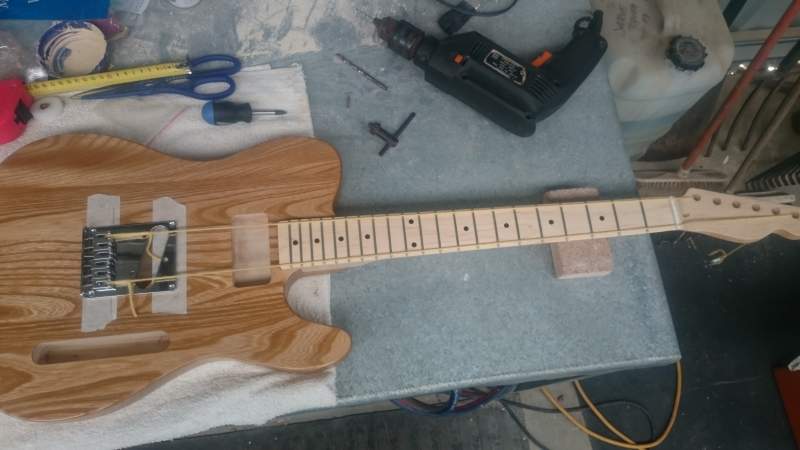

    Aligning the bridge
    Click image for larger version.

Name:	2015-01-25 16.11.31.jpg
Views:	196
Size:	37.5 KB
ID:	1557

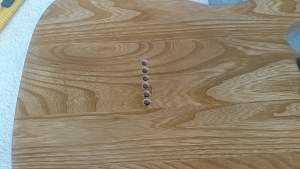

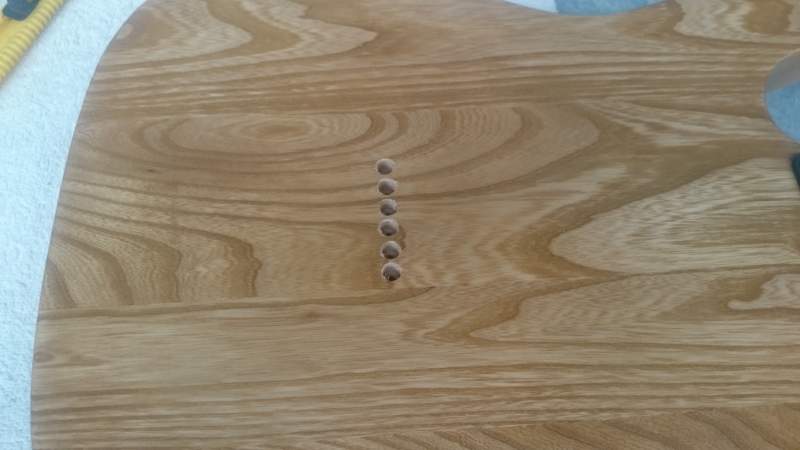

    Drilling string-thru holes
    Click image for larger version.

Name:	2015-01-25 16.41.02.jpg
Views:	188
Size:	32.2 KB
ID:	1558

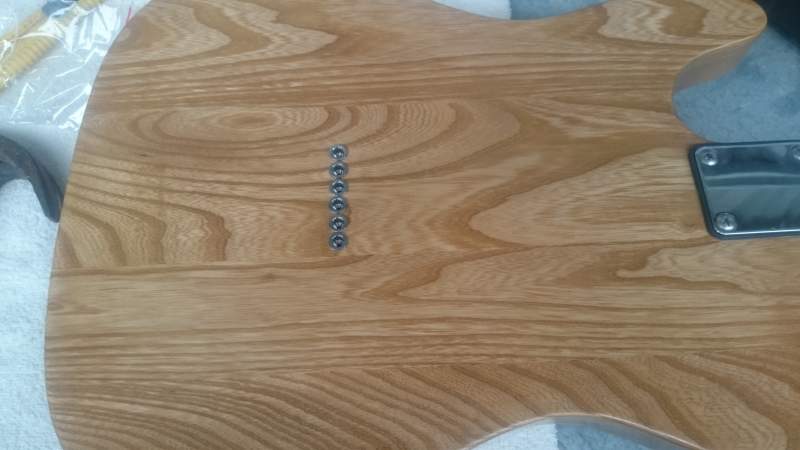

    Fitting ferrules...
    Click image for larger version.

Name:	2015-01-25 16.42.52.jpg
Views:	184
Size:	34.9 KB
ID:	1559

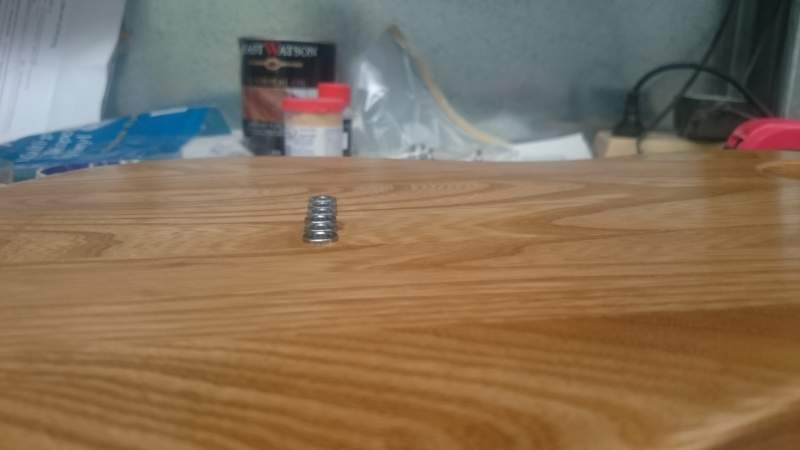

    ...and they are almost straight!
    Click image for larger version.

Name:	2015-01-25 16.43.02.jpg
Views:	195
Size:	23.1 KB
ID:	1560

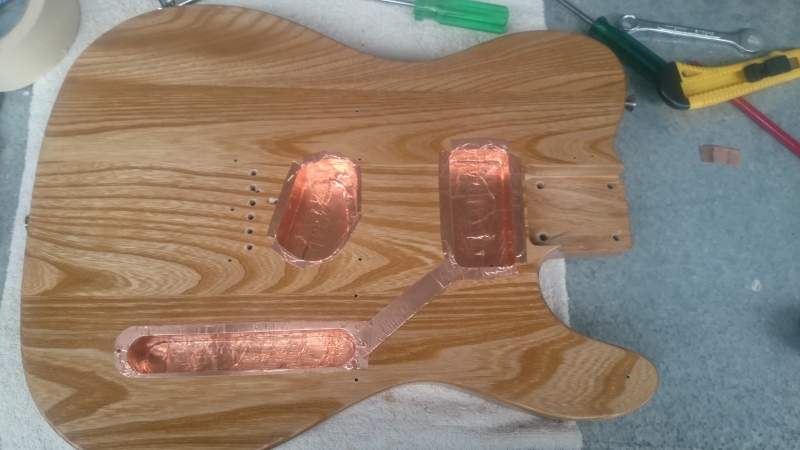

    Shielding cavities with copper tape
    Click image for larger version.

Name:	2015-01-26 15.26.39.jpg
Views:	186
Size:	37.3 KB
ID:	1562

  8. #8

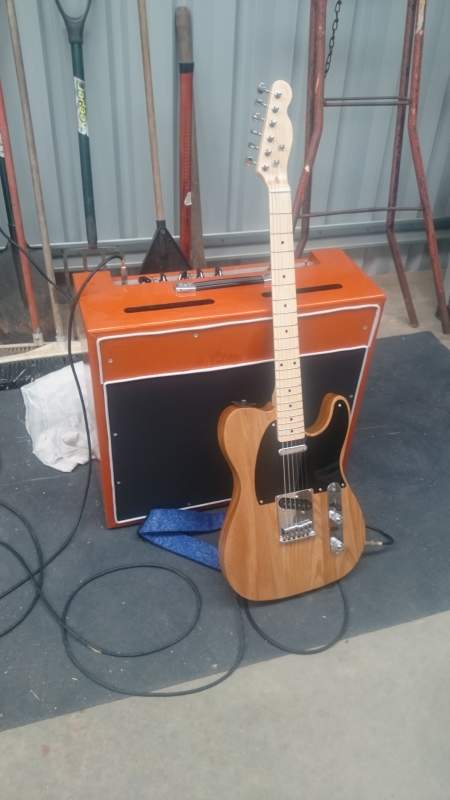

    And the result!
    Click image for larger version.

Name:	2015-01-26 16.44.44.jpg
Views:	195
Size:	33.1 KB
ID:	1565

    The good- plays great, nice and light, good tone and level of output

    The bad- the nut seems too far away from the first fret, so open strings are quite flat in relation to fretted notes. I imagine I will need to either offset the nut or file the slot closer to the bridge. There is still a bit of hum even with the cavities shielded, but its the same on my strat, so is probably a normal level for single coils. I slipped with the screwdriver when fitting the string trees and put a tiny dent in the headstock

    Overall pretty happy with it as a first attempt, I have learned a lot that I can apply to my next build, that's for sure

  9. #9
    Overlord of Music gavinturner's Avatar
    Join Date
    May 2013
    Location
    HOLGATE NSW
    Posts
    3,057
    Looks great Ian - that is some lovely grain! A great job. You must be very pleased with the outcome. A sweet, sweet Tele you have there!

    cheers,
    Gav.
    Last edited by gavinturner; 26-01-2015 at 04:44 PM.
    --
    Build #01: BC-1
    Build #02: ST-1
    Build #03: JR-1DC
    Build #04: ES-2V
    Build #05: ESB-4 (GOTM July 2014)
    Build #06: RC-1
    Build #07: MK-2
    Build #08: TLA-1
    Build #09: JR-1DC
    Build #0A: LPA-1
    Build #0B: STA-1 (GOTM April 2015)
    Build #0C: MKA-2
    Build #0D: LP-1M
    Build #0E: JB-1
    Build #0F: FS-1

    Find me:
    https://www.facebook.com/firescreek.guitars/
    http://www.guitarkitbuilder.blogspot.com.au/

  10. #10
    Banned bargeloobs's Avatar
    Join Date
    Mar 2014
    Posts
    1,700
    You gotta be happy with that result, she looks unreal mate. Bit odd about that nut position, might be a good opportunity to throw the plastic one away if you're making alterations.
