Bare bones no upgrades PBG build. Maybe?

[Marcel]

Yeah, a wiring change isn't a hardware upgrade.... I'd 2nd Weirdy's suggestion.

[ozzbike]

Yeah, a wiring change isn't a hardware upgrade.... I'd 2nd Weirdy's suggestion.

I think I shall. I have asked for weirdies guidance. Nice.

[wazkelly]

I have already posted how to do split coils with push pulls on these PUP's and very simple to do.

[ozzbike]

I have already posted how to do split coils with push pulls on these PUP's and very simple to do.

Trying to only use kit items on this build...no upgrades.

Read your thread....nicely done.

[FrankenWashie]

Factory did a great job on that body, it seems like it is only a 2 piece, the grain structure really matches up well.
I look forward to seeing where yours ends up! I'm still trying to manufacture a wider than normal radius block for the fretboard!

[ozzbike]

Factory did a great job on that body, it seems like it is only a 2 piece, the grain structure really matches up well.
I look forward to seeing where yours ends up! I'm still trying to manufacture a wider than normal radius block for the fretboard!

It is actually four piece...but really well done.

I have filed out the jack socket so the barrel actually fits....but mine is not long enough to really put the nut on...may have to do something else.

My effort at the control cavity cover recess is not as smooth as yours....but it does the job.

I made my neck joint a lot more gradual and tapered than the sudden change at the neck joint.

Bit embarrassed at my finish at the moment....hmmmm....letting it hang whilst I go back to work.

Will see what I have when get back home.

Golden teak inner...jarrah around the edge and mahogany stain inside the jarrah between that and the golden teak.

Due to the heat here today...the body has had four coats of Fine Buffing Oil and is bone dry....wow.

I have done one coat of Tru Oil on the neck....will put the decals on after working week is done. Then decide if I continue with Tru Oil or do the neck with Buffing Oil and wax.

[WeirdBits]

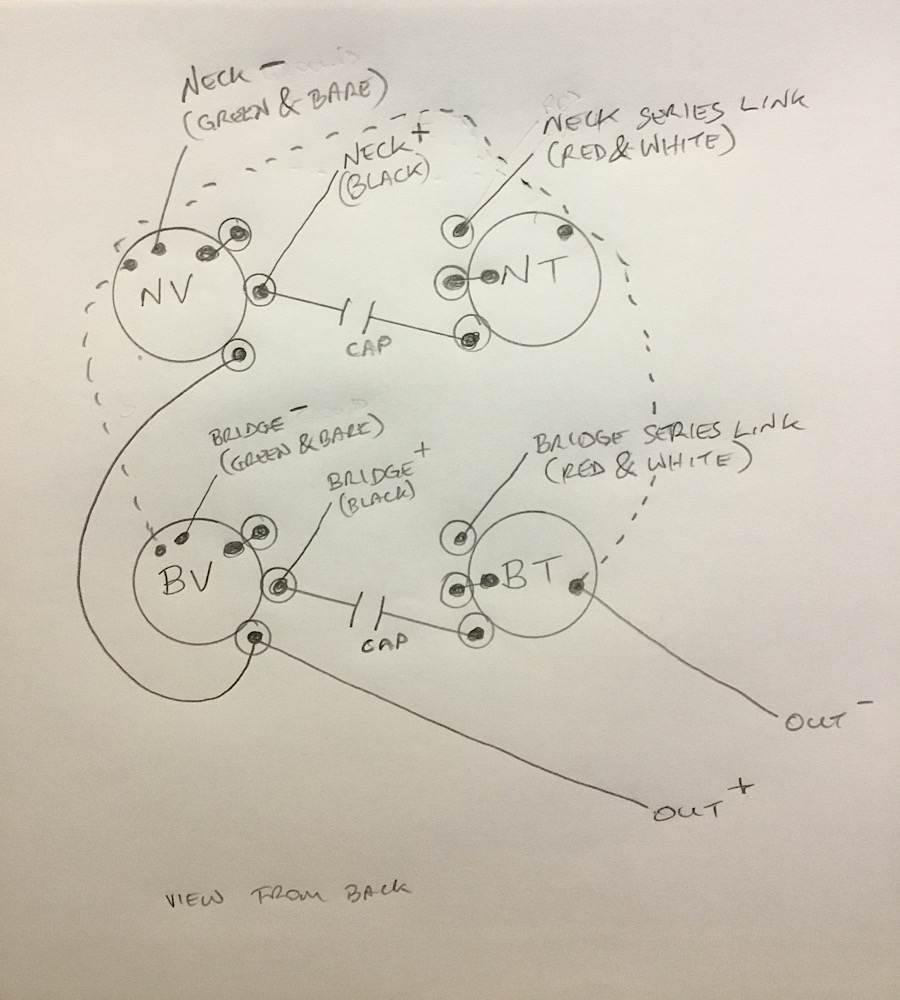

Short on time, so I hope a quick sketch will do...


Dotted line is the ground link between the pots, if you’re not connecting them via shielding. And, of course, you will still need a ground wire to your bridge (make certain the black bridge coating is conductive).

Let me know if anything is unclear.

The way it works is when the tone is on 10 it shorts the red/white series link to ground, giving you a single coil. As you turn it down to ~8 it increases the resistance between the series link and ground and gives you full humbucker (both coils). Then as you turn it down further it’s giving you a conventional tone control. Essentially, single coil should give you the ‘brightest’ most treble sound, then humbucker, then the normal tone taking out the treble down to zero..

[ozzbike]

Short on time, so I hope a quick sketch will do...


Dotted line is the ground link between the pots, if you’re not connecting them via shielding. And, of course, you will still need a ground wire to your bridge (make certain the black bridge coating is conductive).

Let me know if anything is unclear.

The way it works is when the tone is on 10 it shorts the red/white series link to ground, giving you a single coil. As you turn it down to ~8 it increases the resistance between the series link and ground and gives you full humbucker (both coils). Then as you turn it down further it’s giving you a conventional tone control. Essentially, single coil should give you the ‘brightest’ most treble sound, then humbucker, then the normal tone taking out the treble down to zero..

Once again...thank you. Nice idea....I think I will give it a try.

I have never thought about checking the conductivity of the bridge.

If I just gave it a smack with some sandpaper in the area it will contact the wire I would hope I would be good to go.

Back home tomorrow night.

I did not like the colours....going to sand back and just try Jarrah all over....may sneak some Mahogany highlights along the bevel and edge angle changes.

I have already made the wiring harness...and did chop the leads off the capacitors...may have to dig in the box of unused ones.

[wazkelly]

Black = Hot
Green & Bare = Earth
Red & White paired but can be separated to do coil splits or other funky things

[stan]

Cool project, waiting to see the results
