Drawing Guitar Plans

[Chuck11976]

Hi there. Can you please send me the PDF file for the Eagle?

[Woltz]

Hi there. Can you please send me the PDF file for the Eagle?

Send me a p.m. with your email address and I'll share my google drive with you.

Sent from my SM-G781B using Tapatalk

[wazkelly]

Hi Woltz, here are some Steinberger images to work with....they originally started out with the more rectangular brick shape that over time tapered out a bit, and at one stage they also did a small V shape too. That weird boomerang shaped thing was the original strap connection setup and could be a bit too hard to replicate and on subsequent models it was left off (ie. the Spirit models in recent times).
Thanking you in advance, Waz.

[kuanjb]

Hi Woltz, here are some Steinberger images to work with....they originally started out with the more rectangular brick shape that over time tapered out a bit, and at one stage they also did a small V shape too. That weird boomerang shaped thing was the original strap connection setup and could be a bit too hard to replicate and on subsequent models it was left off (ie. the Spirit models in recent times).
Thanking you in advance, Waz.

This thread might help:
https://r.tapatalk.com/shareLink?url...3&share_type=t

Sent from my LG-H930 using Tapatalk

[wazkelly]

Thanks kuanjb, that tapatalk thread helped heaps.

[Woltz]

Thanks kuanjb, that tapatalk thread helped heaps.

Is that body template that kuanjb found suitable? If you need it, I can easily enough put a neck onto that template as long as I have the nut width.

[wazkelly]

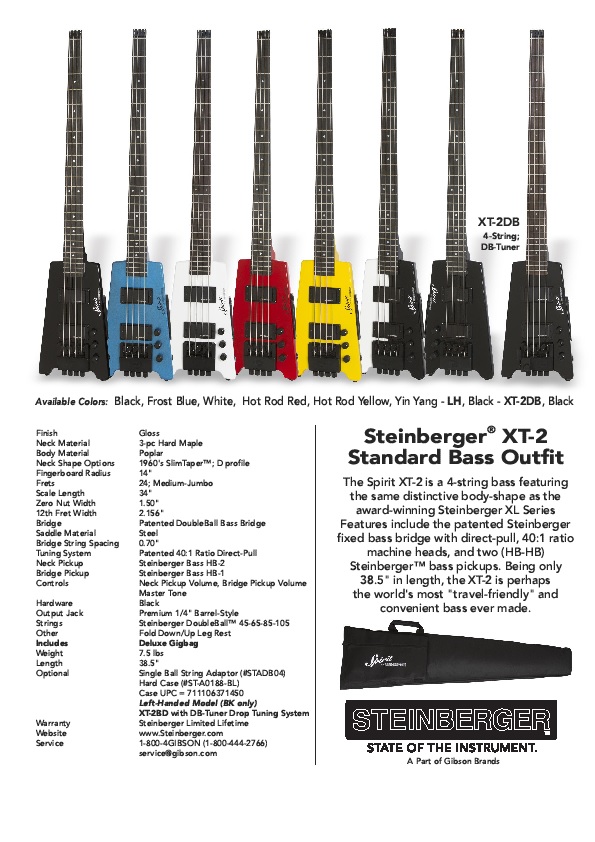

Hi Woltz, definitely a good starting point but if you are up for the challenge I have found the specs.....


Nut width 1.5" = 38 mm
Neck width at 12th fret 2.156" = approx 55 mm
String spacing at bridge 0.70" = 18 mm

Thanks, Waz

[Woltz]

Hi Woltz, definitely a good starting point but if you are up for the challenge I have found the specs.....


Nut width 1.5" = 38 mm
Neck width at 12th fret 2.156" = approx 55 mm
String spacing at bridge 0.70" = 18 mm

Thanks, Waz

Hi Waz,

Here is a draft plan (the scale pdf is too big to attach here so P.M. me your email address and I'll send it to you).



I ended up drawing the body because I realised on the other plan the layout and shape wasn't quite the same as the XT-2. This should be pretty close. The overall length in the information online is 38.5". My drawing is 38.43". The only way I can get it more accurate is if you can give me the dimensions of the headpiece and the bridge.

I also drew it as a neck through because you mentioned about possibly having a go at a neck through.

It goes without saying that you should print it and make up a MDF template first and layout your hardware on the template to make sure it all works. If the plan needs any alterations let me know and I'll make the required changes.

[wazkelly]

Hi Waz,

Here is a draft plan (the scale pdf is too big to attach here so P.M. me your email address and I'll send it to you).



I ended up drawing the body because I realised on the other plan the layout and shape wasn't quite the same as the XT-2. This should be pretty close. The overall length in the information online is 38.5". My drawing is 38.43". The only way I can get it more accurate is if you can give me the dimensions of the headpiece and the bridge.

I also drew it as a neck through because you mentioned about possibly having a go at a neck through.

It goes without saying that you should print it and make up a MDF template first and layout your hardware on the template to make sure it all works. If the plan needs any alterations let me know and I'll make the required changes.

Thanks Woltz.

Here is a link to potential bridge & nut/headstock components on eBay..... https://www.ebay.com.au/itm/4-String...7277%7Ciid%3A1

[Woltz]

Thanks Woltz.

Here is a link to potential bridge & nut/headstock components on eBay..... https://www.ebay.com.au/itm/4-String...7277%7Ciid%3A1

I've edited the body length on the plan slightly to accommodate that bridge and have the scale length line up on the centre lines marked on the saddles. I'll email the plans to you now.
