Loonhaunt Junior LP JRM 1DC Place Holder

[Loonhaunt]

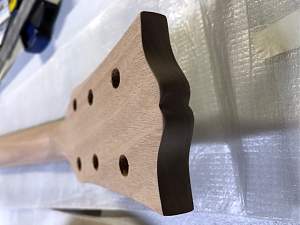

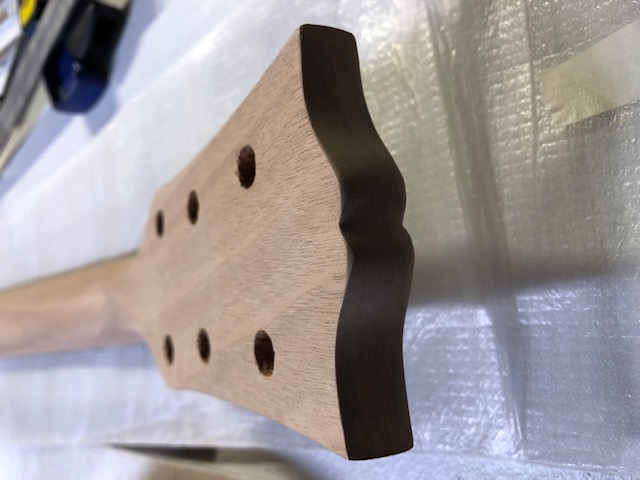

Started Doing things today: The Gibson esque headstock went better than I thought. I haven't been doing any wood working for a year so I was worried that what skill I had left me. Some is back:


The kits are so well made that it took and honest five minutes of 220 grit with the orbital to get the body ready for dye.
I am going to use a mix of Transfast Vintage Cherry, and Dark Mahogany mixed in water. I have to wait now for the dye to arrive. I thought the prep was going to take longer. I also need to wait for some tools I ordered to arrive so that I may begin work on the fretts that are pretty rough.

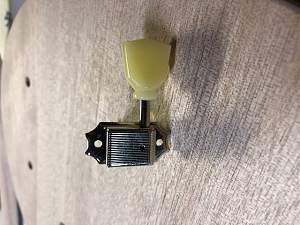

I was able to find some bushings at StewMac so I can get my Vintage Nickel Kluson Clones to work in my over bored headstock. I am super stoked about that.



So I have been a wooden boat builder for nearing 40 years, I have used Lot's of finishes, Man O War, Danish Oil, Tung Oil, Spar Varnish. I really like Tung Oil, I have built hundreds of Canoe and Kayak Paddles and Tung Oil has been my finish of choice. I have read much about using it or not on guitars, some folks say it deadens the tone, others say that on a solid body guitar that that is BS. So If you have the time I would like to hear what the people with guitar experience in this community think.

Later

[Andyxlh]

I found that the paddle on my AG kit wasn't quite long enough for a full size Gibson headstock so I eyeballed it and it came out ok. The most important thing is the shape is symmetrical

[FrankenWashie]

I will be grading your responses on a Bell Curve!

So, how did we do Teach?

[DarkMark]

I used the p90 dog ear pickup in the ES-5V kit. I’ve never used a p90 before so don’t have anything to compare it to, but I like it for the jazz songs I’m playing. I’ve been visiting my old guitar teacher once a month playing my ES-5V through a fender hot rod and on both occasions he’s told me I’ve got good tone.

[Loonhaunt]

Well thats good to hear!

[Fretworn]

If you put any finish on thick enough it will effect the tone. The trick is to keep the coats thin and don’t do too many. Obviously if you are wanting a highly polished finish you will need more, but a guitar doesn’t need the same level of protection as a paddle will.

[Loonhaunt]

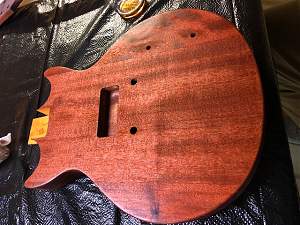

New Years Day I put my first Transfast water based dye on the body and neck. Today I rubbed in my second coat of tung oil. I am going to do one more coat of tung oil then I plan on setting the neck. I am nervous about the neck the frets are not set very well and seem to pop back out if I tap them in. I have one of the manufactured fret boards, I am not sure if it holds the fret wire in like a solid wood would? If any one can provide some insight I would appreciate that. I may have gone beyond my pay grade right out the box?


Transfast Light Mahogany I was looking for that SG red, looks pretty close I think?

[FrankenWashie]

There have been similar issues from time to time with various kits.

Three steps to rectify:
- Tap em back in (done but not successful)
- (Carefully) Wick some CA glue into the fretslot and then clamp or hold down the errant fret(s)
Both the above should be easily achieved for a first timer

Slightly more involved and you should use some fret board protectors and a proper fret puller if you do it
- Remove loose/popped frets and check radius, if matching or flatter, bend to a slightly tighter radius than your board and re seat.
- check tang depth and groove depth to make sure is not bottoming out, check tang width and slot width also (slot should be slightly skinnier)

You can adjust the frets manually with pliers, or a block with a hole in it that you can then bend the fret against the side of and gradually advance it up or down to get your desired radius. The key is itty bitty adjustments along its length.

Beyond that if you have more than 1 or 2 popped then it might be an email to Pitbull, or a dive headfirst into the wonderful world of fret board re-work! (Not recommended)

Hope this helps,

[Loonhaunt]

I haven't taken the masking tape from the fret board yet , I am still applying tung oil and steel wooling. I think I am about at coat 8? I am not really counting, just watching the grain begin to drown in the sheen of gloss. Tung oil is pretty wonderful stuff to work with if you are patient. I did switch from Watco to Formsby Oil. Formsby is thinner and dives into the grain much better that Watco.

I bought some headstock decals from Bobsdecals in the UK. They are beautiful...but after reading the instructions, something all good engineers do last, I saw that nitro will eat them. This after I just bought some pretty spendy gloss black and clear for the headstock. Now I have to re-thiink my process to utilize polyurethane. It seems a shame to use a product named "Rustoleum" on a musical instrument. So if any community members can provide some views about a good poly to apply to my headstock that is not a decal eater. I thank you in advance.

I will inject some pictures of the build later today.

Loon

[Andy40]

Nice work on that headstock shape. looks good. That Transfast Light Mahogany dye also looks the business

You could instead finish it with a oil? I know you can't get Tru Oil in California easily buy maybe Tung or Danish Oil? do a rub on finish

If I spray I use acrylic rather than Poly its a little less thick.
