Hi Souhail welcome man you're in the right place when your building you 1st these guys know their stuff, i don't think there's to much they don't know, that's a bit of a gap you got there can't help you much as haven't done a EX yet
Hi Souhail welcome man you're in the right place when your building you 1st these guys know their stuff, i don't think there's to much they don't know, that's a bit of a gap you got there can't help you much as haven't done a EX yet
My facebook
112 guitars done so far still going, 30 Starts, 24 Teles, 20 Les Pauls, 9 SGs, 8 Hollow Body, 21 Super Strats
Looking good buddy.
Personally i would have stained body and neck, added some layers of finish and then glued neck as these guitars are rather long and clumsy to flip around when finishing fully setup as you have done.
Not impossible, just a bit more care required to avoid runs and to maje sure it gets an even layer of finish all over.
Sent from my SM-A520F using Tapatalk
# 1 - EX-5 https://goo.gl/fQJMqh
# 2 - EX-1 https://goo.gl/KSY9W9
# 3 - Non PBG Tele https://goo.gl/W14G5g
# 4 - Non PBG J Bass https://goo.gl/FbBaFy
# 5 - TL-1AR GOTM Aug 2017 https://goo.gl/sUh14s
# 6 - MMB-4 Runner-up GOTM Oct 2018https://goo.gl/gvrPkp
# 7 - ES-1 Runner-up GOTM Aug 2018https://goo.gl/T9BEY8
Update:
neck unclamped.
And frets leveled
Waiting for the stain and oil to be delivered.
Ordered some crazy Seymour Duncan nazgul and sentinent pickups and a Seymour Duncan volume pot (less soldering)
Can't find replacement graphite nut this size doesn't exist anywhere
I have an old guitar with a similar bone nut. I'll try it.
Will update soon !!!
Last edited by Souhail; 29-08-2018 at 03:35 AM.
Should be a standard Gibson sized nut and therefore plenty of aftermarket options available.
Sent from my SM-A520F using Tapatalk
# 1 - EX-5 https://goo.gl/fQJMqh
# 2 - EX-1 https://goo.gl/KSY9W9
# 3 - Non PBG Tele https://goo.gl/W14G5g
# 4 - Non PBG J Bass https://goo.gl/FbBaFy
# 5 - TL-1AR GOTM Aug 2017 https://goo.gl/sUh14s
# 6 - MMB-4 Runner-up GOTM Oct 2018https://goo.gl/gvrPkp
# 7 - ES-1 Runner-up GOTM Aug 2018https://goo.gl/T9BEY8
43mm is the standard Gibson size, 41.7mm certainly isn't! I had/have a similar problem with my EX-1. The top of the nut that's fitted is slimmer than 43mm, and the string slots are closer together than on a standard 43mm nut. I've looked at using a 43mm nut and just filing the ends down (which you can do with some necks) but the strings would be too near the edges of the fretboard. So I've bought a 43mm bone blank, filed it down at the ends and need to cut slots in it using my nut files using the old nut as a template for the slot positions.
But I've temporarily lost the blank and the old nut, which doesn't help.
And you'll also need a set of nut files, which aren't cheap.
Pardon my ignorance as mine was ordered nearly 3 years ago and paid extra to have DB do a bone nut and full neck setup and assumed they would be a standard width.
# 1 - EX-5 https://goo.gl/fQJMqh
# 2 - EX-1 https://goo.gl/KSY9W9
# 3 - Non PBG Tele https://goo.gl/W14G5g
# 4 - Non PBG J Bass https://goo.gl/FbBaFy
# 5 - TL-1AR GOTM Aug 2017 https://goo.gl/sUh14s
# 6 - MMB-4 Runner-up GOTM Oct 2018https://goo.gl/gvrPkp
# 7 - ES-1 Runner-up GOTM Aug 2018https://goo.gl/T9BEY8
For some strange reason, they aren't. You'd think it would make sense for the factory to make the necks the same width and use a common nut size, but obviously not. (Which then leads to the question, why can't they make a proper thin Jazz Bass neck?)
Yeah, thin J Bass neck would be a winner and probably ordered by everyone doing a bolt on F style Bass.
Sent from my SM-A520F using Tapatalk
# 1 - EX-5 https://goo.gl/fQJMqh
# 2 - EX-1 https://goo.gl/KSY9W9
# 3 - Non PBG Tele https://goo.gl/W14G5g
# 4 - Non PBG J Bass https://goo.gl/FbBaFy
# 5 - TL-1AR GOTM Aug 2017 https://goo.gl/sUh14s
# 6 - MMB-4 Runner-up GOTM Oct 2018https://goo.gl/gvrPkp
# 7 - ES-1 Runner-up GOTM Aug 2018https://goo.gl/T9BEY8
It’s probably how they avoid the attention of IP lawyers........
Current:
GTH-1
Completed:
AST-1FB
First Act ME276 (resurrected curb-side find)
ES-5V
Scratchie lapsteel
Custom ST-1 12 String
JBA-4
TL-1TB
Scratch Lapsteel
Meinl DIY Cajon
Cigar Box lap steel
Wishing:
Baritone
Open D/Standard Double 6 twin neck

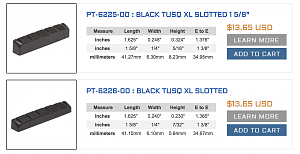

http://www.warmoth.com/Guitar/Necks/NutWidth.aspx
it's a nut size that exists "Vintage" my very old Yamaha has the same nut size, not a PG custom nut size.
i'll double (quadruple) check the size to be sure that it's a 1-5/8 (41,??mm) length and it's exactly the same size from E to E.
it looks like fender also uses this size on some of their guitars.
one of those two should be the exact size.
