Thread: JB-4 First build by Cade

  1. #11
    GAStronomist FrankenWashie's Avatar
    Join Date
    Jan 2016
    Location
    Glebe, NSW
    Posts
    5,666
    That may be tricky, if it's a solid glue line then it may also repel stain. You might need to sand a bit deeper and then skim fill with neutral timber mate or a tinted timber mate to cover and even out the surface. Not sure that using goof off or similar is advisable on a join like that.

    The alternative is, if it doesn't bug you too much, leave it and see what happens when you stain it. Its a kit build after all, some of these things can just be regarded as character marks.
    FrankenLab
    Hand crafting guitars, because Death Rays are expensive.


  2. #12
    Member cade711's Avatar
    Join Date
    Dec 2016
    Location
    Brisbane, Australia
    Posts
    133
    Thanks for the help mate. I'll weigh over the options until I complete all grades of sanding and decide then
    Current build and status
    First build = JB4 (Complete)http://www.buildyourownguitar.com.au...ead.php?t=6692
    Second Build = Non PBG SG (Complete) http://www.buildyourownguitar.com.au...ead.php?t=6827
    Third Build = Impatiently deciding

  3. #13
    Overlord of Music
    Join Date
    Aug 2012
    Location
    Brisvegas
    Posts
    3,356
    Using a small wire brush to break up the glue spot has worked for me in the past on a join like that. Then, yeah, timbermate and sand level. And do it before you complete sanding otherwise you'll have to do that area again.
    'As long as there's, you know, sex and drugs, I can do without the rock and roll.'

  4. Liked by: cade711

  5. #14
    As a last resort you could try lightly running a sharp blade along the glue line of the seam to create a slight 'v' channel, then give the area a layer of Timbermate. Sand back carefully so you don't dip that area and see how that goes. However, Timbermate doesn't always take the stain the same as the surrounding wood so a line like that may still be visible.
    Scott.

  6. Liked by: cade711

  7. #15
    Mentor Nickosaurus's Avatar
    Join Date
    Mar 2014
    Location
    Adelaide
    Posts
    1,077
    timber mate can be tinted with stain. Might help if you need to get creative. Wirebrush has always done the job for me though

  8. Liked by: cade711

  9. #16
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    10,547
    WeirdBits had the same thought I did. It's about the most controllable method I can think of, especially if you initially score along the glue line using a metal straight edge to guide you, then turn the blade sideways and scrape out a 'V' channel. A blade with a pointy end works best here, like a craft knife or scalpel.

  10. #17
    Member cade711's Avatar
    Join Date
    Dec 2016
    Location
    Brisbane, Australia
    Posts
    133
    Those in favour of Timbermate win.

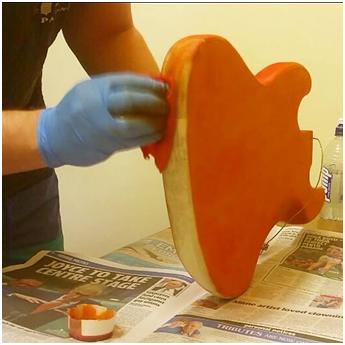

    I purchased a natural tint filler and applied it after scoring the glue line with a sharp blade. After drying I spent several hours this week hand sanding through my layers of paper from 180 to 400 I was happy with the body. Then onto the DT stain application yesterday.

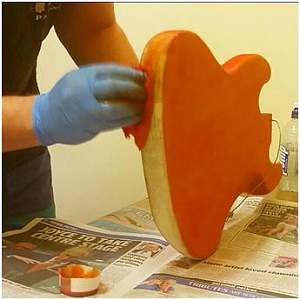

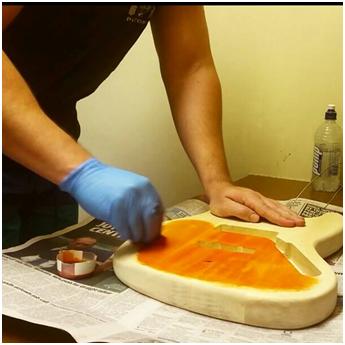

    Click image for larger version.

Name:	Toning.JPG
Views:	306
Size:	18.1 KB
ID:	15950Click image for larger version.

Name:	Toning back.JPG
Views:	282
Size:	18.0 KB
ID:	15951

    The back is no where near as solid colour as this picture above looks, that's just the lighting. My application talent is far from great so my result isn't exactly a pro job but I like it since it gives it a rough hand finished look instead of a manufactured feel. Some of the timbermate took the stain, other bits not so much likely due to my application.
    The Bushfire Sunrise looks exactly that, very impressed with the way this colour settled in, the rough job I did when applying has also left what I think looks kind of like flames.

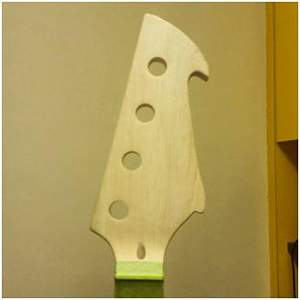

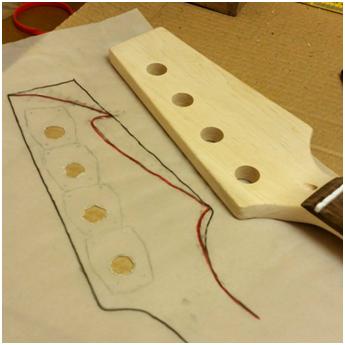

    This then inspired me a bit to change the theme of my bass to match the fire effect so I've shaped out my headstock to be a little more 'flame' style also.

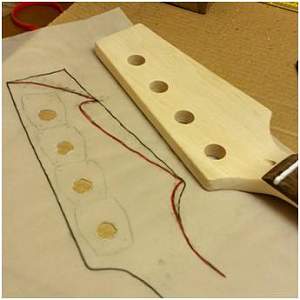

    Click image for larger version.

Name:	Neck Layout.JPG
Views:	287
Size:	15.7 KB
ID:	15952Click image for larger version.

Name:	Neck Shaped.JPG
Views:	295
Size:	10.2 KB
ID:	15953

    Now to hang and dry for the week!
    Current build and status
    First build = JB4 (Complete)http://www.buildyourownguitar.com.au...ead.php?t=6692
    Second Build = Non PBG SG (Complete) http://www.buildyourownguitar.com.au...ead.php?t=6827
    Third Build = Impatiently deciding

  11. #18
    Member cade711's Avatar
    Join Date
    Dec 2016
    Location
    Brisbane, Australia
    Posts
    133

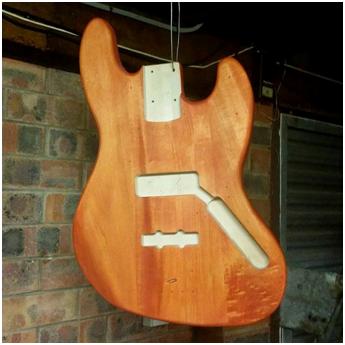

    More pics

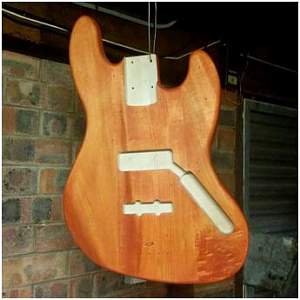

    Click image for larger version.

Name:	Body Drying.JPG
Views:	312
Size:	19.0 KB
ID:	15954Click image for larger version.

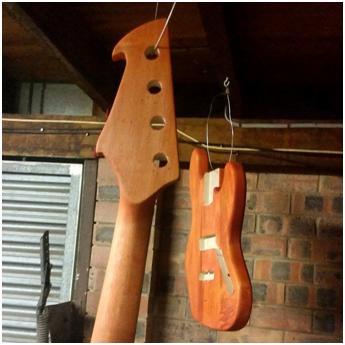

Name:	Both drying.JPG
Views:	305
Size:	20.2 KB
ID:	15955
    Current build and status
    First build = JB4 (Complete)http://www.buildyourownguitar.com.au...ead.php?t=6692
    Second Build = Non PBG SG (Complete) http://www.buildyourownguitar.com.au...ead.php?t=6827
    Third Build = Impatiently deciding

  12. Liked by: wazkelly

  13. #19
    The Dingotone colours often develop/intensify over several days as it dries between coats, so you may see more figure in the wood appear over time. Be flexible with your expected number of coats based on how the colour progresses. Looks good.
    Scott.

  14. #20
    Member cade711's Avatar
    Join Date
    Dec 2016
    Location
    Brisbane, Australia
    Posts
    133
    Thanks, at this stage I don't aim to add more colour coats as I wouldn't want too dark of an orange.
    I like it as is though if it develops/intensifies more as it dries this week is totally fine and to be expected as you say. Will be interesting to see the intensifying coat next weekend either way.
    Current build and status
    First build = JB4 (Complete)http://www.buildyourownguitar.com.au...ead.php?t=6692
    Second Build = Non PBG SG (Complete) http://www.buildyourownguitar.com.au...ead.php?t=6827
    Third Build = Impatiently deciding
