Thread: D.I.Y A/B Box.

  1. #11
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,508

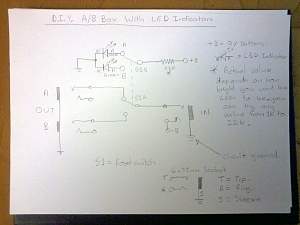

    Here we go, here's the schematic diagram for the D.I.Y. A/B Box with the added LED Indicators:

    Click image for larger version.

Name:	AB Box Schematic_resized.jpg
Views:	1867
Size:	130.5 KB
ID:	9215




    I've arranged things so that the power to the LED indicators is disconnected by unplugging the lead from the input socket.


    I might see if I can add the LEDs to my A/B Box build, that was a great idea Stan....cheers mate.
    Last edited by DrNomis_44; 03-03-2016 at 08:23 PM.

  2. #12
    Moderator Brendan's Avatar
    Join Date
    Apr 2013
    Location
    Perth, WA
    Posts
    3,444
    I built an active one a while ago with LED's - instructions are here: http://www.generalguitargadgets.com/...ab-switch-box/. That said, Dr - your one looks like a whole lot less moving parts and straightforward. May give it a crack in a small enclosure.

    Build diary (ish) here: http://www.buildyourownguitar.com.au...ead.php?t=2481

  3. #13
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,508
    Quote Originally Posted by Brendan View Post
    I built an active one a while ago with LED's - instructions are here: http://www.generalguitargadgets.com/...ab-switch-box/. That said, Dr - your one looks like a whole lot less moving parts and straightforward. May give it a crack in a small enclosure.

    Build diary (ish) here: http://www.buildyourownguitar.com.au...ead.php?t=2481


    Cheers, let me know what you think once you've finished your build, I was trying to keep the design as simple as possible so that it was really easy to build for those members new to building pedals, sometimes simple designs can be very effective.


    Just checked out your build diary and your design looks pretty cool too, there's probably lots of different ways you could design an A/B Box.


    I used a 3PDT Metal Footswitch in my build, I tend to use a lot of them in my pedal builds since I've had very few fail on me, they've been very reliable.
    Last edited by DrNomis_44; 03-03-2016 at 10:24 PM.

  4. #14
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,508
    I just found another design for an A/B Box which I drew on a sheet of A4 paper, I almost forgot it existed, the design is a bit more elaborate compared to the first design I posted, would you guys be interested in me posting a pic of the wiring diagram along with a schematic?

  5. #15
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    go for it Doc, sure someone will find the diagram useful
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  6. #16
    GAStronomist stan's Avatar
    Join Date
    Aug 2013
    Location
    Geelong, Vic
    Posts
    5,290
    yes please and one with LEDs too

  7. #17
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,508
    Quote Originally Posted by stan View Post
    yes please and one with LEDs too

    Yep, it has LEDs included, the design is a bit different to the first one, I'll draw up the schematic first and then post a pic of both the wiring-diagram and the schematic so stay tuned.


    Here we go, here's the schematic and wiring diagram for the more elaborate AB Box:

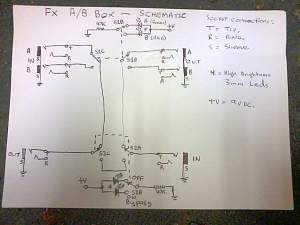

    First here's the schematic:


    Click image for larger version.

Name:	FX AB Box 1_resized.jpg
Views:	292
Size:	145.7 KB
ID:	9341




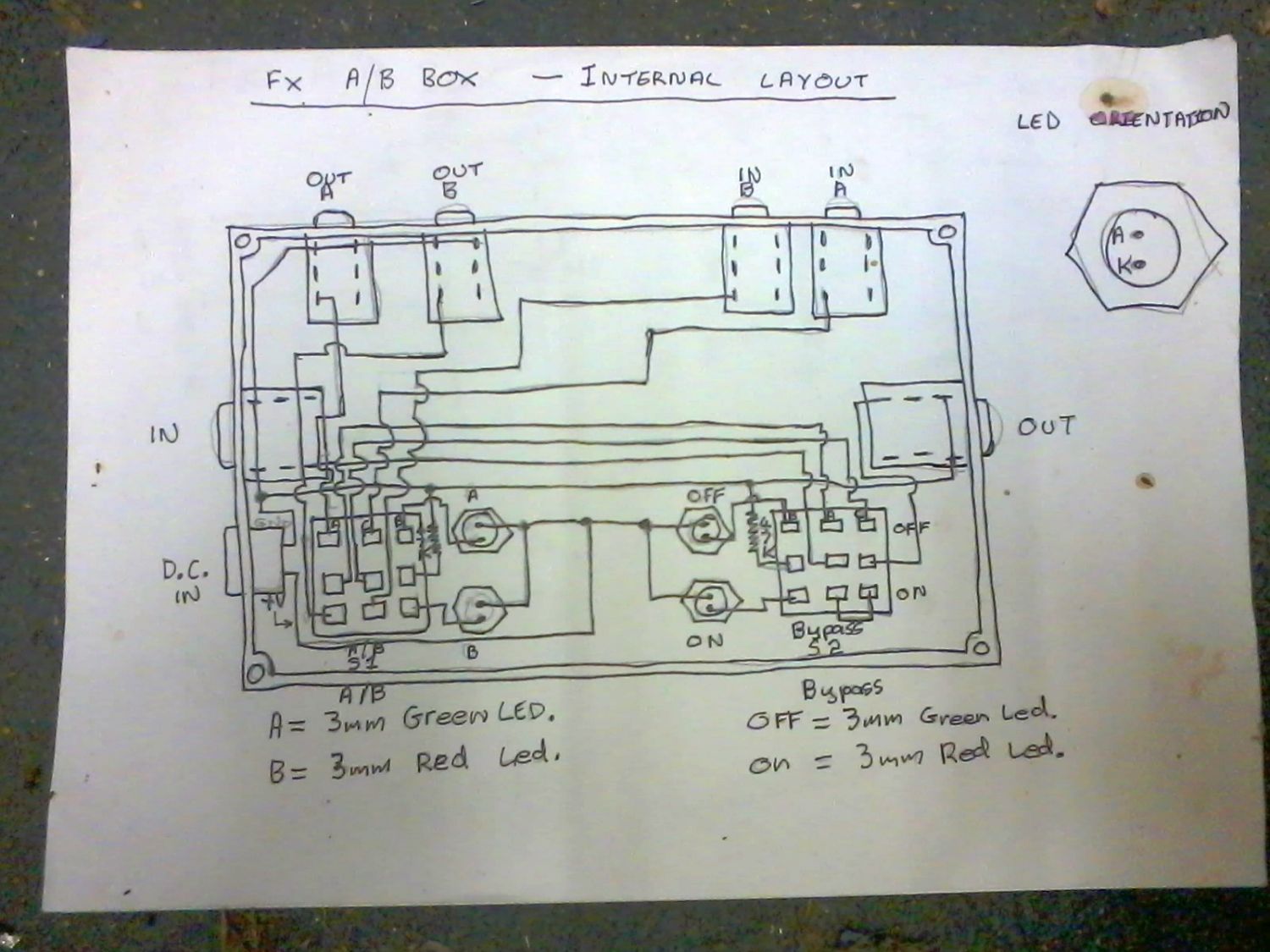

    And here's the wiring diagram:


    Click image for larger version.

Name:	FX AB Box 2_resized.jpg
Views:	301
Size:	186.1 KB
ID:	9342



    With this design you can switch between two different FX pedals, or, you can bypass them completely so that they are out of your signal-chain.
    Last edited by DrNomis_44; 08-03-2016 at 05:03 PM.

  8. #18
    GAStronomist stan's Avatar
    Join Date
    Aug 2013
    Location
    Geelong, Vic
    Posts
    5,290
    Very cool, thanks
