Thread: Lyn #13 - MMB-4 (Fretless)

  1. #11
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    Robin, what can I say other than to echo Woks comment.. You are way too hard on yourself!

    There is nothing wrong with the HS shape, it has beautiful organic lines and IMHO will sit very nicely with the body shape.

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....

  2. #12
    Overlord of Music andrewdosborne's Avatar
    Join Date
    May 2014
    Location
    Sydney, NSW
    Posts
    2,751
    Nice work Rob, I'll be following this one closely

    Sent from my GT-I9506 using Tapatalk
    Current Projects
    #Planning 5 String Bass

  3. #13
    Mentor robin's Avatar
    Join Date
    Feb 2013
    Location
    Brisbane
    Posts
    1,513
    @DB
    Thanks mate, we are always our worst critic.

    @Andrew
    Thanks mate.

  4. #14
    Mentor robin's Avatar
    Join Date
    Feb 2013
    Location
    Brisbane
    Posts
    1,513
    Fret not, it’s time to get rid of those pesky speed bumps.

    Again I had the choice of easy (just pull the frets out) or hard……. So I bought this fingerboard from DB…………

    I decided that for a real challenge to build (and play), I wanted a clean-skin fingerboard. I’m an idiot, no fret markers for me! I am going old school.

    After heaps of research Plan A was to use an ordinary steam iron to heat up the glue binding the fretboard to the neck and “just” pries it off. It sounded so simple. I found that after about half an hour of resting the iron on the frets that there was no sign that the glue had started to melt. It certainly was hot enough, the burns on my hand will attest to that.

    Plan B was to still use the iron but also use some brute force. I needed something with an edge to start the delaminating process. I was using a paint scraper, so I got the oil stone out and put an edge on the blade and VERY carefully positioned it on the glue line between the fretboard and the neck. (I was working from the heel end of the neck as I figured that any mistakes would be less noticeable there rather than the nut end). I could still not push it in by hand, so started to tap it with a mallet. I was being careful to ever so slightly angle the paint scraper towards the fretboard so if I had a mishap I would damage the fretboard and not the neck.

    Well after about 2 1/2 hours I got the fretboard off. When I started I was using very gentle taps, but as I gained confidence, and got a feel of how the process worked I began to get a bit more aggressive with the “taps”. Having learnt by doing, I would imagine that this job could easily be done in under 2 hours

    Next step will be rough cutting the fingerboard to size and glue it to the neck.

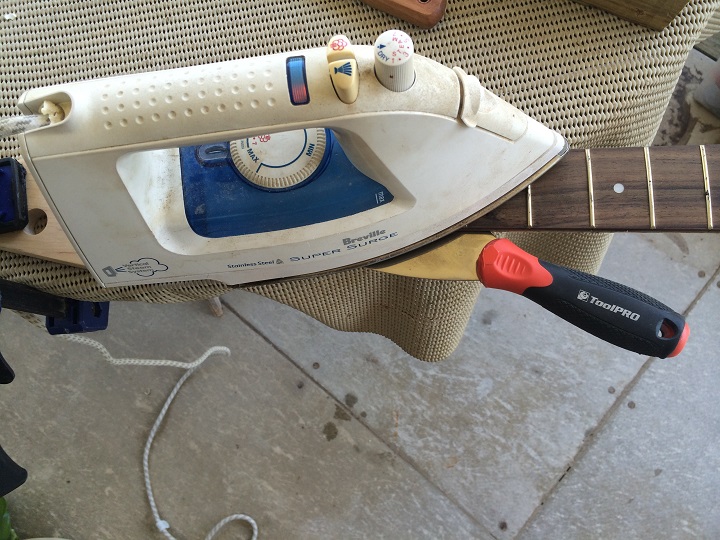

    Pic 1 – Iron on the fretboard, and we’re ready to go – NB it must be a steam iron set on the highest setting.

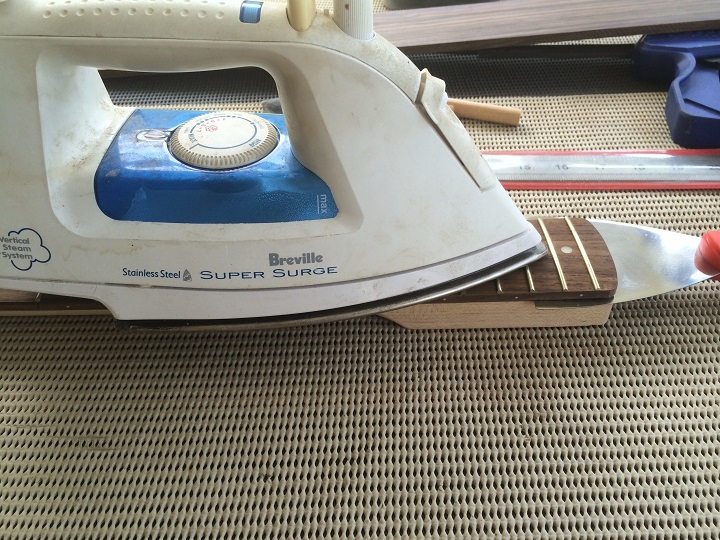

    Pic 2 – After over half an hour this is as far as I got!

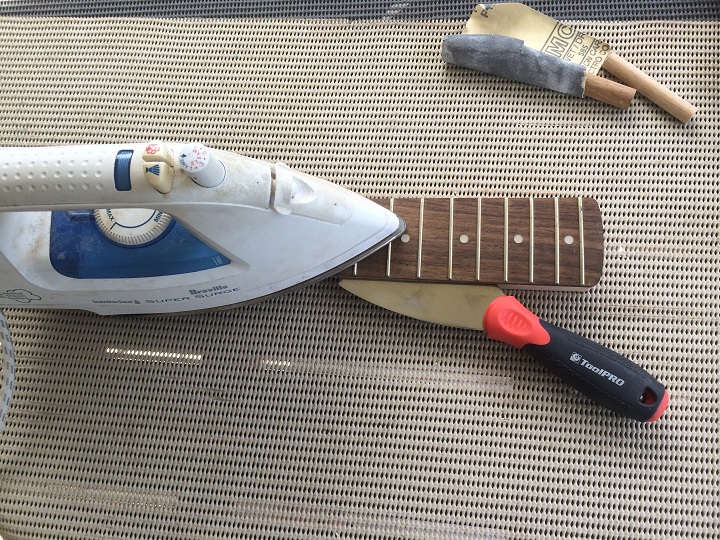

    Pic 3 – Another half hour or so and I had got about 5 frets done.

    More to come…………….
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	002 (2).JPG
Views:	138
Size:	240.5 KB
ID:	7821   Click image for larger version.

Name:	003 (2).JPG
Views:	148
Size:	151.1 KB
ID:	7822   Click image for larger version.

Name:	016.JPG
Views:	139
Size:	208.7 KB
ID:	7823

  5. #15
    Mentor robin's Avatar
    Join Date
    Feb 2013
    Location
    Brisbane
    Posts
    1,513
    ………..

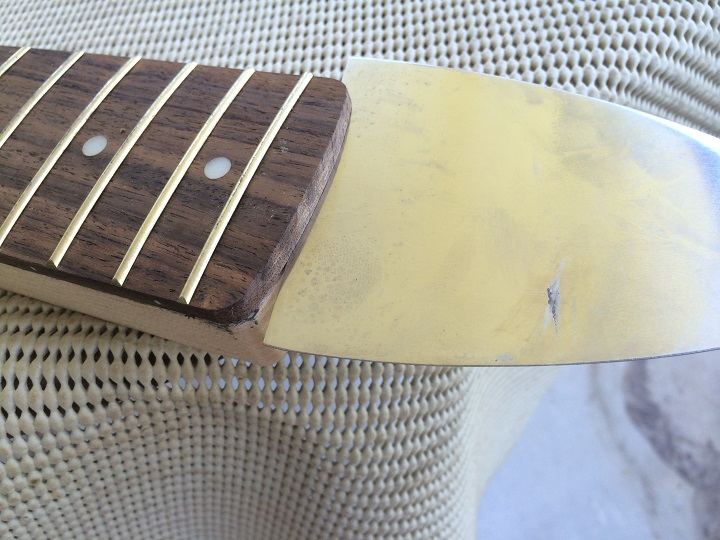

    Pic 1 – Once I had delaminated the first 5 frets I then had to angle the scraper and attack from either side.
    Pic 2 - By about this stage my “taps” were getting quite brutal but I could “feel” that the glue was letting go a little easier.

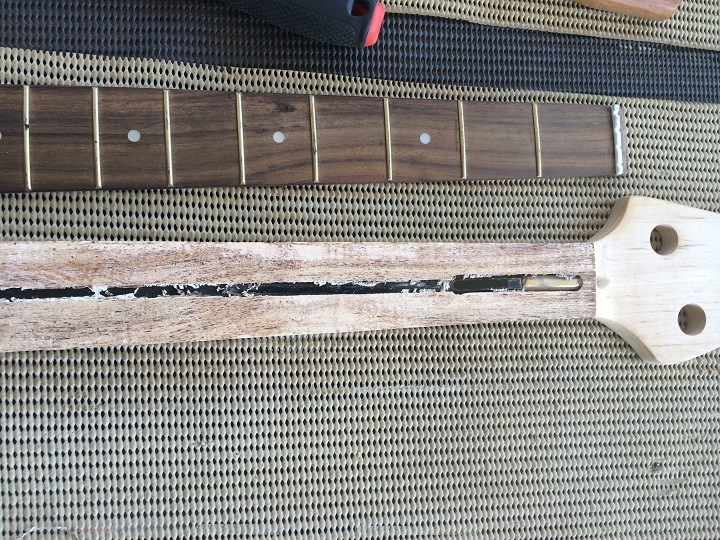

    Pic 3 – Then with a few last taps it was done.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	012.JPG
Views:	141
Size:	272.7 KB
ID:	7824   Click image for larger version.

Name:	007 (2).JPG
Views:	145
Size:	175.0 KB
ID:	7825   Click image for larger version.

Name:	009 (2).JPG
Views:	163
Size:	265.2 KB
ID:	7826

  6. #16
    GAStronomist wazkelly's Avatar
    Join Date
    Aug 2015
    Location
    Caloundra West, Sunshine Coast Qld
    Posts
    6,631
    Pretty ballsy stuff Robin. I had a fretless mid 80's that had been de-fretted and maple strips inserted which meant finding the notes was much easier, particularly playing live under a constantly changing light show. Without fret lines it would have been so much harder in the near darkness. If it was my main axe suppose after a while you learn exactly where to be as your ear and bad looks from fellow band mates surely let you know when hitting a bung note.

  7. #17
    Mentor robin's Avatar
    Join Date
    Feb 2013
    Location
    Brisbane
    Posts
    1,513
    Hey Wazza, it won't be my main bass, and is just for a bit of fun. She will have side dots, just nothing on the front of the fingerboard. But I think it will be great for developing a good ear for pitch.

    But I fully expect to notice that everybody else will be out of tune when I'm playing. lol.

  8. #18
    Mentor
    Join Date
    Aug 2015
    Location
    Nowra, NSW
    Posts
    534
    Quote Originally Posted by robin View Post
    @Woks
    Hey Warren, thanks for the encouragement mate.

    The only time I can get away from the damned Black Dog is when I'm building, so here we go again. I've wanted a fretless for years, now is a good a time as any.

    HS veneer? I just got some cheap maple off fleaBay. Its only .4mm thick!! but should do the trick.

    Stain? Au-naturel. I'm hoping that it will bounce nicely off the black scratch-plate I've bought. No real grain to speak of in the body, but I will grain fill with a dark Timbermate hopefully it will make something pop.

    @Brendan
    Thanks Brendan, keeping my fingers crossed.

    @Gavin
    Thnks Gav, I thought that the headstock looked a bit long for just 3 tuners, but I had to do that to avoid the plug.

    @Shazz
    Thanks Shazz, nothing too special about this one except for being fretless. I just hope I can learn to play her properly.

    @Nick
    Hey Nick, I have already started the defret, details should be in the next post.

    Thanks Guys and Gal, the support form this Forum never ceases to amaze me. I am so blessed to be a part of it.

    Haha love the 'Guys and Gal'. I'm still excited

  9. #19
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    big move to remove the fingerboard Rob, good job, 2.5 hours is a big job.
    What is the fingerboard from DB, another rosewood one or maple ?
    my fretless guitar that is 3/4 built is the same, just side dot markers, the grain in the jam wood fingerboard was too nice to put markers in !
    You can always use the fingerboard you removed on another build !
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  10. #20
    Excellent Rob, poetry in motion.
    Scott.
