That's a nice looking guitar Jack has there.
That's a nice looking guitar Jack has there.
Current:
GTH-1
Completed:
AST-1FB
First Act ME276 (resurrected curb-side find)
ES-5V
Scratchie lapsteel
Custom ST-1 12 String
JBA-4
TL-1TB
Scratch Lapsteel
Meinl DIY Cajon
Cigar Box lap steel
Wishing:
Baritone
Open D/Standard Double 6 twin neck
And defintly powder coated mechanics
Well i ll give it a try !
Hey Ami, I have a few of the PBG supplied Bigsby style trems here.
Would be happy to post one out to you to experiment on.... Would be a real pain the backside if it doesnt work and you end up with a manked trem
Email me your postal address to dingobass at pitbullguitars dot com dot au and I will send you one.
There is always a workaround for glitches, mistakes and other Guitar building gremlins.....
Wouhou, my guitar has been dispatched yesterday, can t wait!
Dingo, i sent you a mail
Guitar finally managed to cross my door !

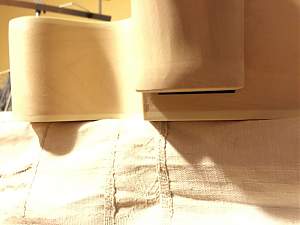

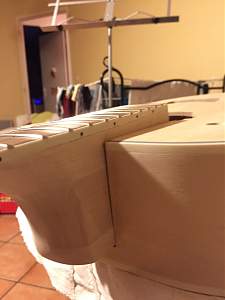

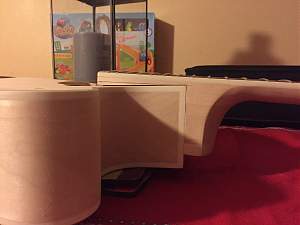

Time for some pics!
I must say i m really happy to start this journey but also ...
A bit worried about that neck dry fitting...
As it is my first build, i don t know if it's a common gap or not but i m sure i will have to work on those gaps ...
Hi Amid, kit looks great other than the neck fit. Looks like you will need to sand down under the fingerboard around 20th fret to the end of the fingerboard. Draw a pencil line on both sides from the existing corner to the end of the fingerboard so the fingerboard will lye flat on the body, and that should eliminate the gap on the front of the body neck join.
Once you get the fingerboard sitting flat on the body then you may have to glue thin veneer on each side of the neck pocket to make it a tight fit.
Does that make sense ?
The first picture shows the underneath end of the fingerboard is too proud causing the gaps
Current Builds and status
scratch end grain pine tele - first clear coat on !
JBA-4 - assembled - final tweaks
Telemonster double scale tele - finish tobacco burst on body and sand neck
Completed builds
scratch oak.rose gum Jazzmaster - assembled needs setup
MK-2 Mosrite - assembled - play in
Ash tele with Baritone neck - neck pup wiring tweaks and play in
Yeah i see except i think i may just have to start sanding where the perpendicular angle is (wich doesn t end perpendicular at all).Originally Posted by wokkaboy
The other side just slide in the pocket so sanding won t help.
Hi Amid, once you get the angle of the neck heel/fingerboard same as the body neck pocket it should fit snug and the heel bottom should touch the pocket. I think you understand now what to do
Current Builds and status
scratch end grain pine tele - first clear coat on !
JBA-4 - assembled - final tweaks
Telemonster double scale tele - finish tobacco burst on body and sand neck
Completed builds
scratch oak.rose gum Jazzmaster - assembled needs setup
MK-2 Mosrite - assembled - play in
Ash tele with Baritone neck - neck pup wiring tweaks and play in

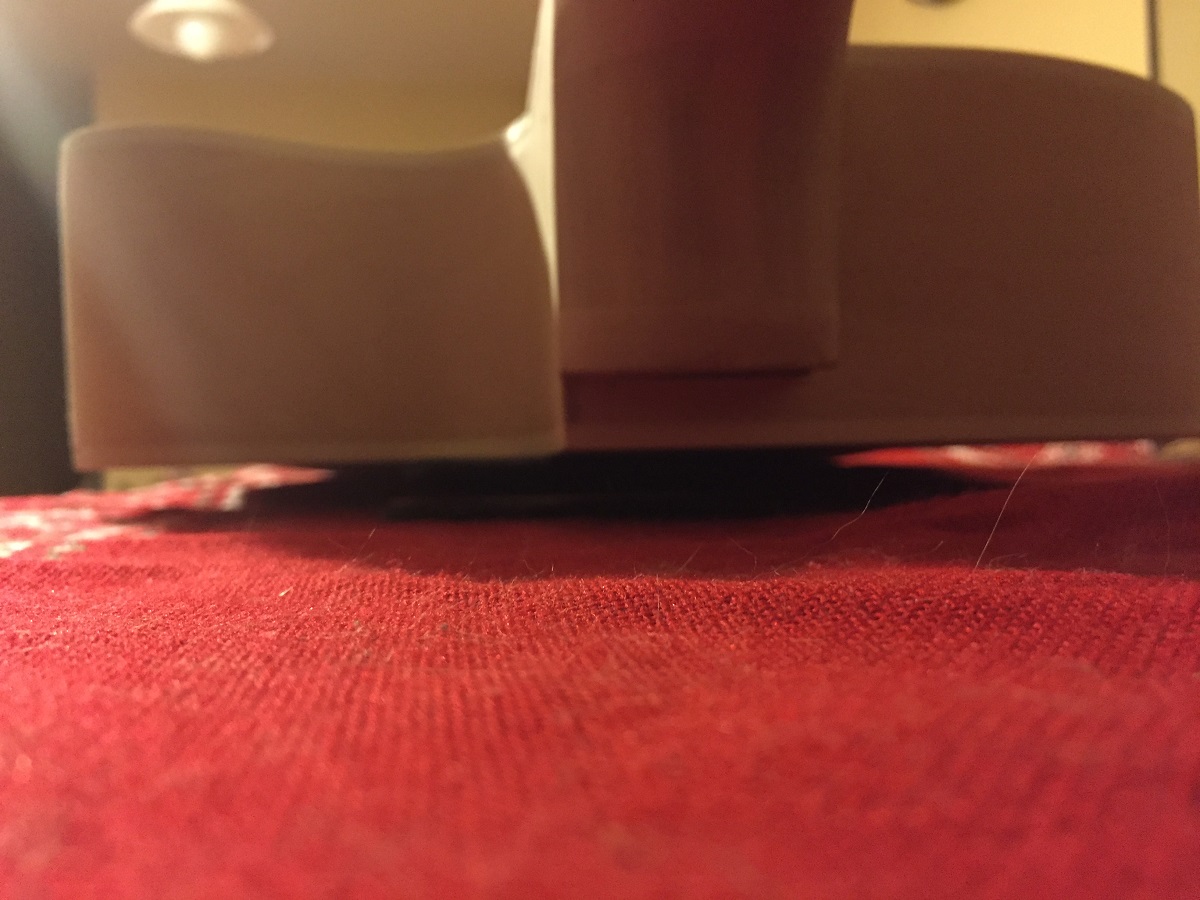

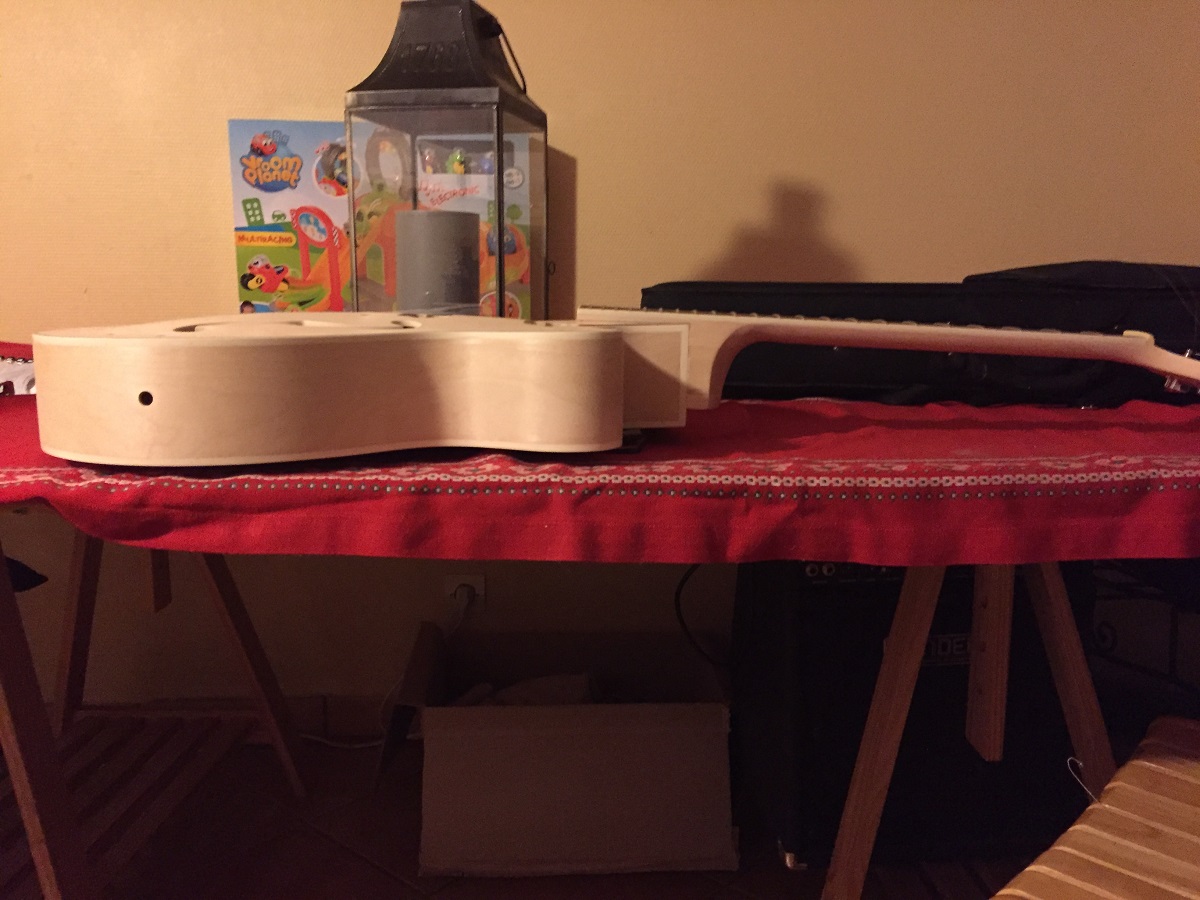

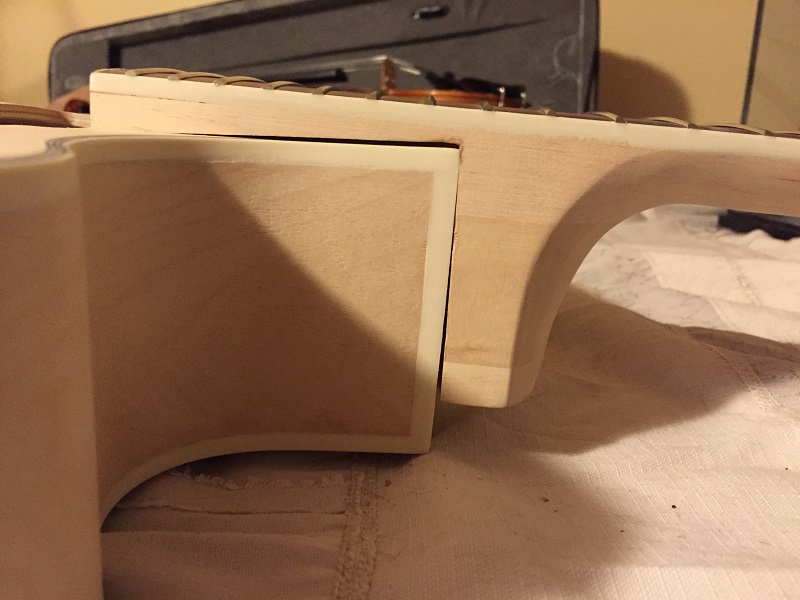

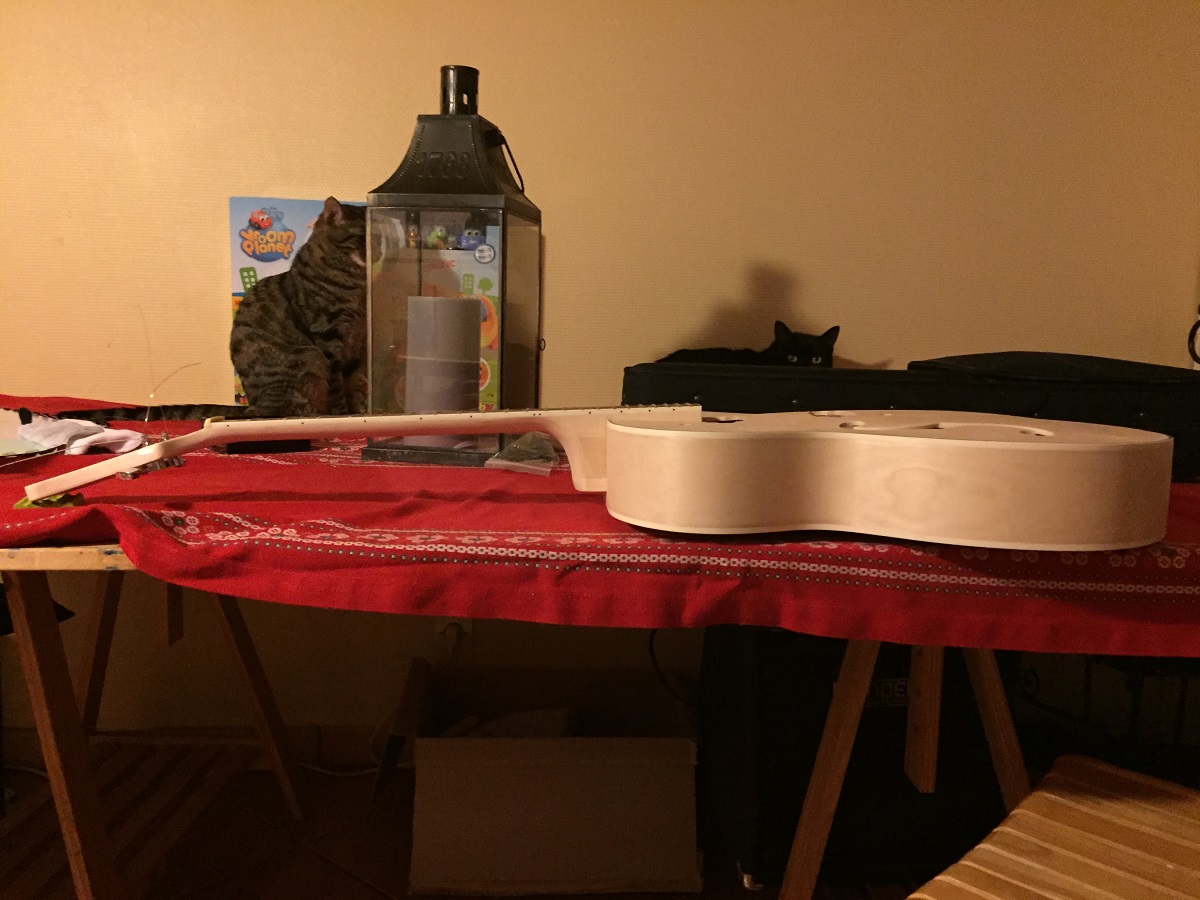

Well i m still lost about that neck fitting....
I don t want to do any mistake so i sand micrometters after micrometters but still it doesn t seem to fit the way it should be... On one hand i never saw a guitar with a neck pointing that way and on the other hand i watched all builds of GR-1SF and they all seems to have that "not square" routing cavity on the neck... So where is the problem?
I don't want to start anything else before that neck is properly fitted to me so i m kinda stuck.
Amid my neck fit looked average initially however is now looking really good as I've taken the time to ensure it is right in the slot where it should be. It took some effort to get it there without clamps.
