    Rough cutting 2mm clear acrylic to shape (coping saw again). I need the template to be on the back of the pickguard plastic to enable one of the later steps, so I do that from the start. The risk is that if you're not careful you can scratch your nice new soon to be pickguard face before you've even cut it to shape and taken the wrapping off.
    Click image for larger version.

Name:	TL_1TB_290_rough_cut_clear.jpg
Views:	280
Size:	141.9 KB
ID:	18021

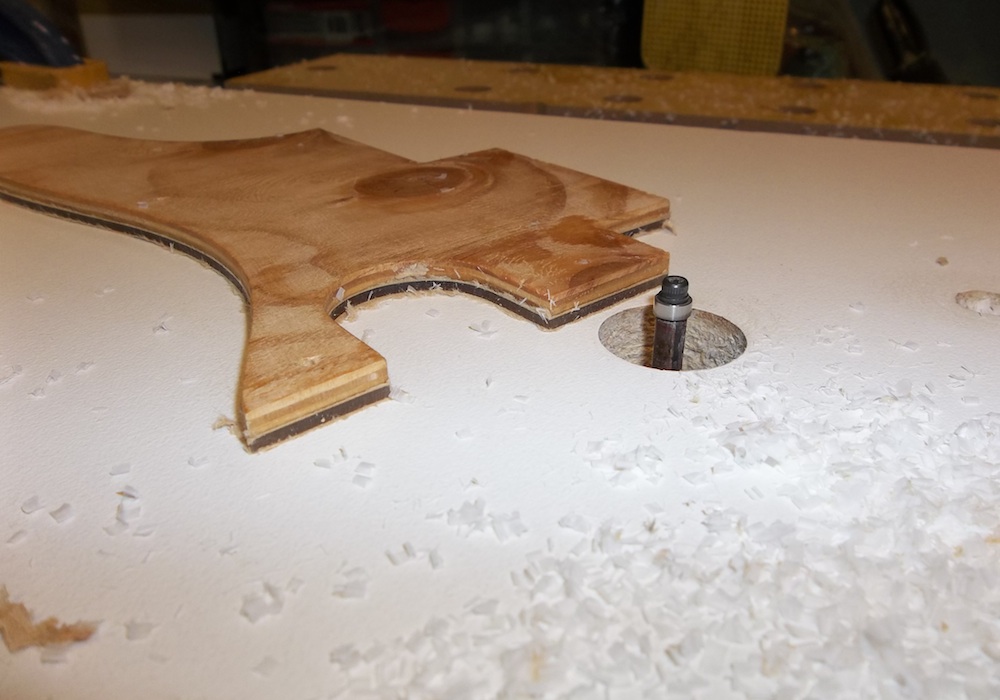

    Carefully routing to shape, lots of light passes working my way up to the template's edge. Pickguard is face down with the template on the back.
    Click image for larger version.

Name:	TL_1TB_291_routing_clear.jpg
Views:	265
Size:	148.0 KB
ID:	18022

    Click image for larger version.

Name:	TL_1TB_292_routing_done.jpg
Views:	279
Size:	174.5 KB
ID:	18023

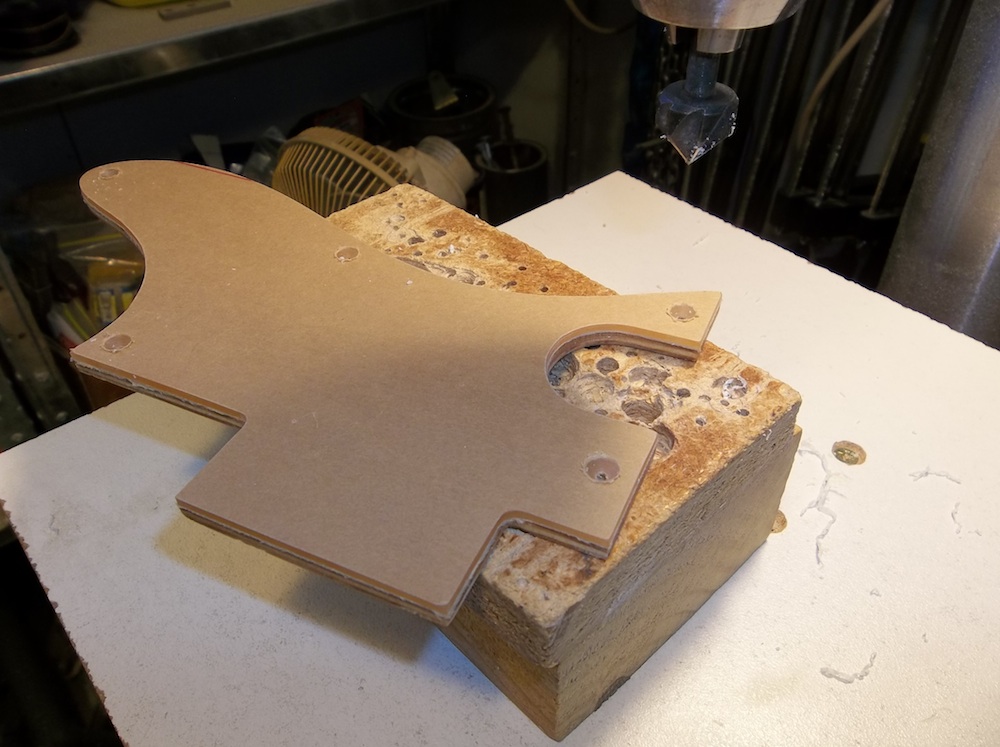

    Drilling and counter-sinking holes for pickguard screws (template is still on the back).
    Click image for larger version.

Name:	TL_1TB_293_drill_countersink.jpg
Views:	269
Size:	186.3 KB
ID:	18024
    Scott.

  2. #172

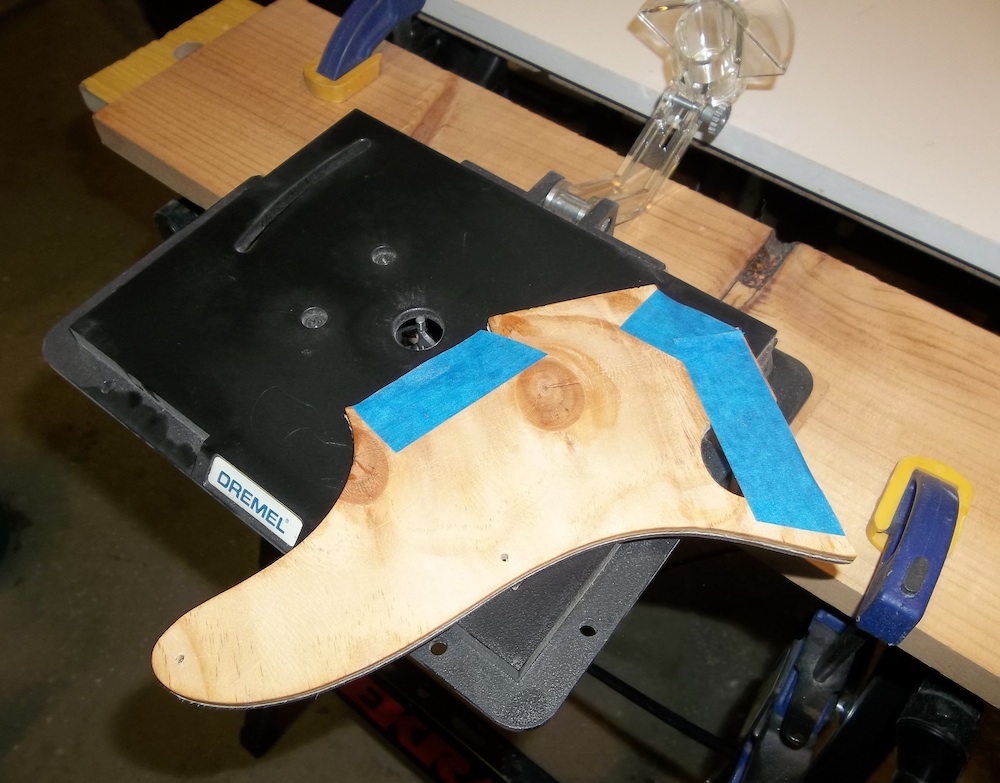

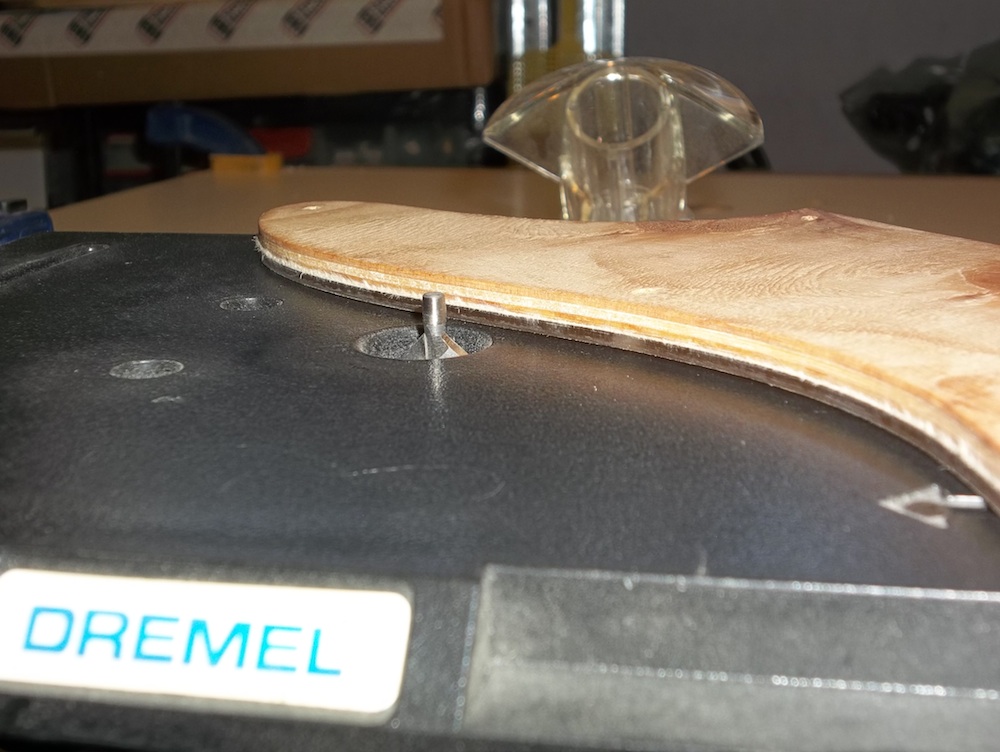

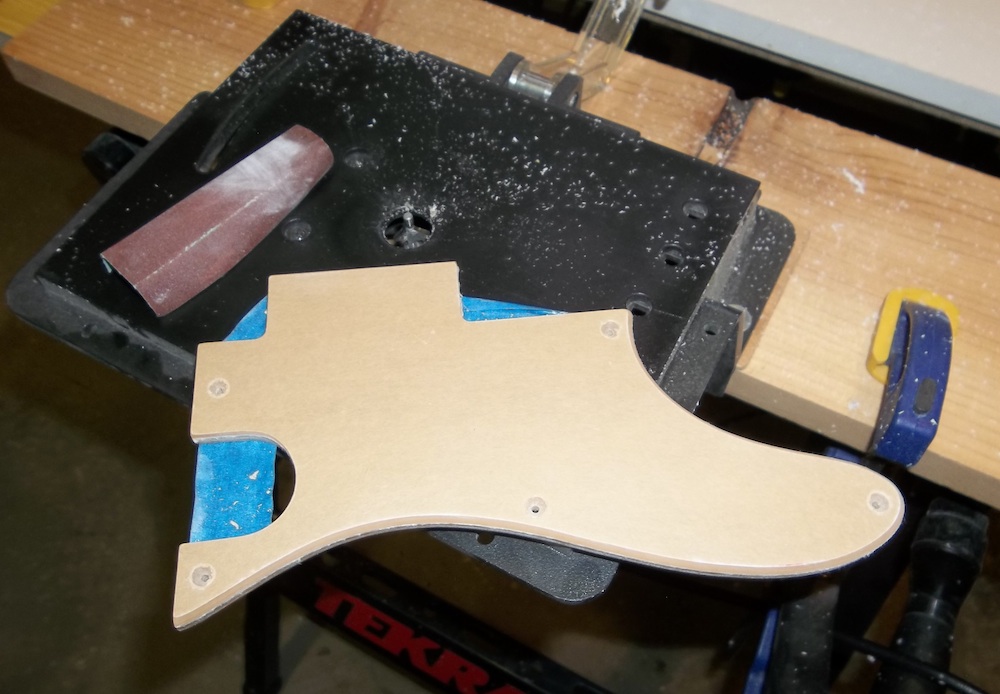

    To bevel the edge I'm using my Dremel routing table and a piloted chamfer bit. The pickguard needs to be face down with the template on the back for this to work, as the pilot bit needs the wooden template edge to run along (it will melt plastic). It's difficult to detach and re-attach a template and get it to line up perfectly, which is why I've been doing all the shaping with the template on the back from the start. The blue masking tape is to remind me which sections not to bevel.
    Click image for larger version.

Name:	TL_1TB_294_dremel_table_bevel_1.jpg
Views:	278
Size:	210.0 KB
ID:	18025

    Click image for larger version.

Name:	TL_1TB_295_dremel_table_bevel_2.jpg
Views:	275
Size:	178.8 KB
ID:	18026

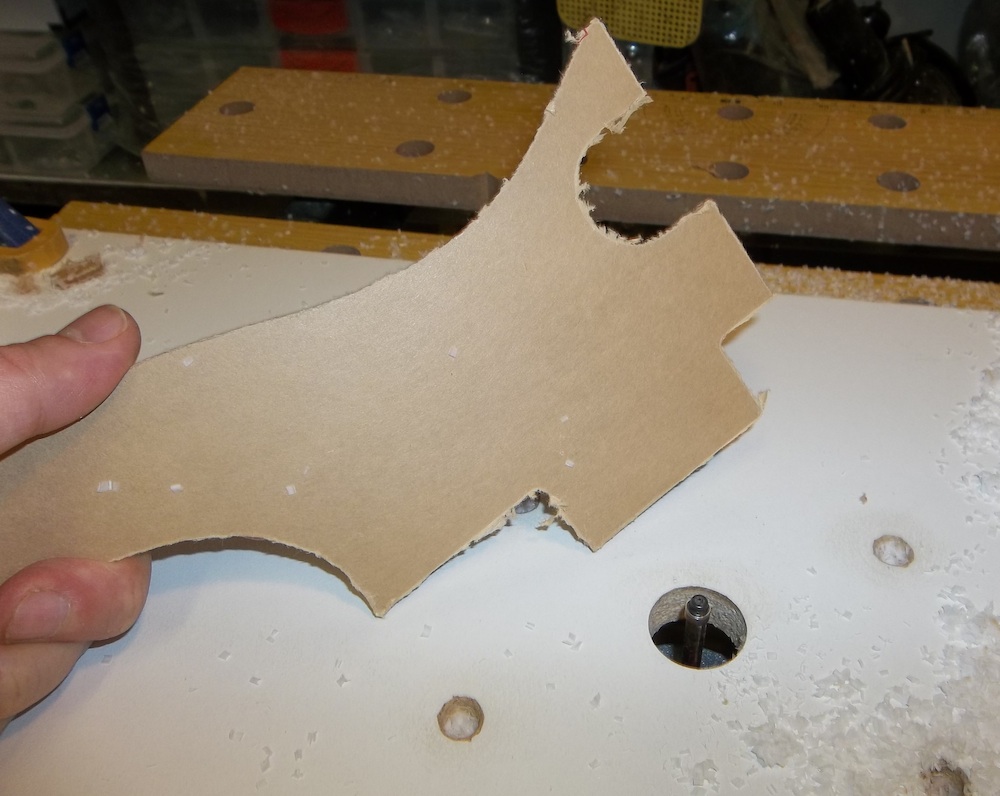

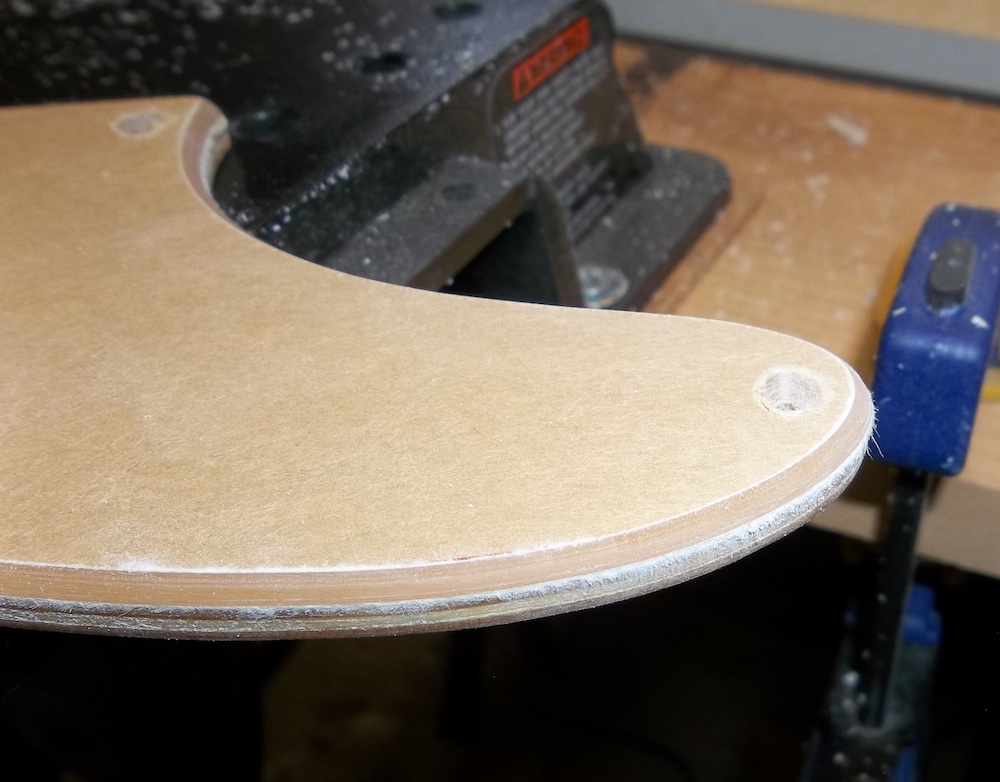

    Edge bevelled, again light passes. If you're doing something like this it's wise to test the bevel on some scraps of the same material to ensure the edge is the way you want it. In this case I tested on a scrap of ply with a scrap of the acrylic stuck to it, did three adjustments before I was satisfied with the bevel and moved on to the actual pickguard.
    Click image for larger version.

Name:	TL_1TB_296_bevelled_1.jpg
Views:	287
Size:	171.1 KB
ID:	18027

    Click image for larger version.

Name:	TL_1TB_297_bevelled_2.jpg
Views:	282
Size:	173.1 KB
ID:	18028

    I then sanded the bevelled edge up through the grits from 400 to 1500+ and finished with steel wool so it was nice and smooth and almost crystal clear.
    Last edited by WeirdBits; 13-03-2017 at 10:02 AM.
    Scott.

  3. #173
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    good stuff Weirdy you have to take DOTY award dairy of the year the detail you go to !
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  4. #174

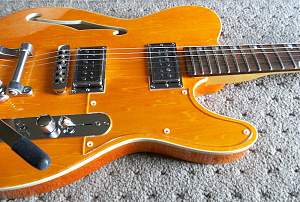

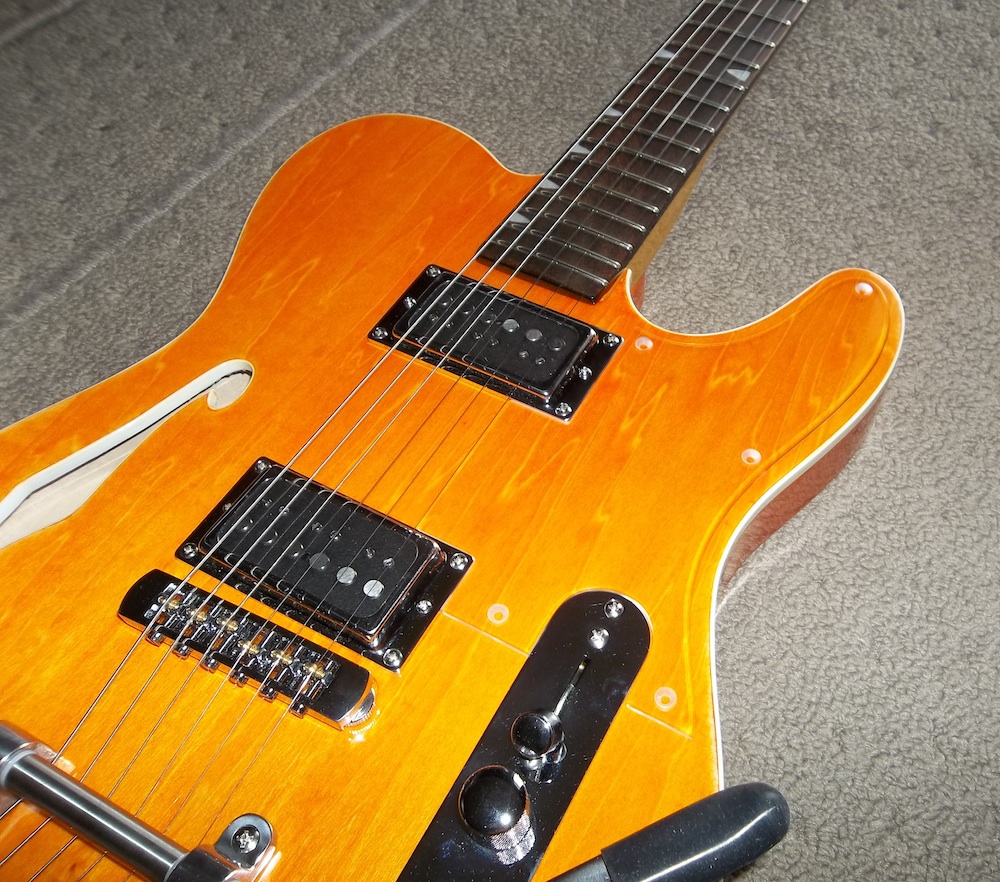

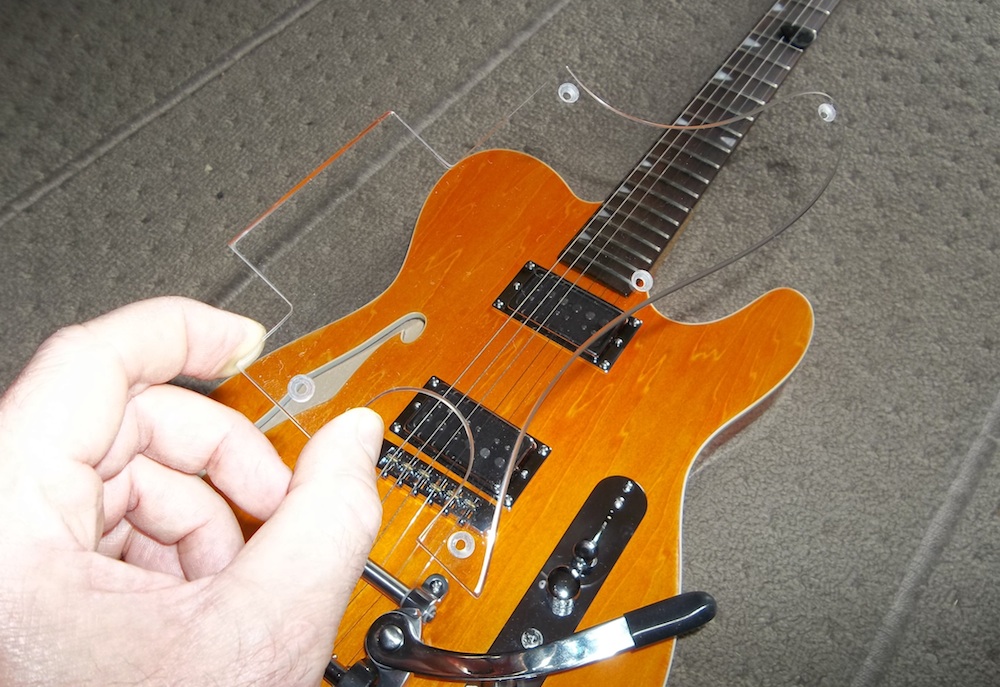

    One custom clear pickguard.
    Click image for larger version.

Name:	TL_1TB_298_clear_choices_1.jpg
Views:	282
Size:	250.8 KB
ID:	18029

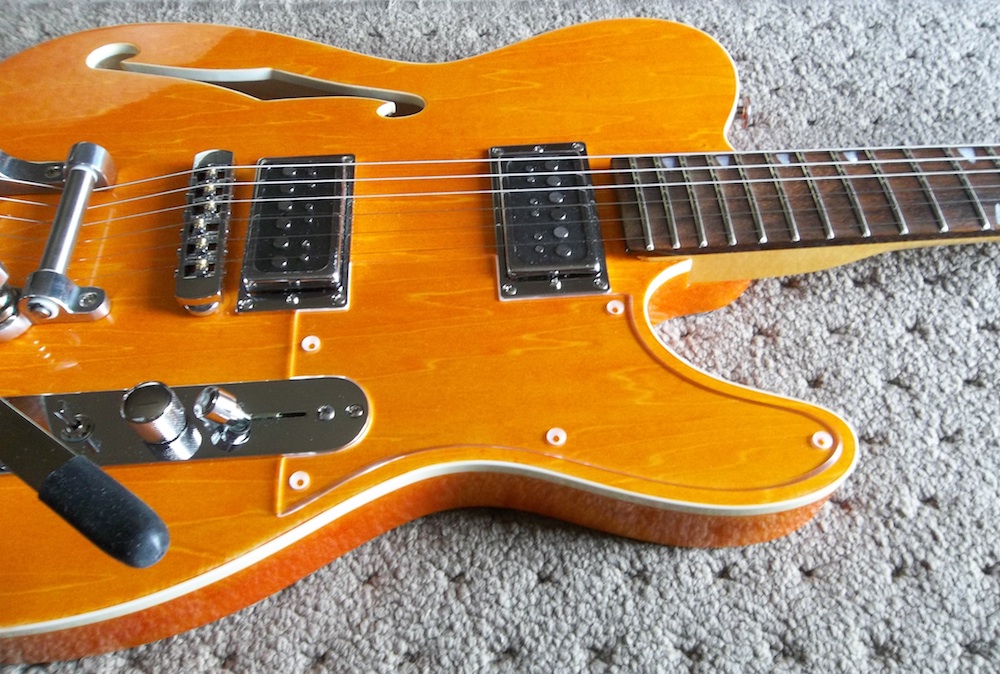

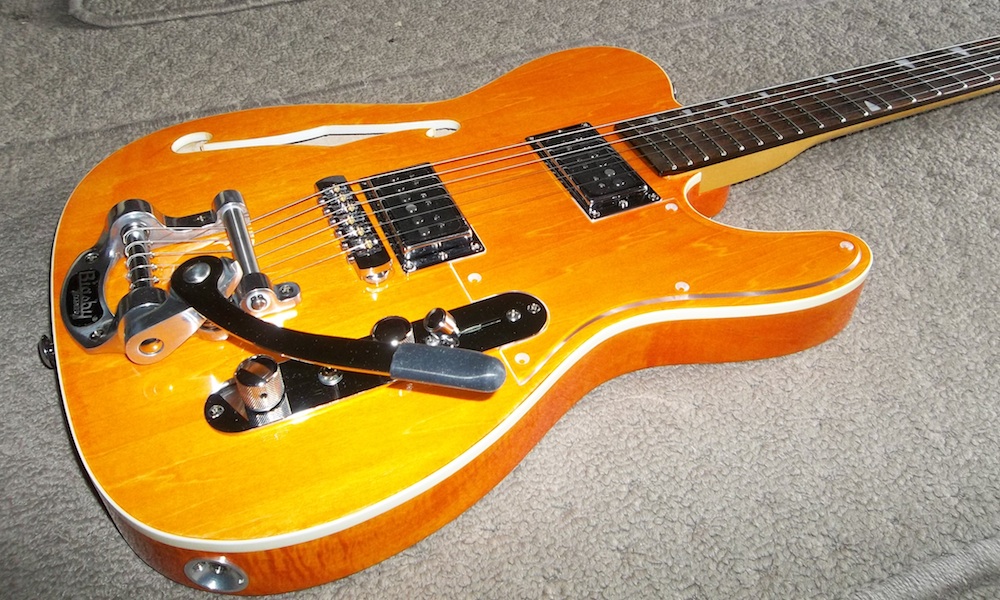

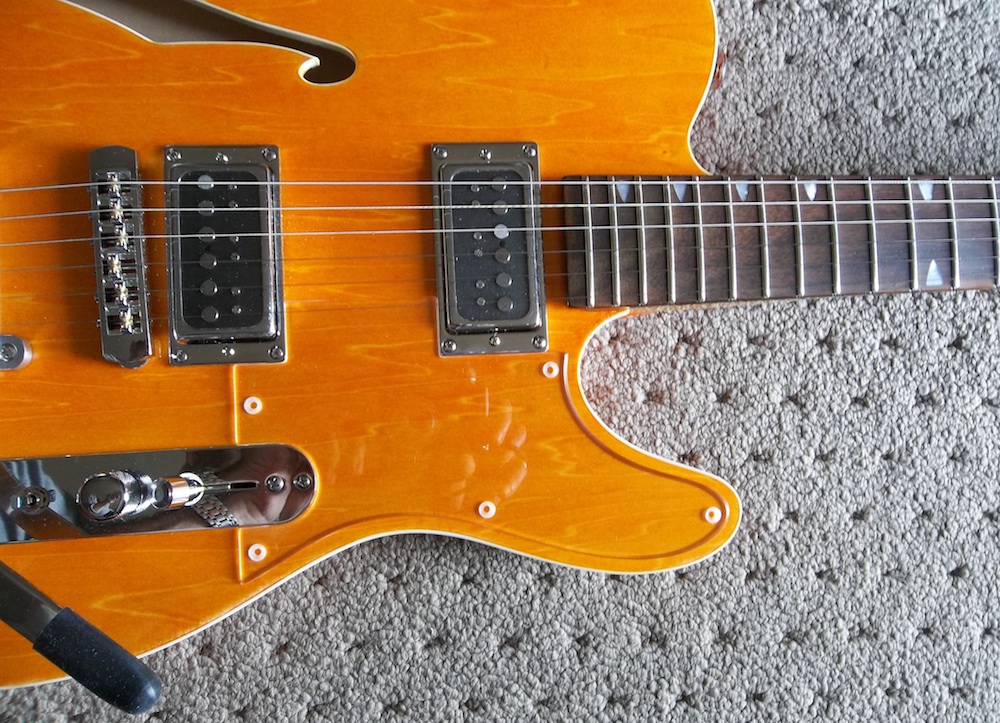

    Now, before I commit and drill the holes… a question for the forum. Do I go with the clear pickguard to protect the finish, or does it detract too much for the protection it adds? The acrylic is quite stiff so I can get away with only 5 screws. Its surface is hard but scratches/scuffs pretty easily so it won't take long for it to have wear marks and start to look a little cloudy/opaque in places. So, over to you guys, what do you think*…
    Click image for larger version.

Name:	TL_1TB_299_clear_choices_2.jpg
Views:	302
Size:	395.9 KB
ID:	18030

    Click image for larger version.

Name:	TL_1TB_300_clear_choices_3.jpg
Views:	279
Size:	287.2 KB
ID:	18031

    Click image for larger version.

Name:	TL_1TB_301_clear_choices_4.jpg
Views:	287
Size:	285.8 KB
ID:	18032

    Click image for larger version.

Name:	TL_1TB_302_clear_choices_5.jpg
Views:	300
Size:	334.4 KB
ID:	18033

    (*any decisions made by the forum may be ignored anyway )
    Last edited by WeirdBits; 13-03-2017 at 09:56 AM.
    Scott.

  5. #175
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    nice one Weirdy, it gets my vote the clear pickguard !
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  6. #176
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    10,547
    I like the clear scratchplate. You've still got the template, so why not make another clear pickguard now, in case the first one does scratch over time? And if it does scratch very easily, you've always got the option of painting the back of it so that the scratches don't show so much. If it is scratching, then it's doing its job and protecting the finish, so you could treat it as a disposable/replaceable item.

  7. #177
    I think it looks better without the guard. The edges draw my eye away from the lovely finish.

  8. #178
    Overlord of Music andrewdosborne's Avatar
    Join Date
    May 2014
    Location
    Sydney, NSW
    Posts
    2,751
    Oh that's a tough one. I prefer without the pick guard but having a clear one will protect the guitar so the choice is a clear pick guard from me.
    Current Projects
    #Planning 5 String Bass

  9. #179
    Member Hobastard's Avatar
    Join Date
    Jan 2017
    Location
    Hobart Tasmania
    Posts
    436
    If you must have a Pickguard, then this is a pretty good option, Personally I prefer no Pickguard but that's not possible with the Guitars I am using at the moment, and I don't use a pick, so it's less of an issue for me. If it was my Guitar, I'd say No Pickguard and refurbish as required. The worn look is quite popular anyway... nothing wrong with a few Battle Scars.....
    A tough Clear Coat on top would help too.....

    Either way, That is a Great looking Instrument with or without a Pickguard.

    as an aside, if you do scratch and don't feel like refurbishing it, it you can put a nice pearloid guard on it later.....

  10. #180
    Thanks for the feedback guys.
