Here we go, as promised, here are some build process pics I took as I was building my Persuader Tube Distortion pedal:

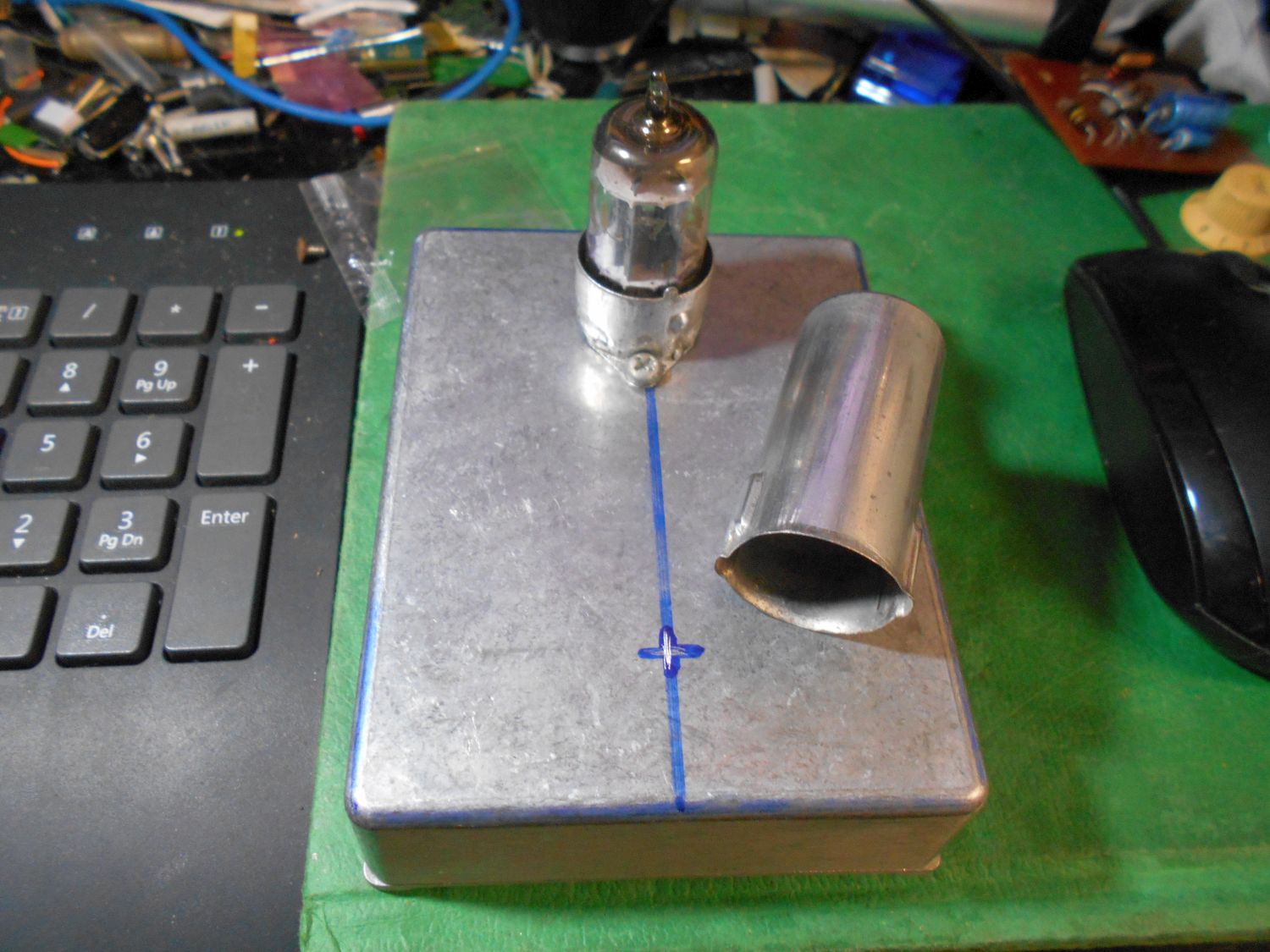

First thing I did was to mark out the centre for the large mounting hole for the 9-Pin tube socket, this is because the positions of the other mounting holes in the diecast case are based off the position of the Tube socket so that there's enough clearance:

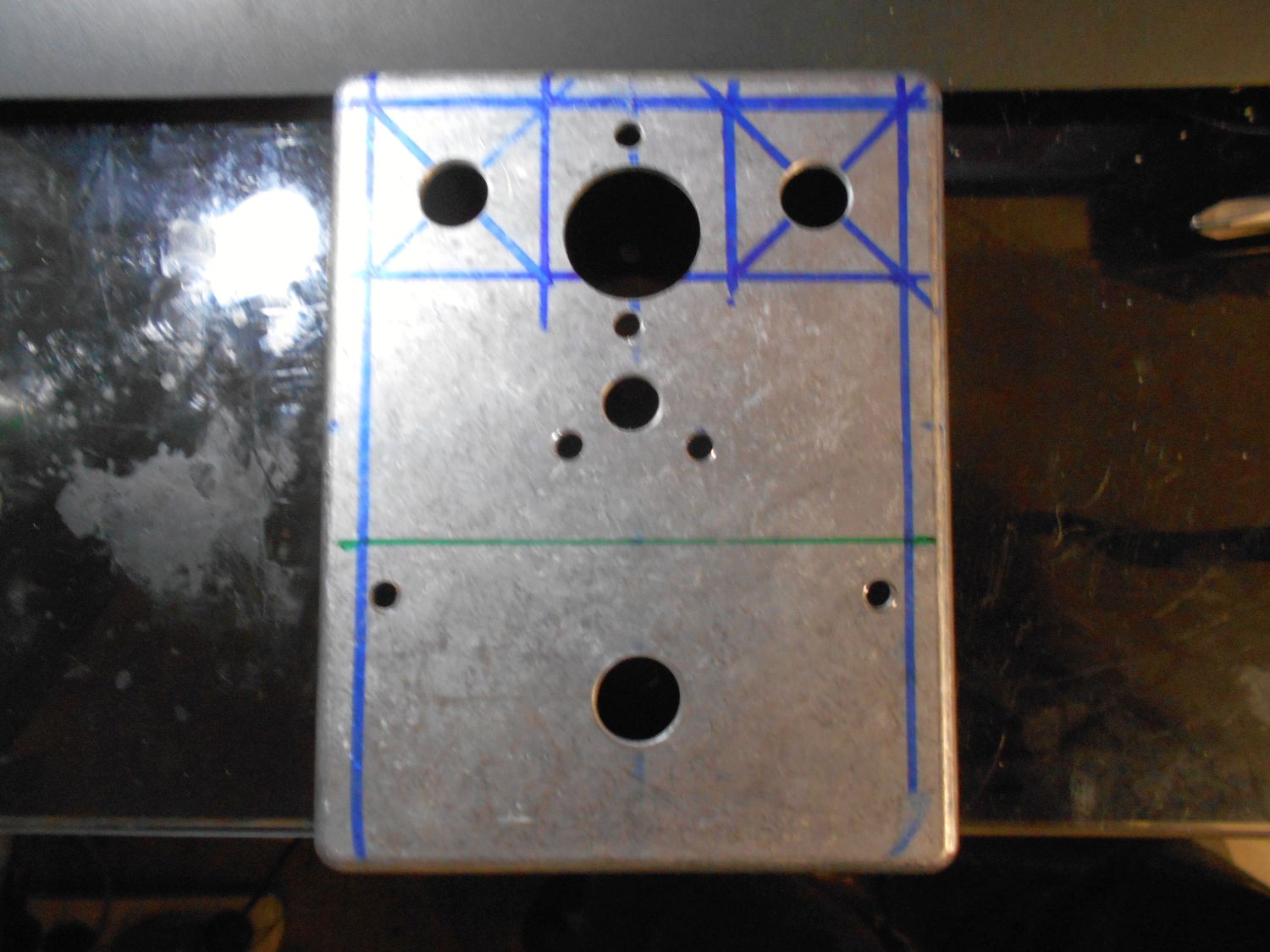

Having established the position of the Tube socket, I marked and drilled two smaller holes for the mounting screws that hold the Tube socket in place, I also marked and drilled all the other holes to size:
Next, I did a test-fit of the 3mm Blue Led, In/Out sockets and footswitch:

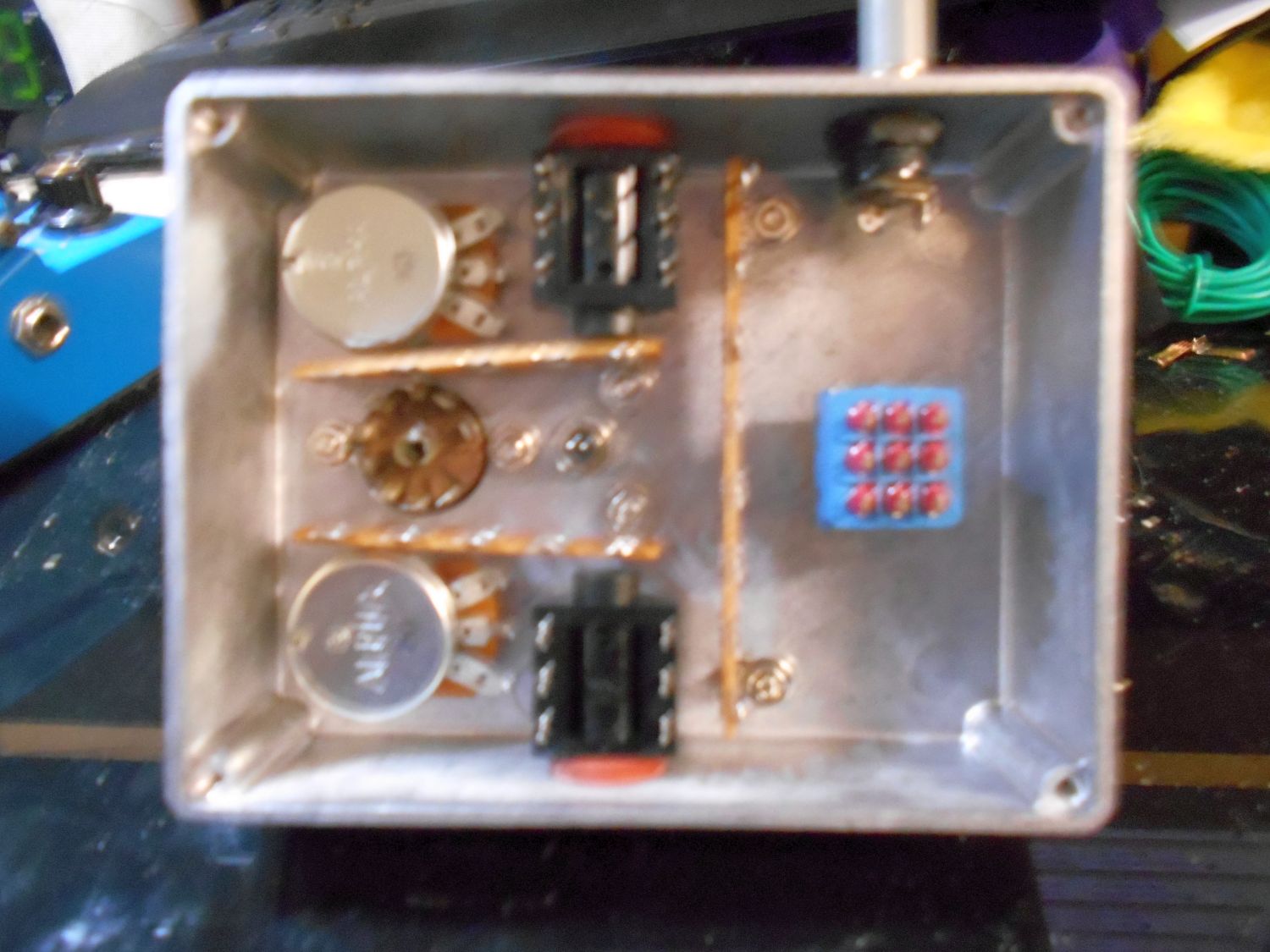

Next, I cut the pot-shafts to length and mounted them in the diecast case, I also cut two of the 8-way tagstrips so that they had 5 tags on them, and mounted them plus the single 8-way Tagstrip in the mounted case, I also mounted the black plastic DC in socket in the case, I positioned it near the output socket to ensure that no hum/noise got into the input of the pedal:

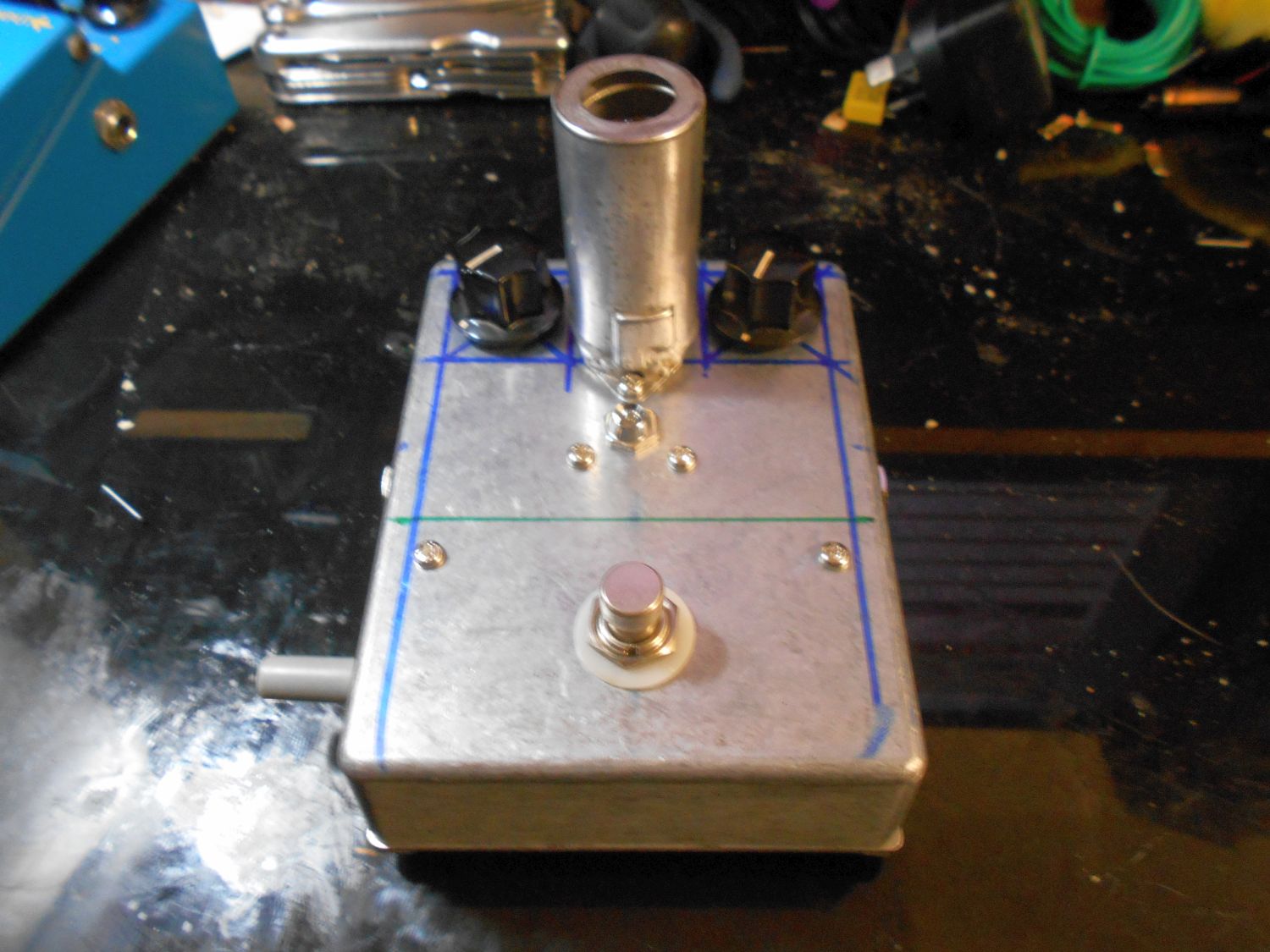

Next I fitted the two knobs to the pot shafts and checked that there was enough clearance between the Tube socket and the pot knobs:
![]()

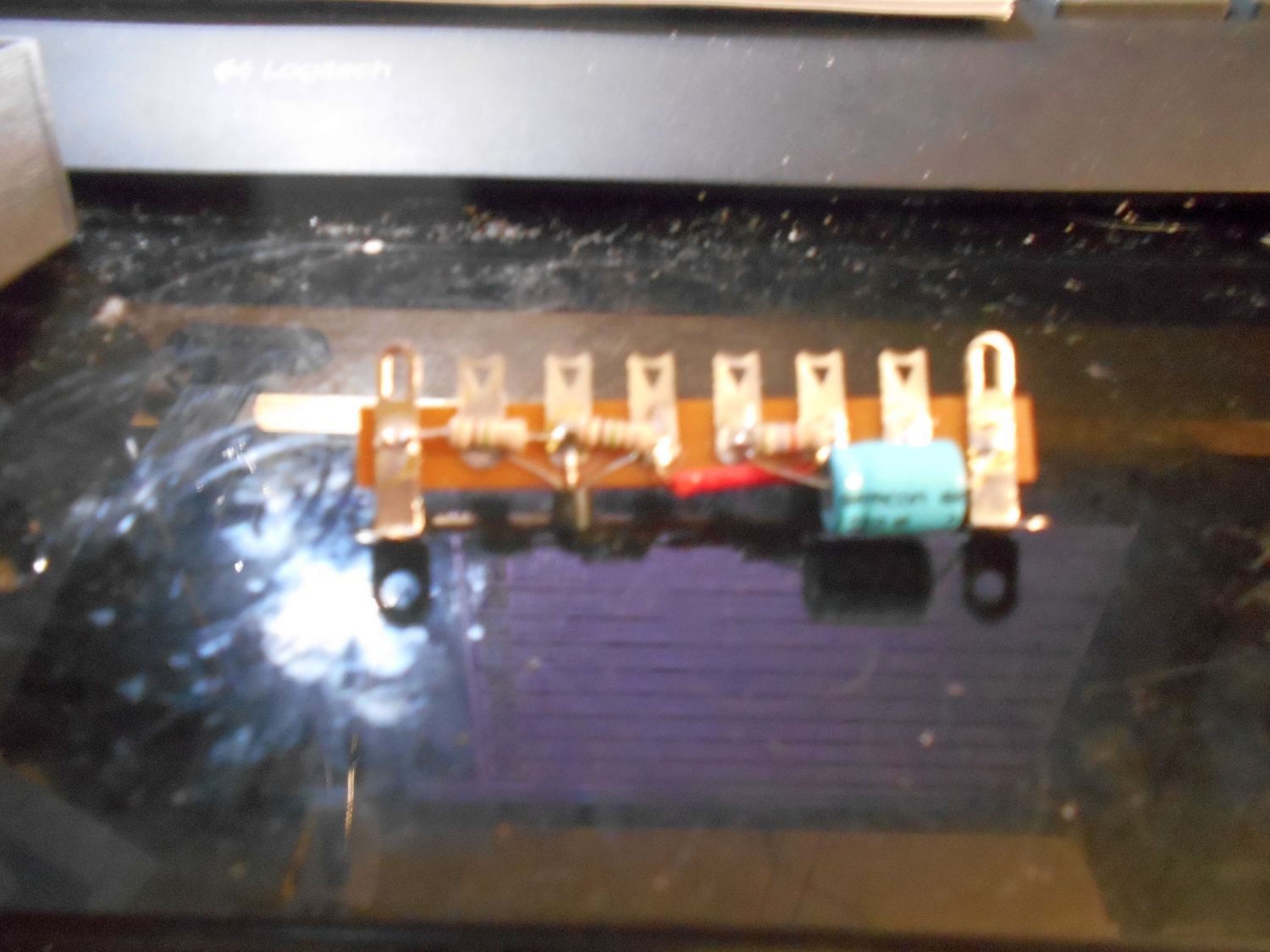

Next thing to do was to remove everything from the case, wipe all the marking out off it, and then start soldering all the parts onto the single 8-way Tagstrip, this is what it looked like after I had finished doing all the soldering:

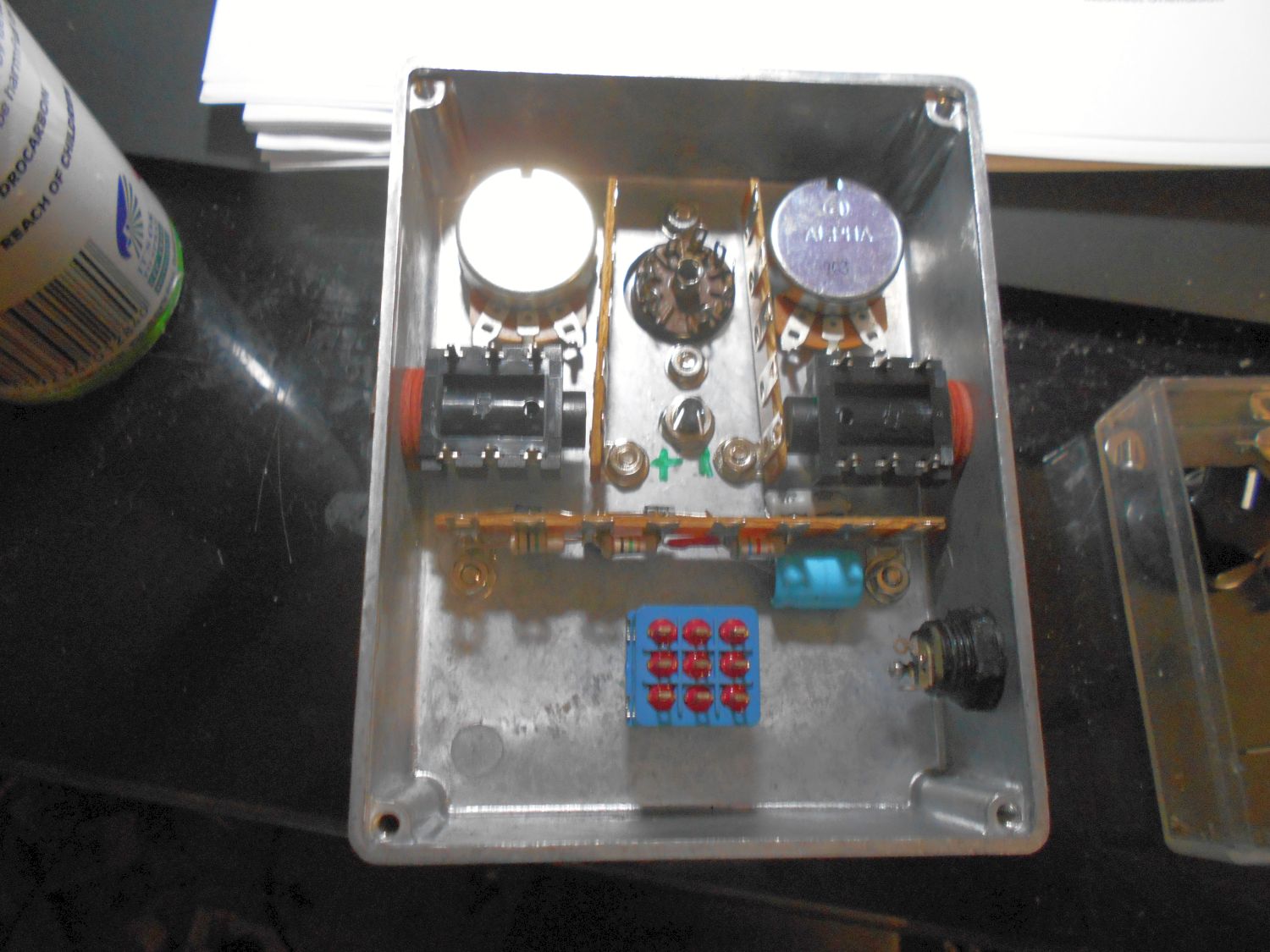

Next I installed all the Pots, Sockets, Led, and Tagstrips back in the case so I could start doing all the wiring-up:

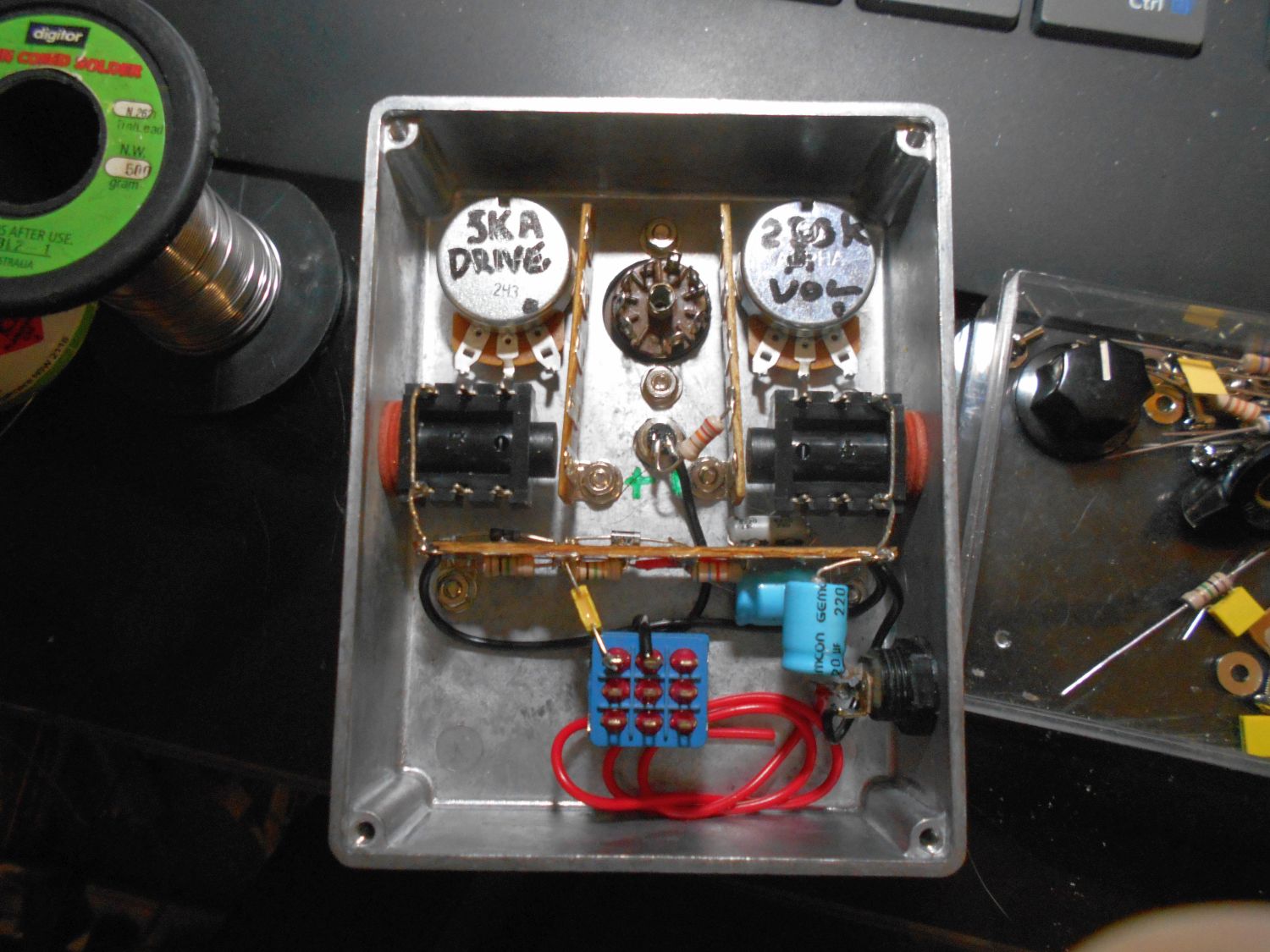

I started doing the wiring up by soldering a .1uF/100V cap between one of the tags on the 8-way Tagboard and one of the solder-lugs on the footswitch:

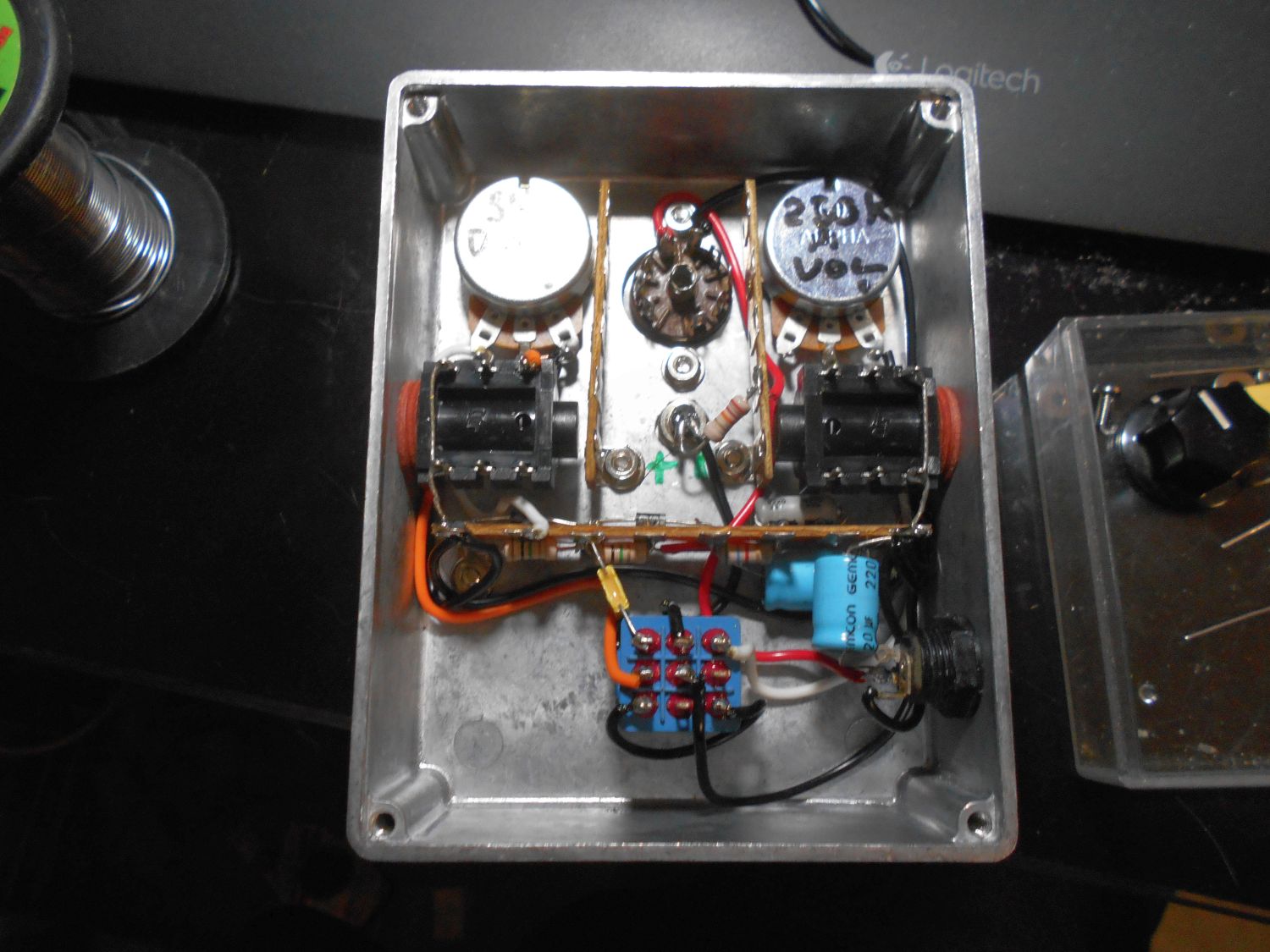

Next thing to do was to solder-in some ground wiring and a 22uF/25V cap, I also soldered a piece of red wire to the + terminal on the DC in socket after soldering a black wire from the circuit-grounds to the - terminal on the DC in socket, the extra 220uF/25V cap was soldered between a ground tag on the 8-way Tagstrip and the + terminal on the DC in socket:
Next, I soldered-in a 22k/ 1/2 Watt resistor between one of the tags on one of the 5-way Tagstrips and the + terminal of the 3mm Blue Led, this 22k resistor limits the current to the Led so that it doesn't burn out:
I also added some orange wire to connect the tip solder-lug of the input socket to one of the solder lugs of the footswitch, I did the same for the output socket except I used a piece of white wire, it makes things a lot easier if you colour-code your wiring up.
Last edited by DrNomis_44; 26-07-2016 at 09:10 PM.

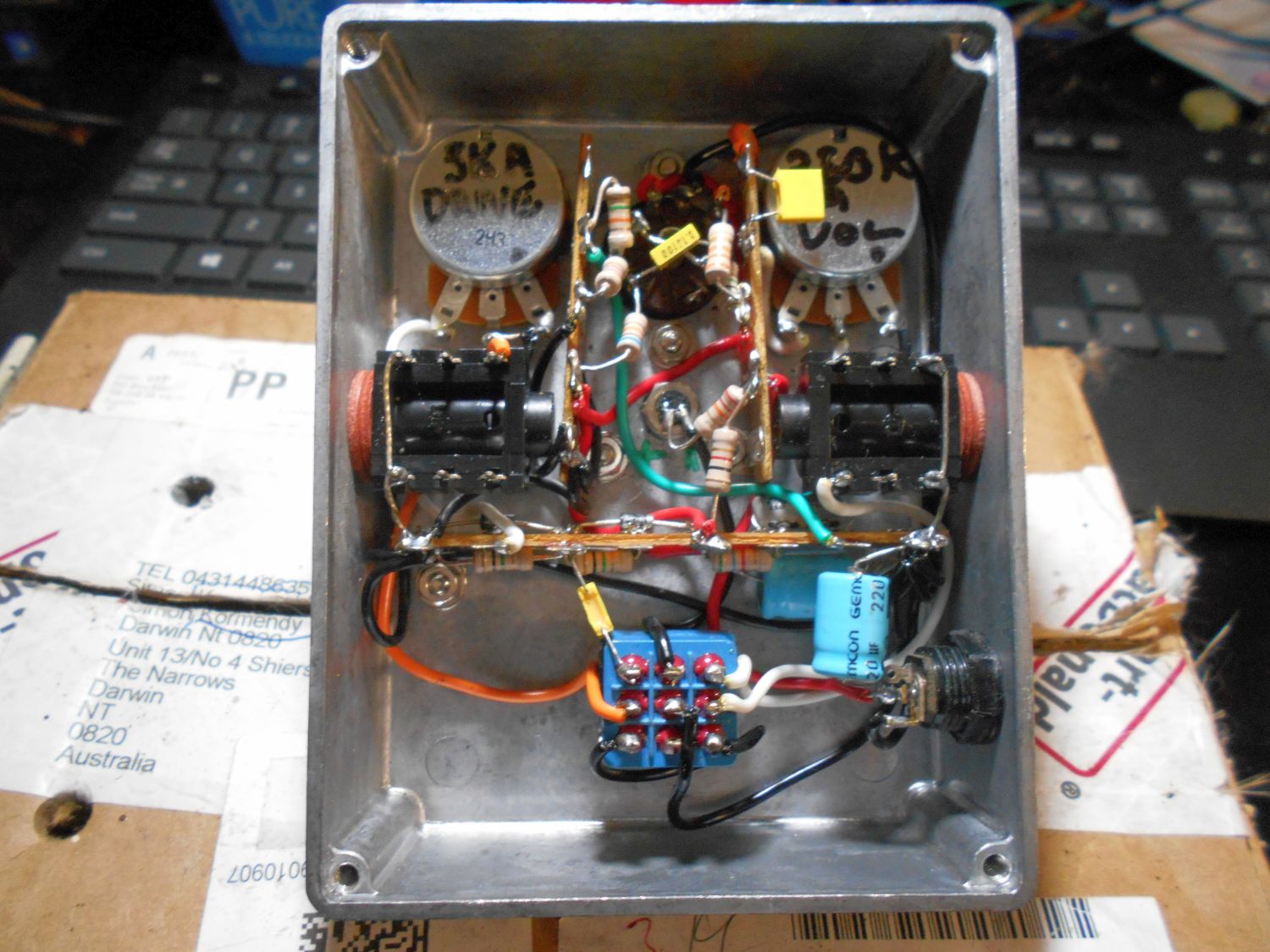

So, after soldering in all the wiring and all the other components, this is what the pedal looked like when finished:
This is what's called point-to-point wiring since no printed-circuit board is used, the components are simply soldered between two convenient points, lots of old guitar amps from the 40's, 50's, and 60's were built this way, some musicians reckon an amp built point-to-point style sounds better than one built using a PCB, personally I don't really hear much difference, although the point-to-point style of construction does have some advantages.
For those of you interested in hearing what the Persuader actually sounds like, I'm going to record some demo clips shortly, so stay tuned.
Here are the links to the demo clips I recorded, this is what the raw sound of the pedal sounds like:
https://dl.dropboxusercontent.com/u/...der_12AU7A.mp3
https://dl.dropboxusercontent.com/u/...ader_12AT7.mp3
https://dl.dropboxusercontent.com/u/...ader_12AX7.mp3
I'm going to do a small mod to my Persuader pedal that I've just thought of, the 5K Drive pot seems a bit too big so I'm going to try replacing it with a 1K Pot to give a better range of control so that it's not bunched-up at one end of the knob rotation, also I'm going to add a bypass cap from the pot wiper to ground, might record a demo after the mod has been done.
Last edited by DrNomis_44; 26-07-2016 at 11:04 PM.
Great job Doc sounds good too. Personal preference was the 12AX7 bu the others may cut through a mix better.
Well done.
Cheers mate, I liked the tones I got with both the 12AU7A and the 12AX7, the 12AT7 sounded a bit brighter to my ears, I have just tried the pedal out with the mods I thought up, to my ears it seems to sound a bit less gainier at max Drive settings, but the tone is a bit smoother, it still really likes being overdriven with my Rangemaster pedal though, I'll record a demo of the modded pedal a bit later on for those interested.
Of course, you don't necessarily have to stick with using the Persuader pedal with a guitar, you could probably use it on drum loops, etc in a studio.
Okay, here's the demo clip of my modded Persuader pedal, I recorded it and my Rangemaster pedal straight into my Saffire Pro40, into FL Studio, I only used one plugin, an Impulse Response Speaker Cab simulator called NadIR, set to simulate a quad box with Celestion G12's miced up with an SM57, I used the Rangemaster pedal to overdrive the Persuader pedal, the guitar I used was my LP Studio, the Tube installed in the socket is a Ruby 7025SS/12AX7A, first half of the demo is the modded Persuader by itself, set to max Drive, second half is same like the first half but with the Rangemaster switched in, the knob on the Rangemaster was set to about the 2 o clock position, just check out the sound I got:
https://dl.dropboxusercontent.com/u/...angemaster.mp3
that sounds great Doc
Build 19 PSH-1 Kustom
Build 18 HB-4S Kustom
Build 17 WL-1 Kustom
Build 16 TL-1TB Kustom
Build 15 PBG-2-
Build 14 FTD-1
Build 13 RD-1 Kustom
Build 12 DM-1S
Build 11 MKA-2 -
Build 10 Basic strat
Build 9 JM Kustom
Build 8 FV-1G
Build 7 ES-2V
Build 6- Community prototype
Build 5 LP-1LQ
Build 4 ES-5V
Build 3 JR-1
Build 2 GD-1
Build 1 TLA-1
Cheers mate, I reckon that has to be about the best distortion sound I have ever gotten out of a Tube-based pedal so far, it has that vintage rock sound, in the next couple of weeks, I might do a build write-up for the Rangemaster Treble Booster since it is a really easy one to build.
