Thread: Andy40's TLA-1R Build

  1. #151
    GAStronomist wazkelly's Avatar
    Join Date
    Aug 2015
    Location
    Caloundra West, Sunshine Coast Qld
    Posts
    6,631
    Fingers crossed you have got it nailed.

  2. #152
    Overlord of Music Andy40's Avatar
    Join Date
    Oct 2015
    Posts
    3,913
    Yep mate....I think i got it nailed.
    Build #1 - ST-1 - Completed
    Build #2 - LP-1SS - Completed
    Build #3 - TLA-1R - Completed
    Build #4 - SGD-612 - Completed
    Build #5 - ES-1G - Completed
    Build #6 - STA-1HT | Completed
    Build #7 - ST1JR - Completed
    Current Build #8 - JBA-4
    Build #9 - Semi-scratch build Tele x 2 - Completed
    Current Build #10 - PRS-1H
    Current Build #11 - AGJR-1 - Completed
    Current Build #12 - ATL-1SB
    Current Build #13 - GST-1
    Current Build #14 - FBM-1

  3. #153
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    Nice save 😊
    I have been sanding between coats with 320, but after seeing what you have achieved I am thinking I might revisit that..
    Consider your technique stolen..
    Also intrigued as to your application method, pray do tell.....

    Glad to see you have embraced the thin coat mantra... I got a bit carried away the other day and applied a finish coat too thick and encountered the dreaded streak and gummy bitz, you would think that I would know better 😖

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....

  4. #154
    Overlord of Music Andy40's Avatar
    Join Date
    Oct 2015
    Posts
    3,913
    Glad to have piqued your interest DB.

    With the wet sanding, I found that 2000 grit got rid of any minor lumpies without taking too much of thin coat off. sometimes if i had a drip, i'd bring out the 1200, or even 600 in spots only if necessary. That worked well with the intensifying coats as well as the final coats.

    OK, so its not rocket science but I found that the only way I could evenly apply the thin finish was the following method (and I guarantee you cannot apply too much)

    bear in mind this was only for the intensifying coats and the final coats.

    1. cut two pieces of 5 x 5 cotton cloth
    2. pour small amount of DT intensifier (or final coat) onto palate (in my case margarine lid, in DB's case yogurt top)
    3. fold first cotton cloth in 1/2 and 1/2 again and dip folded edge into DT
    4. apply DT to surface of guitar wiping in direction of the grain (try to do it thinly but don't worry if you can't)
    5. just keep dipping the folded edge of the cotton cloth and apply with the grain (as opposed to soaking the cloth and wringing it out)
    6. once entire surface has had DT applied, take the dry second 5 x 5 cloth and fold it in 1/2 and lightly wipe over the DT coat that has been applied in the direction of the grain.

    voila = thin even coat, usually dry in 12 hours (but may not be cured)

    I then wait about 3 days before wet sanding and applying the next final coat. (7 days in Brissy weather for intensifying coat)

    Obviously there's nothing wrong with your method DB, its just that without the second cloth I couldn't control the thinness of the coat and i wasn't applying it that even.
    Build #1 - ST-1 - Completed
    Build #2 - LP-1SS - Completed
    Build #3 - TLA-1R - Completed
    Build #4 - SGD-612 - Completed
    Build #5 - ES-1G - Completed
    Build #6 - STA-1HT | Completed
    Build #7 - ST1JR - Completed
    Current Build #8 - JBA-4
    Build #9 - Semi-scratch build Tele x 2 - Completed
    Current Build #10 - PRS-1H
    Current Build #11 - AGJR-1 - Completed
    Current Build #12 - ATL-1SB
    Current Build #13 - GST-1
    Current Build #14 - FBM-1

  5. #155
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    Brilliant!
    Will definitely be road testing/ stealing this method 😉

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....

  6. #156
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    your technique sounds good Andy, might give it a crack, I'm the same as you I only dip a bit of the cloth in the DT container and try and apply as thinly as I can. I usually wipe the cloth in straight lines running with the grain, edge to edge (like mowing the lawn in strips) then I look at in the light at an angle that will show any heavier applied areas or runs and go over with the cloth again.

    The build is looking super sweet and love that rosewood colour !

    Got to laugh at DB's video's the way he pronounces yogurt as YOGOT haha he reckons there's a silent 'R' bwhahahahha
    Last edited by wokkaboy; 18-05-2016 at 09:12 AM.
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  7. Liked by: wazkelly

  8. #157
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    Shut up Woks.😬

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....

  9. #158
    Overlord of Music Andy40's Avatar
    Join Date
    Oct 2015
    Posts
    3,913
    Your welcome guys.

    lol at Woks pronunciation burn

    Edit: - for anyone else that reads this thread. I am using Dingotone MKI.

    the method also works for DT neck coats and I cannot see why it wouldn't work with DT MKII

    Also a big thanks to Dingobass who created this custom rosewood for me. I don't think I would have "nailed it" had it not been for the time spent in the DB lab
    Last edited by Andy40; 18-05-2016 at 09:54 AM.
    Build #1 - ST-1 - Completed
    Build #2 - LP-1SS - Completed
    Build #3 - TLA-1R - Completed
    Build #4 - SGD-612 - Completed
    Build #5 - ES-1G - Completed
    Build #6 - STA-1HT | Completed
    Build #7 - ST1JR - Completed
    Current Build #8 - JBA-4
    Build #9 - Semi-scratch build Tele x 2 - Completed
    Current Build #10 - PRS-1H
    Current Build #11 - AGJR-1 - Completed
    Current Build #12 - ATL-1SB
    Current Build #13 - GST-1
    Current Build #14 - FBM-1

  10. #159
    Overlord of Music Andy40's Avatar
    Join Date
    Oct 2015
    Posts
    3,913
    You've all inspired me.

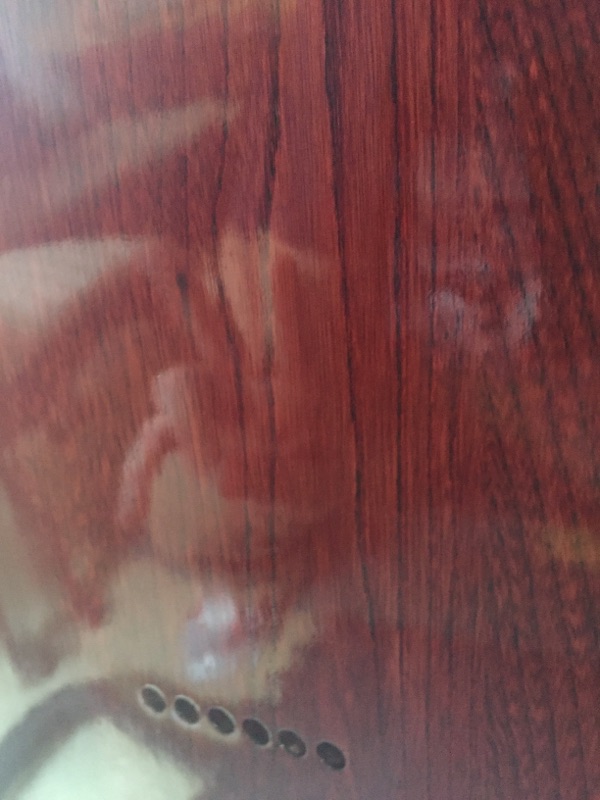

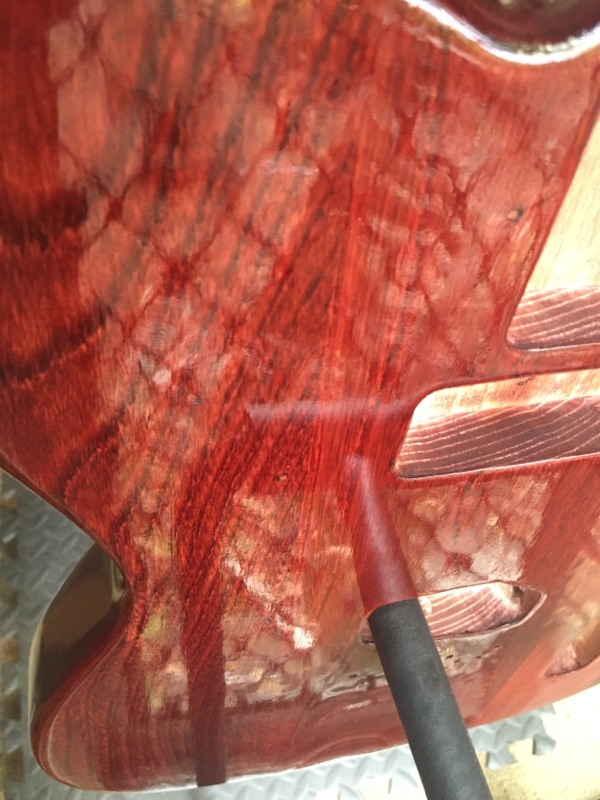

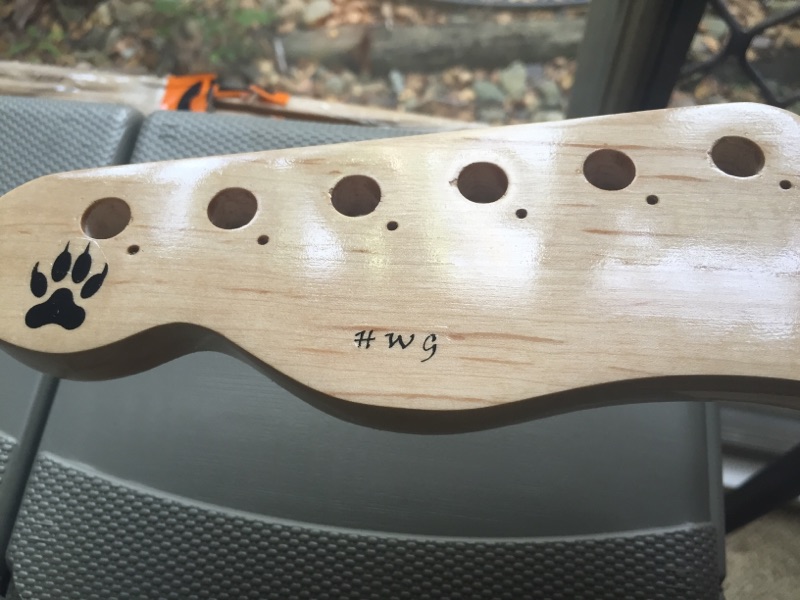

    Again...sanded back with 2000 grit wet in direction of grain. Last DT final coat applied with "technique" to body and neck.

    See you all in 21 days time!
    Click image for larger version.

Name:	IMG_6883.jpg
Views:	175
Size:	136.3 KB
ID:	11347Click image for larger version.

Name:	IMG_6885.jpg
Views:	158
Size:	98.3 KB
ID:	11348Click image for larger version.

Name:	IMG_6884.jpg
Views:	169
Size:	110.0 KB
ID:	11349
    Build #1 - ST-1 - Completed
    Build #2 - LP-1SS - Completed
    Build #3 - TLA-1R - Completed
    Build #4 - SGD-612 - Completed
    Build #5 - ES-1G - Completed
    Build #6 - STA-1HT | Completed
    Build #7 - ST1JR - Completed
    Current Build #8 - JBA-4
    Build #9 - Semi-scratch build Tele x 2 - Completed
    Current Build #10 - PRS-1H
    Current Build #11 - AGJR-1 - Completed
    Current Build #12 - ATL-1SB
    Current Build #13 - GST-1
    Current Build #14 - FBM-1

  11. #160
    GAStronomist FrankenWashie's Avatar
    Join Date
    Jan 2016
    Location
    Glebe, NSW
    Posts
    5,666
    Glossy shiny goodness! Wonderful result Andy, well done.
