Lyn #14 - Solid-body Acoustic

[wokkaboy]

haha no worries Westie, look forward to the future jokes mate !

[robin]

Queue crazy scientist’s voice...... “It’s alive. IT’S ALIVE!”

Well after months of not knowing whether I was wasting my time or not I finally got to hear her. And I am so relieved that she works. Tuning was somewhat of a problem, as she wouldn’t play in tune anywhere on the fretboard. As it was a PBG neck I knew that wasn’t the problem, so it had to be the nut and/or bridge saddle.

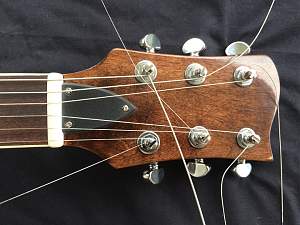

I had already cut the bone nut fairly low, but tuning problems over the first few frets is usually nut related so I got into that and lowered the slots by about 1mm but it made all the difference.

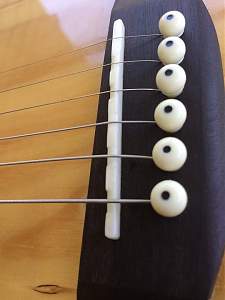

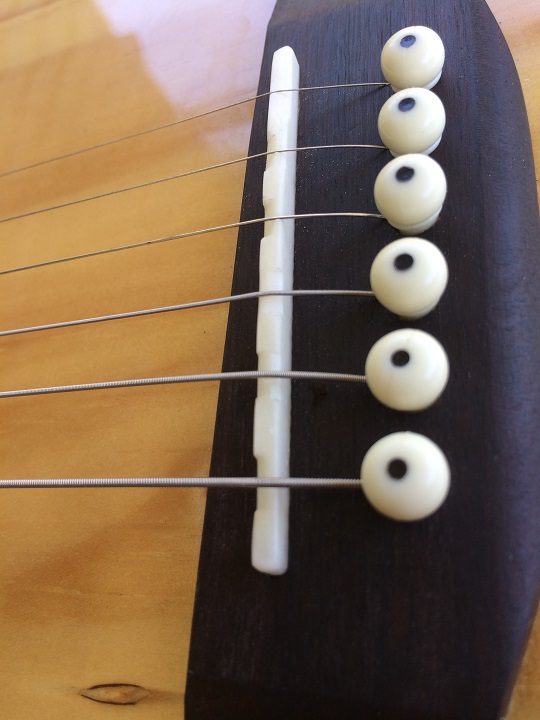

Next, intonation, and (a first for me) to compensate the bone saddle. The original position of the bridge was spot on (phew) as the “e” and “G” strings intonated perfectly, but the others were out by anything up to about 10+ cents.

I then began the painstaking process of filing a bit away from the nut, bring the string up to tension, check intonation, loosen the string, file a bit more off the saddle, re-tension, check intonation, loos………. Well you get the idea. This is done with each string. With the amount of times I have loosened and re-tensioned the strings while cutting the nut and saddle it’s a wonder that the strings have any tone left in them.

But I finally finished and intonation is good to within 2 or 3 cents at the 12^th fret measured on an iPhone App. Its not perfect but as acoustics are mainly played below the 7th fret its as good as I could get it. Bottom line is I am REALLY happy how she turned out. I can always cut a new saddle at a later date if I end up not happy with it.

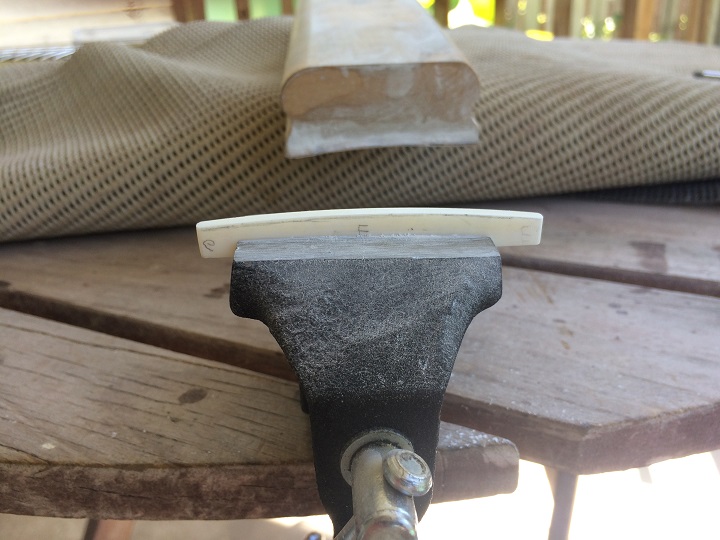

I used my 12” radius block to rough out the shape of the saddle

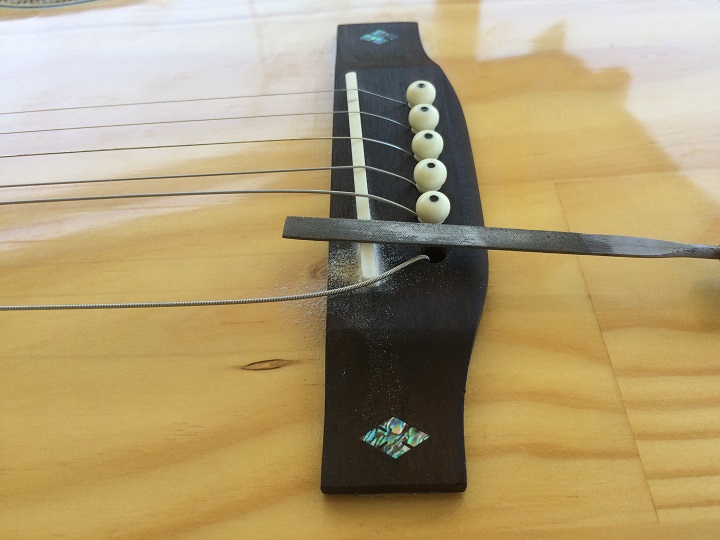

Then strung up the guitar and worked on each string until I was happy with the intonation. For a noob like me this was pretty time consuming, as I had to "sneak up" on the scale length for fear of filing away too much.

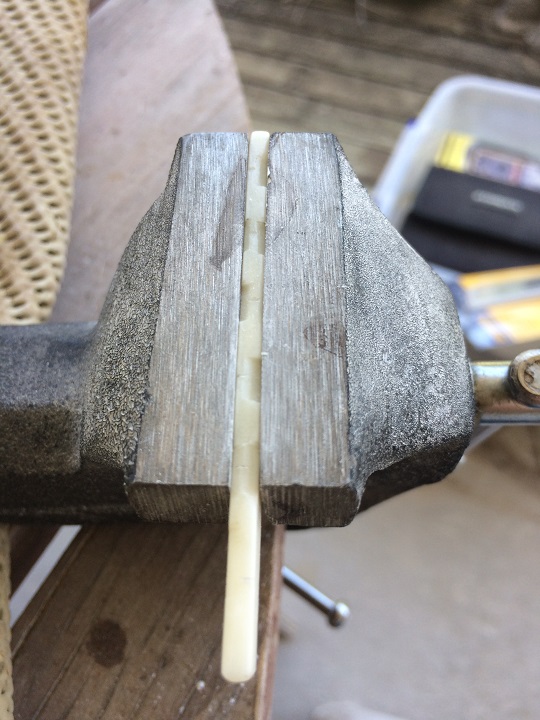

Once I was happy with the intonation I removed the saddle again and finished up shaping the saddle in my hobby vice.



Done!

[wokkaboy]

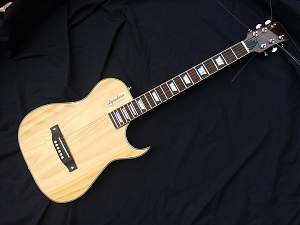

great stuff Westie07 we are going to need a sound demo and finished photos.
Glad you got it fairly well intonated and it all works, I had faith in you it would work from day 1 mate !

[robin]

I never expected it to sound exactly like an acoustic, but to my tired old worn out ears she doesn’t sound too bad. I’ll be using her at church but will be playing with other electric guitars so she should add a bit of jingleness to the overall sound. I also hope to use her in future home recordings where I can tweak the sound a bit so it sits nicely in a mix.








.........

[WeirdBits]

Very nice, it's definitely nerve wracking cutting your first saddle. I did my first one in acrylic then copied it to a bone blank rather than risk going all in first time

[robin]

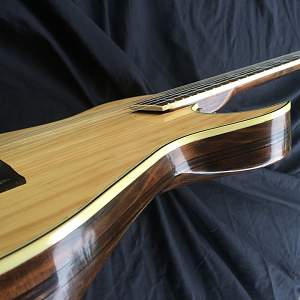

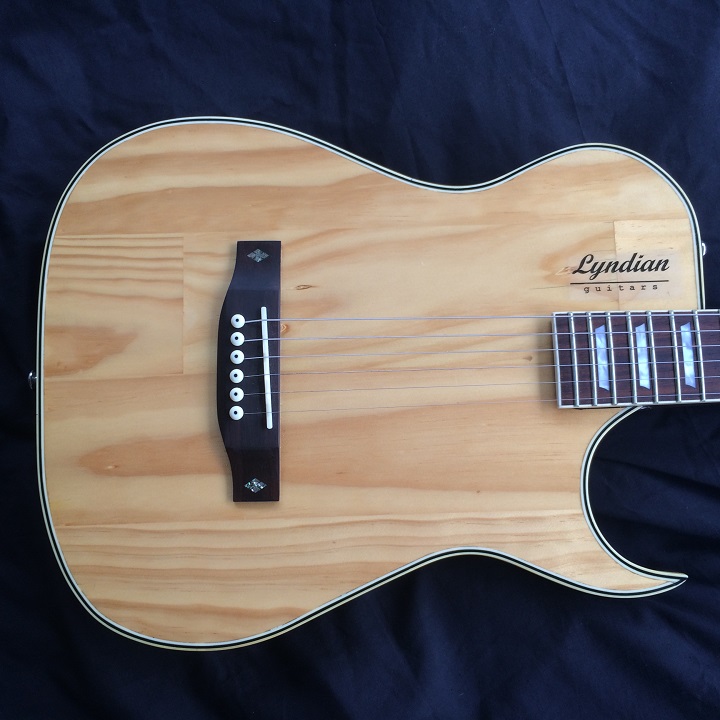

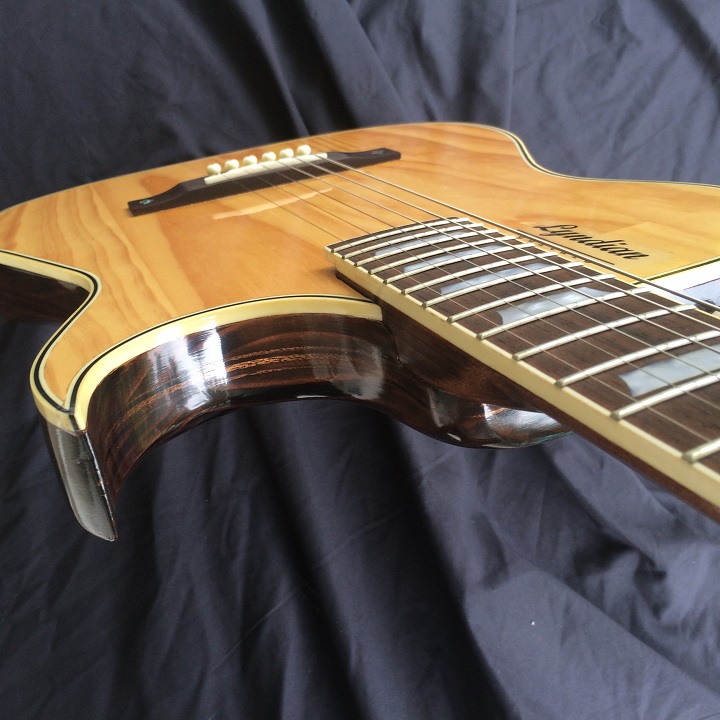

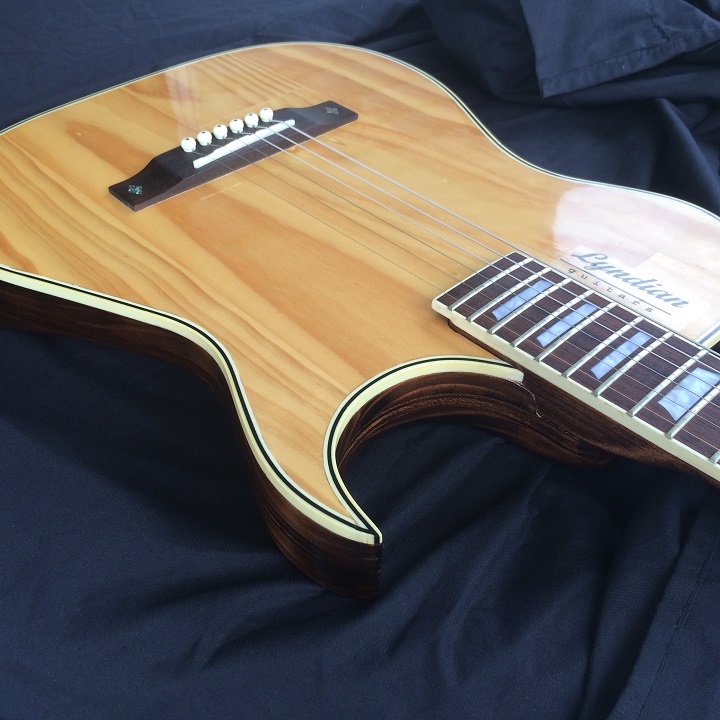

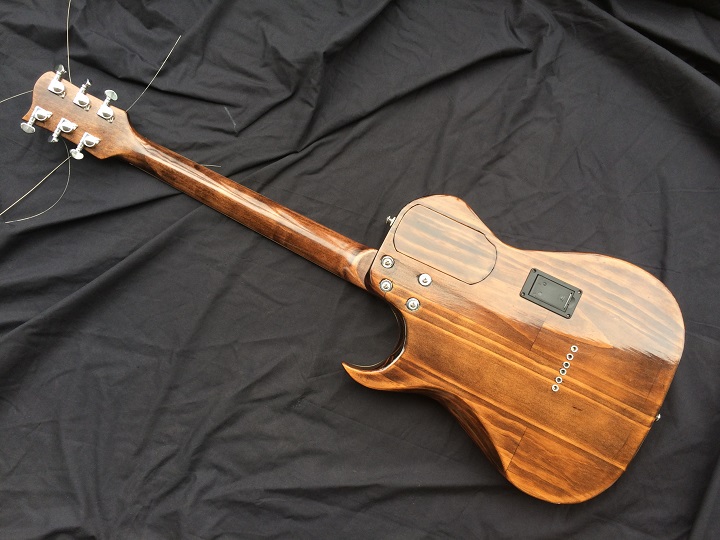

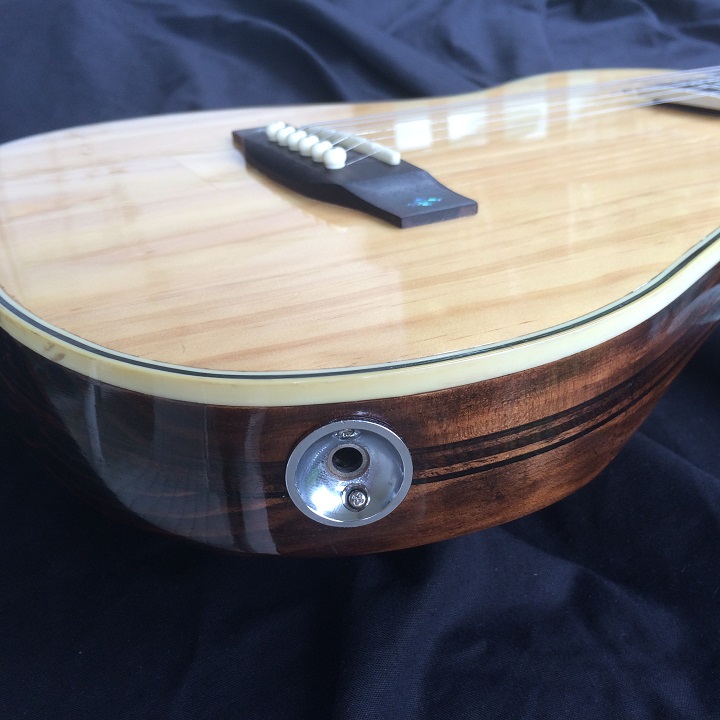

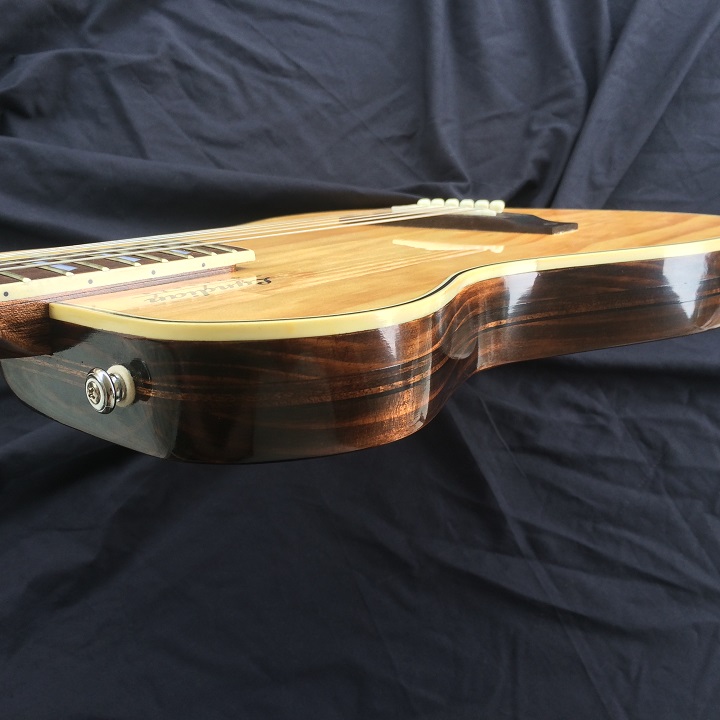

And now some close up shots

[robin]

@ Warren
Thanks mate, you have more faith in my abilities than I do. Lol.
I’ll do a quick demo later this afternoon.

@Scott
Thanks mate, by the time I’d got to cutting the saddle I had no nerves left, it was either going to work or it wasn’t. But I had a spare saddle just in case. Such is the level of my confidence.

Thanks guys
rob

[Fretworn]

Dang it Robin! If it plays half as good as it looks you've got a winner.

[andrewdosborne]

Beautiful well done

Sent from Android N

[wokkaboy]

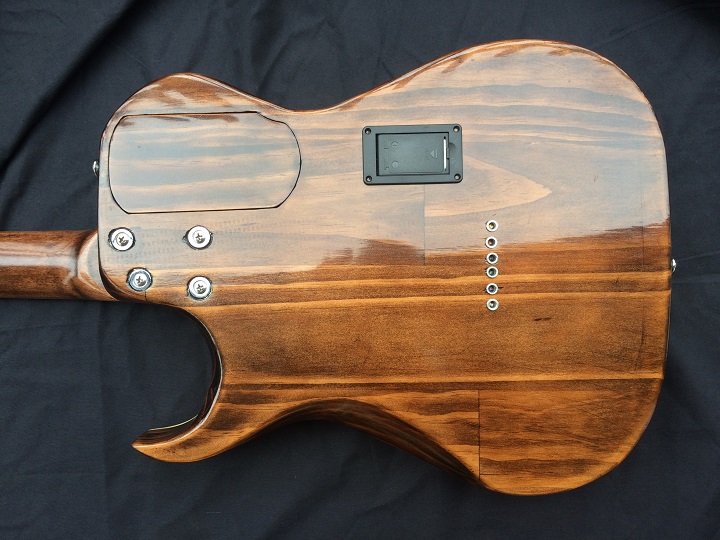

looks unreal Westie ! Are the equaliser controls in the back cavity ? Couldn't see them exposed. Love the simplistic look of the front with just your logo and bridge. Top job mate and glad it will fit will in the church band
