  1. #91
    Member
    Join Date
    Jun 2017
    Location
    North East UK
    Posts
    356

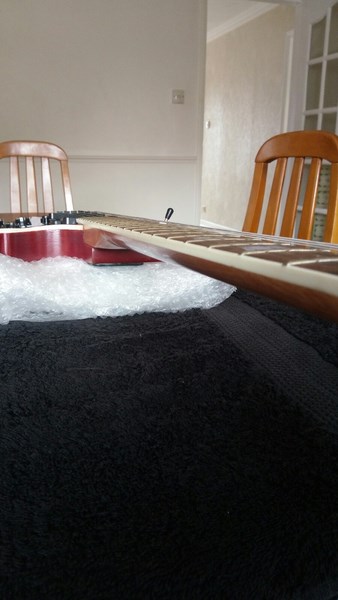

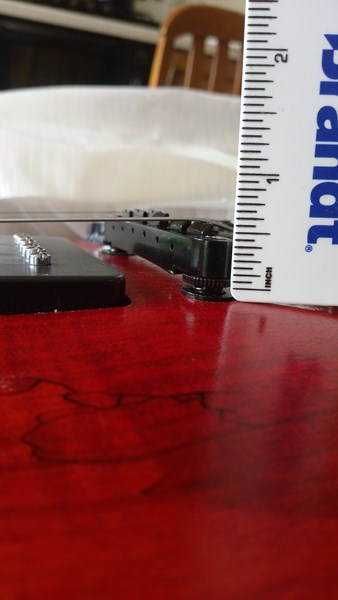

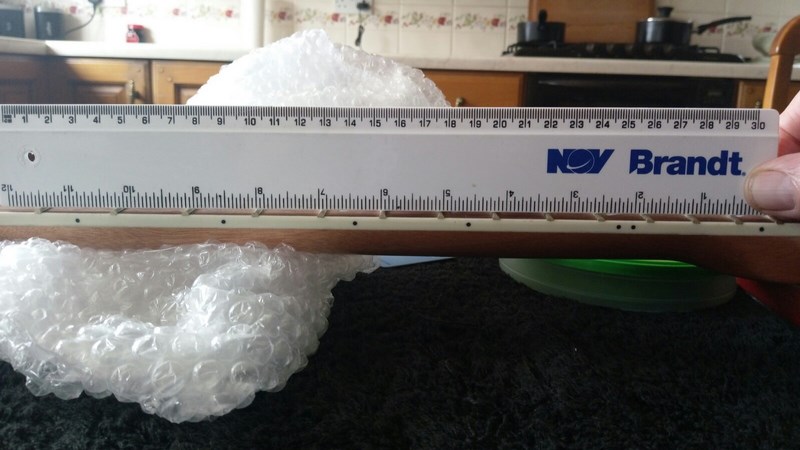

    The pickup is sitting high, I loosened it off a bit because it is not sitting square, you are dead right re the loudness of it the other obviously isn't so loud, I am waiting for that foam to come to pack out one side to square it off before tightening down, there is still a very small amount of bow, I slackened it off last night about 1/3 of a turn, a 1/4 didn't do much.

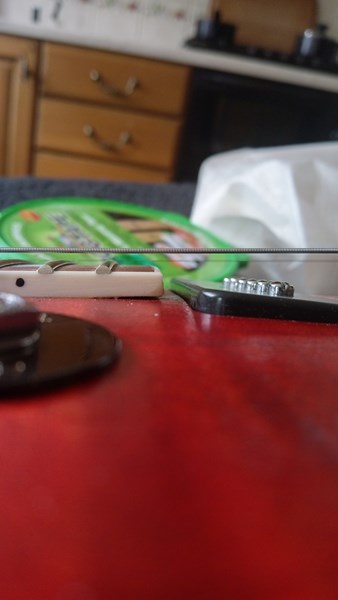

    The pick up in the pic is pressed down as low as it will go, got a funny feeling it is sat on the wires from the 3 way switch, I taped them off to one side, might have to also open up the outlet for the wires too as this wasn't as far down as I thought it could have been.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMAG0016 [Guitar].jpg
Views:	99
Size:	37.9 KB
ID:	21088   Click image for larger version.

Name:	IMAG0017 [Guitar].jpg
Views:	108
Size:	73.0 KB
ID:	21089   Click image for larger version.

Name:	IMAG0018 [Guitar].jpg
Views:	116
Size:	44.9 KB
ID:	21090   Click image for larger version.

Name:	IMAG0019 [Guitar].jpg
Views:	118
Size:	51.2 KB
ID:	21091

  2. #92
    Member
    Join Date
    Jun 2017
    Location
    North East UK
    Posts
    356

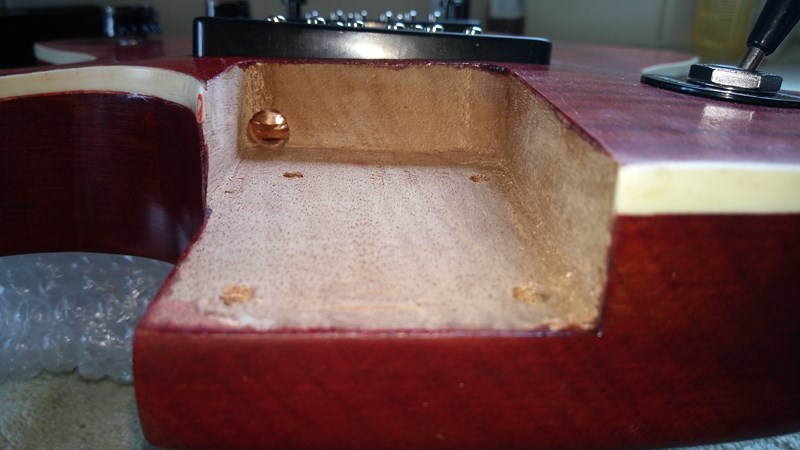

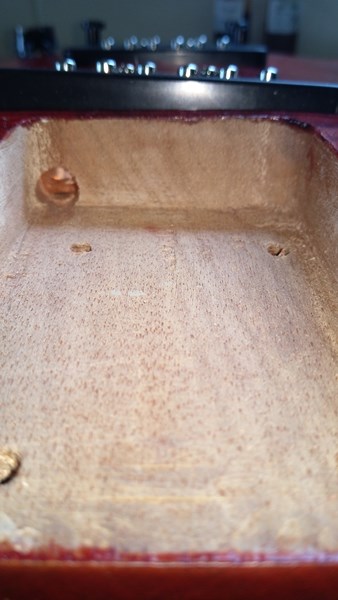

    Bit happier now, took off the neck and there were a few slight wood splinters so sanded these off and widen the screw holes slightly, upon further inspection the back of the neck socket was not level left to right and had a little raised bit on the right hand side

    I have a really sharp wood chisel so slowly slowly took the raised bit of and gave a slight sand
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMAG0020 [Guitar].jpg
Views:	110
Size:	49.7 KB
ID:	21092   Click image for larger version.

Name:	IMAG0021 [Guitar].jpg
Views:	93
Size:	43.0 KB
ID:	21093   Click image for larger version.

Name:	IMAG0022 [Guitar].jpg
Views:	91
Size:	64.5 KB
ID:	21094

  3. #93
    Member
    Join Date
    Jun 2017
    Location
    North East UK
    Posts
    356

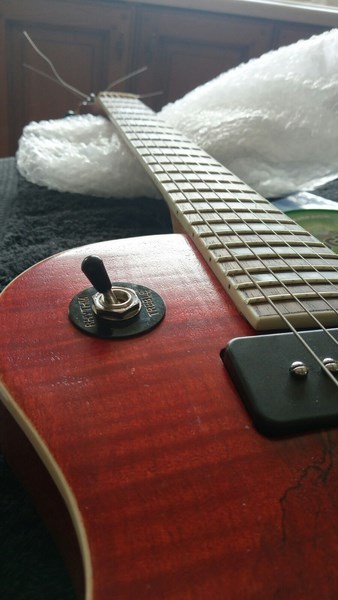

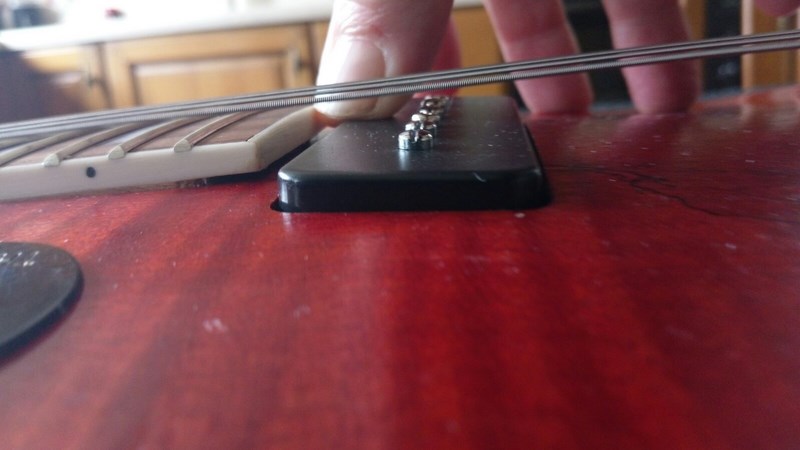

    Put the neck back on and looking a lot better, only the 2 e strings at the moment, I'm hoping there is no more bow in the neck as the tensioning bolt is fairly stiff even trying to undo it. Even got the pick up sat further in, it was sat on the wires at one side and one of the screws was halfway through the spring, will get it better levelled off when the foam arrives.

    Overnight rest for this one which means the Strat can be sanded more and a coat of dye go on
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMAG0023 [Guitar].jpg
Views:	91
Size:	25.8 KB
ID:	21095   Click image for larger version.

Name:	IMAG0024 [Guitar].jpg
Views:	99
Size:	31.4 KB
ID:	21096

  4. #94
    Mentor Kick's Avatar
    Join Date
    Feb 2017
    Location
    Amsterdam, The Netherlands
    Posts
    823
    You are a hard working person!
    Nr 1: Red Widow LP-1MQ (Finished) ->Diary<-

  5. #95
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    10,547
    Results all round! Yes, that front pickup should now be OK once you get it levelled off.

  6. #96
    Member
    Join Date
    Jun 2017
    Location
    North East UK
    Posts
    356
    Slight update, swopped the tuners out for some locking ones, changed over the strings to the Ernie Ball ones, levelled out the pick ups, but to be honest I prefer the bridge pick up lower than what I have it now, will be doing a final set up over the weekend, looks a bit orangey in the pic, in daylight a nicer red
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMAG0050-2 [Guitar].jpg
Views:	126
Size:	44.9 KB
ID:	21518

  7. #97
    Overlord of Music Dedman's Avatar
    Join Date
    Mar 2016
    Location
    The "Fabulous" Gold Coast
    Posts
    3,566
    yummy yummy yummy! Black hardware really suits it
    Build 19 PSH-1 Kustom
    Build 18 HB-4S Kustom
    Build 17 WL-1 Kustom
    Build 16 TL-1TB Kustom
    Build 15 PBG-2-
    Build 14 FTD-1
    Build 13 RD-1 Kustom
    Build 12 DM-1S
    Build 11 MKA-2 -
    Build 10 Basic strat
    Build 9 JM Kustom
    Build 8 FV-1G
    Build 7 ES-2V
    Build 6- Community prototype
    Build 5 LP-1LQ
    Build 4 ES-5V
    Build 3 JR-1
    Build 2 GD-1
    Build 1 TLA-1

  8. #98
    Mentor Kick's Avatar
    Join Date
    Feb 2017
    Location
    Amsterdam, The Netherlands
    Posts
    823
    Beautiful axe!
    Nr 1: Red Widow LP-1MQ (Finished) ->Diary<-

  9. #99
    Member
    Join Date
    Jun 2017
    Location
    North East UK
    Posts
    356

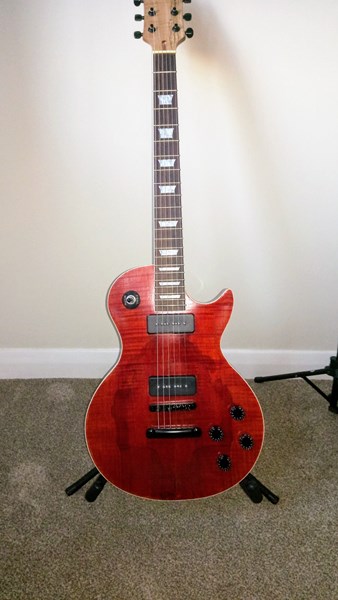

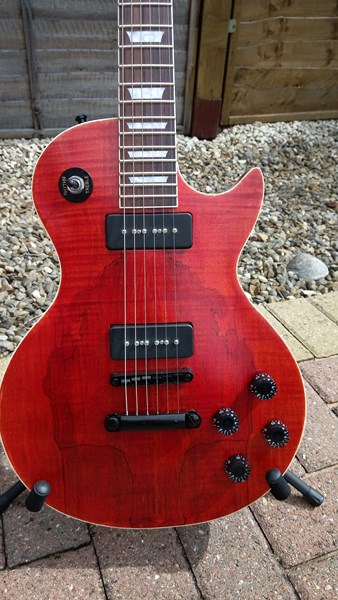

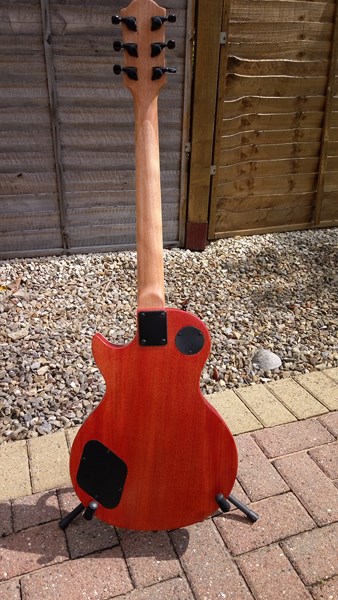

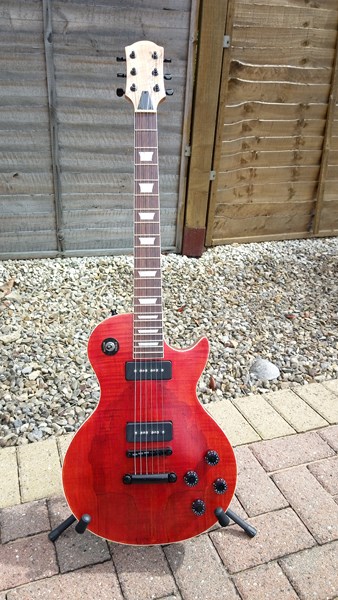

    2 hours of fiddling with the intonation set up etc etc finally got it what I think to be right, scale length is 2 mm out but can still get it in tune ok, the high E saddle is as far forward as it can go.... am I happy?.. oh yes, would I have done a few things differently?..oh yes, will I be doing more (apart from the other 2 on the go) ? you can bet your life on it, I've loved every minute, learnt a damn lot too, basic kit apart from locking tuners and Schaller strap locks.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMAG0051 [Guitar].jpg
Views:	93
Size:	84.0 KB
ID:	21556   Click image for larger version.

Name:	IMAG0052 [Guitar].jpg
Views:	102
Size:	73.1 KB
ID:	21557   Click image for larger version.

Name:	IMAG0053 [Guitar].jpg
Views:	92
Size:	80.2 KB
ID:	21558   Click image for larger version.

Name:	IMAG0054 [Guitar].jpg
Views:	105
Size:	70.7 KB
ID:	21559   Click image for larger version.

Name:	IMAG0055 [Guitar].jpg
Views:	104
Size:	84.8 KB
ID:	21560


  10. Liked by: OliSam

  11. #100
    Member
    Join Date
    Jun 2017
    Location
    North East UK
    Posts
    356
    Thanks to each and every one of you who helped me along the unknown road... owe you all one
