    Looks good!
    Nr 1: Red Widow LP-1MQ (Finished) ->Diary<-

  2. #92
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    10,547
    Unfortunately, the more you thin the MOP, the weaker the colours get. Just be careful on the thinning process and keep trying it at regular intervals. A brighter diode will certainly help.

  3. #93
    Mentor vh2580's Avatar
    Join Date
    Aug 2013
    Location
    Cleveland Qld
    Posts
    1,184
    Was originally going to fretlight the side dots but with the work involved in the inlays went for a luminous side dot instead.

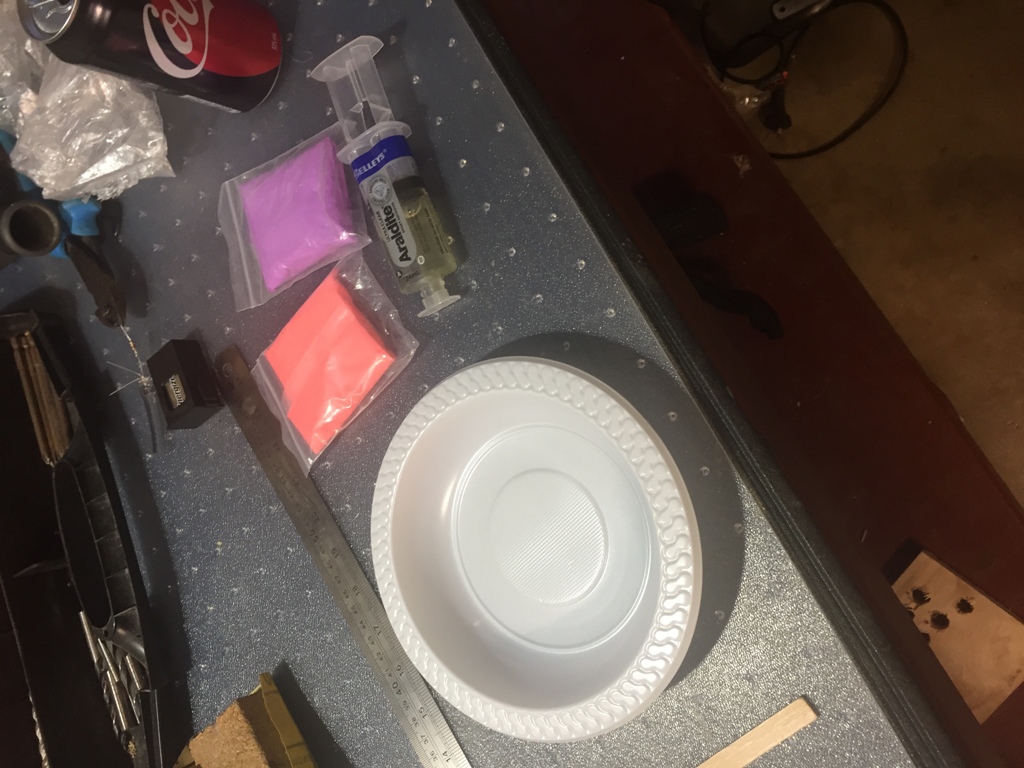

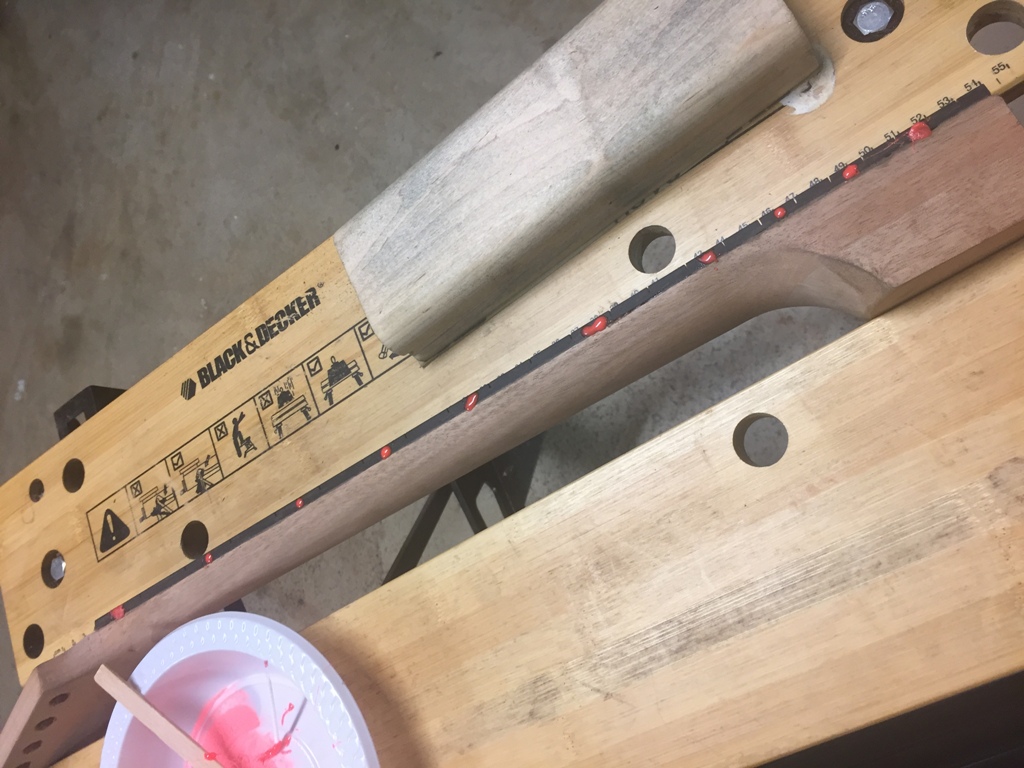

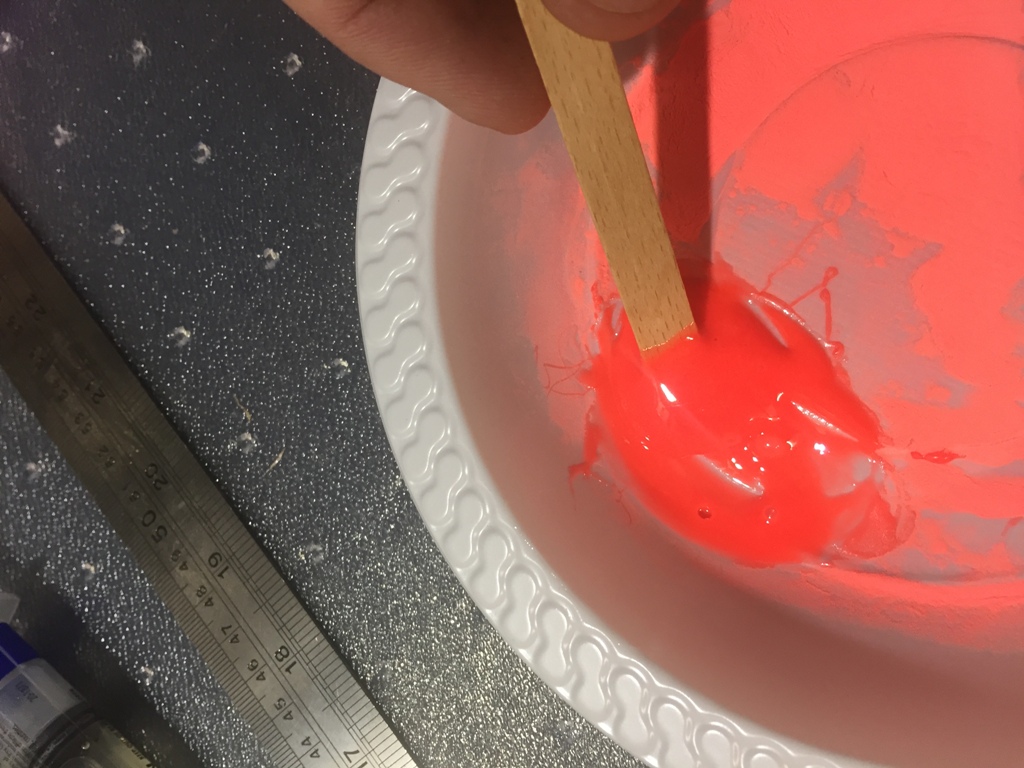

    Found some luminous powders on Ebay as couldn't find any premade red ones. Mixed with some standard 5 minute areldite and then dripped and pushed the material into the holes.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	48914653-6EE6-4366-B6F3-B59F461E9AC3.JPG
Views:	132
Size:	264.0 KB
ID:	18494   Click image for larger version.

Name:	4B112335-22FE-4370-82CF-FDEBA99A382A.JPG
Views:	135
Size:	265.3 KB
ID:	18495   Click image for larger version.

Name:	EA23BF80-7809-426C-AB1F-32697CDD3D48.JPG
Views:	166
Size:	268.0 KB
ID:	18496
    Tony

  4. #94
    How long do they hold a glow?
    Scott.

  5. #95
    Mentor vh2580's Avatar
    Join Date
    Aug 2013
    Location
    Cleveland Qld
    Posts
    1,184
    The description on eBay said 6hrs so probably ten minutes. Will do some testing once the necks done. And if they don't really glow will still be coloured so all good.
    Tony

  6. #96
    GAStronomist wazkelly's Avatar
    Join Date
    Aug 2015
    Location
    Caloundra West, Sunshine Coast Qld
    Posts
    6,631
    Good one Tony, should look great day or night.

    I looked into glow in the dark stuff too for the Swampy Tele but ended up doing the shiny metallic look instead.

    6 hours is ambitious and hope it lasts longer than ten minutes.

    Cheers, Waz
    # 1 - EX-5 https://goo.gl/fQJMqh
    # 2 - EX-1 https://goo.gl/KSY9W9
    # 3 - Non PBG Tele https://goo.gl/W14G5g
    # 4 - Non PBG J Bass https://goo.gl/FbBaFy
    # 5 - TL-1AR GOTM Aug 2017 https://goo.gl/sUh14s
    # 6 - MMB-4 Runner-up GOTM Oct 2018https://goo.gl/gvrPkp
    # 7 - ES-1 Runner-up GOTM Aug 2018https://goo.gl/T9BEY8

  7. #97
    Mentor vh2580's Avatar
    Join Date
    Aug 2013
    Location
    Cleveland Qld
    Posts
    1,184

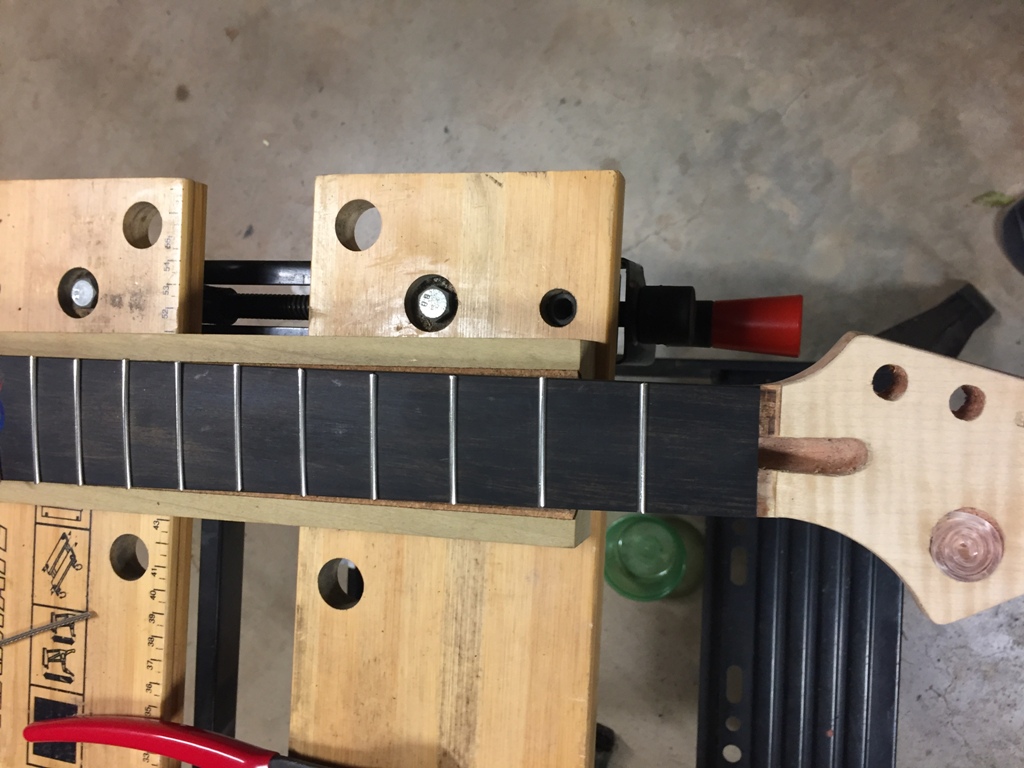

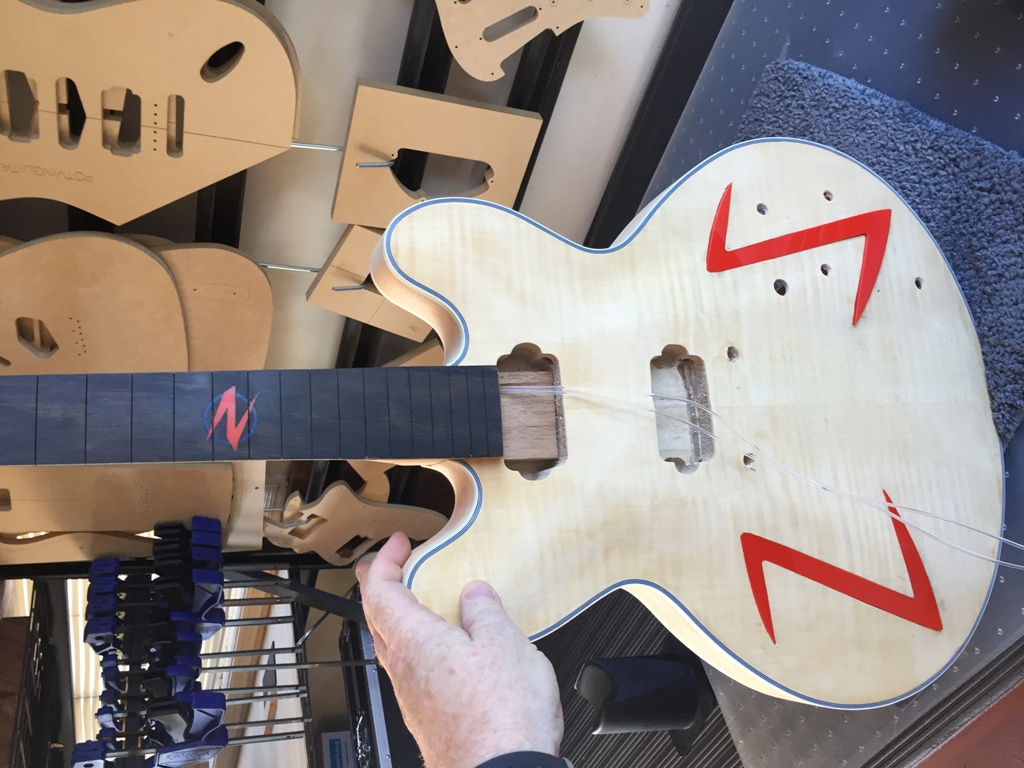

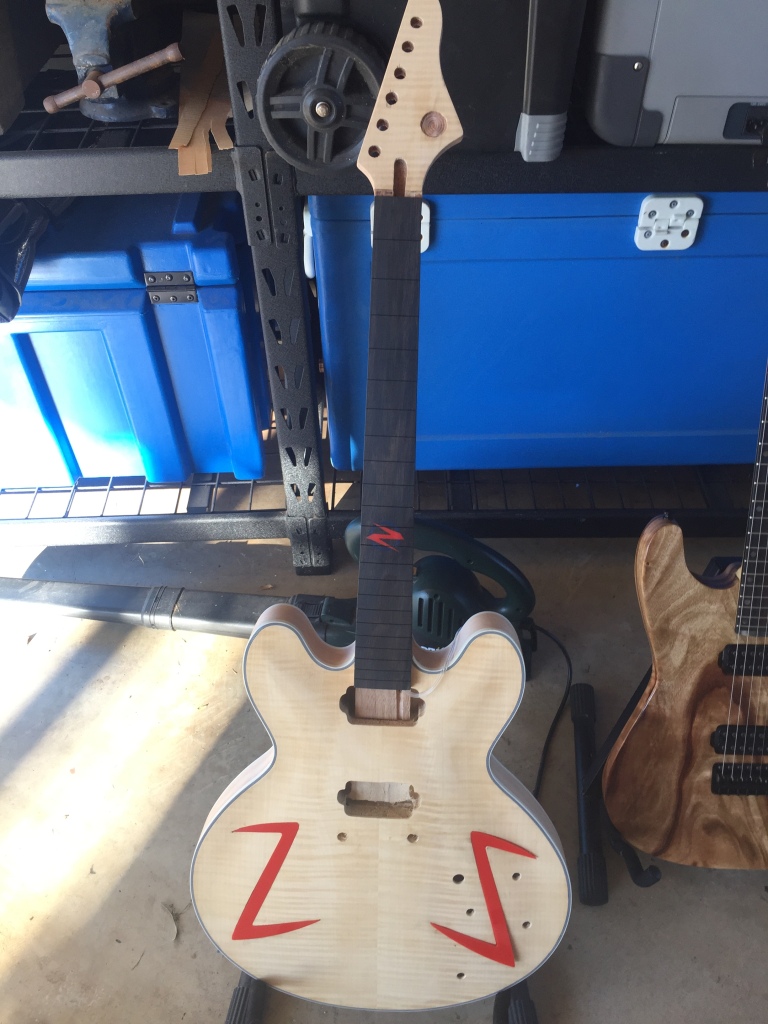

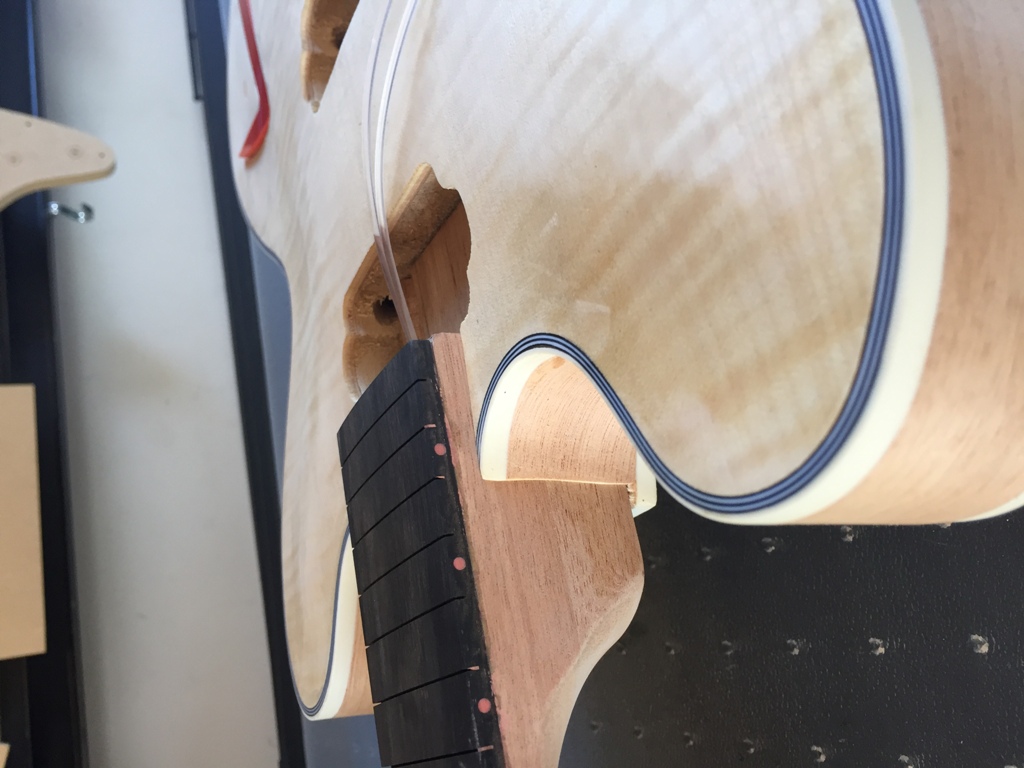

    On the weekend finally got a chance to continue with this build. Test fitted the neck and fits really well and tight, just a tweak required on the outer end of the pocket. starting to come together. Tonight started to fret the board and
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	005F870F-BC96-451C-8DEE-82531C26FAE8.JPG
Views:	154
Size:	208.4 KB
ID:	21358   Click image for larger version.

Name:	0AA863BE-AA6D-44E9-85A1-49CB8581A8E0.JPG
Views:	134
Size:	278.3 KB
ID:	21359   Click image for larger version.

Name:	88B75F9A-327F-4476-938A-D07FE25AF407.JPG
Views:	128
Size:	258.4 KB
ID:	21360   Click image for larger version.

Name:	IMG_1491.JPG
Views:	151
Size:	243.2 KB
ID:	21361
    Tony

  8. #98
    Mentor vh2580's Avatar
    Join Date
    Aug 2013
    Location
    Cleveland Qld
    Posts
    1,184
    then this happened.
    So far have resisted the urge to test my arm.

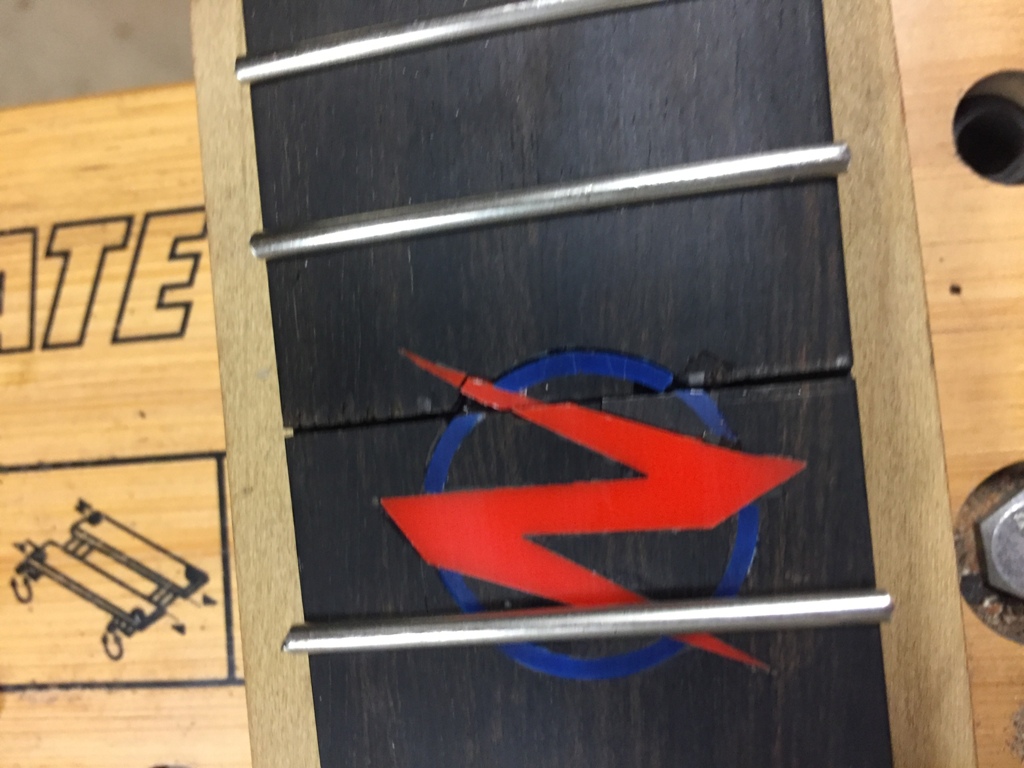

    the inlay has sunk in a bit and cracked at the 12th fret.
    Will have to attempt a super glue repair and see if I can get the inlay back in shape.
    If that is not successful will pull the 11th fret and the inlay and epoxy fill and fit a new inlay.( Pabs made some spares)
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMG_1492.JPG
Views:	138
Size:	231.5 KB
ID:	21362
    Tony

  9. #99
    GAStronomist FrankenWashie's Avatar
    Join Date
    Jan 2016
    Location
    Glebe, NSW
    Posts
    5,666
    That's freaking hard core Tony! It looks awesome with the neck and body assembled.
    Edit: Bugger about the inlay.
    Last edited by FrankenWashie; 03-08-2017 at 05:51 PM.
    FrankenLab
    Hand crafting guitars, because Death Rays are expensive.
