    So noted in the blue line below is where I should make a connection or have I stuffed that up hahaha?

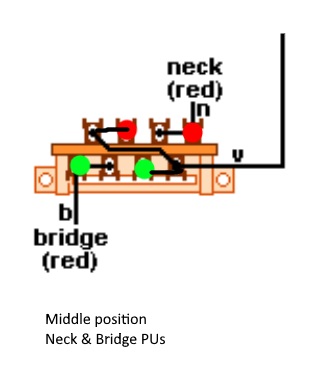

    Click image for larger version.  Name: my_switch_wiring2.jpg  Views: 553  Size: 210.9 KB  ID: 34671

    Actually from reading I think this is the one I'm meant to be doing?

    Click image for larger version.  Name: my_switch_wiring3.jpg  Views: 573  Size: 20.3 KB  ID: 34672
    Last edited by Alkay; 24-04-2020 at 03:32 PM. Reason: stuffed up diagram
    Cheers,

    Alkay
