D.I.Y A/B Box.

[DrNomis_44]

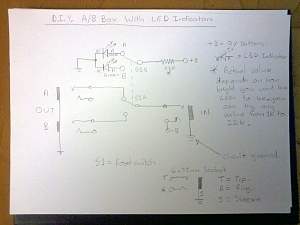

Here we go, here's the schematic diagram for the D.I.Y. A/B Box with the added LED Indicators:






I've arranged things so that the power to the LED indicators is disconnected by unplugging the lead from the input socket.


I might see if I can add the LEDs to my A/B Box build, that was a great idea Stan....cheers mate.
