    first build IB-7, 7 String

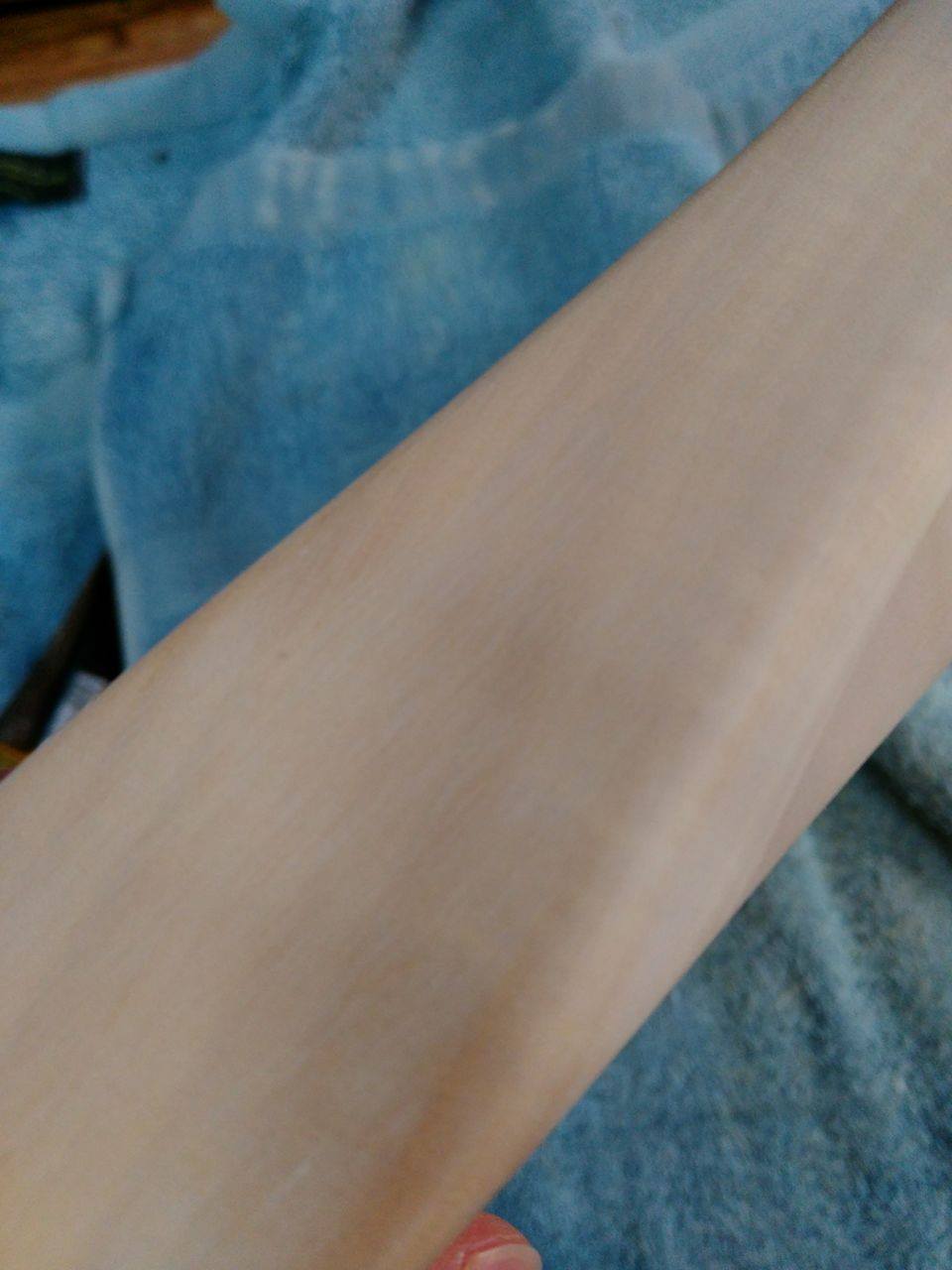

    Hello, I've recently bought the IB-7, 7 string guitar kit to do for my year 12 research project. I've spent most of my holidays sanding it. I've put about two coats of primer on it and I have noticed a large crack when it's hot that looks like it goes in pretty deep. I am planning on painting it matte black so if I need to put something on it that will show I can.
    Click image for larger version.

Name:	Screen Shot 2017-02-05 at 12.19.55 pm.png
Views:	265
Size:	704.8 KB
ID:	16885Click image for larger version.

Name:	Screen Shot 2017-02-05 at 12.21.16 pm.png
Views:	286
Size:	904.4 KB
ID:	16887
    It's actually wide enough to squash with my fingers.
    Click image for larger version.

Name:	Screen Shot 2017-02-05 at 12.23.02 pm.png
Views:	273
Size:	828.9 KB
ID:	16886

  2. #2
    Moderator Brendan's Avatar
    Join Date
    Apr 2013
    Location
    Perth, WA
    Posts
    3,444
    Jack - sounds like a bummer - I've contacted DB Our local resident luthier for any advice and will get back to you when we can.

  3. #3
    Hi Jack, looks like a crack that's opened up with the temperature change. We can get that complete kit back and replace with a new (uncracked) one.

    Flick me an email and we'll organise it. adamboyle(at)pitbullguitars.com
    Cheers,

    Adam



    adamboyle(at)pitbullguitars.com

  4. #4
    Member
    Join Date
    Dec 2016
    Location
    Port Lincoln, South Australia
    Posts
    10
    Quote Originally Posted by adam View Post
    Hi Jack, looks like a crack that's opened up with the temperature change. We can get that complete kit back and replace with a new (uncracked) one.

    Flick me an email and we'll organise it. adamboyle(at)pitbullguitars.com
    Thanks Adam, email sent
    Cheers, Jack

  5. #5
    Moderator Brendan's Avatar
    Join Date
    Apr 2013
    Location
    Perth, WA
    Posts
    3,444
    Bummer Jack - good news is that it's being resolved.

  6. #6
    Member
    Join Date
    Dec 2016
    Location
    Port Lincoln, South Australia
    Posts
    10

    Replacement

    I've gotten the guitar replaced and have started the sanding again. On this body it looks like it's going to take much longer since there are a lot of scratches on the edge of it. They don't seem to feel like they make it any less smooth but I could be wrong. Since I'm painting the guitar and not staining it will these be an issue or can I cut a bit of a corner to save time.
    Click image for larger version.

Name:	17273599_612537958941806_523892948_o.jpg
Views:	257
Size:	85.8 KB
ID:	18056Click image for larger version.

Name:	17273762_612537955608473_1724800671_o.jpg
Views:	229
Size:	84.6 KB
ID:	18057Click image for larger version.

Name:	17310512_612537968941805_2114571132_o.jpg
Views:	260
Size:	75.9 KB
ID:	18058
    I'm beginning to run out of time to complete this as it's for my year 12 research project so any ways I can get it done quicker would be extremely appreciated.

  7. #7
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    Hi Jack, would be best if you can remove the machine marks or you will need more primer coats to hide them.
    Which way are you sanding ? you should sand with the grain so sand up and down and not along the edges.
    Get some 120 grit and finer paper and you should remove them pretty quickly.
    Worth grain filling the body before you put the primer on. This will fill all the tiny pores and lower points. The more preparation you do now will pay off in the long run. You will need less primer and colour coats.
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  8. #8
    Member
    Join Date
    Dec 2016
    Location
    Port Lincoln, South Australia
    Posts
    10
    I have been sanding with the grain but I have only been using 240 grit. Should I use 120 instead? Thanks

  9. #9
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    Hi Jack, yes those machine marks look fairly deep on the bottom edge. I suggest start at 120 grit then work up till about 320 grit should be enough
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  10. #10
    Member
    Join Date
    Dec 2016
    Location
    Port Lincoln, South Australia
    Posts
    10
    Okay thank you very much
