A wiring mod by Sämi
"I decided to do a five knob wiring on my RC Kit. It took me a while to find diagrams and figure out what they mean. When I was done I didn't like the "mixer" function of the fifth knob so I decided to turn it into a master volume which is very useful, considering how well you can use the individual volume knobs for mixing.

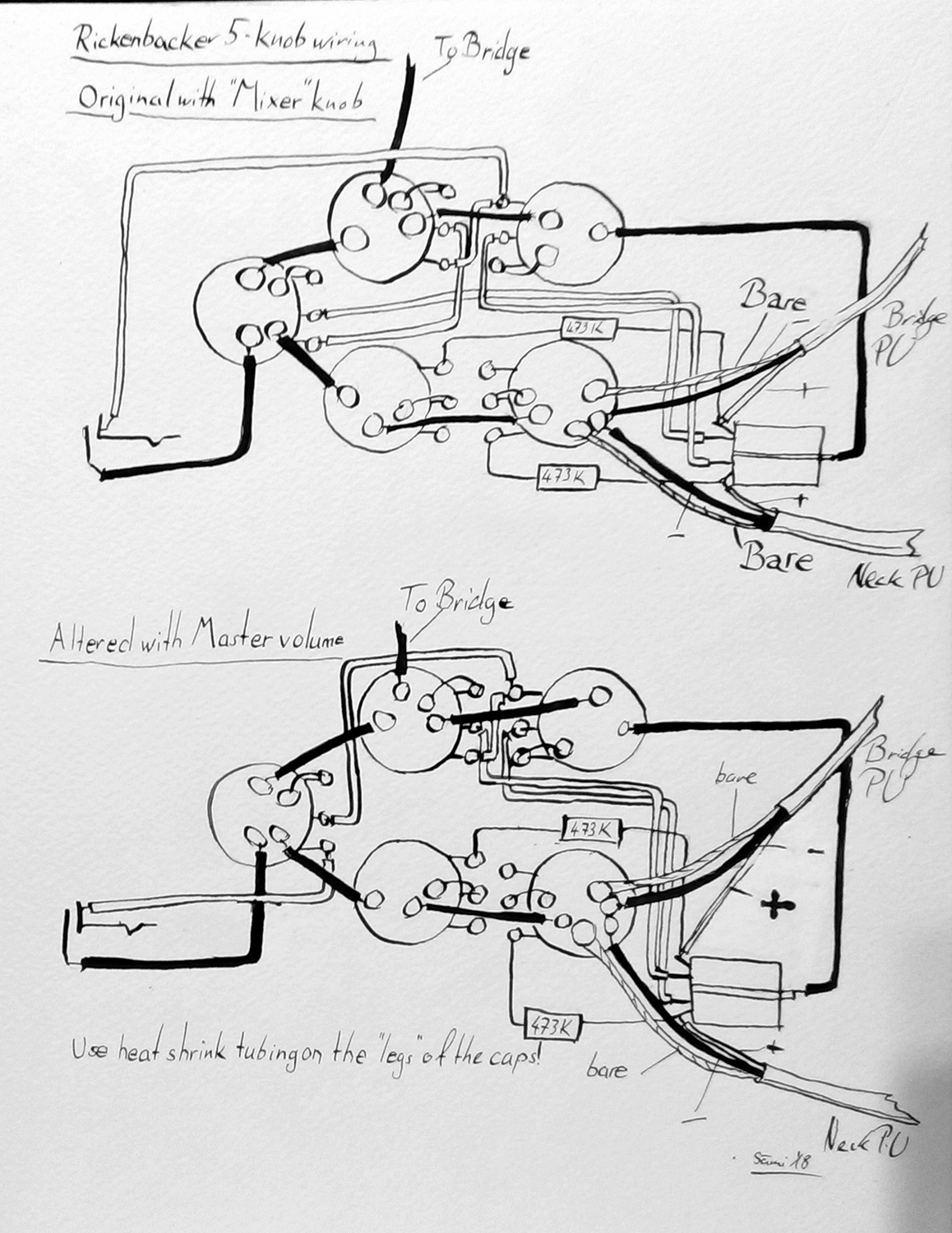

I drew plans for the two versions and attached them for you. Maybe they will be of use for other builders who want to give their Ricky project a fifth knob. Please feel free to use them.
Cheers
Sämi"
