    Humbucker wiring check.

    Hi guys
    I just want to make sure I have my wiring right for my humbuckers in my DTL-7.
    What are the green and bare wires. Where do they go?

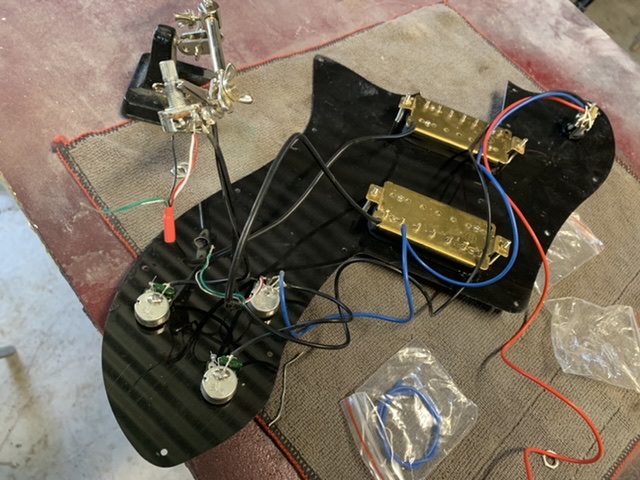

    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: 786ED70E-3846-496B-A721-3304FAD36A63.jpeg  Views: 149  Size: 70.2 KB  ID: 33297   Click image for larger version.  Name: 673AC35B-42D8-40AA-803C-BEF9A804EEFF.jpeg  Views: 140  Size: 130.3 KB  ID: 33298
    Reply With Quote Reply With Quote
  2. 17-01-2020, 01:42 PM #2
    WeirdBits
    WeirdBits is offline
    Moderator WeirdBits's Avatar
    Join Date
    Jan 2013
    Posts
    2,752
    For the stock PBG kit pickups:

    Black = hot
    Red/White = series link between coils (just insulate tip if not coil splitting)
    Green + Bare = ground
    Scott.
    Reply With Quote Reply With Quote
  3. 17-01-2020, 02:17 PM #3
    Micko
    Micko is offline
    Member
    Join Date
    Dec 2019
    Posts
    30
    I have it very wrong then. I have
    Black = earth
    Red/white= hot
    Great bare not connected
