Thread: Twin output jack idea...

  1. #1
    Mentor Chuck's Avatar
    Join Date
    Aug 2016
    Location
    Sydney
    Posts
    584

    Twin output jack idea...

    I’ve started thinking about build #2! Yep, getting in early while the TL-1 Telemaster is curing…

    The plan for this one is a bit different. I’ll be ordering a JM-1 kit from Andy, but getting a maple neck to go with it. I’ve got a couple of ideas around some shape modifications (because I can’t help myself!) but we’ll see how that goes.

    The more interesting thing with this one is what I plan to do with the electronics – and I’m very much a rookie in this space so there will be lots of questions.

    I’m planning to use just the humbucker in the bridge and a single coil in the neck. Both pickups will be wired directly to their own volume pots and I won’t be using any tone pots. Where the third pot sits on the control plate I’ll be putting a second output jack – yep, two output jacks, each one wired directly to their own pickup. Where the switch is on the upper horn I’ll put a single toggle switch (bridge on, both on, neck on).

    The idea is that I’ll be able to use each output jack to a separate amp. I realise I could just use a splitter box to send the same signal to two amps, but I want to capture the characteristics of each pickup individually.

    Working out how to do the wiring for this will be a challenge but I’ve started poking around to find some basic diagrams. I have found one bloke who did something similar but was able to have the one of the jacks service both pickups unless the second jack also had a plug in it in which case the pickups were kept on different paths. Something about using a Switchcraft #12A jacks rather than the stand #11 one – I’ll look into that a bit more.

    Interested in anyone’s thoughts as it’s still an idea in gestation…
    Completed Builds: #1 TL-1 "Telemaster" (GOTM Oct 2016); #2 The "Maplecaster" scratch build; #3 JB-4 "Bass IV" (co-winner GOTM Jan 2017); #4 ST-1M "Surfcaster" (GOTM Apr 2017), #5 JZA-1 "EC Deluxe"

    In Progress:
    Build #6 N1R "Semi-scratch" build
    Build #7 JZA-1 Baritone

    The Cavan Project
    The Magnificent Compañeros

  2. #2
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    Hi Chuck, sounds like a cool concept. I'm sure Weirdy will be able to guide you with a wiring diagram.
    If you are happy to have 2 guitar leads going to 2 amps then go for it.
    Not sure how the sound levels will vary when just the bridge or just the neck pup is on, then when both on should be a full sound.
    Be an interesting project I've never thought of this
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  3. #3
    Mentor Chuck's Avatar
    Join Date
    Aug 2016
    Location
    Sydney
    Posts
    584
    Quote Originally Posted by wokkaboy View Post
    Hi Chuck, sounds like a cool concept. I'm sure Weirdy will be able to guide you with a wiring diagram.
    If you are happy to have 2 guitar leads going to 2 amps then go for it.
    Not sure how the sound levels will vary when just the bridge or just the neck pup is on, then when both on should be a full sound.
    Be an interesting project I've never thought of this
    At worst I can just revert to something a bit more normal if it doesn't work I guess. I've done the twin amp thing with my Bass VI, sending one path with all the bass rolled off to a guitar amp with a bit of fuzz, and a clean bass path to a bass amp. It works quite well for power chords. I've no idea how this will sound, but someone's gotta be the guinea pig I guess!
    Completed Builds: #1 TL-1 "Telemaster" (GOTM Oct 2016); #2 The "Maplecaster" scratch build; #3 JB-4 "Bass IV" (co-winner GOTM Jan 2017); #4 ST-1M "Surfcaster" (GOTM Apr 2017), #5 JZA-1 "EC Deluxe"

    In Progress:
    Build #6 N1R "Semi-scratch" build
    Build #7 JZA-1 Baritone

    The Cavan Project
    The Magnificent Compañeros

  4. #4
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    wow that's an interesting concept Chuck.

    I think the single coil will have a lower output so you may need to turn that amp up a bit more than the bucker.

    I reckon both pups on the walls would be shaking - nice one
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  5. #5
    Mentor Chuck's Avatar
    Join Date
    Aug 2016
    Location
    Sydney
    Posts
    584
    Yeah, at least having independent volume controls for each pickup will allow me to adjust the output levels on the fly.
    Completed Builds: #1 TL-1 "Telemaster" (GOTM Oct 2016); #2 The "Maplecaster" scratch build; #3 JB-4 "Bass IV" (co-winner GOTM Jan 2017); #4 ST-1M "Surfcaster" (GOTM Apr 2017), #5 JZA-1 "EC Deluxe"

    In Progress:
    Build #6 N1R "Semi-scratch" build
    Build #7 JZA-1 Baritone

    The Cavan Project
    The Magnificent Compañeros

  6. #6
    Member
    Join Date
    Aug 2016
    Location
    Adelaide
    Posts
    32
    You should be able to do something similar with a single stereo jack.

    Wire the neck pickup vol pot output to the ring terminal on the jack with a dpdt switch in line in place of the third pot, and the normal output path via pickup selector switch to the tip. Wire the switch so that one side makes a connection between the neck pickup vol pot output and the ring terminal and the other side makes a connection between the neck pickup vol pot output and the pickup selector switch.

    Stereo cable with switch set gets you bridge pickup to one amp (assuming pickup selector allows it) and neck pickup to the other.

    Mono cable and switch unset gets you normal output path.

    Saves running more cables to trip over. If you want to do things like neck + bridge to one amp and neck to the other then it would get a bit trickier.

  7. #7
    Mentor Chuck's Avatar
    Join Date
    Aug 2016
    Location
    Sydney
    Posts
    584
    Thanks Dan, I think I follow that...kinda. When you say "switch set/unset" I'm not sure I understand. And also, I get using the stereo cable, but how do I split that cable into two paths? Some kind of splitter that recognised tip and and ring?
    Completed Builds: #1 TL-1 "Telemaster" (GOTM Oct 2016); #2 The "Maplecaster" scratch build; #3 JB-4 "Bass IV" (co-winner GOTM Jan 2017); #4 ST-1M "Surfcaster" (GOTM Apr 2017), #5 JZA-1 "EC Deluxe"

    In Progress:
    Build #6 N1R "Semi-scratch" build
    Build #7 JZA-1 Baritone

    The Cavan Project
    The Magnificent Compañeros

  8. #8
    Overlord of Music Dedman's Avatar
    Join Date
    Mar 2016
    Location
    The "Fabulous" Gold Coast
    Posts
    3,566
    I like your headspace Chuck.
    Build 19 PSH-1 Kustom
    Build 18 HB-4S Kustom
    Build 17 WL-1 Kustom
    Build 16 TL-1TB Kustom
    Build 15 PBG-2-
    Build 14 FTD-1
    Build 13 RD-1 Kustom
    Build 12 DM-1S
    Build 11 MKA-2 -
    Build 10 Basic strat
    Build 9 JM Kustom
    Build 8 FV-1G
    Build 7 ES-2V
    Build 6- Community prototype
    Build 5 LP-1LQ
    Build 4 ES-5V
    Build 3 JR-1
    Build 2 GD-1
    Build 1 TLA-1

  9. #9
    GAStronomist wazkelly's Avatar
    Join Date
    Aug 2015
    Location
    Caloundra West, Sunshine Coast Qld
    Posts
    6,631
    I would have to agree with the stereo output socket as that is what I did about 30 odd years ago on my yammy fretless bass which was the backup to my stereo Ric 4001 at the time.

    It was dead simple, just replace the mono output jack, clip the capacitor off the tone pot, then make sure both pots are wired to run as volumes, then run the output signals to the different lugs on the output socket.

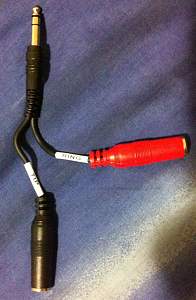

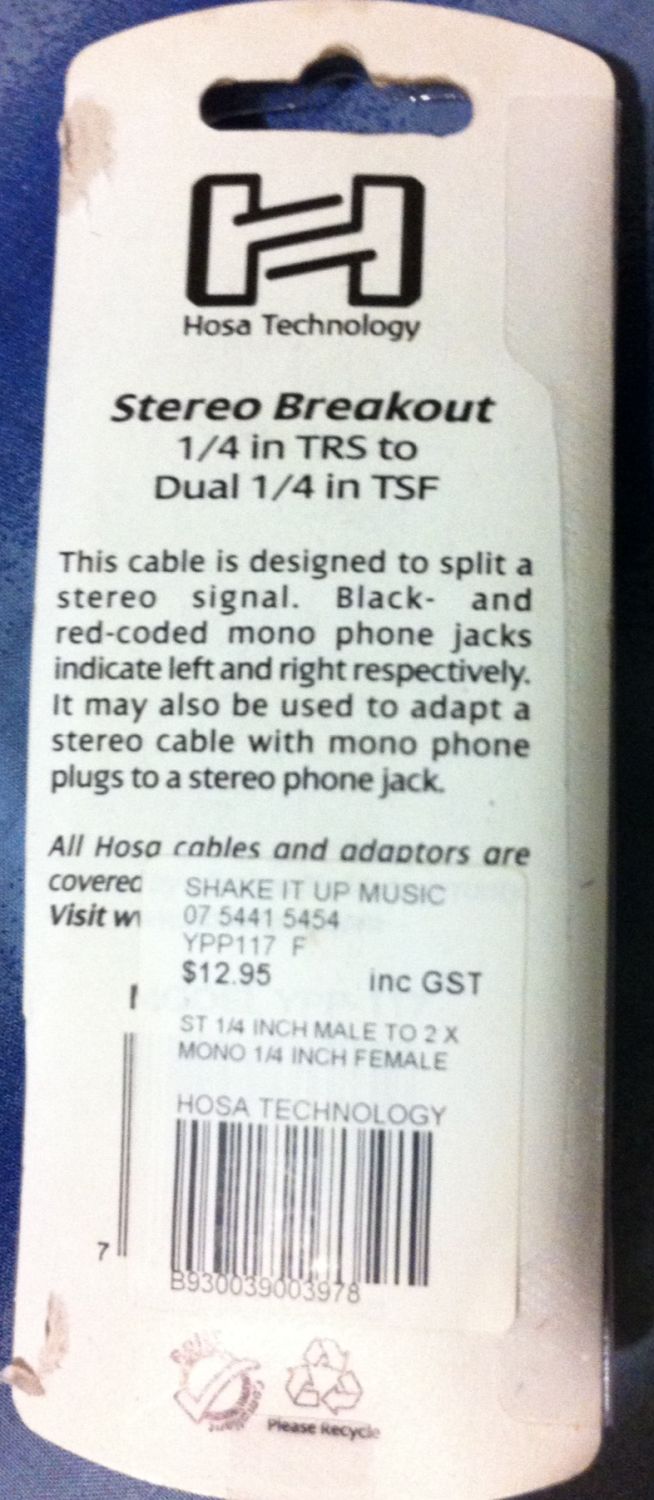

    Only downside is this way makes it permanent stereo use however you can use it with a mono cable but that would drop one of the PUP's. Also, you can buy a stereo splitter like this one below that I bought recently for my Ric 4003. The 2 amp setup sounds awesome and easy enough to adjust their volumes so that you get a decent balance without having to fiddle around on the guitar all the time.
    Click image for larger version.

Name:	photo 1.jpg
Views:	347
Size:	129.7 KB
ID:	13532Click image for larger version.

Name:	photo 2.jpg
Views:	322
Size:	221.9 KB
ID:	13533
    # 1 - EX-5 https://goo.gl/fQJMqh
    # 2 - EX-1 https://goo.gl/KSY9W9
    # 3 - Non PBG Tele https://goo.gl/W14G5g
    # 4 - Non PBG J Bass https://goo.gl/FbBaFy
    # 5 - TL-1AR GOTM Aug 2017 https://goo.gl/sUh14s
    # 6 - MMB-4 Runner-up GOTM Oct 2018https://goo.gl/gvrPkp
    # 7 - ES-1 Runner-up GOTM Aug 2018https://goo.gl/T9BEY8

  10. #10
    You could use a stereo socket with a separate toggle switch to select between stereo/mono wiring, it's an easy reliable solution. Or, if you're set on using two jacks, you could have one normal mono jack and then make the other jack a switched version... plug into the mono jack and you get a mono guitar, plug a second lead into the switched jack and you get stereo output, one pickup per jack.

    i'm not sure switched jacks would be as robust as a typical Switchcraft mono guitar jack.
    Last edited by WeirdBits; 30-08-2016 at 07:06 PM. Reason: fumbles
    Scott.
