First Build: ST-1L

Hello!

Doing my first electric guitar build. I was looking to buy an entry level guitar alas as a left hander there aren't any good options at an "entry" price level, so when I saw these kit builds I thought it'd be a fun project that could save a bit of cash. I don't actually know how to play guitar but I've done a few of woodwork and "maker" (DIY) projects before so I'm fairly confident going into this build at least in terms of putting it together, making it solid and making it "look good" however due to my unfamiliarity with the instrument, having it "sound good" will be more of a challenge.

Plan
Seeing as the guitar body provided is a "limited edition" solid mahogany, I've decided to try for a french polish to try make the most of the natural beauty of the timber. Unfortunately the neck is a much lighter timber (beech?) so to I'm going to try stain it a bit to get it to match the body better. Apart from that I have nothing else in particular planned!

06/03 to 08/03 2019: Headstock Shaping and Neck Finishing
I'm planning on making a holding jig which mounts to the neck socket on the body but to do that I'll really need to clean up my garage and work area first. However, since I'm currently super keen, I'm getting started with the neck+headstock.

I really have no idea about headstock designs. I looked up some standard designs and none of them really appealed to me. In trying to come up with my own design I'm wasn't too sure about requirements like: how much wood is safe to remove? how close can I come to the tuning machine holes? Of course I just went ahead anyway and sketched on something that looked about right.

The design is meant to evoke a "tanto point" knife. Starting at the very top corner closest to the last machine hole I drew a straight line back at an angle to make the "tip" and followed that down until I felt like it gave enough width then went straight back trying to be sort of parallel with the neck. I also shaded the area I planned to make the "bevel". Both sides were marked out since I wanted to "double bevel".

https://i.imgur.com/jSIZ3J0l.jpg
Headstock with the outline cut.

I made the cuts using hand saws and cleaned up the outline with a rasp+sanding. At this stage I also made markings along the edge to determine how much of an "edge" the bevels came to. I decided to have the bevels come to a ~5mm wide flat which is as thin as I'm comfortable with without worrying about the "edge" getting dinged too easily.

https://i.imgur.com/zWR4uGEl.jpg
Headstock Beveled

To make the bevel, I used a rasp to remove the majority of the wood by hand. I then used a bastard file followed by a single cut file to smooth out the rasp gouges and get the remaining wood. I rounded off the tip of the headstock slightly since a pointy tip would be liable to getting chipped off/damaged. I then hit it with 320 grit to smooth it out that last bit and take off any sharp edges. I really like the 3m ultra flexible sanding sheets. They're are a polymer (not paper) sanding sheet, they're are pretty pricey but they do a really great job, they get around corners and shapes really nicely, remove material fast and last much longer than normal sandpaper; I do recommend them. Unfortunately there are still some minor scratches from the rasp i couldn't get out completely. Next time I'll stop rasping sooner.

https://i.imgur.com/gtJl5r2m.jpghttps://i.imgur.com/8m96xggm.jpg
Neck+headstock with stained linseed oil finish

As mentioned before, I wanted to stain the neck+headstock so it'd match the body a bit better. I tried using some "prooftint mahogany" stain from Feast Watson I got some Bunnings. For the actual finish I heard of not wanting to and high gloss finishes and to instead use an oil finish so that the neck was a slippery stain finish. I had some linseed oil lying around so I used that. I mixed about 8 drops of the stain into 100ml of the concentrated linseed oil. I also forgot that the linseed oil is meant to be diluted 50/50 with turps, oops. I applied the finish using a cotton cloth. While wiping it on I didn't notice a drop had come off onto an area I wasn't actively wiping. By the time I noticed it has seeped in so now my neck has a little "port wine stain" on the back of it. I also noticed the oil+stain went into the area with exposed end grains more and made those areas darker, which I should have seen coming. I probably could have avoided that by using some grain/sanding sealer but I didn't want to end up making the surface too glossy and sticky.

Yesterday, I diluted the linseed oil properly and gave it another coat (24hrs after the first). Today I wiped it down and tried sliding my hand on it. unfortunately the linseed oil probably needs a while still to cure so it feels pretty sticky. Hopefully once it's cured it'll be nice and slick.

http://i.imgur.com/FVZ8iXum.jpghttp://i.imgur.com/WuPs7lQm.jpg
Close ups of the headstock

http://i.imgur.com/Rl3hmZtm.jpg
Looking down the edge of the headstock

Next up I need to clean up my workspace and when I have time I'll make a that jig to hold the body and get started finishing that.

Looks like you're off to a great start!

Nice job mate!

Great information. Thanks for the advice!

Welcome. That’s a novel approach to the headstock. Great job.

I'm getting a bit of a Millimetric vibe from the head stock. Looks cool.

http://www.millimetric.ca/#:#gallery

It's been a while. I've finished my build but haven't had time to do a write up. So here I am making some posts on my progression.

10/03 to 12/03 2019: First Body Finishing Attempt
I ended up quickly knocking together a neck socket type holding jig out of balsa because it was quick and easy. Really wasn't a good idea. I didn't break but it kept bending around and made it annoying and more difficult to work on. I'll try make it out of something more sturdy next time. I wanted to weld one with some of the scrap I have lying about but setting up my welding machine then packing it up again felt like too much of a pain in the arse.

http://i.imgur.com/qcBCjPPm.jpg http://i.imgur.com/w3kxdw6m.jpg
Light sand and attached to jig.

http://i.imgur.com/pNQq7pbm.jpg http://i.imgur.com/2DvdCmzm.jpg
2 coats of Feast Watson Sanding Sealer and lightly sanded.

http://i.imgur.com/rWISy0dm.jpg
Pad for applying shellac/french polishing. It was a bit big and ended making it difficult to apply shellac to the curves in the front parts (?) of the body. I made a smaller one about half the size for the second attempt later.

http://i.imgur.com/OBci0DMm.jpg http://i.imgur.com/LtXi7qAm.jpg
First Shellac Coating. I added a few drops to stain to the shellac mix in the hopes it'd add colour. I retrospect I added nowhere near enough to have much of an effect.

http://i.imgur.com/0EUvP9dm.jpg http://i.imgur.com/lrV4HDJm.jpg
Wasn't happy with the colour, I wanted a much darker colour so I tried adding more stain to the pad to darken the colour but it still wasn't enough.

http://i.imgur.com/7NtXXmRm.jpg http://i.imgur.com/bABtXPRm.jpg
In some spots I "burnt though" by getting too much solution from the pad onto the previous layers thus wiping them away and causing uneven colour.

http://i.imgur.com/0xeGQtPm.jpg http://i.imgur.com/fWgUVH0m.jpg
With the weak and uneven colour along with my destructive perfectionism I decided to sand it all off and try again. There was actually some unevenness I didn't catch before but required extra sanding in order to get everything back to an even base colour. These were mostly in areas where the grain turned up and making it sand more slowly which likely caused slight unevenness from the factory. This would cause some problems later.

17/03 to 19/03 2019: Second Body Finishing Attempt
http://i.imgur.com/FCfMkkem.jpg http://i.imgur.com/tHcKS03m.jpg
This time I tried staining the base timber directly first. However, with some of the previous coats of sealer+shellac, I don't think the stain really penerated and stained the wood but more made a coloured layer sitting on top. Also, due to the uneven standing combined with the grain coming out, some of area were darker and the stain caused the wood fibre to come up as the sanding sealer had been sanded away completely. I had to try sand these areas back and reapply the stain but of course the wood still came up a bit and colour was a bit uneven. Definitely should do the stain right after sealing next time.

http://i.imgur.com/IkvteYym.jpg http://i.imgur.com/Mwk9Mjqm.jpg
First session. You can really see the uneven areas here.

http://i.imgur.com/wocEyk8m.jpg http://i.imgur.com/4PDYVl5m.jpg
Second session. The sheen is starting to appear but the colours are really even. After this photo, I tried sanding the darker areas very lightly and painting on stain in specific areas to try even out the colour.

http://i.imgur.com/ZPeX8Vsm.jpg http://i.imgur.com/f91aDV2m.jpg
Third session. As a result of reapplying stain, the colour is becoming darker and more even. There is an area on the back (bottom right in the photo) were I burnt through again and the colour is lighter. To apply the stain I dabbed some stain onto a rag then lightly wiped it onto the the area I wanted darker then used a dry part of the rag to wipe up the excess and blend the colour. On the part I burnt through I think I got a bit zealous and try to apply too much and it dissolved the layers and ended up wiping off layers and being lighter instead, oops.

http://i.imgur.com/sfbgM3Fm.jpg http://i.imgur.com/UNShVhhm.jpg
Fourth session. Colour becoming a bit more even and darker again thanks to alternating stain-shellac-stain. I tried varying my wiping pattern a bit more and doing small circles to try burnish a surface harder. Bad idea, it ended up texturing the surface, not the even gloss finish I wanted.

http://i.imgur.com/sIC4mm7m.jpg http://i.imgur.com/koc8PcYm.jpg
Fifth session. I eventually got the surface fairly smooth with a good sheen and colour but still not a perfect glass finish. I decided to end my finishing of the body here and get a move on with the rest of the build.

12/10/2019: Fret Polish and Fitting Tuners
Around when I decided to sand back and redo the finish I also went and tried evening out then polishing the frets and fitting the tuners. I tried the thing with a sharpie to mark the frets then scratching a steel ruler along to mark out the high spots. Then I used a sharpening stone to try even them out. After that I crowned the frets with a needle file and sanded to 2000 grit then polished with Brasso.

http://i.imgur.com/AbLdV2Am.jpg
Taped up and polished

http://i.imgur.com/K71xqtfm.jpg http://i.imgur.com/u2djPahm.jpg
Polished frets, tuners installed.


I've actually finished the build and started learning to play the thing but it's 2am for me now so I'll leave writing up the remaining steps to another day.

Look forward to seeing it all together. How does it play?

I quite like that headstock

well done, it looks really good! great timber finish on the body

Nice.

If you want to polish the shellac to a shiny finish, you'll have to leave it to cure and harden properly for a couple of weeks or longer.

@JohnH I'm not sure how well it plays, I'm completely new to guitar but it seems to make intune sounds, the intonation is within 5 cents and I can can play chords with as much difficulty as a beginner (I think).

@Andyxlh Thanks for the feedback

@Simon Barden Thanks for the tip. I might give it another polish before I submit for the monthly build thingo.

19/03/2019: Assembling the parts
With the body and neck finished I move onto getting it all put together.

http://i.imgur.com/2geSESrm.jpg
Sitting the parts in place. I notice the bridge doesn't quite fit perfectly with the pickguard cutout.

http://i.imgur.com/IBNF1xmm.jpghttp://i.imgur.com/Y2jq4rBm.jpghttp://i.imgur.com/cgePmNwm.jpg
Lining up the neck, clamping it then drilling+screwing it on. I forgot to take pictures of it but I also got the tremelo bridge springs installed. When I drilled the screw holes for the spring hook/anchor thingo I got it a bit high so inorder to get the back panel on, the hook/anchor thingo need to be screwed pretty far in. I also screwed the pivot screws for the bridge itself pretty much all the way in. I'm still a beginner player at the moment so I don't think I'm going to be using it anyway.

http://i.imgur.com/SosCvtZm.jpghttp://i.imgur.com/1ahDIMjm.jpg
Aluminium tape shielding. I left a "tab" out the cavity for the output jack to contact the jack thingo around where its screwed on. I checked with a multimeter and seemed to get decent connection to the jack ground.

http://i.imgur.com/P5XNIz9m.jpg
Wiring done. I tried keeping the output wire twisted tight together to help reduce noise. There is a wire taped to the body shielding which is then soldered to the harness ground.

20/03/2019: Mk. 1 Fully Assembled
Got the guitar strap button installed then it was complete! Not being very familiar with the design, I up the front button a bit far out and not pointing in enough. With the string installed I also got the string retainers positioned and screwed in.

http://i.imgur.com/eI6UYWCl.jpg
http://i.imgur.com/te0uM5Am.jpghttps://i.imgur.com/GTPGiFNm.jpg

http://i.imgur.com/GN8dTrUl.jpg
http://i.imgur.com/dxv0CMYm.jpghttp://i.imgur.com/yLoPl1um.jpg

23/03/2019: Shaving the top nut
I took the guitar into the local music shop to see if I could get a check and get some feedback. They were impressed with the value for money and said the neck straightness was pretty good for what's he's seen before. I tried setting it up before but he suggested the saddle height, intonation and truss rod need adjustment. It was also suggested the top nut was too high so it needs to be shaves down.

http://i.imgur.com/TgCRhWom.jpghttp://i.imgur.com/Uw9NXXem.jpg
http://i.imgur.com/96TgkQ8m.jpg
I popped the top nut out, sanded the bottom down a bit with 800grit and cleaned out the slot. I think I got a decent height from the string to the fret now. I also redid the truss rod, saddle height and intonation. I found this video set really helpful https://www.youtube.com/playlist?lis...RnYu8JCGZn-gGL

Not sure I've got it 100% right but it does sound a bit better and is easier to play. I got most of the action heights dont pretty far to about 1.3mm without getting buzz. The first and sixth strings seem to be a bit more susceptible to buzzing somehow and needs to be a little higher than the fret radius seems to suggest. I think it might be an uneven fret, one of the ones further up the neck (lower note) since I don't get buzz fretting the strings low down. Still pretty even but the low E sixth string seems to buzz regardless of how I set it if I don't strum it right. I also sometimes have trouble getting the third G string to ring properly but I might not be push the string hard enough when fretting?

24/03/2019: Strap locks
While I was at the music store I got some spare strings, picks, a strap and a strap lock system since a loose strap seems to be something Justin of the Justin guitar lessons is paranoid about.

http://i.imgur.com/VFZovz2m.jpg
This Schaller S-lock system has special buttons and these things at stay on the strap and clip/unclip from the buttons.

http://i.imgur.com/rL98NOLm.jpg?1
Buttons installed. You can also see the bridge is setup a bit more sensibly in this picture.

http://i.imgur.com/FFq1p44m.jpghttp://i.imgur.com/CWPrdyPm.jpg?1
I also drilled another hole to get the position and angle of that front strap button fixed. The new strap buttons have a larger screw so hopefully it doesn't break into the old hole.

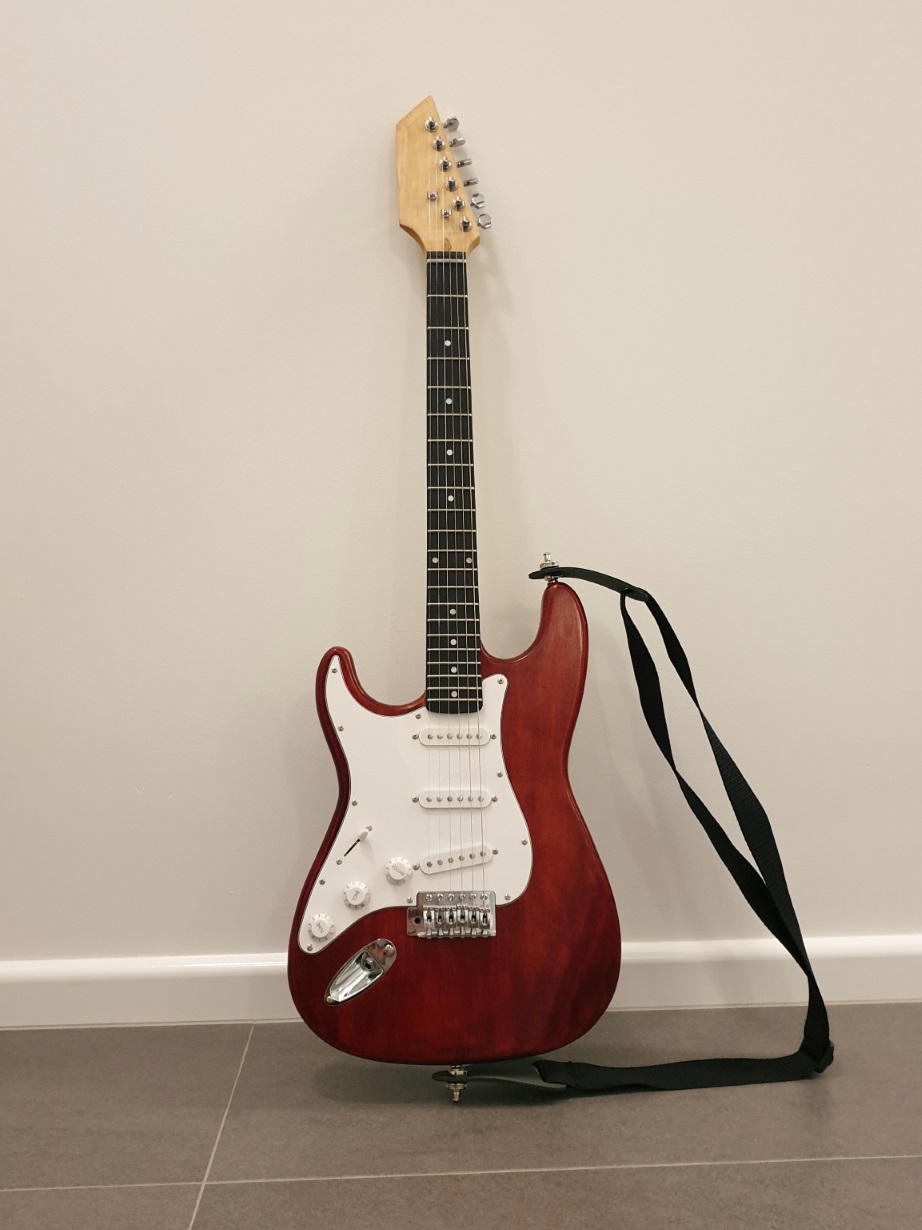

Attachment 30360
And this brings us to the present. While adjusting bits and using it for practice it has already incurred a few scratches. That being the case I might disassemble it and try touch up the finish a bit before taking some nicer photo shots.

Nice work man, that colour variation actually looks pretty cool. Really nice finish for a first time and some cool design work on the headstock. Great job!

Nice.

It's definitely worth glueing a cocktail stick (or a sanded down wooden skewer if a cocktail stick is too loose) in the old strap button hole to give it a bit of support before you screw the new strap button in. I always use the longer of the two sets of screws you get with those Schallers.

Looks great! Love the tanto headstock - it's something very different, and the colour variation in the stain actually gives it a lot of character.
