So my first guitar build was the Ib-5. Everythings finished, but I cant get the pickups to work properly. I can only hear sound from the amps when I turn the amp all the way up with overdrive. I am fairly certain that all the electronics were wired up correctly. Any help would be appreciated at this point.
Welcome drmonstaa! I'm sure one of the electronics gurus will help you but I know they will want a photo of you're circuit. You'd be surprised how many times fresh pair of eyes can pick up the thing you have missed.
Might be the jack wired back to front, as a guess.

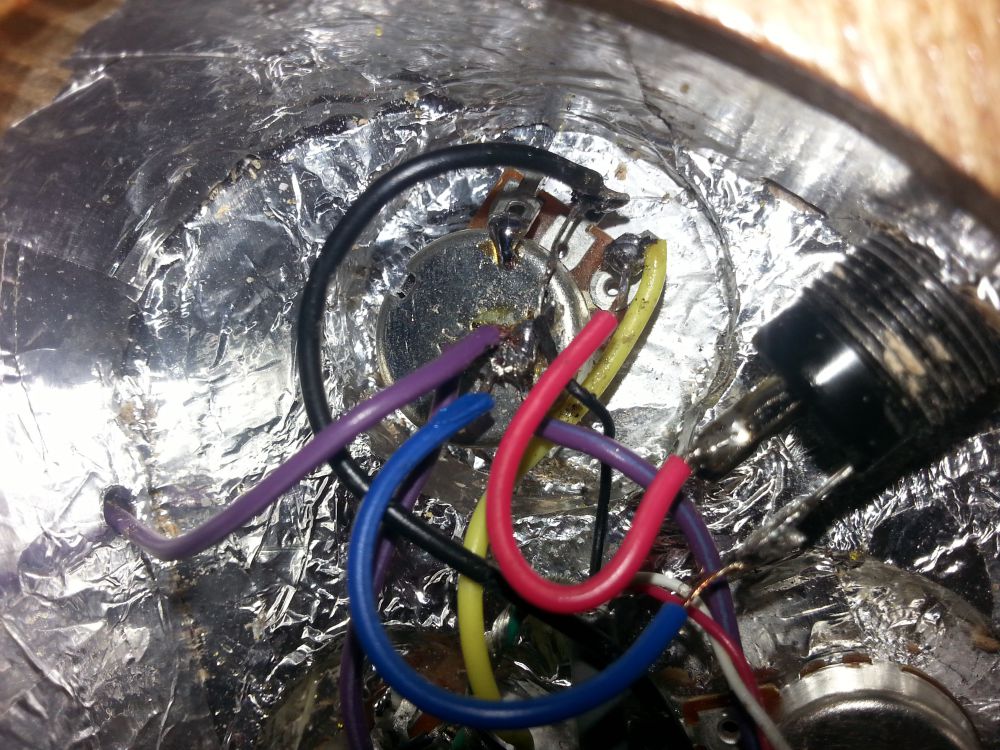

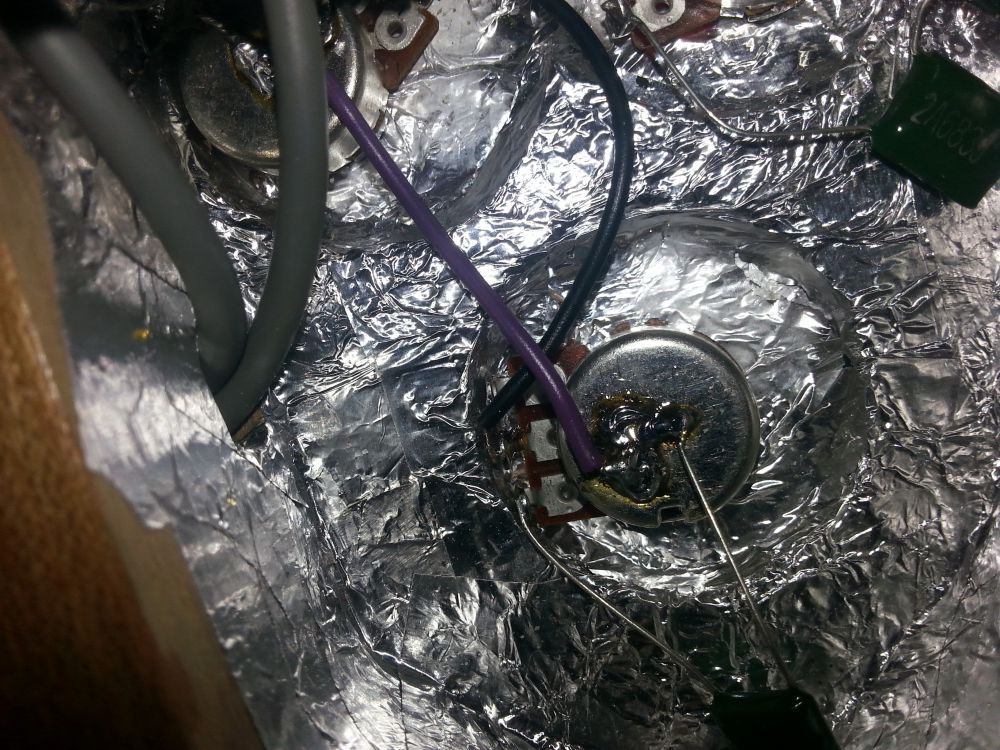

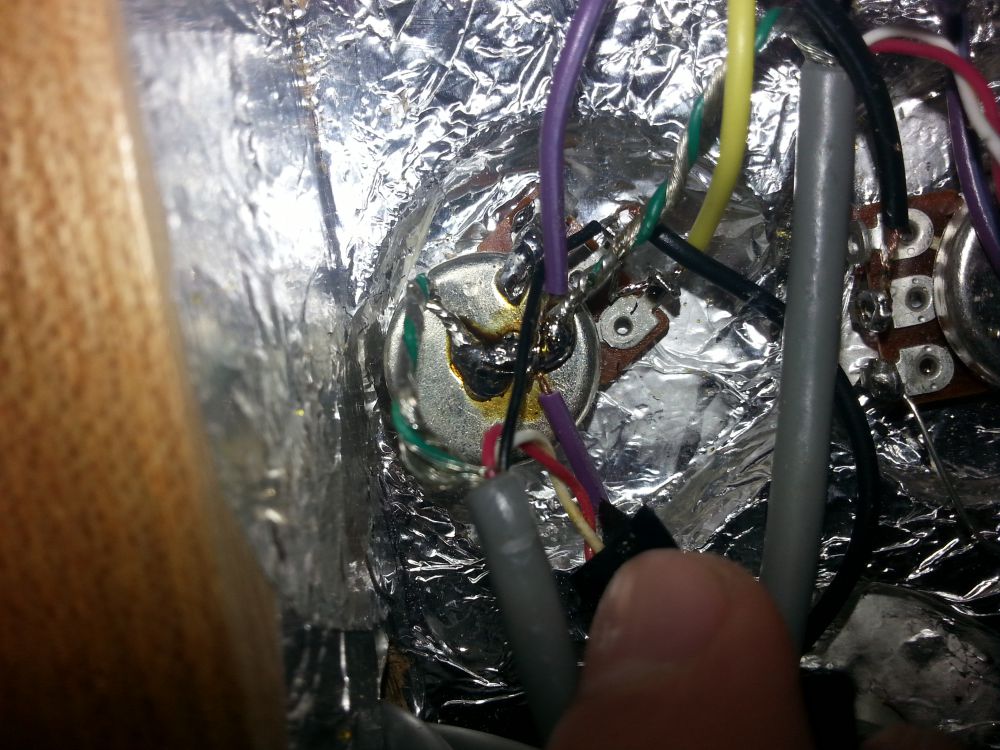

Attachment 11995Attachment 11996Attachment 11997Attachment 11998Attachment 11999
keep in mind that I didnt follow the colour coding like the wiring diagram
also heres a picture of the general area in case you get lostAttachment 12000
Im sure Scott the resident wizard will help here. Here's a link with some suggestions in meantime
My first guess would be a partial short of your hot to ground, as there are multiple places where that could be happening. There are a lot of bare wire ends that are potentially laying across ground points and/or the cavity shielding. For example, recessed pots can often have the underside of their lugs brushing the shielding, the exposed cap legs can touch the shielding, and the pickup 'hot'? across the back of the pot could be shorting, like in this:
http://www.buildyourownguitar.com.au...7&d=1466136930
I'd try placing a strip of electrical tape between the underside of the pot lugs and the shielding, just to make sure they can't short. Also, any exposed 'hot' connections should be insulated as much as possible like the pickup 'hot' above and the tone pot lugs and cap legs below:
http://www.buildyourownguitar.com.au...9&d=1466136991
As Pabs said, also check your jack wiring as the factory swaps around the stereo jacks they use from time to time, so the tip and sleeve lugs aren't always in the expected layout.
I'm thinking it may be a tone pot related short.
As the experts have suggested probably a short somewhere but it should be noted that these 5 string Humbuckers do not have much output volume grunt compared to P or J Bass single coils but they do sound nice, warm/meaty/chunky in comparison.....a bit like a Gibbo Thunderbird in my opinion.
Hope you get things sorted as you will love the sound, just beware when switching axes as the next one plugged in may blow your ears out....no joke as that is what happened to me when playing on my EX-5 closely followed by a J Bass.
Alright so I insulated as many wires as I could and tried swapping the output jack wires. Again, nothing happened. something to take note of is that when I raise/lower the guitars volume, I can hear the change in volume from the amp but I still get no sound from the strings.Attachment 12031Attachment 12032Attachment 12033Attachment 12034
the most likely culprits are:
short to earth of a non earth wire
bad or incomplete earth
inconsistent or blobby soldering resulting in an incomplete electrical connection
dud component
bad output jack connection
bad connection between output jack and amp
amp input socket, or other amp problem
So after hours of trial and error, I finally got the pickups to work. It turned out the hot from the pots went on the medium length lug, and the ground went to the shortest. I don't know why this worked, but I'm just glad I did. Thanks for all the help!
So how does it sound after all of that?
Hi Drmon. Presume you mean the Jack connections were wrong originally. That was my first guess reading the thread. Those stereo jacks are confusing
The bass sounds a lot better than what I expected, and yeah the connections were wrong the first time.
Yeah, those barrel jacks are bloody confusing. Last one I used had the same issue.
glad it worked and a very common error here, you are far from alone
