Oscilloscope mini-tutorial.

Hey everyone,

Just thought that I would do a new mini-tutorial thread for the DIY Pedals section, so here we go.....


Most of the time, when we are building our DIY pedals, and we end-up having to do some trouble-shooting to get our pedals working properly, we can usually get by with a multimeter, and our deductive reasoning, to sort things out.

But, occasionally we might come across a fault in our pedal builds where we need some way of seeing how our pedals are behaving electrically so we can narrow-down where the fault is most likely to be, this is where a piece of test equipment called an Oscilloscope comes in handy, because it gives us a way to see how an electronic circuit is actually behaving, by drawing a graph on a cathode-ray screen, or an LCD screen if you're lucky enough to own a more modern Oscilloscope.

To start with, here's a pic I took of the front-panel of my old DSE Q-1804 20Mhz Dual-Trace Oscilloscope, I have had this Oscilloscope since about 1998, or so:

Attachment 36066

Here's a close-up pic of the Oscilloscope's controls:

Attachment 36067


It's actually not as intimidating as it looks....


Starting at the top row, and going from left to right....

Intensity.....This controls how bright the display is.

Focus...This is used to focus the trace to a thin line across the cathode-ray screen.

Trigger Level....This control is used to adjust the triggering-level so that you can get a stable display on the screen.

Coupling....This controls the trigger coupling, most of the time I usually have it set to either Normal, or Auto.

Source....This controls where the Oscilloscope gets it's trigger signal from...Ch-A, Ch-B, Line, or External.

Holdoff....This control is used to help stabilize the display.

Mode....This control is used to put the Oscilloscope into different modes....Main, Mix, Delay, and X/Y.

Position.....This control is used to position the display horizontally left or right, if you pull the knob, that puts it into X10 magnification mode.

Next row of controls.....

Power On and Illumination...This is pretty self-explanatory, turns the Scope on or off, there's also an illumination function that illuminates the grid markings (called graticules) on the screen, very handy in low lighting.

Ch-A Position....This control shifts the Ch-A Trace vertically up and down, it also engages an alternate trigger function when the knob is pulled.

Ch-B Position.....Same as for Ch-A except that it controls the positioning of the Ch-B trace, does not have the alternate trigger function.

Delay Time Position....Controls the position of the delayed Trace.

Delay Time/Div.....Controls the delay time per division sensitivity.

Next row of controls...

Ch-A Coupling....This controls the Ch-A coupling....AC, Gnd (Ground), DC.

Ch-A Volts/Div......This controls the sensitivity of Ch-A.

Vertical Mode....This controls the vertical mode of the Scope.....Ch-A, Ch-B/X-Y, Dual, and Add.

Ch-B Volts/Div....Same as for Ch-A, but for Ch-B.

Ch-B coupling....Same as for Ch-A.

Ext. Trigger.....This is an external input for a trigger signal, useful for when doing frequency response tests of a circuit.

Bottom row.....

Ch-A Input....Self-explanatory.

Component Test....This can be used to test some electronic components, like resistors, caps, diodes, and transistors.

Gnd.....This is a simple grounding-point.

Cal/Beam Find.....The Cal terminal puts-out a 2Vpp Square Wave signal that is used to calibrate Oscilloscope probes that are switched to X10......Beam Find is used to find where the trace is if it is off-screen.

Ch-B Input....Self-explanatory.

Main Time/Div.....This sets the main Timebase for the onscreen display, each horizontal cm graticule corresponds to the Main Time/Div. setting.


More to come, so stay tuned.....

This is great Doc, looking forward to more.

This is great, thanks. I have been eyeing some USB scopes as a reasonably cost-effective option. Second-hand would be OK too, but they don't come up on Gumtree that often.

Quote:

---

Originally Posted by jugglindan

This is great, thanks. I have been eyeing some USB scopes as a reasonably cost-effective option. Second-hand would be OK too, but they don't come up on Gumtree that often.

---

Yep, you can get some pretty decent usb scopes online, I think Jaycar Electronics stock them as well.

Awesome Doc.
And now for the good bit... how each control works.... ;)

Quote:

---

Originally Posted by Marcel

Awesome Doc.
And now for the good bit... how each control works.... ;)

---

Yep...lol.....I'll deal with it tomorrow......

Ok, we had a look at all the controls on my DSE Q-1804 20Mhz Dual-Trace Oscilloscope, and I explained what each of them do, lets look at how you go about setting-up the Oscilloscope so you can actually use it to do some serious fault-finding in an electronic circuit, for a signal-source, I'm going to see if I can use my Acer laptop and my Scarlett 2i2 2nd Gen usb audio interface, and I'm going to see if I can find a free Function Generator app on the internet that I can download and run on the laptop, I'll also post some screenshots of what I see displayed on my Oscilloscope's screen.


Found a good app that should do the job, it's called SigJenny, and best of all, it's free to download.


OK, the first thing you want to do when you get yourself an Oscilloscope in good working condition, is to make sure you have some good probes to go with it, if your Oscilloscope happens to be a single-trace type that has a 5Mhz, or 10Mhz bandwidth, it'll be perfectly usable for audio work, and you'll only need one good probe, you can buy 100Mhz X10 probes from Jaycar Electronics for around $30, you might be able to buy some cheaper ones on eBay, since I needed two new probes for my Oscilloscope, I bought them from Jaycar.

Assuming that your oscilloscope is in good working condition, plug it into a convenient wall power socket, making sure that the Oscilloscope is turned-off first, next, connect your probe/s to the Oscilloscope channel inputs, again if your Scope is a single-trace you'll only have to connect one probe up to it, and then switch the Oscilloscope on.

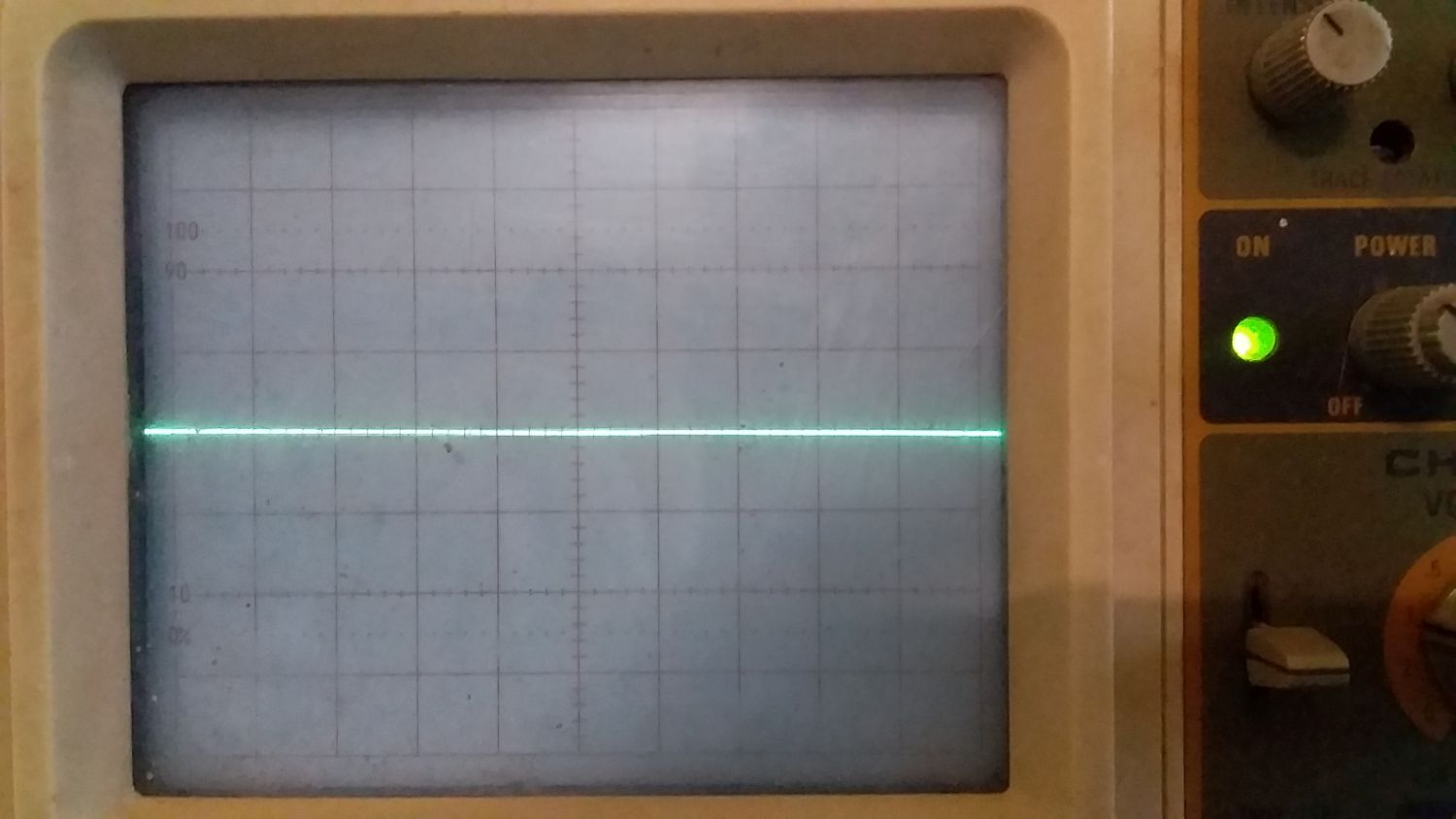

After letting the Scope warm-up for maybe 5 minutes, adjust the Intensity, Focus, Trace Horizontal Position, and Trace Vertical Position controls till you see a thin horizontal line going across the Scope's screen roughly about midway, as shown in this screenshot:


Attachment 36077


You might need to set the main Time/Div. control on your Scope to something like 2ms or 1ms/Div to get the thin line if you see a small bright dot moving from left to right.


Note: Make sure that the input coupling switch is set to Gnd while you're adjusting the trace so you see a thin line.

I had always assumed I would need a bench top signal generator. That's a great idea to use the computer. Audacity can generate sin waves too I think.

Sent from my moto g(7) using Tapatalk

Quote:

---

Originally Posted by jugglindan

I had always assumed I would need a bench top signal generator. That's a great idea to use the computer. Audacity can generate sin waves too I think.

Sent from my moto g(7) using Tapatalk

---

Yep, you can pretty much use anything that can generate a steady signal, even a mobile phone that's running a signal-generator app will do, as long as the signal is steady.

OK, once we have a thin line displayed on the Oscilloscope's screen, the next thing we need to do before we start using our Scope is to adjust the Scope-probe's compensation when it is switched to X10 mode, the reason for doing that is to prevent any measuring errors when we are doing signal-amplitude measurements while the probe is switched to X10 mode.

To adjust the X10 mode compensation for the probe, connect the tip of the probe to the Cal terminal, and the probe's grounding lead to the ground point, then switch the X1/X10 switch on the probe to X10, and the Input coupling switch to either AC, or DC, then find the little adjustment tool that came with your Scope probe, next, find the little adjustment hole on your Scope probe, it'll either be on the probe itself, as in my case, or it'll be on the plug that connects to the Scope's input, then you use the adjustment tool to adjust the probe's compensation till you get a nicely-shaped square-wave displayed on the Scope's screen, you might see the following on the Screen:

Attachment 36078


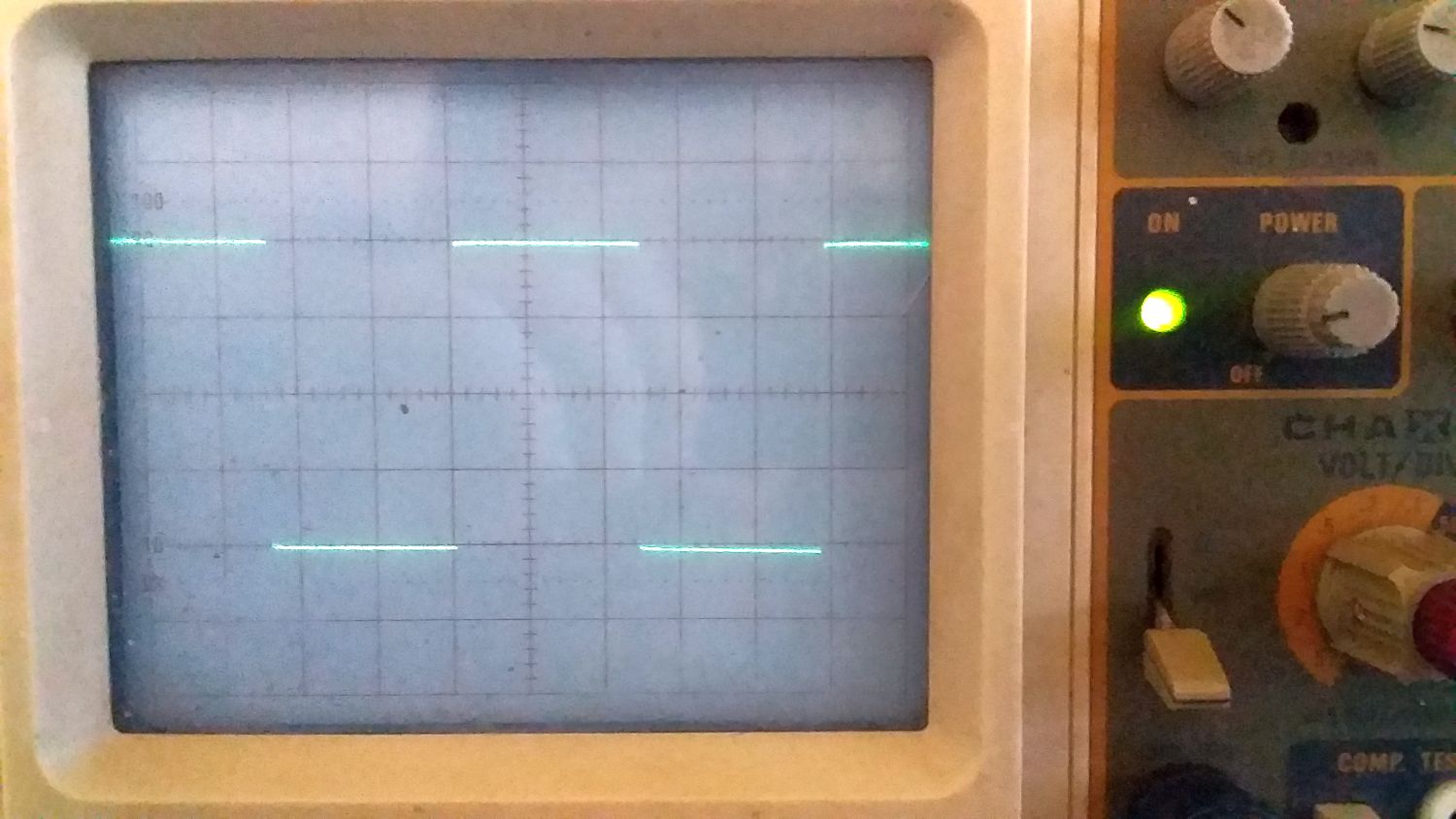

Although it looks like we are seeing a square wave signal being displayed, notice how the top and bottom of the signal aren't quite straight?, this indicates that the probe is under-compensated, we need to adjust the compensation so that the top and bottom are straight and the corners are sharp 90 degree angles.


This is what you should be seeing once the X10 compensation on the probe has been properly set:

Attachment 36079


Once you have the X10 compensation for one probe properly set, do the same for the other probe, if you're using one probe with a single-trace Oscilloscope, you're finished with setting the compensation and your Scope is ready for use.


You might also see this on your Oscilloscope's screen:

Attachment 36080

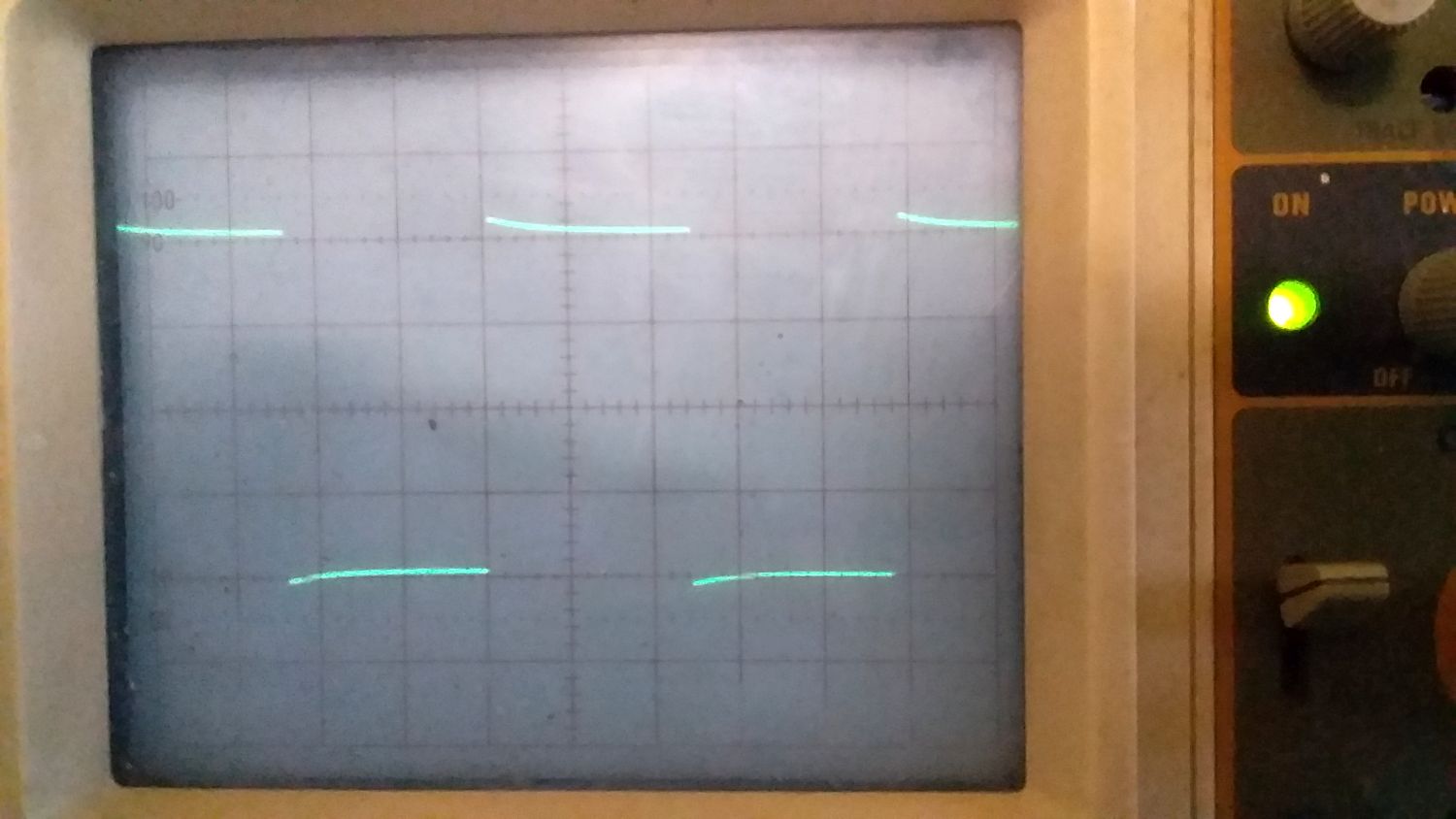

Notice how the top and bottom of the square wave signal are bent inwards?, this indicates that the probe is over-compensated and it needs to be adjusted so that the top and bottom are straight.

I was planning on using the SigJenny app on my laptop to generate some signals for us to look at with the Oscilloscope, but I got an error message, so I'm going to have to go looking for a better app.


Ok, got it all sorted now.....

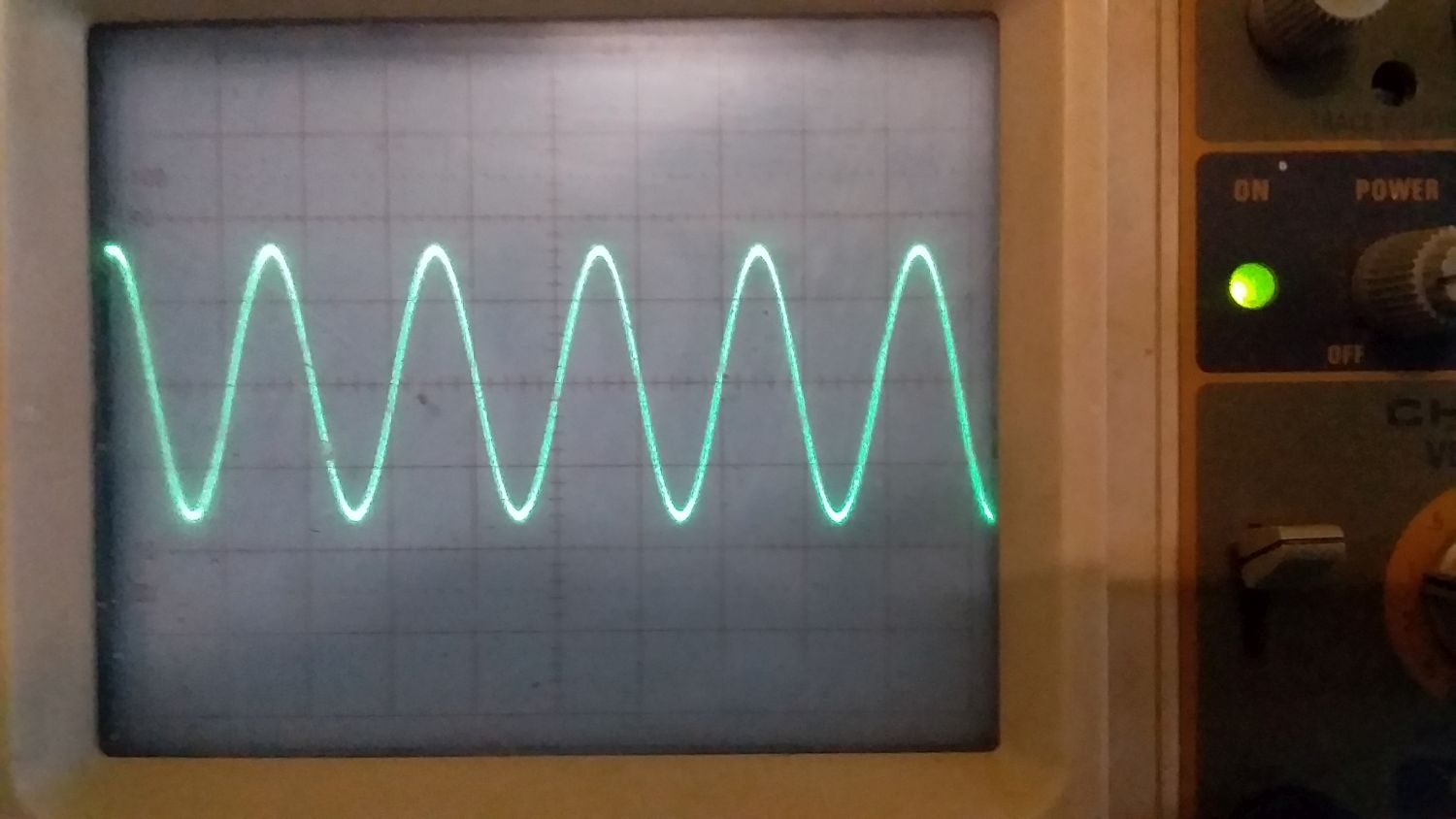

I've got the app set-up to generate a 1000Hz (1kHz) Sine wave signal, here's what it looks like on the Oscilloscope screen display:

Attachment 36081


A 1kHz Sine wave signal is a useful test-signal because 1kHz is right in the middle of the audio spectrum, which normally ranges from 20Hz-20kHz, a Sine wave is one of the purest signals you can generate because it is usually just one frequency and very little extra harmonics (a harmonic is a signal that is related mathematically to the fundamental frequency, in this case 1kHz is our fundamental frequency).

Let's see what other signal waveforms look like on the Oscilloscope screen, I'm going to keep the frequency set to 1kHz in each case.....

Hmmmmm....for some odd reason, the app I'm using seems to only want to generate Sine waves even though I selected Triangle and Saw, think I need a better app to generate the proper signal waveforms.

Found something that works better....

Here's what a 1kHz Triangle wave signal looks like on the Oscilloscope screen:

Attachment 36084

And here's what a 1kHz Sawtooth wave signal looks like on the Oscilloscope screen:

Attachment 36085

Notice how our 1kHz Sawtooth waveform has a bit of ringing at the top and bottom sharp corners?, that's because it is a digitally-generated Sawtooth waveform, a Sawtooth waveform generated by an analog circuit doesn't have that ringing, but for the purpose of this mini-tutorial, the digitally-generated Sawtooth waveform is good enough.

Finally, here's what a 1kHz Square wave signal looks like on the Oscilloscope screen:

Attachment 36086

Again, we see ringing on the top and bottom of the waveform due to it being generated digitally:

In each case, I had the main Time/Div. control set to .5ms/Div., that means for every 1cm horizontal graticule mark, that represents a time-interval of .5ms (mili-seconds), each of the signal waveforms takes two 1cm horizontal graticule marks to complete one-cycle, so the total-time for one complete cycle is .5ms+.5ms= 1ms.

To calculate the frequency of the signal being displayed, you use the following formula:

F= 1/T

Where F equals the signal frequency, and T equals the total time taken to complete one full cycle.

I'm deliberately trying to keep this mini-tutorial as non-technical as possible, just so it's easy to understand, but at some stage you do need to do some maths when making measurements with your Oscilloscope.

The Oscilloscope actually gives us the ability to make a few different measurements of a signal, we have just done a time-measurement using the horizontal graticule marks, on the Screen, horizontal graticule marks refer to Time, you can also see some smaller graticule marks in-between each larger 1cm graticule mark, each of the smaller marks count as .2.

On the Screen, each of the vertical 1cm graticule marks refers to signal-amplitude, usually expressed as Volts-peak, or Volts-peak to peak, you will also see smaller graticule marks in between each of the larger 1cm vertical marks, these smaller marks each count as .2 as well.

If you set the Volts/Div. for each of the Scope's input channel to say 1V/Div, and the signal covers two 1cm graticule marks, then you can easily determine that the signal level is 2V peak-to-peak.

So, simultaneously, our Oscilloscope gives us a way to measure both signal-frequency and amplitude at the same time because the display is really just a graph of signal-amplitude versus time.


Ok, we'll continue-on next time so stay tuned......

In the meantime, here's an interesting and fun thing to try with your Oscilloscope, connect one of your Oscilloscope's inputs (Ch-A if you have a Dual-Trace Scope), up to the output-jack of one of your guitar builds via an instrument lead, and use your Oscilloscope to look at the output-signal of your guitar while plucking one of the strings with a pick.

Try comparing the output signal-level of a guitar with single-coil pickups to the output signal-level of a guitar with humbucking pickups too.

Feel free to post comments and anything you'd like me to go over with regards to using an Oscilloscope.

Here's a great series of youtube tutorial videos on Oscilloscopes, by Uncle Doug:

https://www.youtube.com/watch?v=ueOup-XBexU

As an electronic engineer I have been using o-scopes for more than 30 years. That and every other piece of RF / EMC test and measurement equipment. If you are looking for this kind of equipment it's readily available and not that expensive.

Over the years I used to use the test equipment at the various places where I worked but due to a career change a few years ago that was no longer possible.

A little while ago I was having trouble with an audio data interface between a PC and a radio transceiver that I was building. After much fluffing around it became obvious that a CRO would short-cut much of the said fluffing about.

As it was in the audio spectrum I decided one of these would do the job:
https://www.ebay.com.au/itm/Assemble...-/264234403963

It doesn't have all the bells and whistles but it was cheap and allowed me to see what was happening. (It turned out to be a batch of faulty audio isolation transformers).

Had to do some maintenance work on my scope about an hour ago cause the traces would sometimes wander-off the screen or would disappear entirely, turned-out to be the component test button that was causing all the trouble, it had gotten a bit gummed-up with dirt and wasn't latching like it was supposed to, it felt a bit sluggish too, so I gave it a spray with some electrical clean and lube which seems to have fixed it completely so it latches like it's supposed to again, I also cleaned-out some wasp spooge from the component test sockets while I was at it, on Tuesday next week I'll pop in to Jaycar for a few things and will buy what I need to make a new pair of component test leads for my scope, plus an extra scope probe since I only have one good one available.

I ended-up buying myself a new FNIRSI 100MHz Dual Trace Digital Oscilloscope/Function Generator, here's a pic of it sitting on top of my other pieces of test equipment, underneath it is a +/- 15V/500mA Dual Tracking Breadboard Power Supply I built, underneath that is an XR2206 Function Generator I also built, and underneath that is my old DSE Q-1804 20MHz Analog Dual Trace Oscilloscope.

Attachment 45687

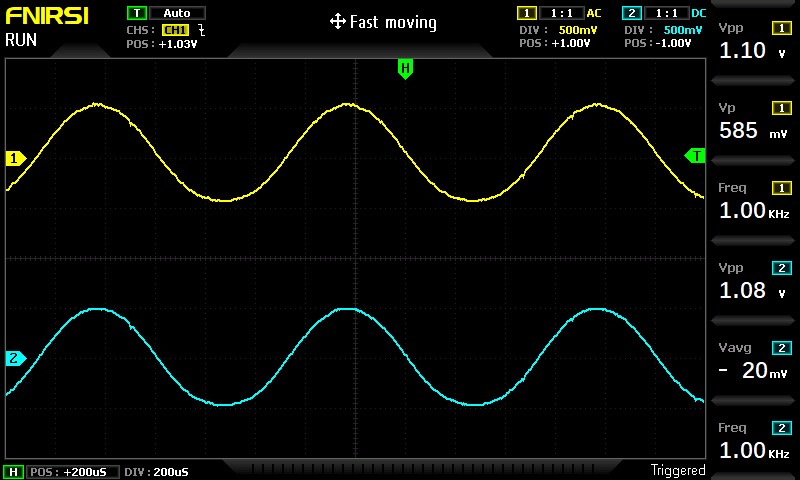

There's one cool, and very handy feature included in my new FNIRSI 100MHz Digital Scope/Function Generator, well, two actually, firstly it includes a built-in Function Generator that generates several different signal waveforms at a wide range of user-adjustable frequencies, secondly, you can take screenshots of what you see on the display, here is an example, the yellow trace is Ch-1 and the pink trace is Ch-2.

Attachment 45686

The new Digital Scope also displays readouts of various waveform parameters too, like frequency and amplitude, this saves having to do calculations.
