Hmmm, the quick connector 'Bullets' you are talking about would probably rattle if there is any slack in the cables. Maybe some construction grade double sided tape like they use when putting up mirrors in new homes might be strong enough to hold/anchor things once threaded in place? It would need to be placed just underneath the arched top inside any holes where a pinky could assist locating cables to be caught in this version of a fly trap.
Thanks Waz, I took your advice on board and have scrapped that idea.

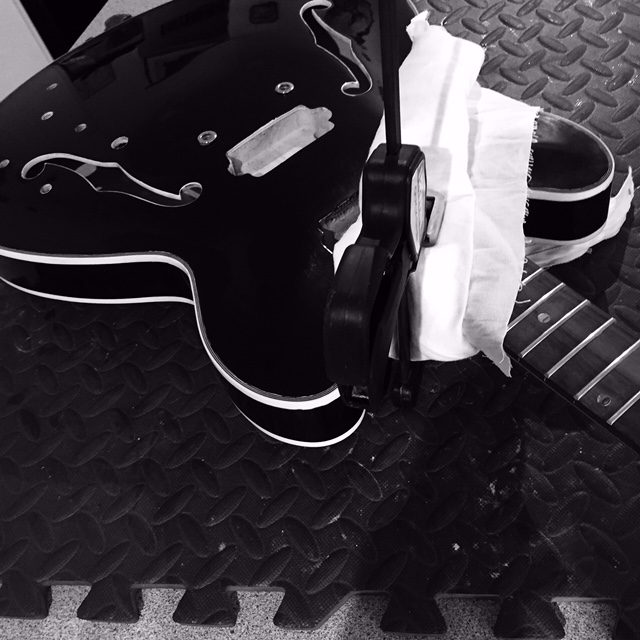

Finally got into the glueieness of the kingdom of the neck
Attachment 14258

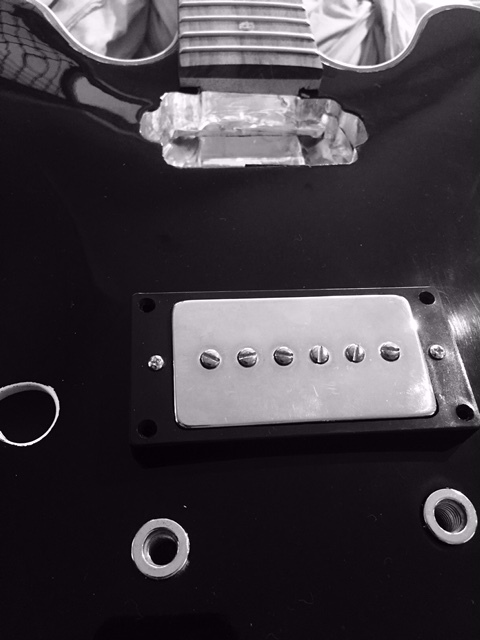

and the shielding of the valley of the cavitys
Attachment 14259

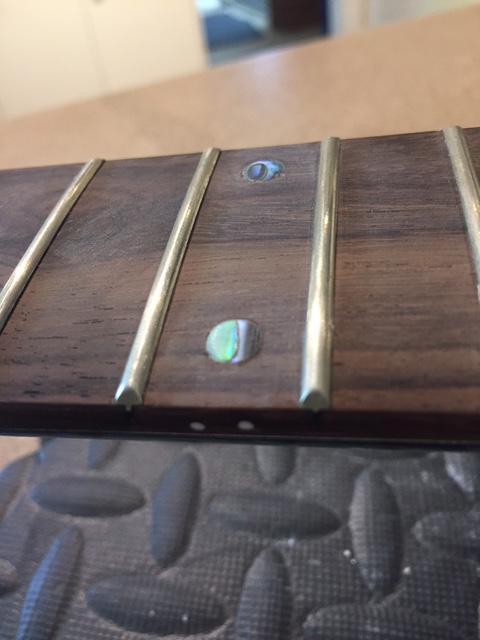

and the sandiness of the abolone dottage
Attachment 14260
Mmmmm, very noice.
I'm loving the look of this!
Sent from my GT-I9506 using Tapatalk
A couple of steps forward and now quite a few back.

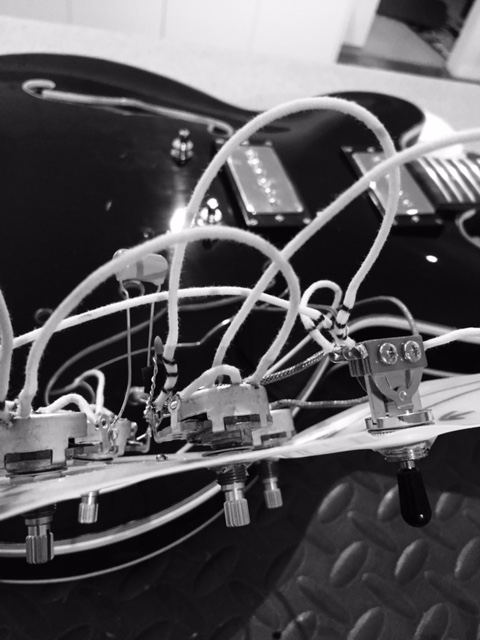

Got the wiring done, looks like frankenstein.
Attachment 14371
Worked fine outside the body. the problem was putting it inside. I used full sized Gotoh pots, which are some of the biggest you can get.....whilst I like them...not the best choice for this build. I ended up snapping some of the solder joins trying to pry them into the guitar and had to resolder. I thought i'd fixed it all but alas, once I had it all in place.....she no work....I must have stuffed a few.
sooooooooo
I've ordered CTS mini pots and will rewire the lot.....I'll use the gotohs on another LP copy i got lying around.....twas a good excuse to buy more toneriders....
wow looking nice, shame about the typical ES wiring woes
Update

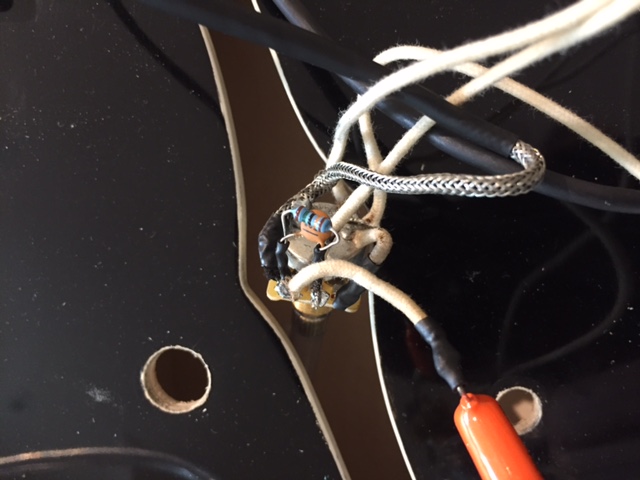

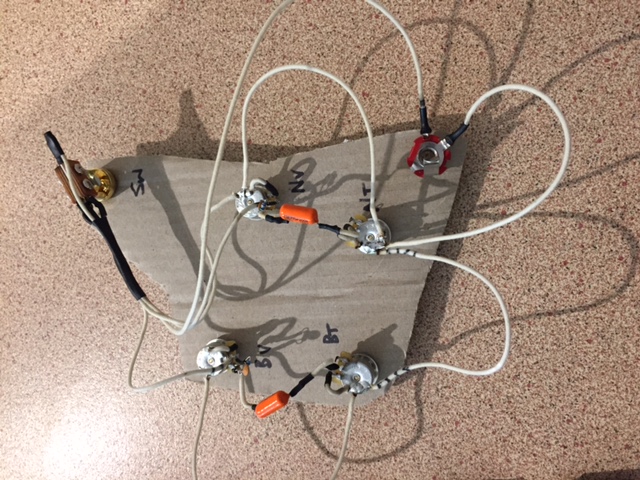

Rewired this baby on the weekend. took me 5 solid hours to wire it up and install using Gav tube technique (thanks Gav)
Attachment 14614
The mini CTS Audio Pots slide right in!
Attachment 14615
encountered a bit of a problem, when i was pushing the neck volume knob on, I pushed too hard and busted out the bottom of the pot! had to pull the whole loom out to put the pot back together (that'll learn me). When i was pulling off the neck tone knob to take the loom out i pulled the shaft straight out of the pot! DOH DOH DOH DOH!!!
One day i'll finish this build.
Its okay I put it back together and re-installed. I've left the knobs off the for time being till I calm down.
hey Andy well done getting it working, it really does your head in when you get the problems you did.
Now I know why I haven't seriously contemplated doing a hollow body yet.
Took me about 4 hours just rewiring the EX-5 yesterday mainly because I haven't done any for a while and had to keep running into another room where the EX-1 was opened up as a reference for what I was trying to achieve. Could probably do it all again tomorrow in less than half that time now I know what goes where, but ask me in another 6 months and most will probably be forgotten.

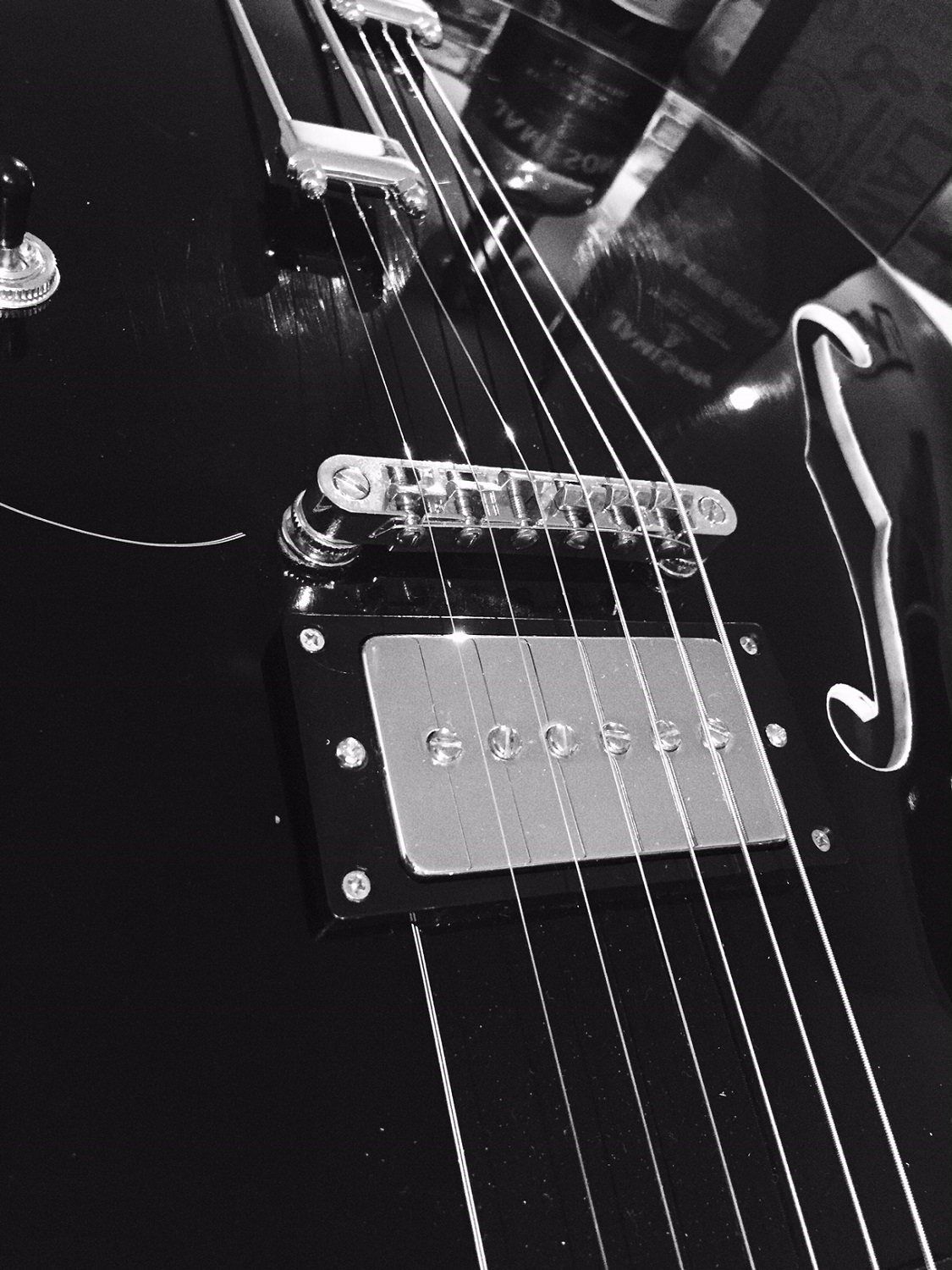

Coming soon.....
Attachment 14650
Sneak Peak of that frequensator.
