MARCH 2018
At this point it seemed like the end was in sight. Now it was time to shield the pickup and control cavities, and the inside of the cavity covers with copper shielding tape. I thought this would be a quick job, but I was able to watch almost all of Godfather Part II in the time it took me to finish... and that's a looong movie
Attachment 25920Attachment 25921
After seeing a few pictures online of other people's shielding I came back and added a little more around the edges of the pickup cavities
Attachment 25922
Later on when it was time to install the pickup rings I realized this wasn't necessary and removed it again.
Remember that ominous foreshadowing I did earlier? Well here's where I ran into a problem.
Things were coming together, so now on to installing the bushings.
** Here's a tip I found online: put your bushings in the freezer a few days before you plan on installing them. Since they're metal they'll shrink slightly and will be easier to hammer into place. You have to work quickly, but as the warm up they'll expand creating a nice snug fit.
You'll notice I didn't install the bushing for the tailpiece on the high side yet, that's so I can run a ground wire there later on.

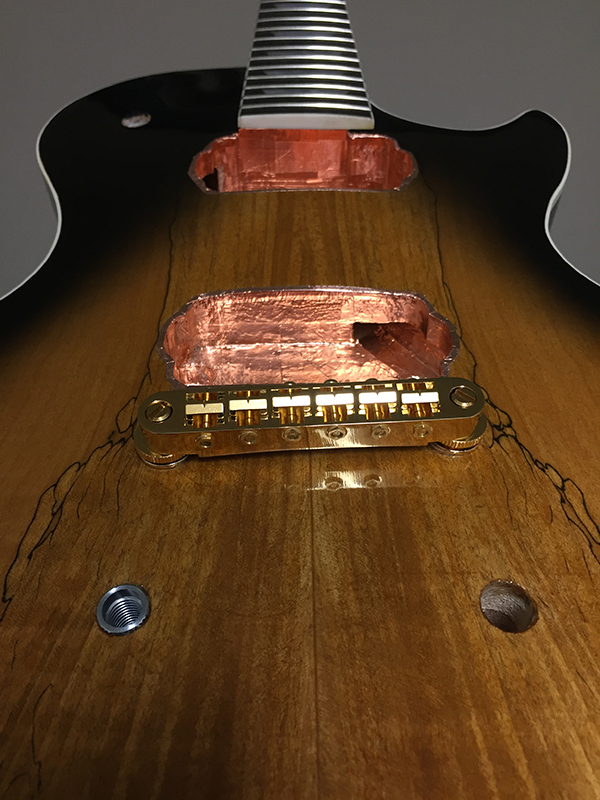

The bushings were installed and everything was looking good, until I tried to put the bridge on. I'll let the pictures tell the story...
Attachment 25923Attachment 25924
At this point I stopped for the night and contemplated my options.
Eeeeeee, not good, not good at all 😵😭
Doh! That's annoying. 72mm post spacing bridges are not super expensive (I know this is a posthumous thread, so you sort it out I'm sure 🙂)
I use the freezer trick as well, makes it a lot less scary.
2mm doesn't seem like much, but in this case it was a major problem. I had done a test build a few months earlier, but I didn't see the issue because I just held the bridge posts in the holes with some cloth. I didn't install the bushings then out of fear of not being able to get them back out again.
As far as I could tell my options were:
A - buy a new bridge with 72mm spacing
B - remove the bushings, plug and drill new holes
Keeping in mind that I'd spent about 3 months just on the Tru Oil part of the finish, I wasn't too thrilled with the idea of plugging and drilling.
After an evening of searching online I found two sites that sold gold 72mm bridges, and like Sonic said one of them wasn't too expensive. But the more I thought about it, I liked the bridge I already had and why make things easy on myself? (also I didn't feel like spending more money or waiting for shipping) So I went and got my old friend Mr Dowel again.
I was really concerned about getting the bushings out without damaging anything, so if that didn't work I'd be buying a new 72mm bridge. Fortunately there are brilliant videos on YouTube like this one: How to remove Tune-O-Matic Bushings (in 53 seconds)
I was also concerned about just driving the screw into the body but my screwing was impeccable.
After the bushings were out I masked up the finish and glued in the dowels
Attachment 25958
Again using the flush cut pull saw I cut the ends off the dowels. I had a thin piece of cardboard between the body and the saw just to be sure I didn't scratch the finish. Then I sanded them level, found the centre point and marked where the new holes needed to go. I was very careful to maintain the correct angle of the bridge to avoid intonation issues later on
Attachment 25959
I drilled the new holes and I'd like to say it worked perfectly, but it didn't quite work perfectly. Even though I was using a drill press the drill bit didn't have a brad point, so despite my best effort the hole on the high side was still off by about 1mm. I repeated the process and tried again, and this time it was exactly where it needed to be. Fortunately the lip of the bushings is large enough to cover about 99.7% of the dowelled holes; making them almost completely unnoticeable unless you know to look there... and now we all know to look there!
Attachment 25960
With the bridge in place. Dowels, what dowels?
Attachment 25961
It's funny how overwhelming this seemed when I first discovered the issue. I had just spent a couple weeks repairing and refinishing the tiny areas that were damaged when I removed the old nut; but somehow I got past this over the course of a weekend? Weird.
Now it was time to move on to the wiring. It was going to be interesting because I have no experience wiring anything (besides replacing a couple light fixtures) and have never soldered before.
I wanted to do the same wiring scheme as the guitar this is based on, so I went with modern wiring with coil-splitting push/pull volume pots and no treble bleed. That should be pretty easy for a first-timer, right??
I did a LOT of research while going through the Tru Oil process. I couldn't find a wiring diagram online that matched what I wanted to do, so I tried to learn enough about how things work and came up with my own
Attachment 25963
This diagram is heavily based on one I found at toneshapers.com. After I drew it up I emailed George at Tone Shapers to ask if I got anything wrong; right away I got a very detailed response and it turns out that everything looked good.
**Amazing customer service considering at the time I hadn't ordered anything from them yet. I will definitely keep them in mind when it comes to future builds.
APRIL 2018
After watching several videos I felt comfortable enough to try wiring things up, but my first attempt didn't last very long and was unsuccessful. I had mistakenly bought 1/16" 40/60 solder and was having trouble making connections. Once I figured out the issue I got some 1/32" 60/40 solder and tried again.
This time it worked much better. It took several hours, but I made all the connections and had everything wired up. I felt an incredible sense of accomplishment and didn't even mind that it didn't work.
The next day I came back and checked everything to see if I could spot the problem(s). There were several. I had a few cases of soldered joints touching the shielding (especially in the 3-way switch cavity) and one of my perimeter ground joints had come apart. After I fixed these issues I plugged it in and tried tapping the pickups with a screwdriver. Everything worked!
At this point I tightened everything up and it no longer worked. After a couple more hours of resoldering joints that I thought could be the issue and even replacing one of the tone pots, I realized that the jack was making contact with the shielding. Quickly I had it working again. It ain't pretty, but here's how it turned out
Attachment 25964Attachment 25965
If I were to do it again there are definitely things I could do better, but this was probably the most rewarding part of the process so far.
One of the threads I have read suggests that if pot contact is likely with the shielding, you could put some insulation tape or some other non conductive material under the pot as an insulator.
The electrickery stuff is not my favourite task, so well done you!
