Ta for that (didn't notice the dots :))

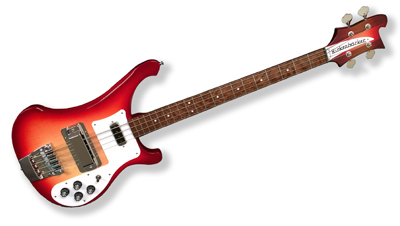

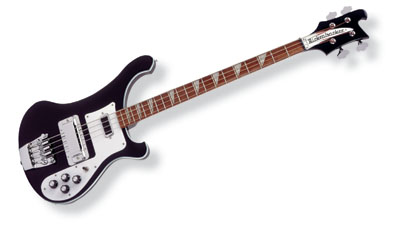

Yeah, dots are reminiscent of a Ric 4000 or the current 4003S which misses out on binding too.
Attachment 21928Attachment 21929

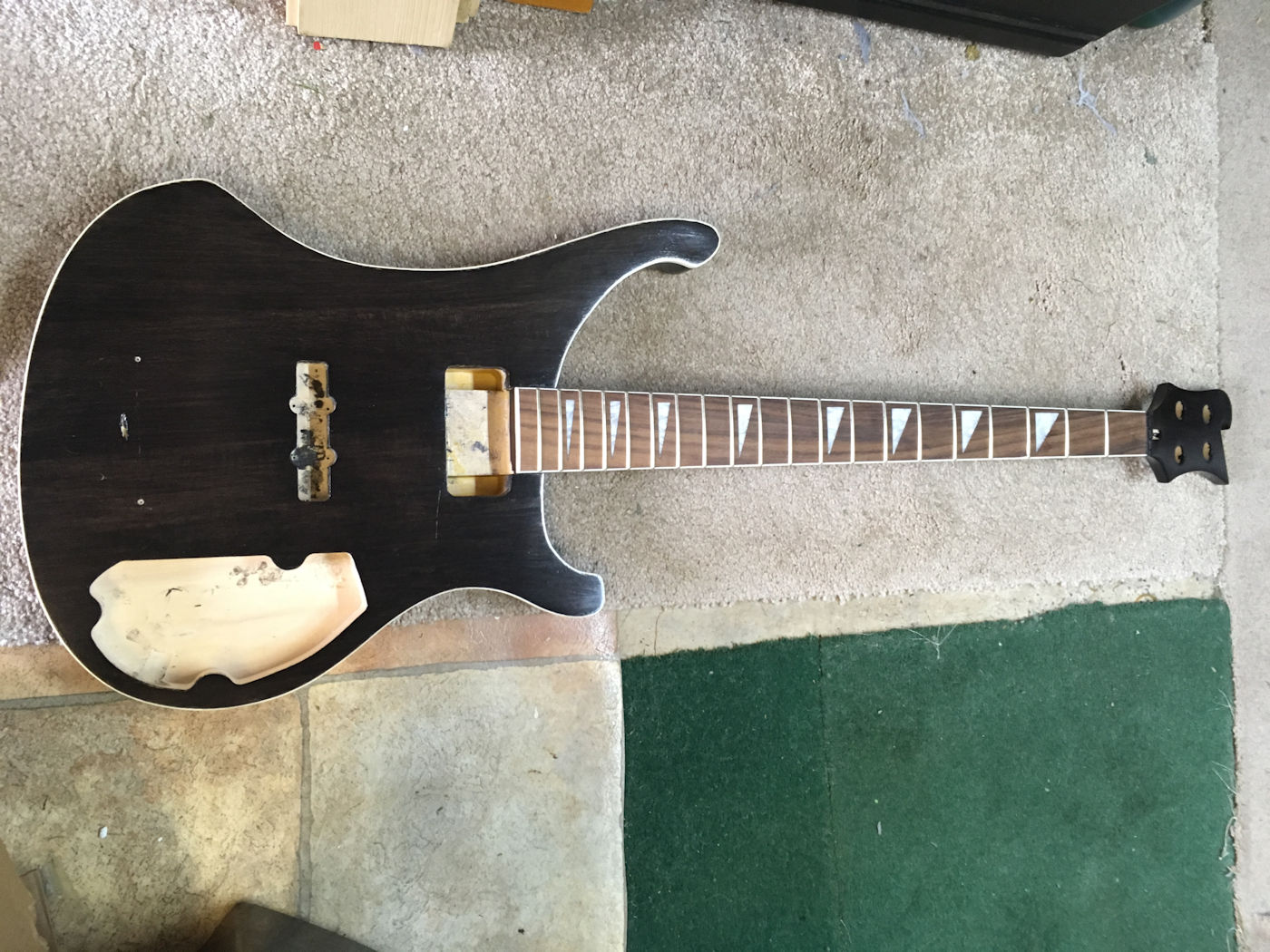

Neck is now on. Went with it fully recessed as with it in the correct Rick postilion I judged there was enough surface area being glued.

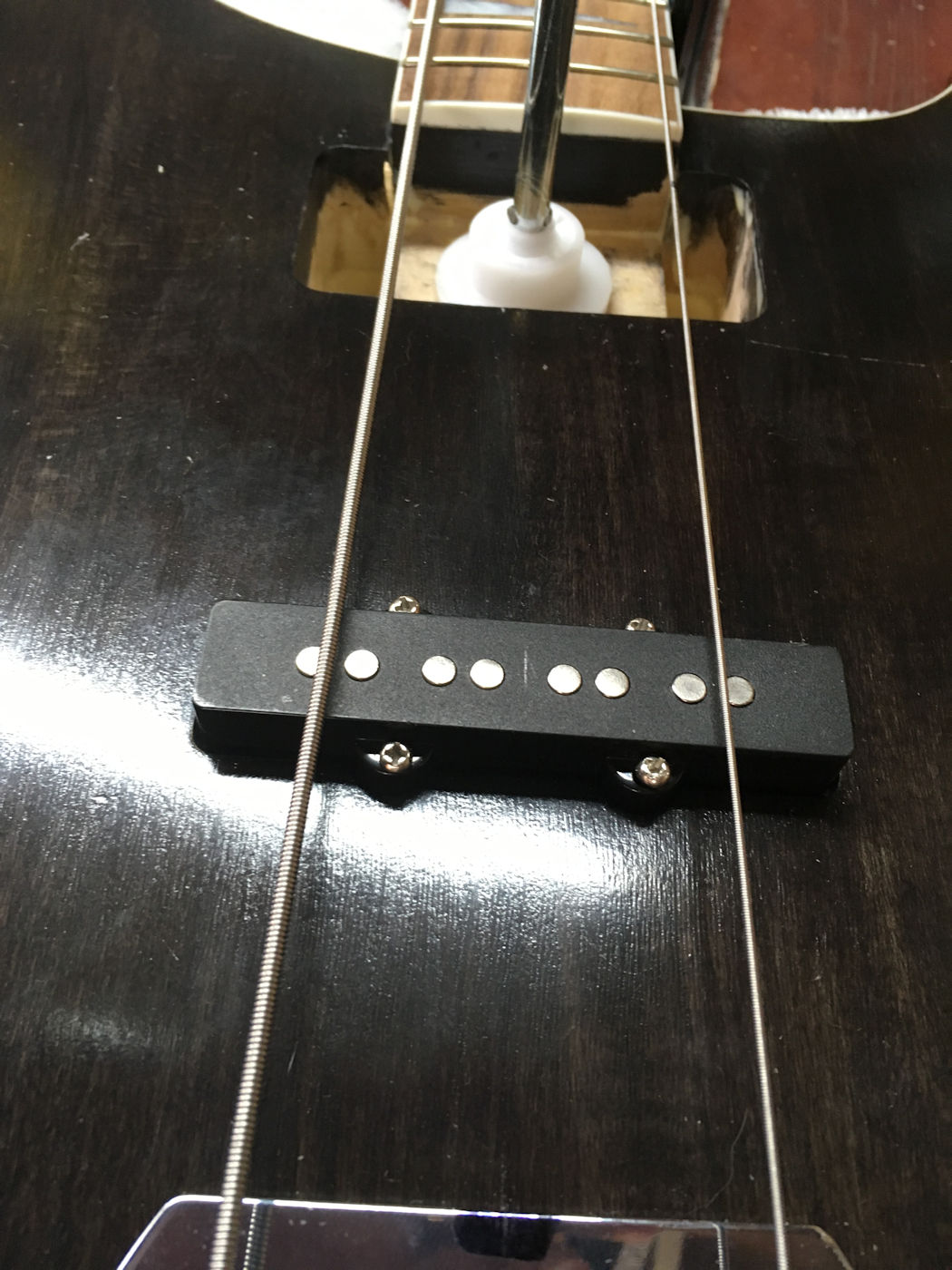

Setup against rear PUP (after glue applied) is shown with bridge lateral inclination at the horizontal, and the strings can easily be set to the correct position for the JPUP.

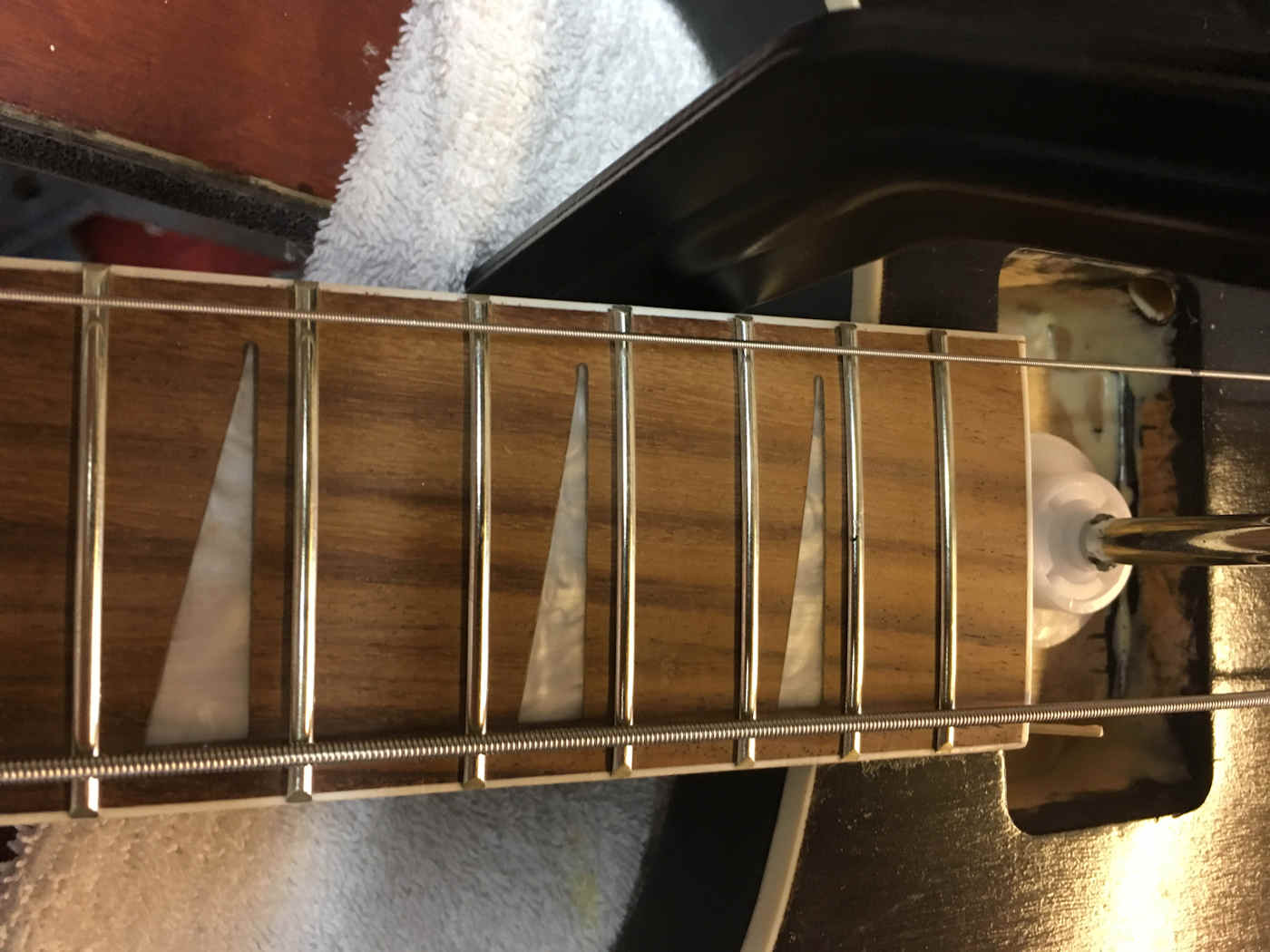

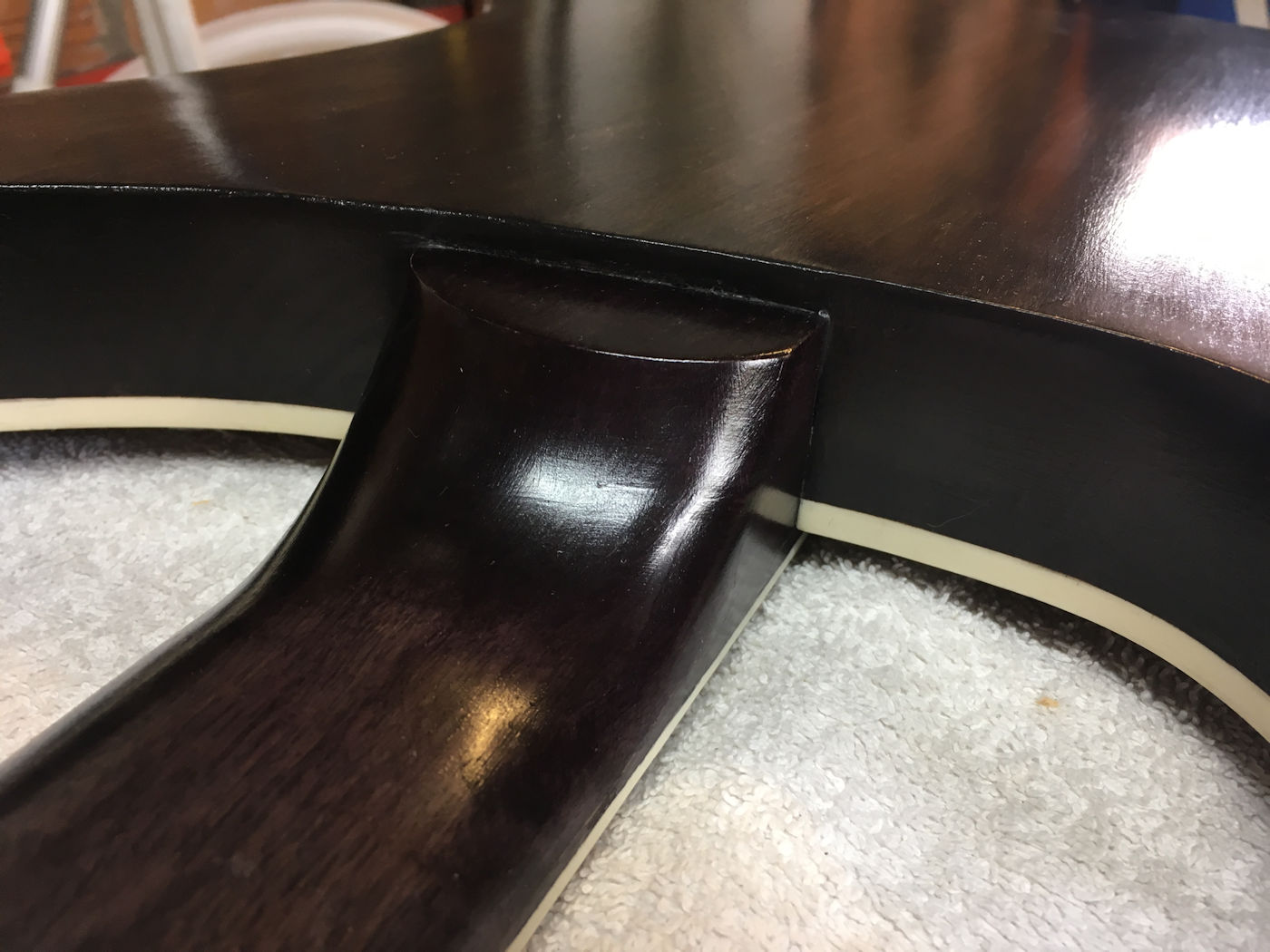

Neck shows that there are no serious gaps in the fit, even though it was a tad slack because it was recessed.
Couple of the finished article scratch of the body will be hidden by the pick guard.

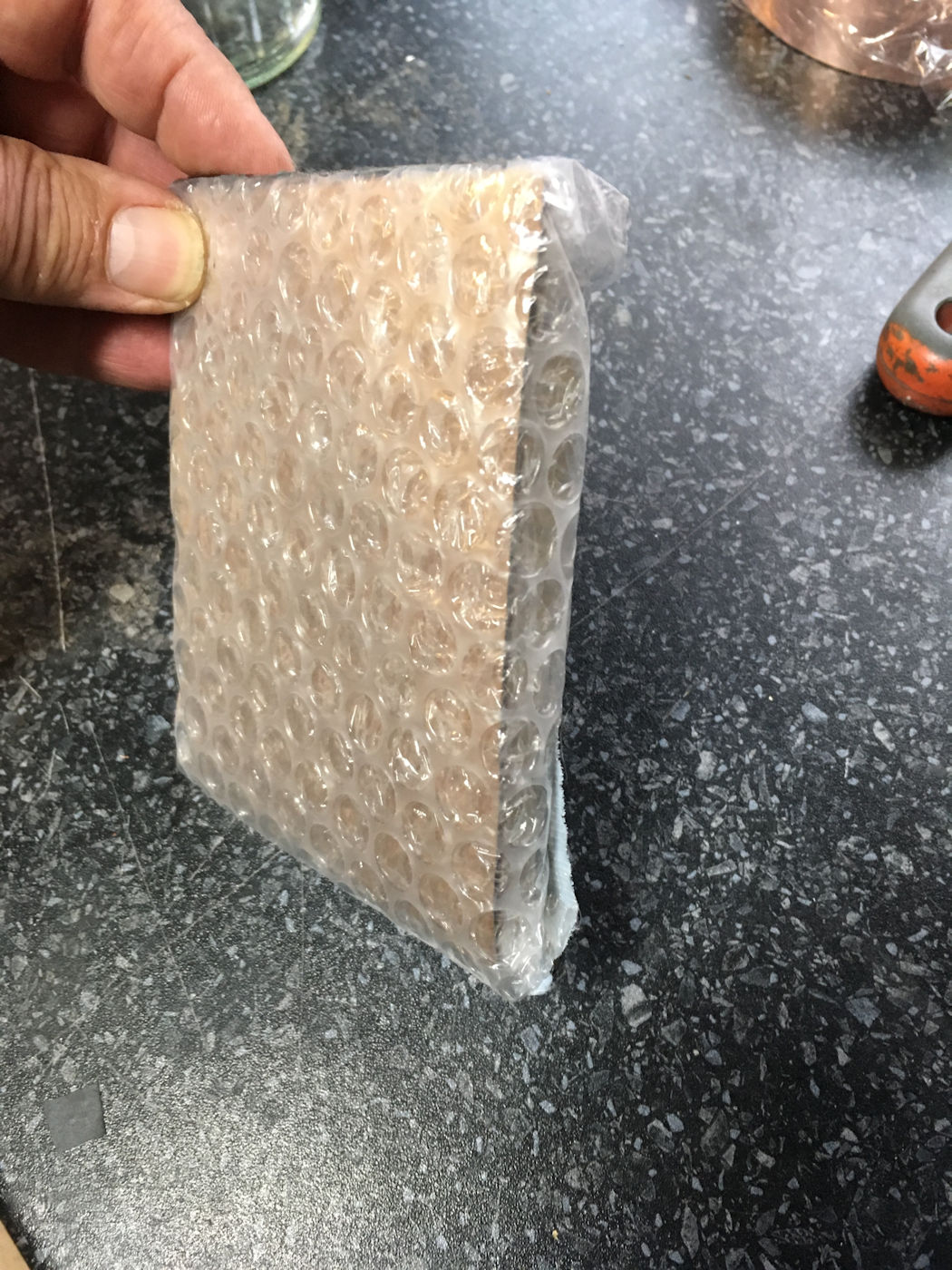

Picture of the pad I used on the body during clamping. Did a dry run with wood with cardboard pad but the cardboard channeling caused a slight marking of the finish, adding bubble wrap cured this.

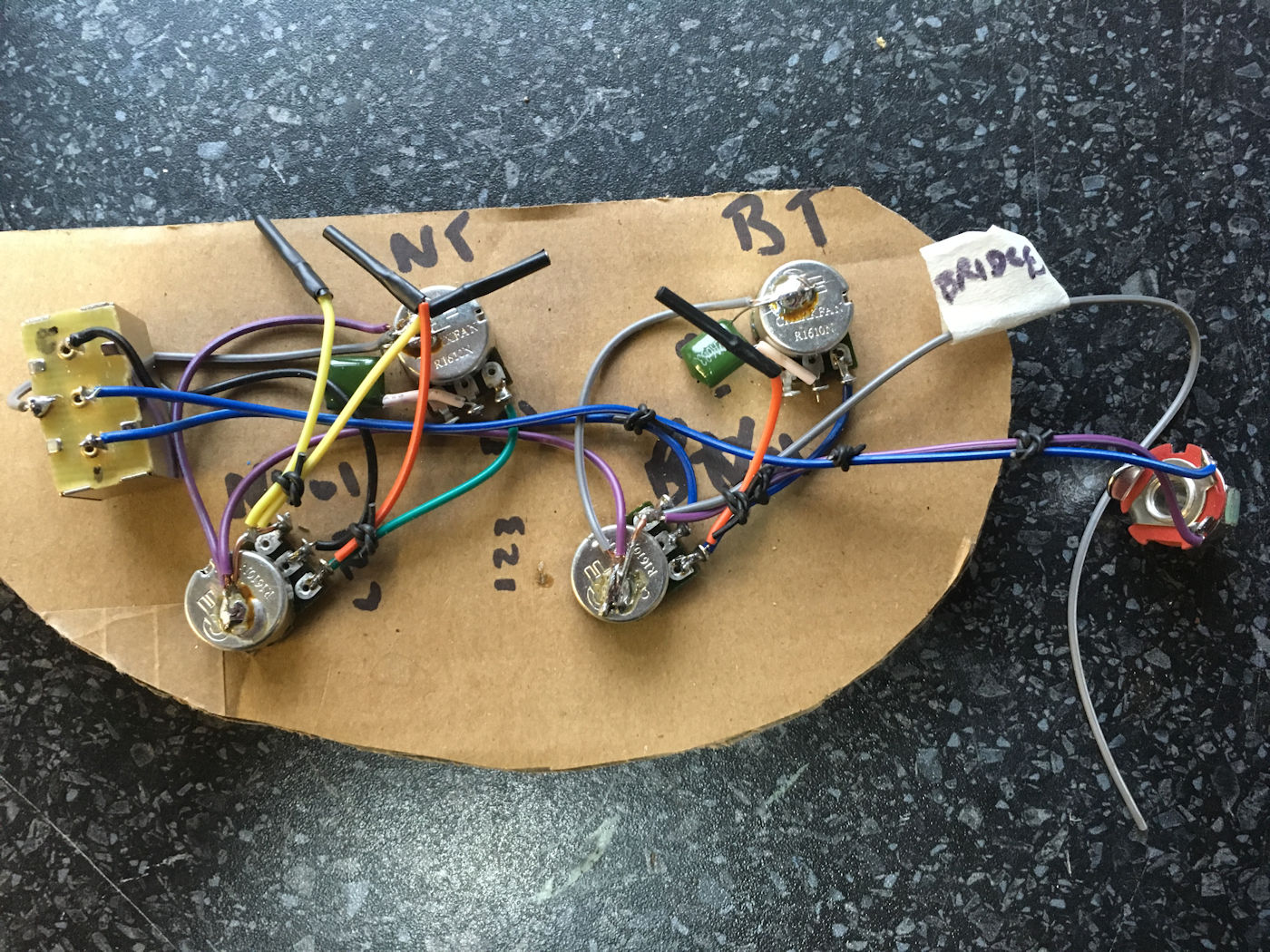

Wiring done on template. To save routing the body I have used military standard push fit contacts (gold plated) so that the pups can easily be disconnected.
Also used the screening from standard UHF aerial cable which I will use to screen the pup to control area tunnels.

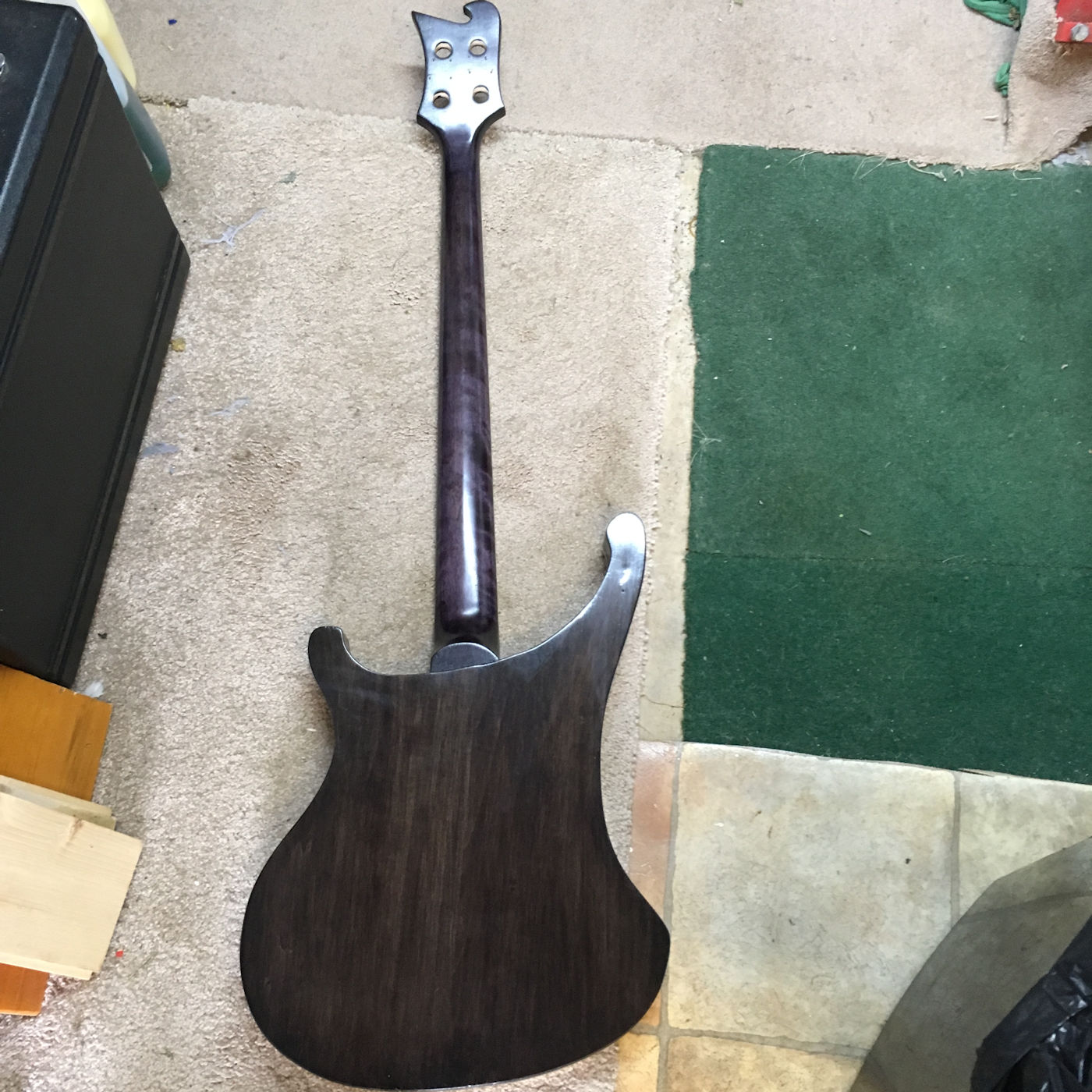

Getting there. A few more coats to get the finish I want.Attachment 22066Attachment 22067Attachment 22068Attachment 22069Attachment 22070
PaAttachment 22071Attachment 22072rt 2 of photos
Looks good,
Thanks, getting there.
Next stage,milliput into the neck slot
Sorry Stuzl, just caught up with this thread. great job with the Wudtone....was it hard?
Not the easiest, but apparently Black Magic Woman is hardest to do. Ended up with a "wax" finish after the last top coat application. Phoned Andy at Wudtone for advise. Ended up with a quick once over with wire wool and another coat and all is ok. The Dark Ebony on the neck is a dream.Quote:
Originally Posted by Andy40

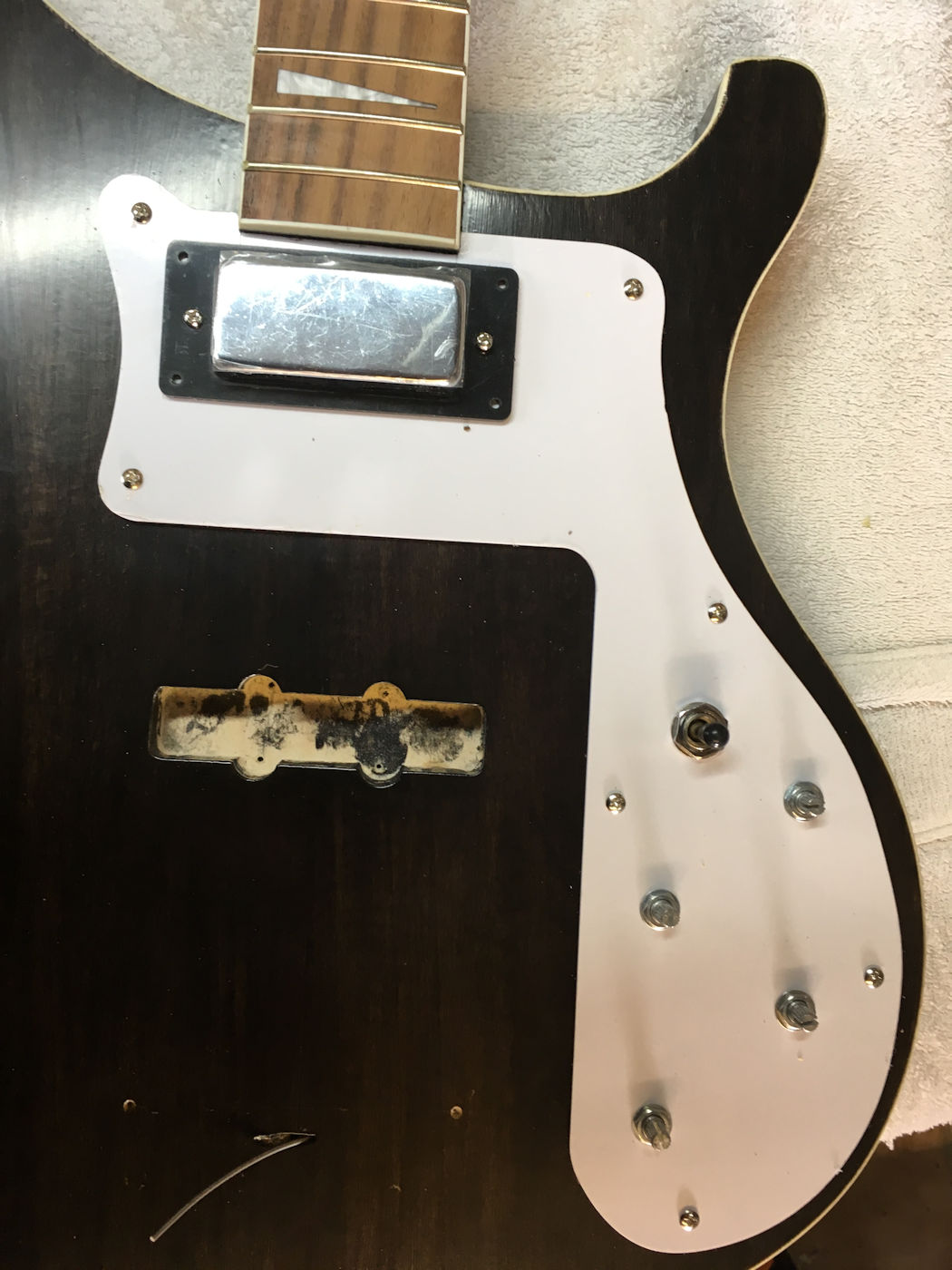

Pick guard and wiring loom fitted. Didn't end up embedding the neck into it as far as I thought I would. This was mainly due to the somewhat unusual main cavity routing that didn't really match the pick guard fixing holes in that area. Milliput filling around the neck cavity worked well.Attachment 22297
