Yowsa! Nicely done!
Sent from my iPhone using Tapatalk
looking good Nitro. You could have bought the kit like the JMZ that Chuck is building think it's the same config as you have modded.
You mean the JZA-1? Only problem was it wasnt available when i ordered mine, the JM-1 was the closest to what i could get at the time.Quote:
Originally Posted by wokkaboy
Anyway i really wanted to do all this myself. For me its all about the journey and the learning curve and at the end i have the satisfaction of saying i did all the work myself even if i might of screwed it up...lol
Thanks Franken, enjoying every minute of this build.Quote:
Originally Posted by FrankenWashie
While waiting for the new pickguard blank i decided to do a little work on the headstock. I sharpened the under curve so it would emulate the Jag a bit more.
Attachment 21168

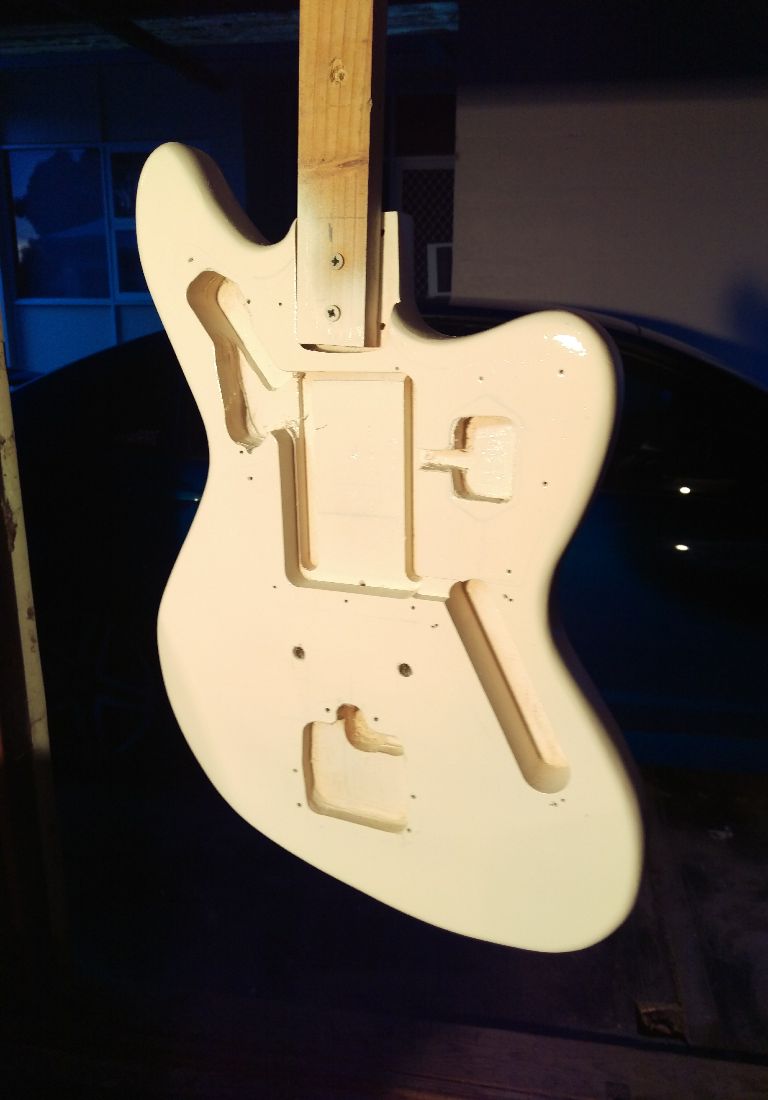

Next a tape up and a few coats of primer filler.
Then the worse thing in the world happened, MY DREMMEL DIED!
After frantically reading the warantee and searching for the receipt i trotted off to the Big Green Shed, praying they would honor the warantee.
The young girl that served me said yes it was covered, i had one month to go on a 12 month warantee but it would have to be repaired, which i was dreading.
So i kindly pointed out the Australian exclusion on the warantee which said, " All australian customers are entitled to a refund or exchange in case of sudden product failure!"
She said....You cant argue with that and promptly gave me a new Dremel, Yay!
Moral of the story...... always read the fine print!

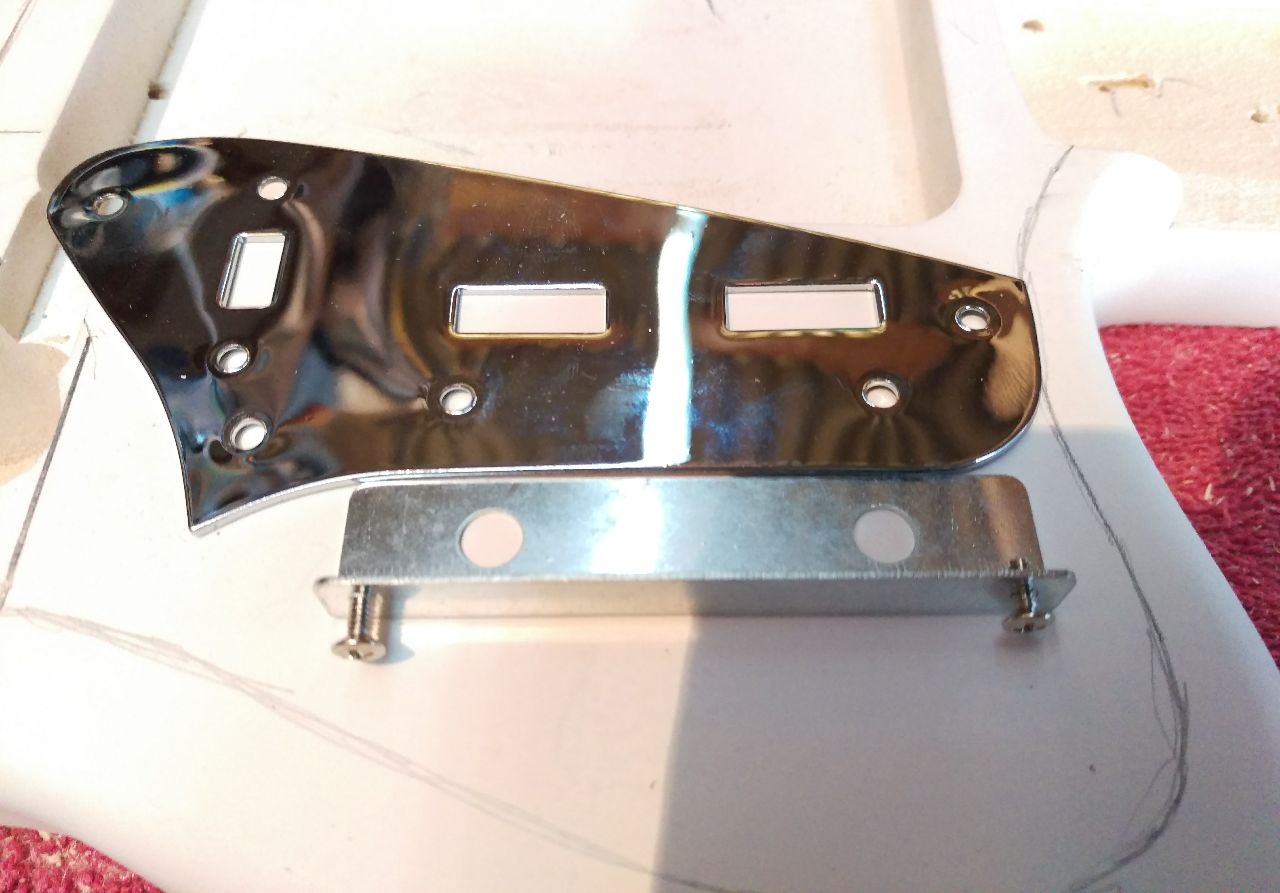

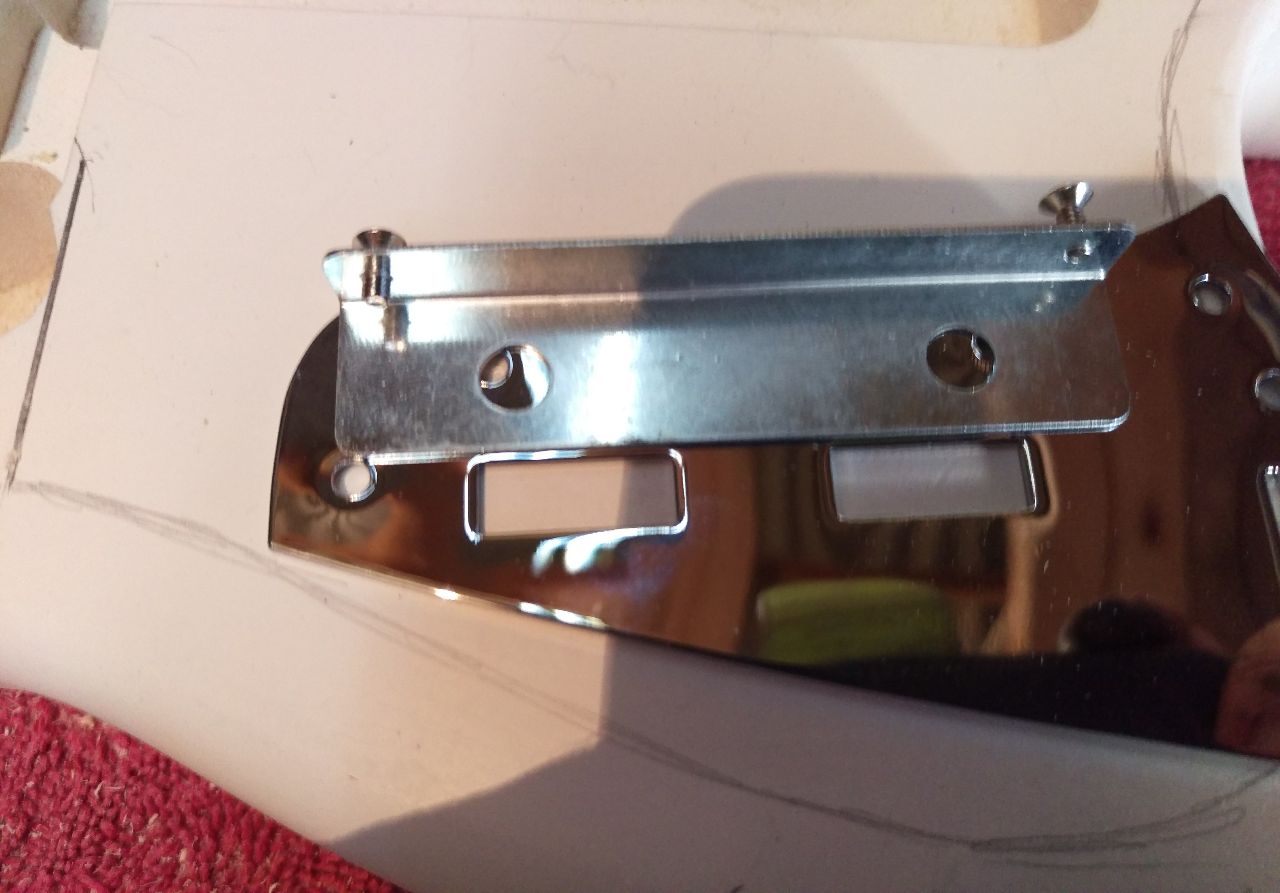

Next i decided to attack the roller volume pots to the top crome switch panel.... next problem, they didnt fit...gggrrr.
Neither the pot holes, screw holes or roller volume switch cutouts matched.
Attachment 21169 Attachment 21170 Attachment 21171

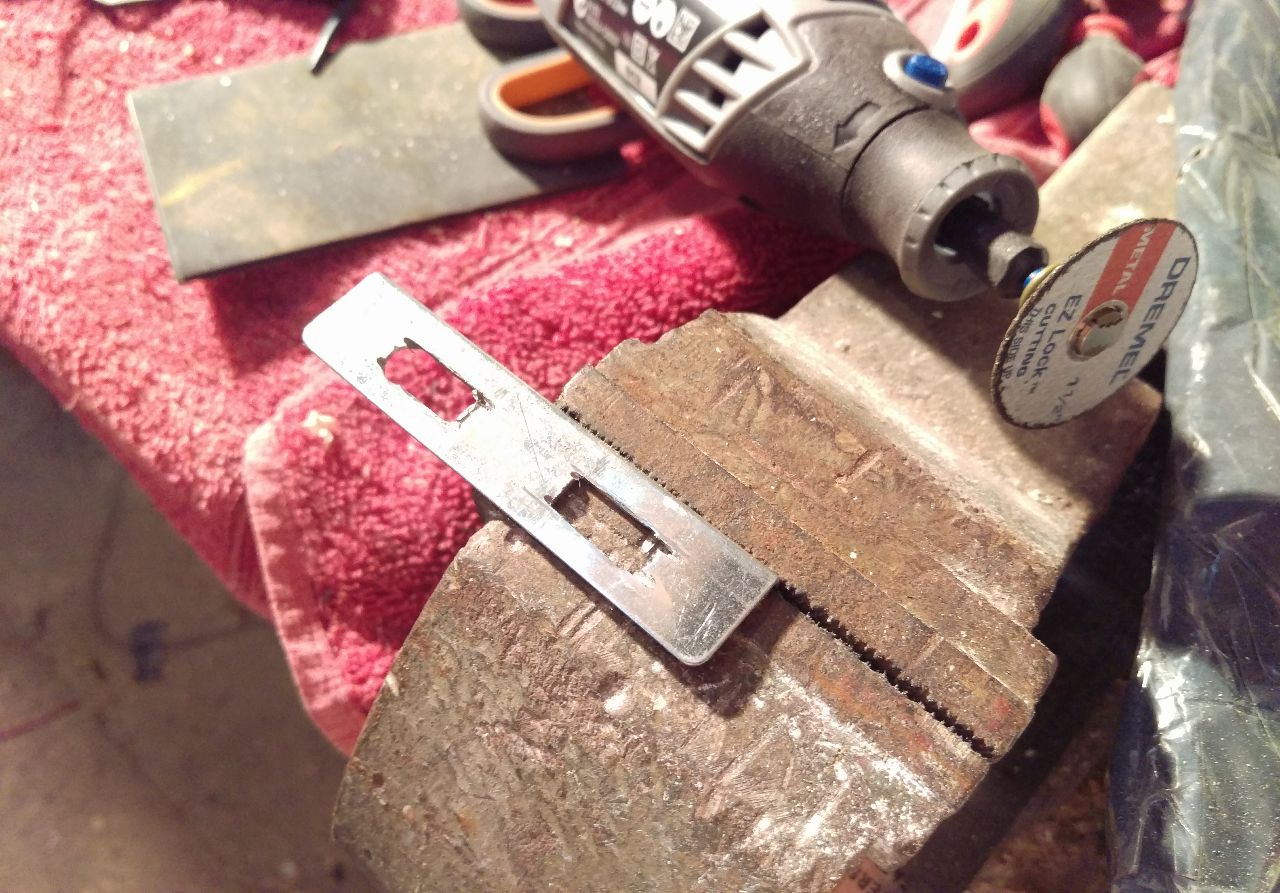

So out with the new dremel, attached the metal cutting disk, and with the help of a set of needle files, 2 of which i broke, i enlarged and elongated the slots, and all disaster was averted, whew.
Attachment 21172 Attachment 21173 Attachment 21174

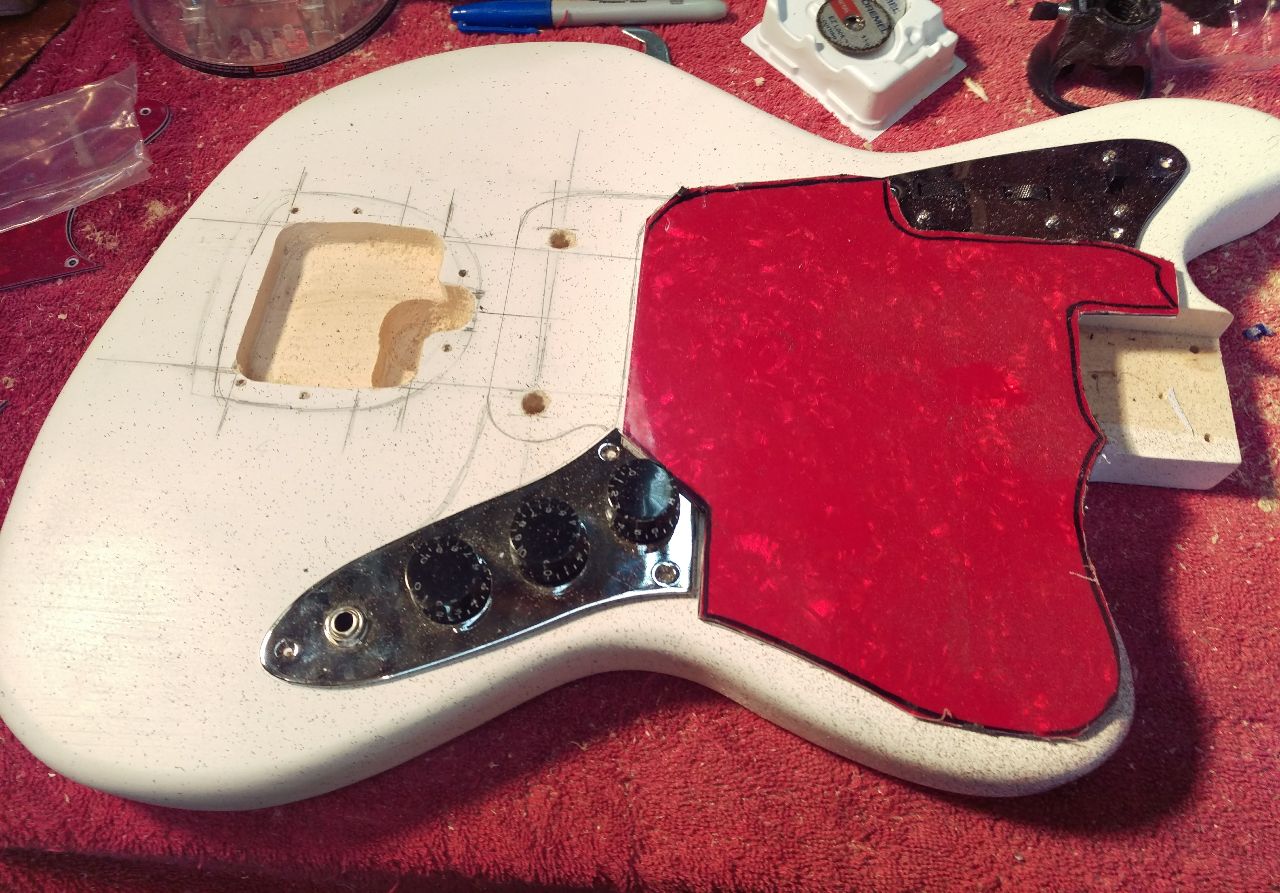

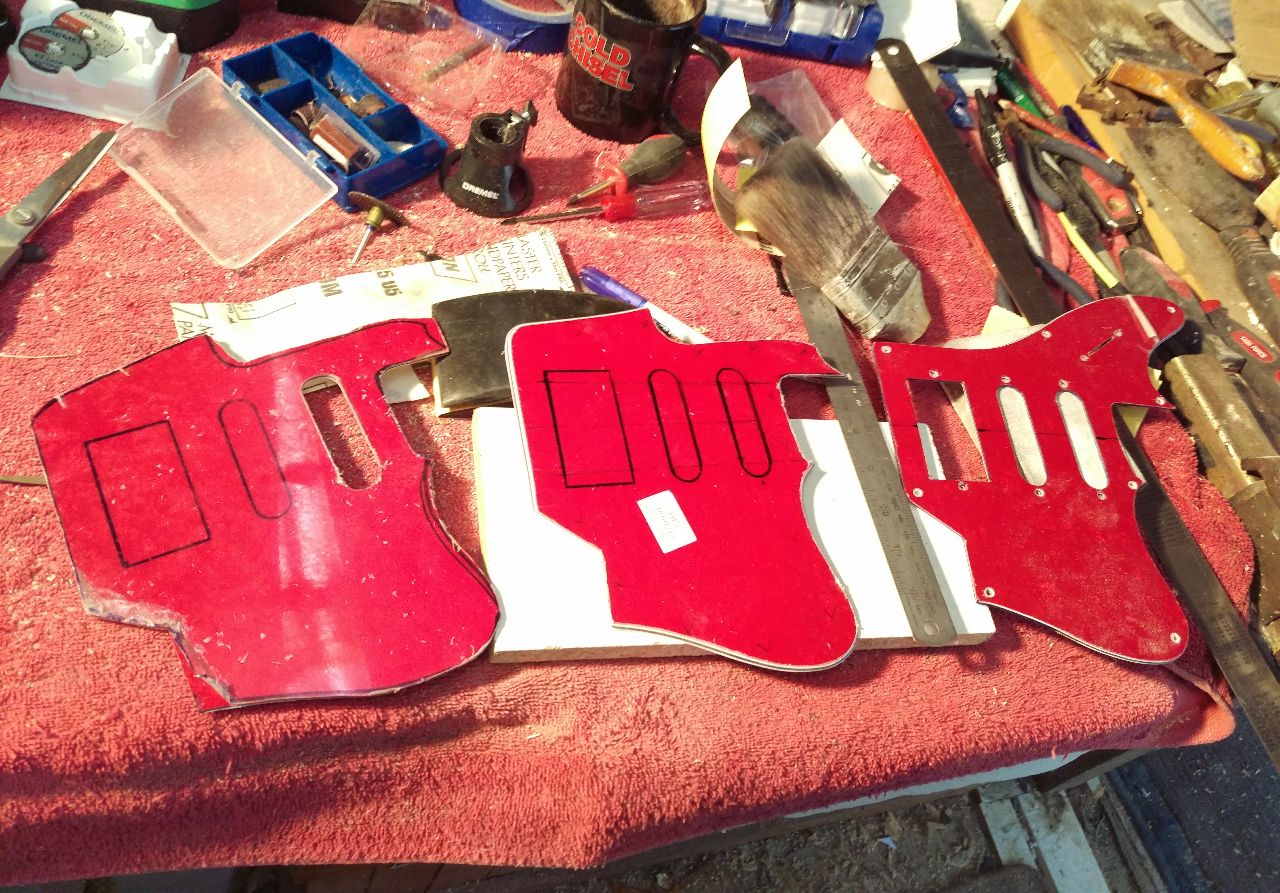

Time to do the pickguard, it has arrived. Used one half for trial, so easy to botch up using wrong tools. When i got the hang of it i used some measurements from the supplied one then modified the rest. First pic shows how the original pick doesnt fit.
Attachment 21175
Second pic shows the first trial pick, the final one has a sticker on
Attachment 21176 Attachment 21177

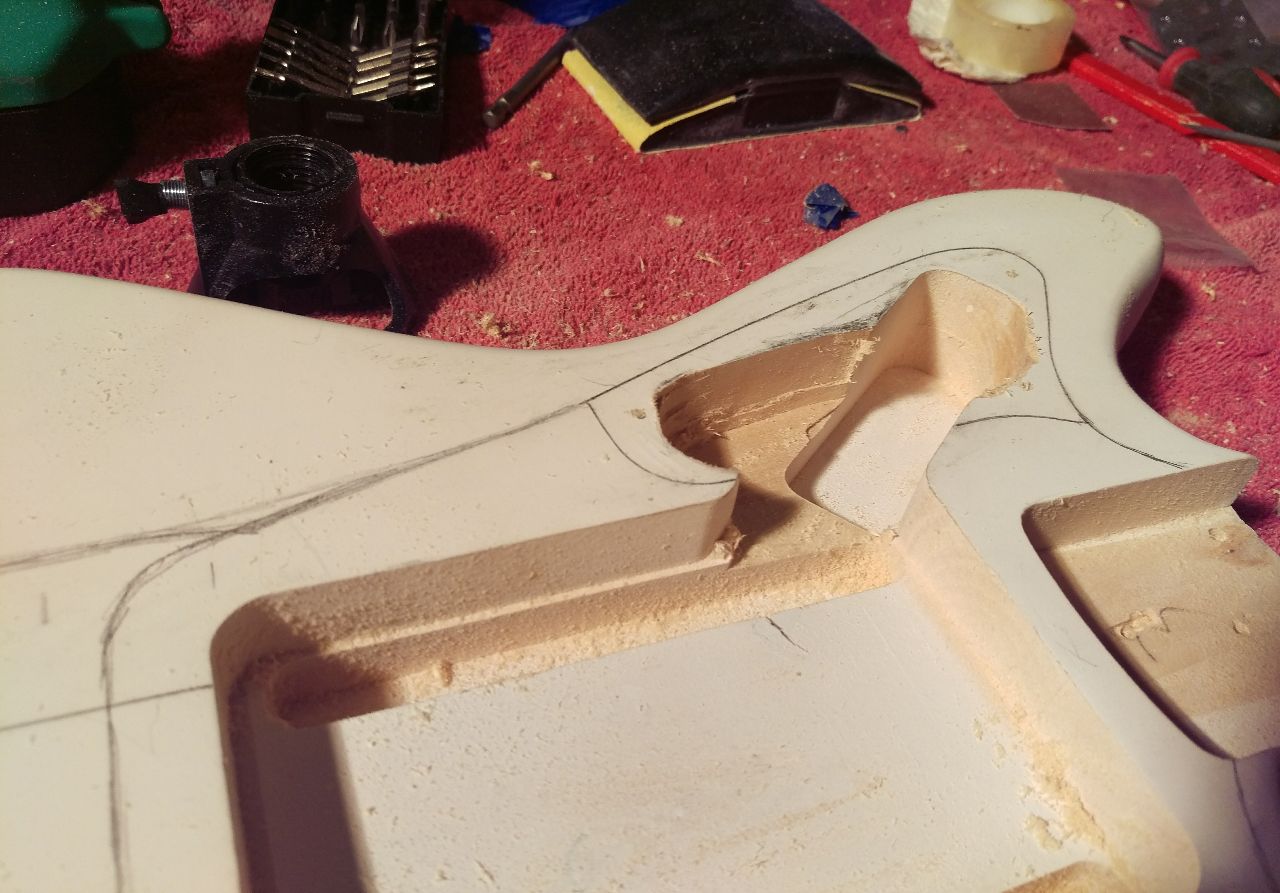

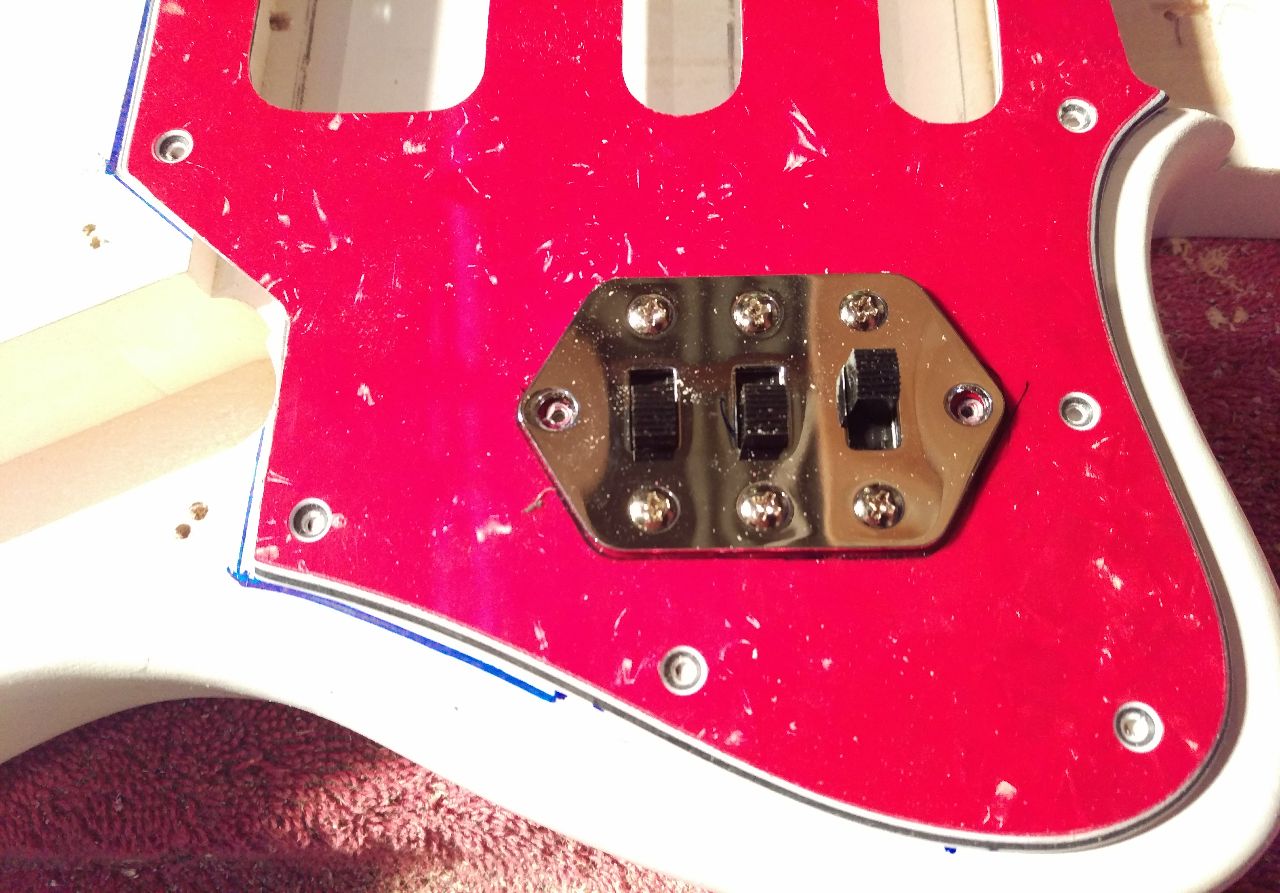

More routing, setting in lower switch panel, another sand and reprime, then final assembly to check neck, trem and string alignment. All is good. Ready for wiring and final 3 different paint coats.
Attachment 21178 Attachment 21179 Attachment 21180
Attachment 21181

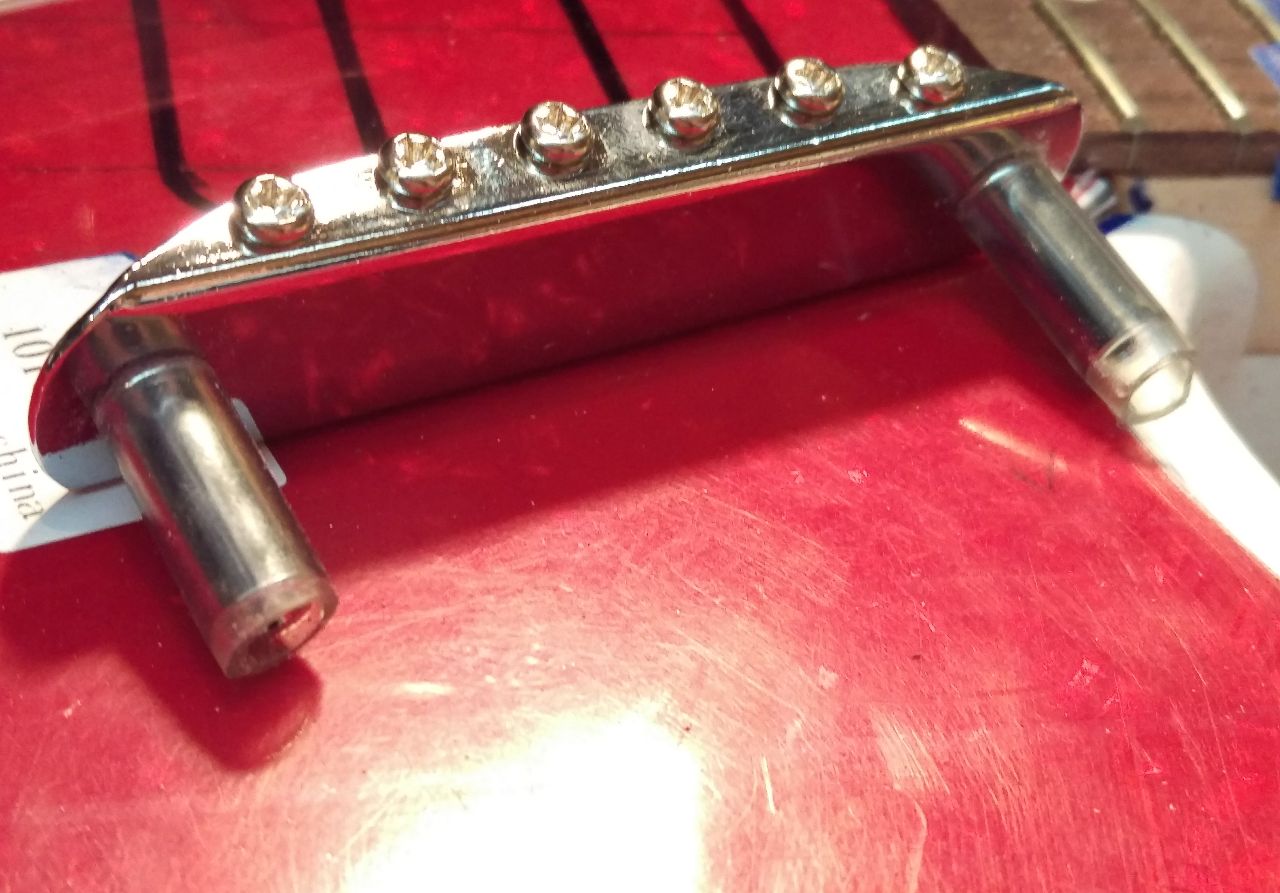

I even remembered a tip from a fellow guitar builder.... use plastic hose to hold the bridge in place before fitting.
Attachment 21182

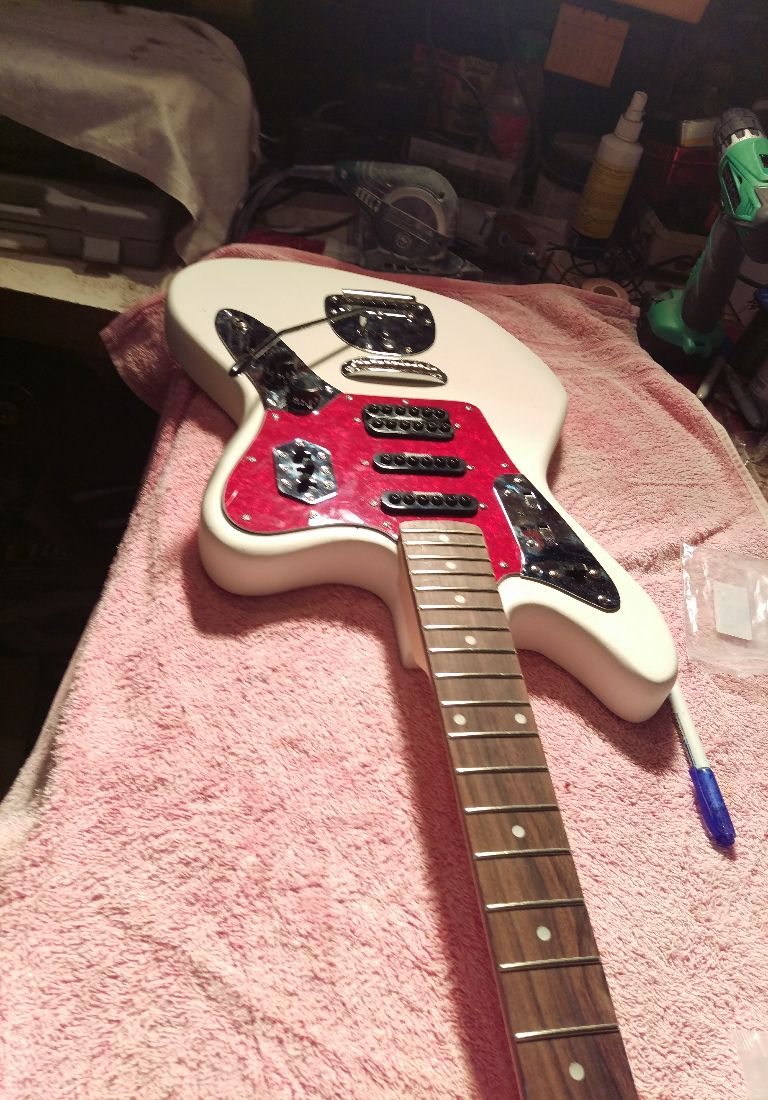

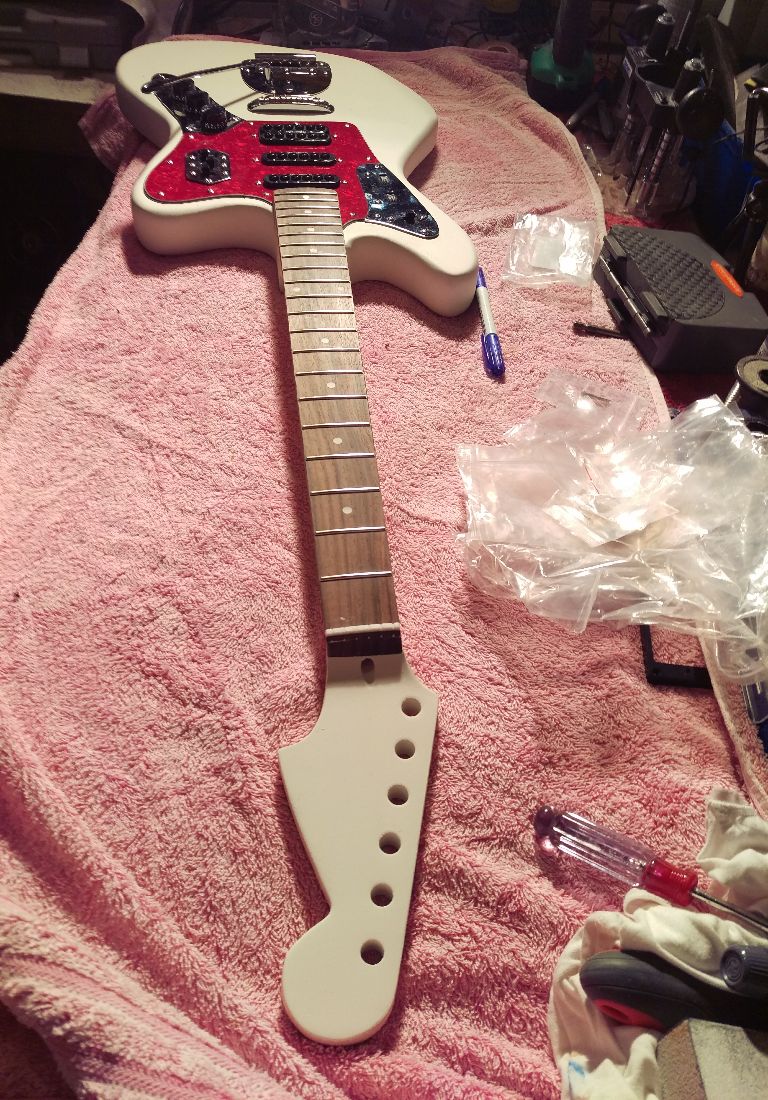

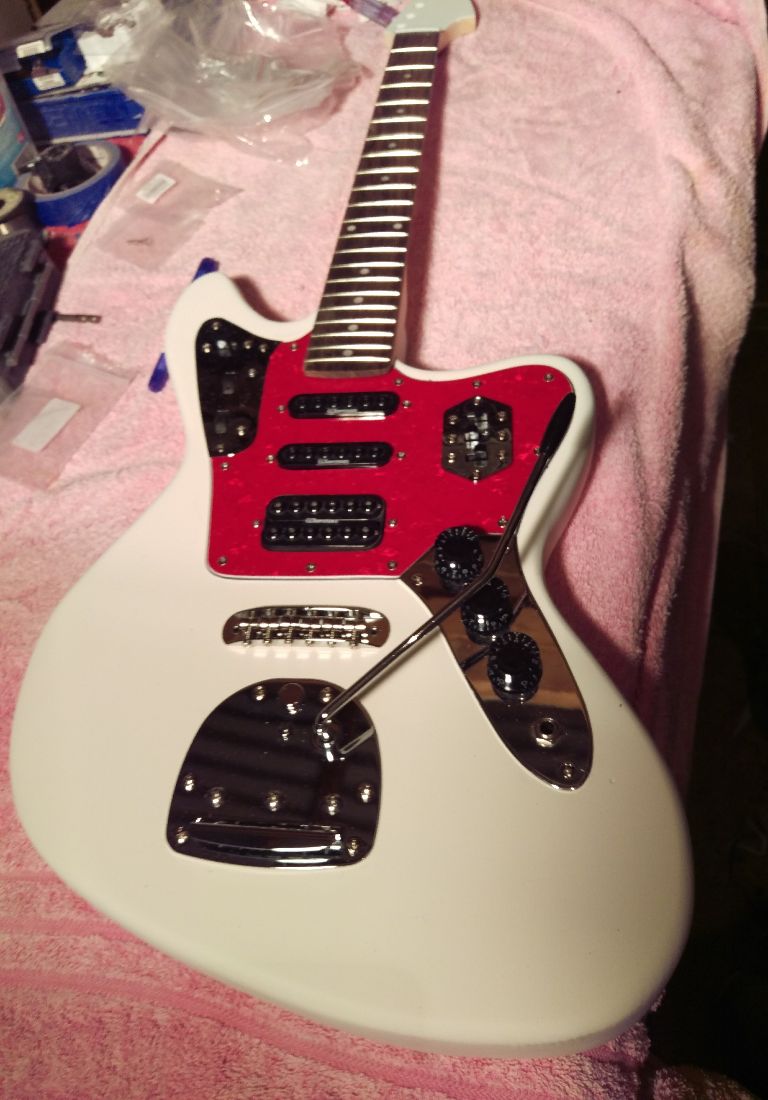

Final assembly to check alignment
Attachment 21183 Attachment 21184 Attachment 21185
Attachment 21186
