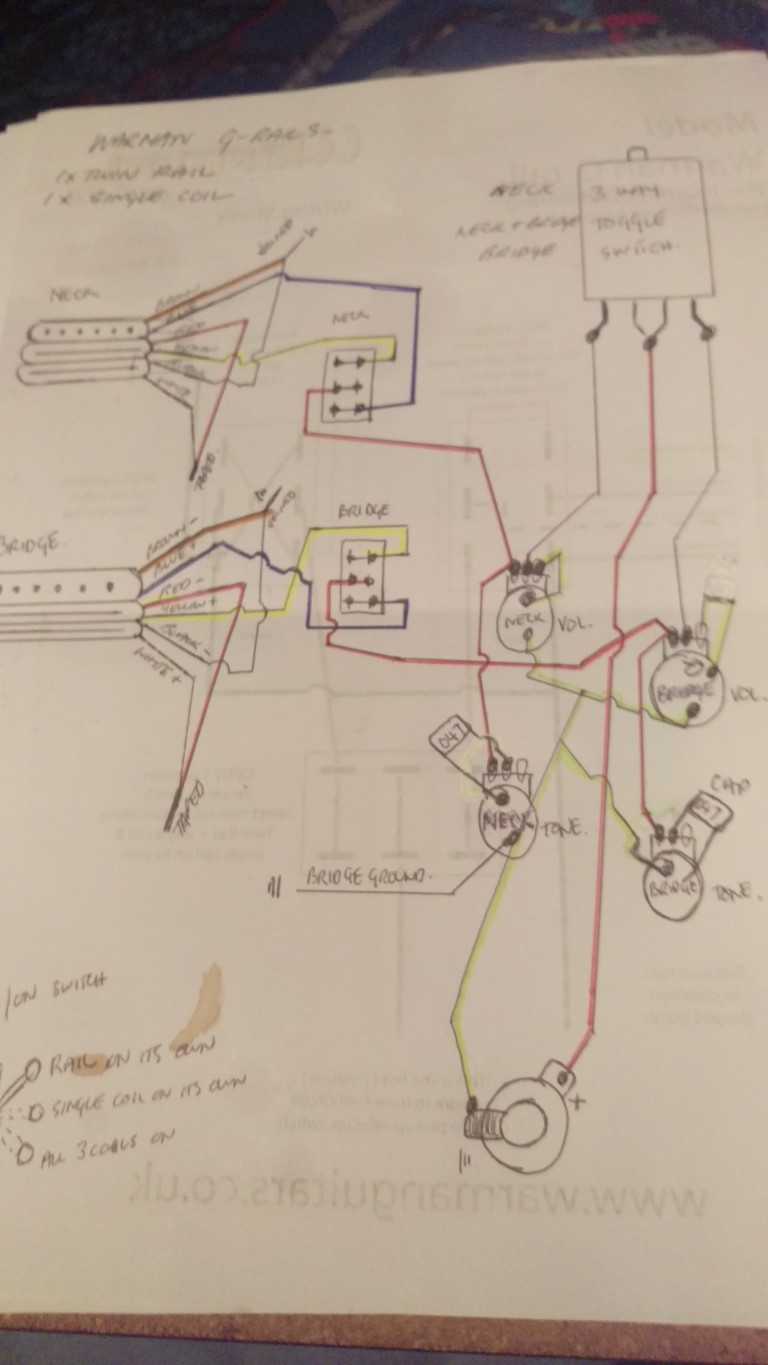

wiring diagram has been corrected, just volume to change. and some idea on what to do to get all 6 in series. TA everybody, esp weirdbits.
Attachment 12992
Printable View
wiring diagram has been corrected, just volume to change. and some idea on what to do to get all 6 in series. TA everybody, esp weirdbits.
Attachment 12992
Hey wokka, just a bit of info about the pickups for ya, or anybody else that wants to read.
More tones than you can shake a plectrum at

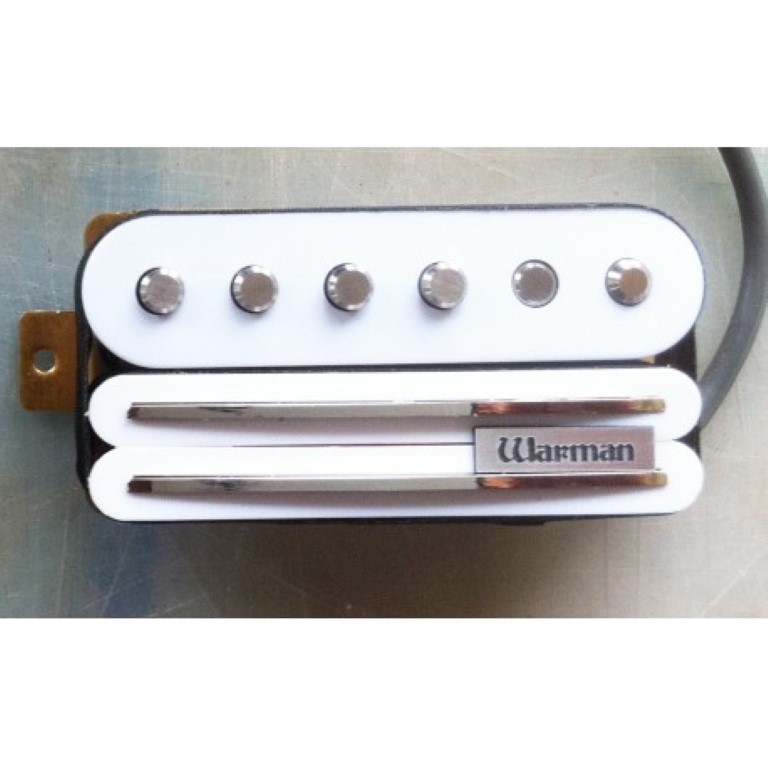

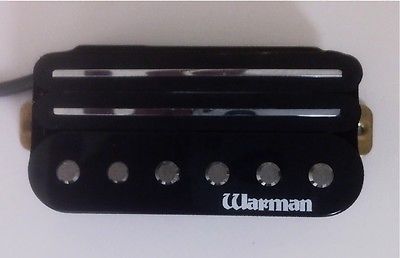

Warman G-rail triple coil electric guitar pickup – A very special pickup indeed. 3 coils, 6 wire output, ceramic and alnico magnets and more wiring options than even we can think of.
This is a standard humbucker sized unit that will fit in place of any humbucker. It has two coils wound as hot rails with a strong ceramic magnet powering these that lifts the treble whilst retaining all the power, bass and mids. Each of the coils of the rail has its own individual output wires so is in effect a fully fledged twin rail humbucker in its own right. Mounted on the same chassis is an another coil wound with 6 individual alnico magnets again with its own output wires so we’re looking at three coils and six output wires plus the shield.
Each of the rails has a resistance of 7.39k and due to the strong magent has an inductance of 4H, when wired together in series gives a combined resistance of 14.76k, which is to be expected, but the powers jumps up to 10.7H more than twice the sum of the individual coil outputs . The alnico coil has a resistance of 6.48k and an inductance of 3.35H on its own. Now this is where things start to get interesting. Put all 3 coils wired into each other in series and the thing turns into a Monster at 21.2k and a massive output of 14.9H.
Attachment 12993 Attachment 12994
Cheers Nitro I'll have a read. First I've heard of this style pickup. Can't wait to hear them!!!
I'll check out some online demo's of them
http://www.warmanguitars.co.uk/produ...uitar-pickups/Quote:
Originally Posted by wokkaboy
http://www.ebay.com.au/itm/Warman-Bl...-/182049544055
hmmm, makes a note for future reference, think I just found the bridge pick up for my planned V :) thanks Nitro
Hey the pleasures all mine.Quote:
Originally Posted by Dedman

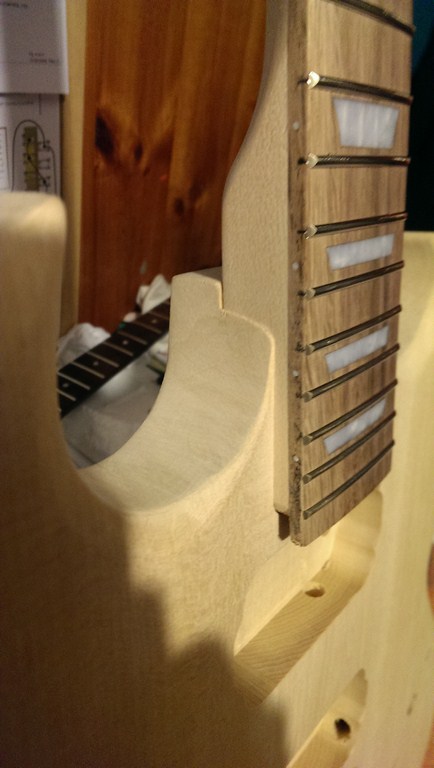

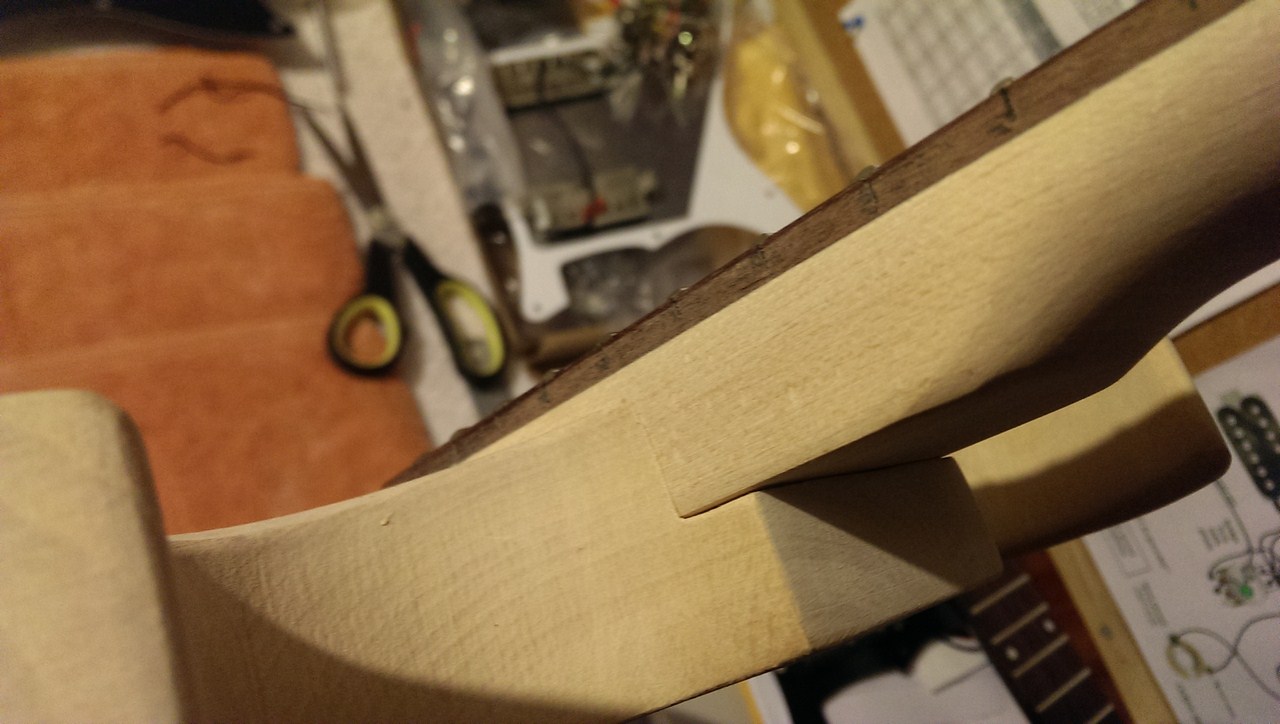

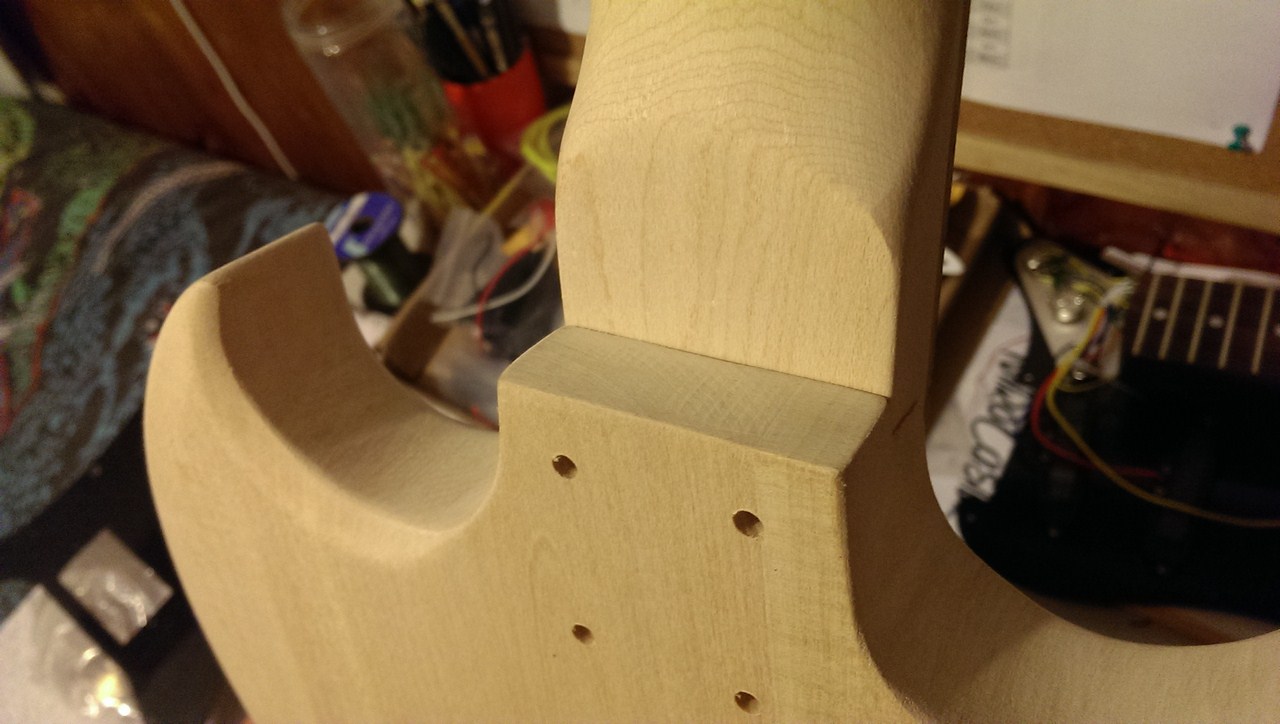

Just fitted the neck to the body and it fits like a glove. Will check body/neck/strings measurements on the weekend, unless i get really keen before...
Attachment 13070 Attachment 13071 Attachment 13072
Checking out glues for the walnut veneer...... my bro in law uses a slow drying 2 part glue pictured below
Attachment 13084
BUT i would like to know what you guys recommend as im open to suggestions.....

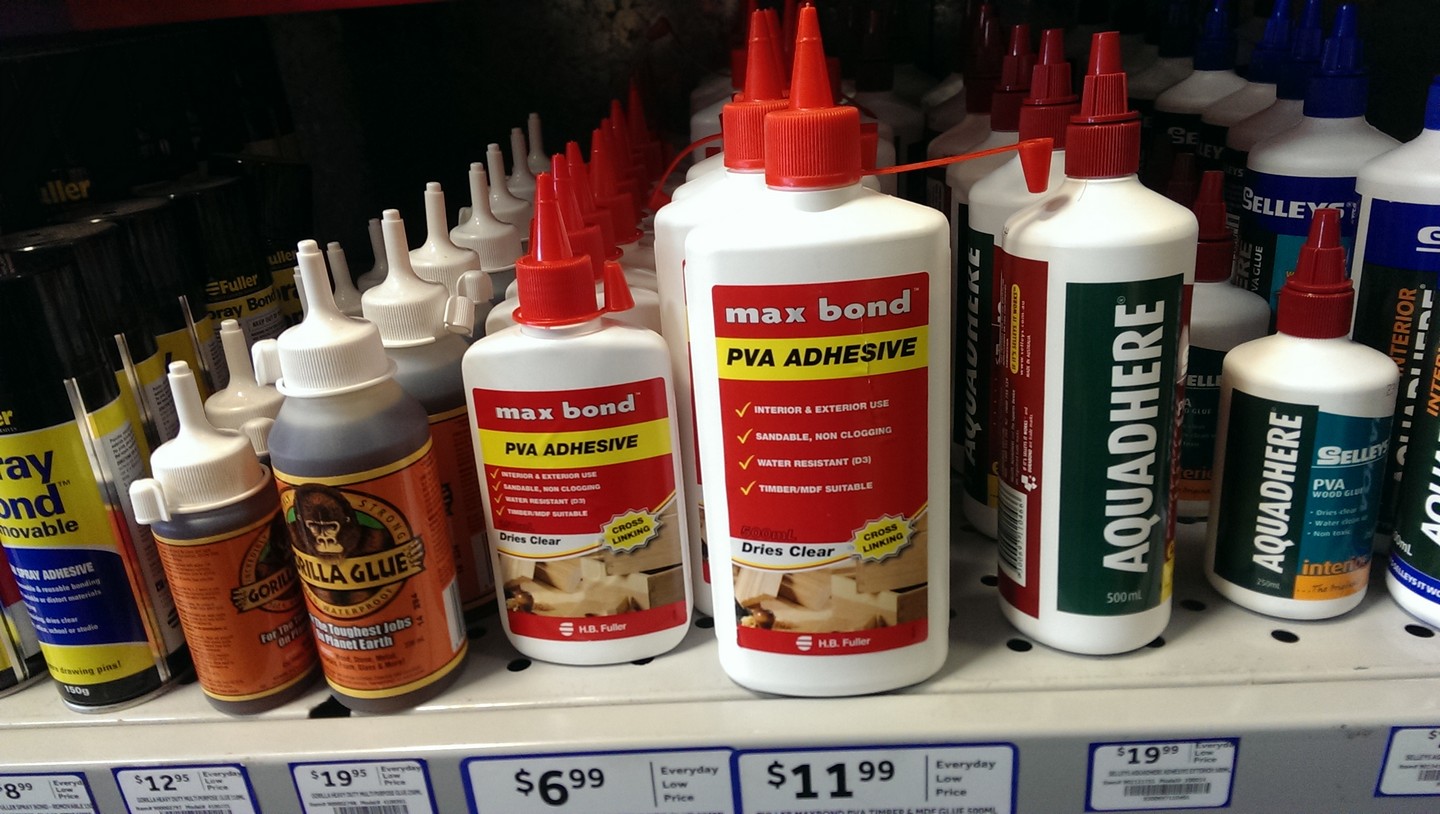

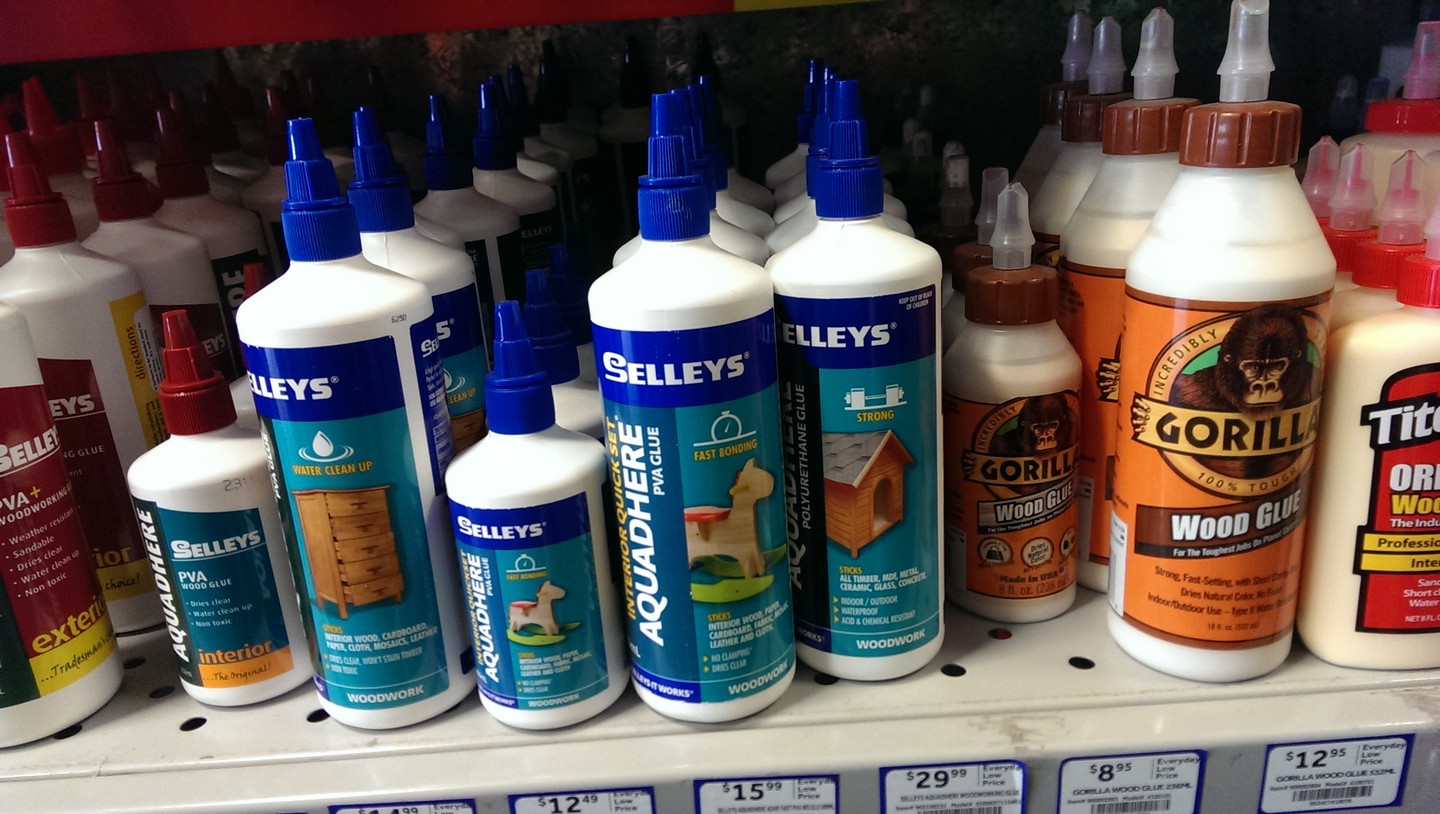

Saw these in the big green shed.....
Attachment 13085 Attachment 13086 Attachment 13087

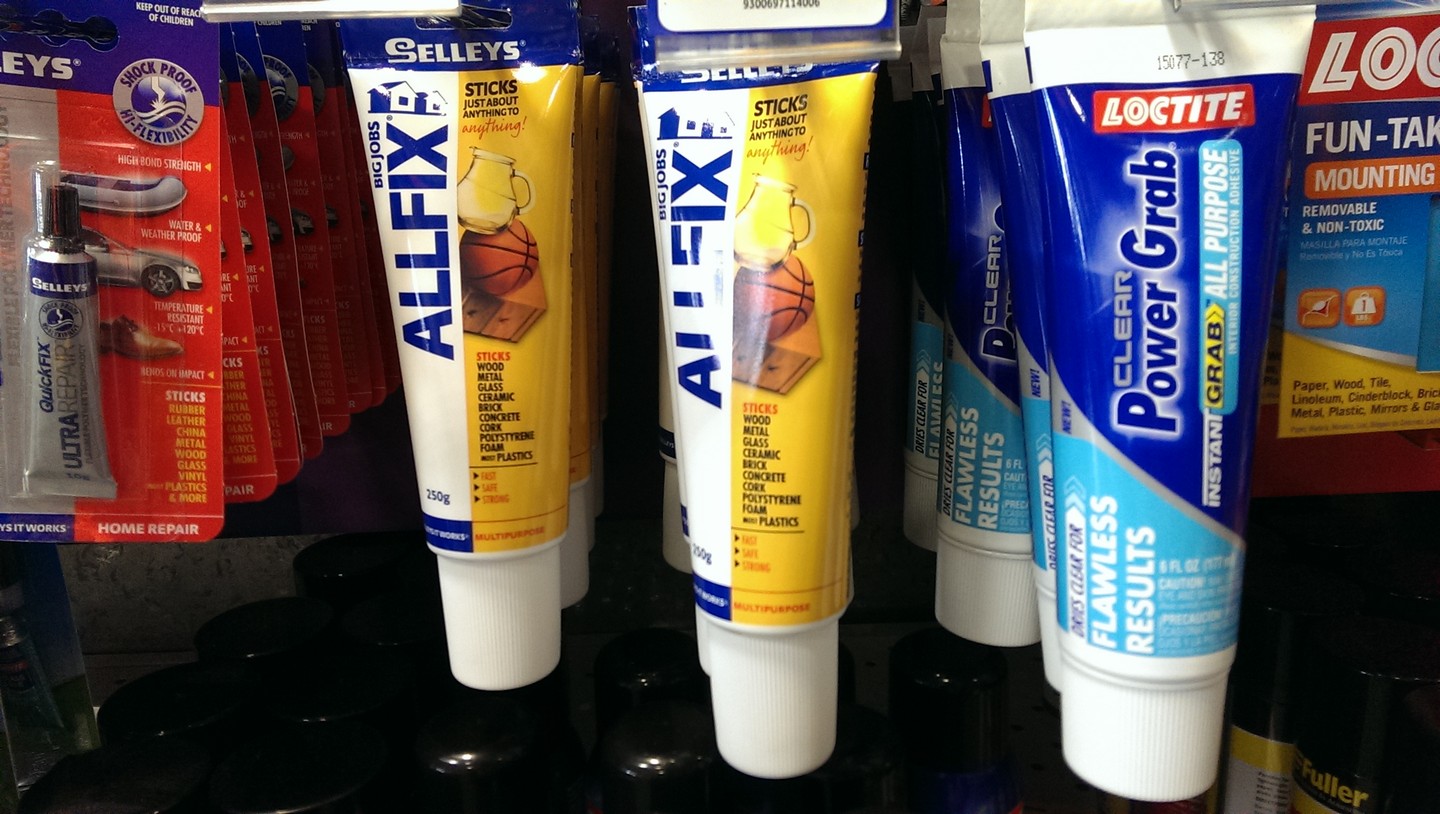

and these.......
Attachment 13088 Attachment 13089 Attachment 13090
Hey Nitro I've had success with selleys kwik grip although it sets pretty quick so you may have one minute or less to position the veneer correctly. I've also had success with original titebond Will give you more time to position the veneer. Maybe check with DB may recommend another product
