Man, that looks great. For some reason I didn't think you could use Meguiars, etc on TO finishes. Good to know
Thanks AndyQuote:
Originally Posted by Andy40
Hi John, guilty as charged your honour - I have used TO on all 6 builds with Meguairs as the main polishing agent used after doing the micro mesh wet sanding. On the Swampcaster I also experimented with Brasso and Nu Finish.Quote:
Originally Posted by JohnH
Brasso is very abrasive for a liquid polish and is good for stripping back lumpy bits which quite often occur when ragging on TO, particular in hot or humid conditions. Nu Finish is like the fine scratch stuff some other folk use and just adds that little bit more mirror like zing.
I'll have to give them a crack on my LP build. If I get mine looking even half as nice as yours, I'll be happy!Quote:
Originally Posted by wazkelly
Time to start getting ready to install the electronics....
Attachment 24741Attachment 24742Attachment 24743Attachment 24744
Hi John, the trick is to have lots of thin TO coats to work with. Suggest laying 4-6 thick ones, light 1500 wet sand, then 6 - 8 coats diluted 50/50 with turps, another 1500 wet sand, same again and then step up to 2000 grit for the next wet sand. If all looks nice and flat, go for gold with the micro mesh pads and then start with Meguiars.Quote:
Originally Posted by JohnH
Every now and then you may burn through too much and thankfully TO is quite forgiving in applying small touch ups that can be easily blended into the existing finish with a bit of patience and finesse.
Lost count how many coats this one has....probably 30 or 40 and have 2 minor spots that need a bit more TO as the final polish just started to go too deep in those places.
Started reading this thread thinking, "Ah, this looks like the kind of finish I have in mind."
I'm now thinking I may have just ordered an expensive box of firewood!
That looks fantastic. :)
Thanks Blinddrew.
Most things can be recovered somewhat with a bit of patience.
On this one I am still carefully working on the few spots where polish went too deep. Might take another week or so before it is ready for final assembly.
Cheers, Waz
Sent from my SM-A520F using Tapatalk
Looking great Waz, I haven’t seen that conductive paint before ,where do you get it from? I couldn’t leave my builds for more than a day, I am too excited to get to next bit, and the next bit,let alone months. Maybe I should slow down a bit.l
Wayno.
Hi Wayne, I bought conductive paint online (eBay) a few years ago for both the Explorers and here is the link..... https://www.ebay.com.au/itm/CONDUCTI...-/171335822312
Attachment 25904
Almost done with final layers of finish and itching to get onto assembling stage. Thought the TO had an aged look to it and had to drag out the natural neck on my J Bass to compare and was surprised to discover both looked almost the same? From memory I thought the J Bass was lighter than that??? Here are the comparison shots....
Attachment 25982Attachment 25983
Now shown with the body. Whilst maple and basswood are fairly light coloured timber, basswood typically is a little bit darker and really pleased with how the neck & body colours are a very close match.....

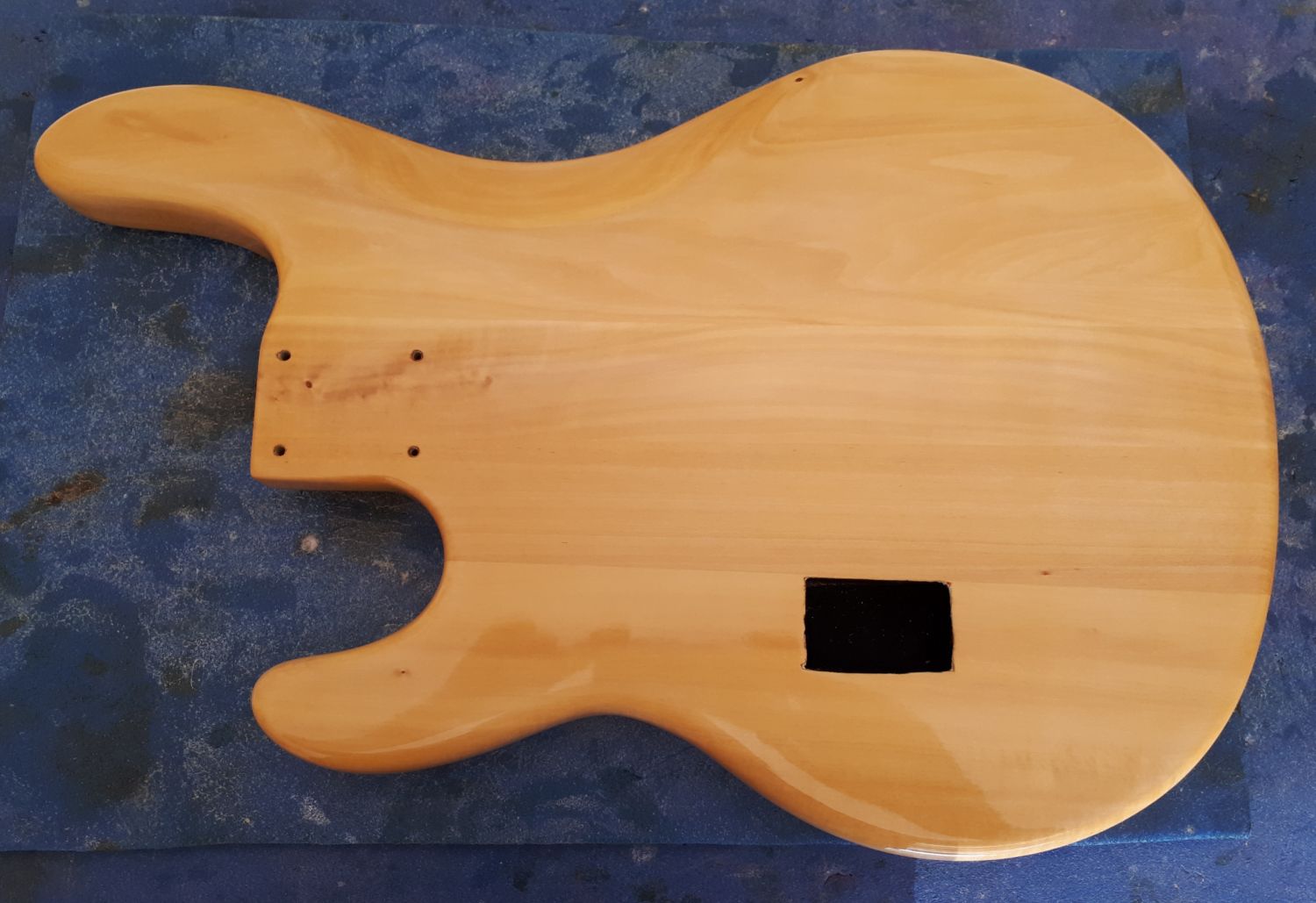

Attachment 25984Attachment 25985Attachment 25986
Looking good, Waz.
Thanks Simon.
Just a tick over 12 months in the making.
Thanks for the link on the paint Waz, I might try it on my next build, I have one in mind but not ordered yet.
Wayno.
That is looking very nice Waz
Attachment 26040Attachment 26041
Gotta stop those slugs and snails getting inside my control cavity.
looking killer waz, love the contrast between dark neck and amberish body/headstock, very classyQuote:
Originally Posted by wazkelly
cheers
Guv
Thanks Guv.
Just ordered an aftermarket bridge this morning and not sure if that will arrive before end of this month. Getting close to calling the finish done and will have to make a start on the electronics soon.
Just discovering this thread now. This looks great so far!
Those damn slugs!!Quote:
Originally Posted by wazkelly
Decided to pull my finger out and start assembling this one....only started it 15 months ago.....hope this finish has cured by now Ha Ha.
Attachment 27087Attachment 27088Attachment 27089Attachment 27090
Hard to enlarge tuner holes to take the aftermarket tuner bushings....
Attachment 27091Attachment 27092
Attachment 27094Attachment 27095Attachment 27096Attachment 27097
Hope to install and wire up the Belcat pre amp in the next few days, set the action and intonation, and it should then be all done.
Shaping up very nicely. :)
I love the decals in the same style as the mm ones, very cool!
Amazing what can be found and downloaded on the internet.Quote:
Originally Posted by Andyxlh
Sent from my SM-A520F using Tapatalk
This just arrived last night....only took 10 days to get here from US.....
Attachment 27577
Stock kit pickup has 5 wires where the outer shield is ground. On this one it is just 4 wires where no ohm reading on the shield with any of the other 3. Black is also ground, Red is hot, and white is for coil splitting?
Broncos & Sharks are on soon so this will have to wait until tomorrow night or the weekend.
One of the last pieces of the assembly puzzle and hope it sounds alright. The wires don't look much thicker than stock unit which was the main issue as they were not strong enough once soldered and kept breaking off at the solder joint.
Waz, grab a little bit of the vintage push back wire. Solder one end to the pot or socket that you are connecting. Cut a segment of heat shrink that will reduce to be tight around the thinner plastic covered wire. Slde that piece onto the vintage wire....solder the thin wire to the vintage wire...twisted...flat...whatever you feel will work....slide the heat shrink up over the join.....and heat it down tight.Quote:
Originally Posted by wazkelly
Nice and strong then.
You can even slide a little heat shrink down over the join at the pot...helps there too.
Thanks Ozzie, good advice and will give that a go after work tonight.
Sent from my SM-A520F using Tapatalk
Wiring up GFS MMB pickup to Belcat Pre Amp
Having lots of fun trying to work out best way to wire up on blend pot that comes with the eBay 'Belcat' pre amp.
Kit supplied PUP had 5 wires where one was outer shield and theoretically should have allowed for front coil, rear coil isolation via the blend pot, and when centered it was in series as a humbucker. Played around with that PUP over a few days and could never get that to happen plus the wires were so thin they broke off at solder joints way to easy.
GFS replacement arrived a couple of days ago and this one is 4 wire but technically 3 as the outer shield does not share a signal with the 3 inner Red, Black or White wires. This probably means I can only coil split in one direction. When measuring things the rear coil lines up pretty close to same position as bridge J Bass PUP (10 mm further forward) whilst front coil is about 34 mm further towards neck. At the moment it seems I have wired in series as nothing is happening on either left or right side of center detent. Still sounds quite meaty and happy with that sound but seeking some guidance on which wires to swap around as my patience is almost at an end. At this stage I am leaning towards splitting to front coil as hopefully that should still retain more lower mids and maybe sound a bit like P Bass, and if I want J Bass sound I already have one of those.
Here are a couple of photos and diagrams and happy to wait for some feedback and guidance before heating up the soldering iron again. Last handwritten diagram is where things are at...
Thanking you in advance.
Cheers, Waz
I wish GFS were a bit more explicit with how their bass pickups are configured and can be wired etc., it would save a lot of hassle.
MM pickups are traditionally wired with their coils in parallel, which makes it easy to connect them to blend pots etc. However, the GFS MM Pro actually has its coils wired in series, like a standard humbucker, which makes using a blend pot trickier... but not impossible.
With parallel coils, or two pickups in parallel, a blend pot controls how much signal from each goes to ground and how much goes to output. With coils in series, like the GFS MM pup, the blend needs to work more as a fade/bypass and control how much signal goes through a coil and how much bypasses it. This changes the way things work a bit and how you need to wire the blend pot, but it’s doable. If you want I can sketch up how you’ll need to configure it (which should work) but it may take me a day or two to get time.
If you just want to cut one coil then that’s easier, it just means you’ll only use half the blend pot.
Hi Scott, thank you for your reply.
This build has been on the go for past 15 months so another few days isn't going to be a problem. If it can be configured to blend front to rear coils, that was my initial intention but if it is not going to make too much sound difference and just add to the degree of difficulty then maybe just coil split to front (neck) coil will do.
Appreciate any guidance and happy for you to take as long as you need as I am back to work tomorrow and will only have evenings or next weekend to tinker with it.
Cheers, Waz
Ok, bear with me. It's a bit difficult to tell from your photos etc., but the original configuration of the Belcat blend/balance pot should have been something like this:
Attachment 27614
The black ground would be connected to either the top left lug or bottom right (with respect the the above orientation), and each of those lugs has a link to the pot case. The red hot from the volume would either be the bottom left lug or top right and have a coated wire linking between those two lugs. Normally, your parallel pickups/coils would then connect to the middle lugs.
However, because your pickup coils are in series rather than parallel we need to connect each coil across the resistance side of each half of the pot, which requires some re-wiring. Essentially, when at the centre detent the signal will then go through each coil in turn rather than through the resistance (mostly) and turning the knob away from the centre will bypass one coil or the other.
First step is to disconnect the pot case link from the lower right lug, otherwise it will short your signal to ground. Next, disconnect the wire link from between the bottom left lug and top right lug.
Then, connect the pickup and volume wires like this:
Attachment 27615
That *should* get you what you want. The sound of the pickup may be slightly different in the centre position compared to what you're currently hearing, due to the change to the way the coils are loaded. And, you'll probably find the balance works a bit more... switchy. That is, you may not hear much change until it's almost fully turned one way or the other and then you'll hear the coil drop out quite quickly. Hopefully ;)
Another option would be to just remove the blend/balance pot entirely and replace it with an On/Off/On mini-switch to select the coils as one/series/other.
Thanks Scott, I will give that a try.
A switch was also running through my mind and wondered whether a traditional Gibson/Gotoh style 3 way would work? The pot holes in the boomerang control plate are quite a large diameter to fill if using a mini DPDT switch but then one of them would need to be drilled out to fit a Gotoh 3 way?
Modifying blend pot for now and see how that sounds.
Cheers, Waz
If you want to keep the MM 4 X control knob look, using a rotary switch with the same knob as the pots is the go. I used a 4-pole / 3 position to achieve the individual coils/parallel switching config as the EB era Stingrays do with a blade switch. I prefer this to the blend pot as there is more signal in the parallel position, and I found blends (other than full parallel) did not offer much tone variation.Quote:
Originally Posted by wazkelly
Another little trick with the Belcat EQ-B2T preamp is that the bass boost/cut can be excessive, with a limited useful range of the pot. I "corrected" this by changing a few components around to get the travel of the pot to provide the best tonal variation. Hope this helps.

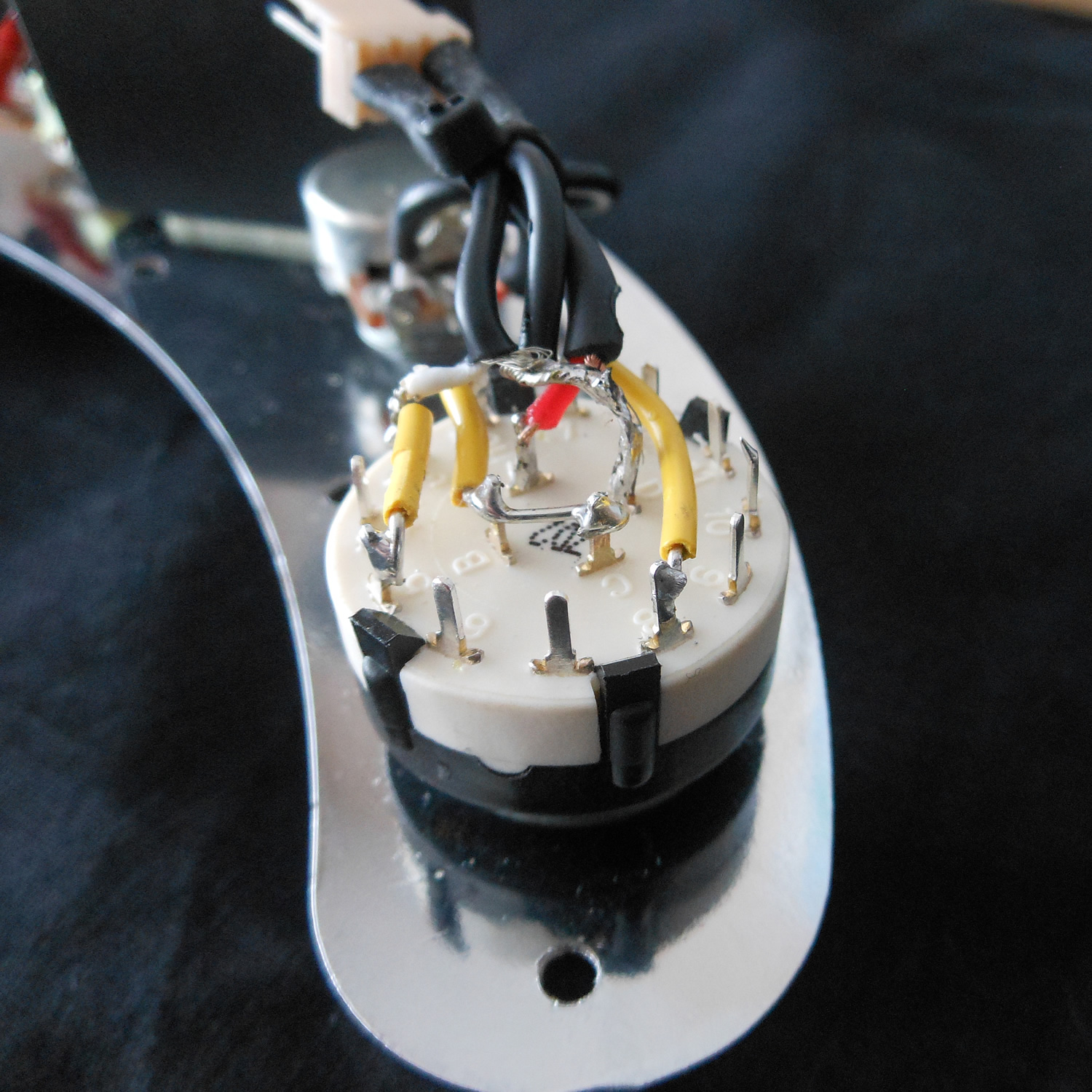

Attachment 27675Attachment 27676Attachment 27677
Unfortunately RalphH, that switch wiring won't work as-is with Waz's pickup as it's only 3-wire. The pickup coils are internally wired in series, with the 'third' wire connected to the centre connections between the two coils. So it can be tapped but cant be connected in parallel unless Waz takes the pickup apart and manages to wire it as a 4-wire pickup so there's fully independent access to both coils.
Hi Ralph & Simon, Rotary switch had me intrigued enough to go searching for what was available and not much out there that would either fit in the cavity or easily do required job.
Been a bit busy with work and other chores to have a clear enough mind to get stuck into this again. Without too much effort it can be configured in a simple coil split mode, just need to experiment to work out which wires go where to split to the better sounding coil. My guess is the coil towards neck will give a more lower mid to deeper sound. Will probably muck around with this before tackling Weirdy's suggestion just to get a base reference for how things sound and ultimately which is most pleasing to the ear.
If you did want to go down the rotary switch route then this switch is probably the most available option. Just trim the shaft length and set the number of positions, depending on the knobs you want to use and if it’ll fit in the cavity.
If you want use a full sized toggle switch then a standard 3-way won’t work, it will need to be an On/Off/On like a Danelectro toggle switch.
But I’d try the balance pot option first, it’s not hard to wire up.
