LP-1S Second First Build

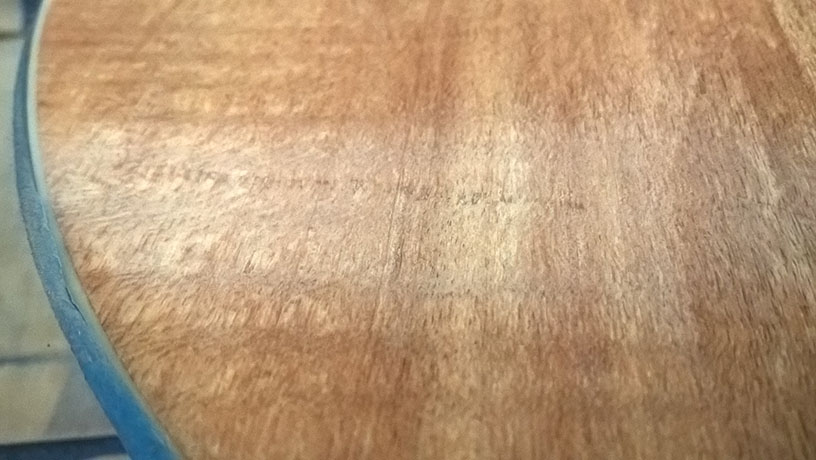

Sanding got the scrape out...

But I sort of "gently" sanded it back to wood
Attachment 8272

Attachment 8273

So ended up reapplying stain and intensifier.

Attachment 8274

Those last shots were from a week or so ago and since then it's had a second final coat that's come out quite nicely so I might leave as is.

Attachment 8275 Attachment 8276

Attachment 8277 Attachment 8278

Intersting choice of pups Bluesy, why did you go with the Rocksong and SD combo?

Coming along nicely

Nice job, looking better all the time

Quote:

---

Originally Posted by Andy40

Intersting choice of pups Bluesy, why did you go with the Rocksong and SD combo?

---

Hey Andy, the pickups in the photos are both Toneriders. The neck pickup is a Rebel 90, I wanted something p90-like in the neck. The SD packaging is just part of the pile of crap I had on the table (I was using the SD in mock ups of my JM-1).

Quote:

---

Originally Posted by Blueshound

Hey Andy, the pickups in the photos are both Toneriders. The neck pickup is a Rebel 90, I wanted something p90-like in the neck. The SD packaging is just part of the pile of crap I had on the table (I was using the SD in mock ups of my JM-1).

---

Ahh right...toneriders good work! love to hear a demo when your done

Feels like the home stretch now.

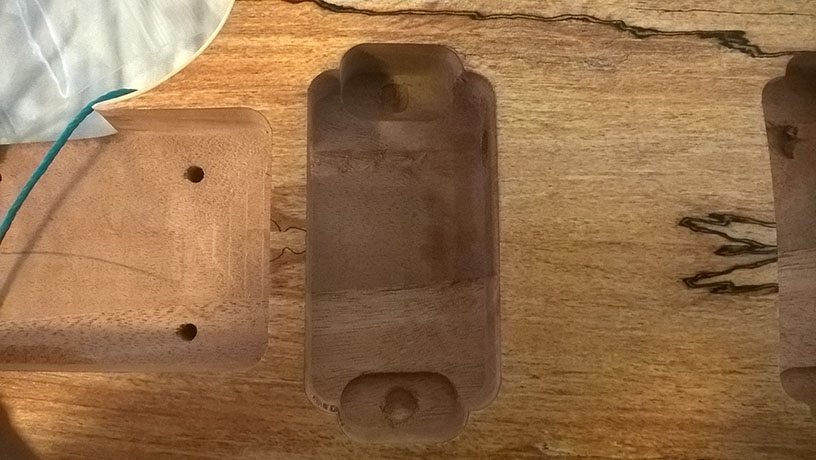

Had to drill some extra depth for the pickup screws in the neck cavity.

Attachment 8394

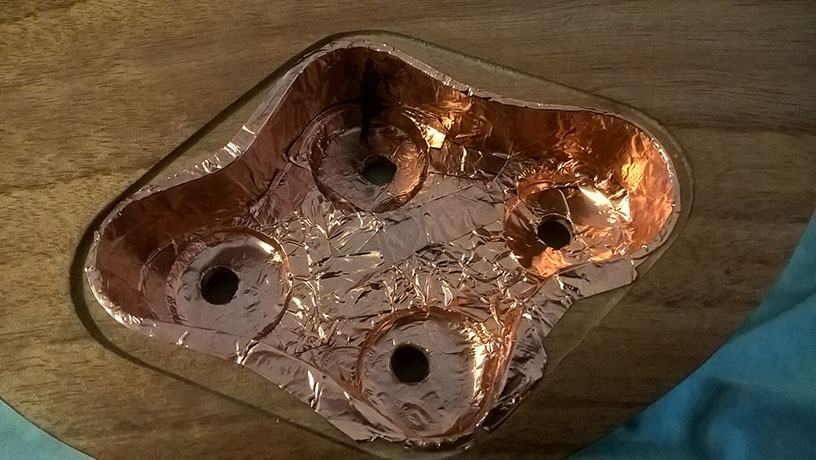

Shielding
Attachment 8396 Attachment 8395

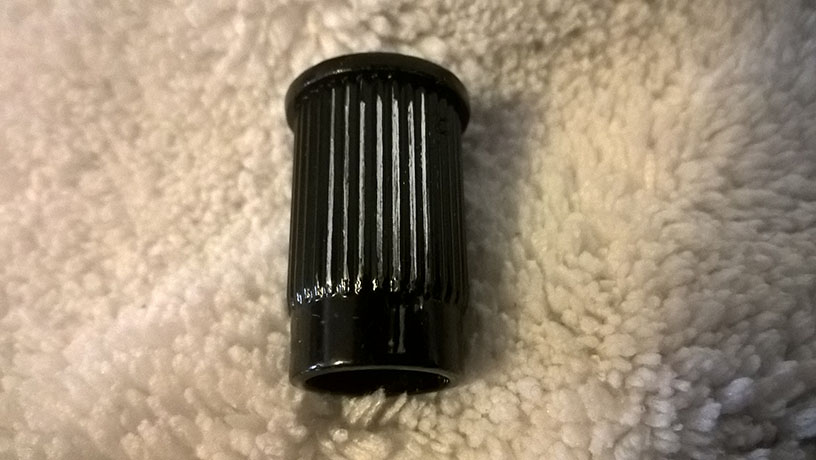

Had to scratch off the black coating on the bridge bushing in order to get conductivity.

Attachment 8397

Once the bushing was grounded, it was persuaded into place with a rubber mallet.
Attachment 8398

Installed tuners, bridge and e strings to align the neck. Getting the neck in place was a bit hairy as it was difficult to clamp and get accurate measurements around the clamp. Took several attempts but finally got the neck positioned, marked, drilled and bolted on.

Couldn't help throwing the remaining strings on to see how she goes as an acoustic...

Attachment 8399

...and the answer is, very well indeed. The thin finish gives it a very organic feel that matches the natural look and even with the stock nut and hardware the unplugged sound has nice sustain and resonance. There should be some hardware upgrades in the mail this week, but I'm thinking I'll put in all the stock electronics and do a before and after comparison with the upgrades. Something for next weekend...

Geez thats looking real good mate, cant wait to hear it.
