NEXT a big boo boo...... didnt like the finish on the cap so tried a matt finish... looked ok
Attachment 16840

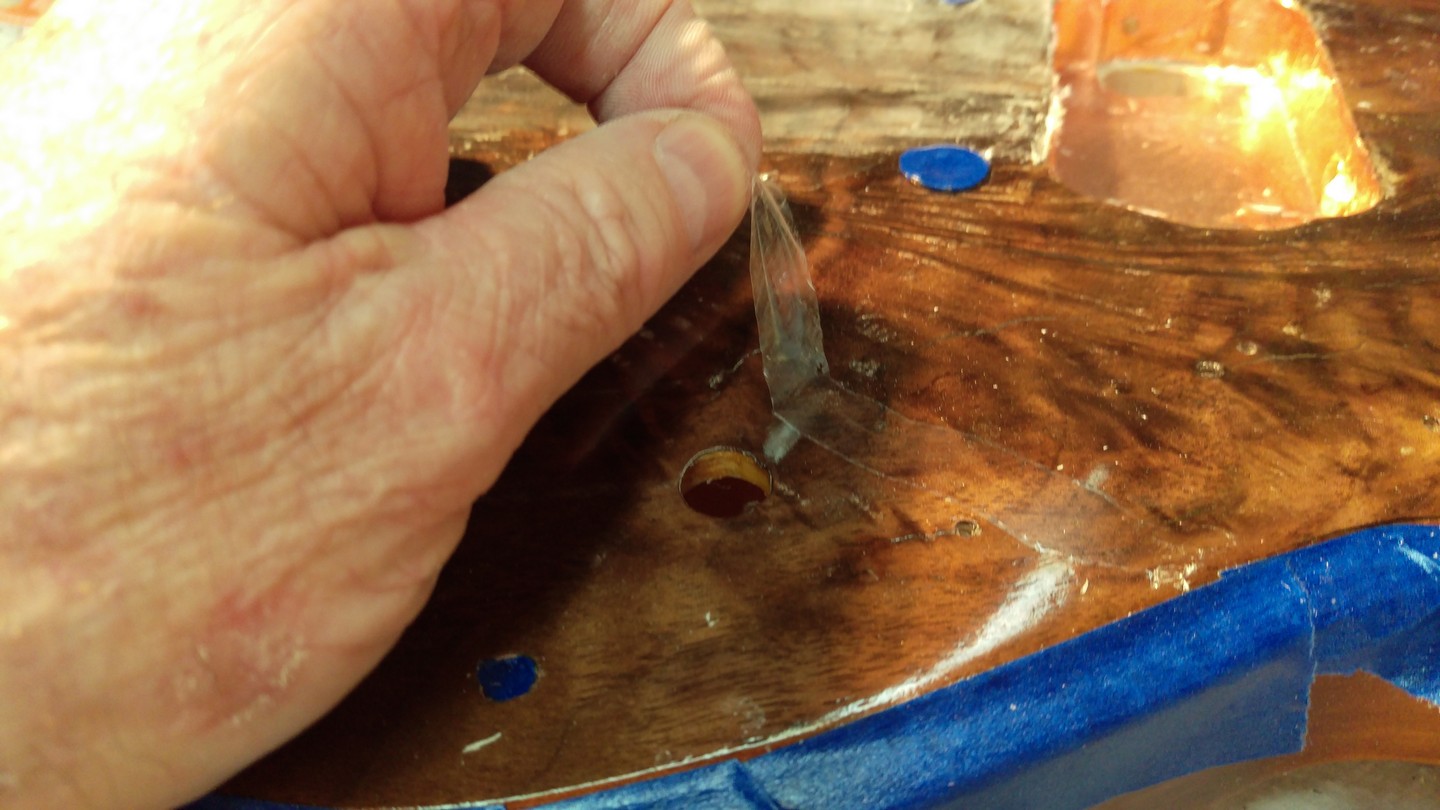

but didnt take......
Attachment 16841
Back to the drawing board...stripped it back and recoated with satin poly...Ya live and learn.
Attachment 16842
nice fix Nitro and glad you are better after the operation.
Must be a headache the wiring.
Anyway on the home straight now !
Nitro - really glad you are back in one piece!
If you had arranged so that the two magnets had opposite poles pointing upwards, then you could have stuck on a thin steel strip rather than more magnets. Or simply use two small steel inserts rather than more magnets.
As Woks said, you're almost there!
Thanks mate, yea bit of a headache, but its the waiting again as i build up coats on the cap...oh well you live and learn..Quote:
Originally Posted by wokkaboy
Thanks mate.Quote:
Originally Posted by Simon Barden
Good point Simon, i can still fit another magnet on top and they will still be flush with the cap so i could use the thin metal strip idea just gotta check the polaritys. thanks matey

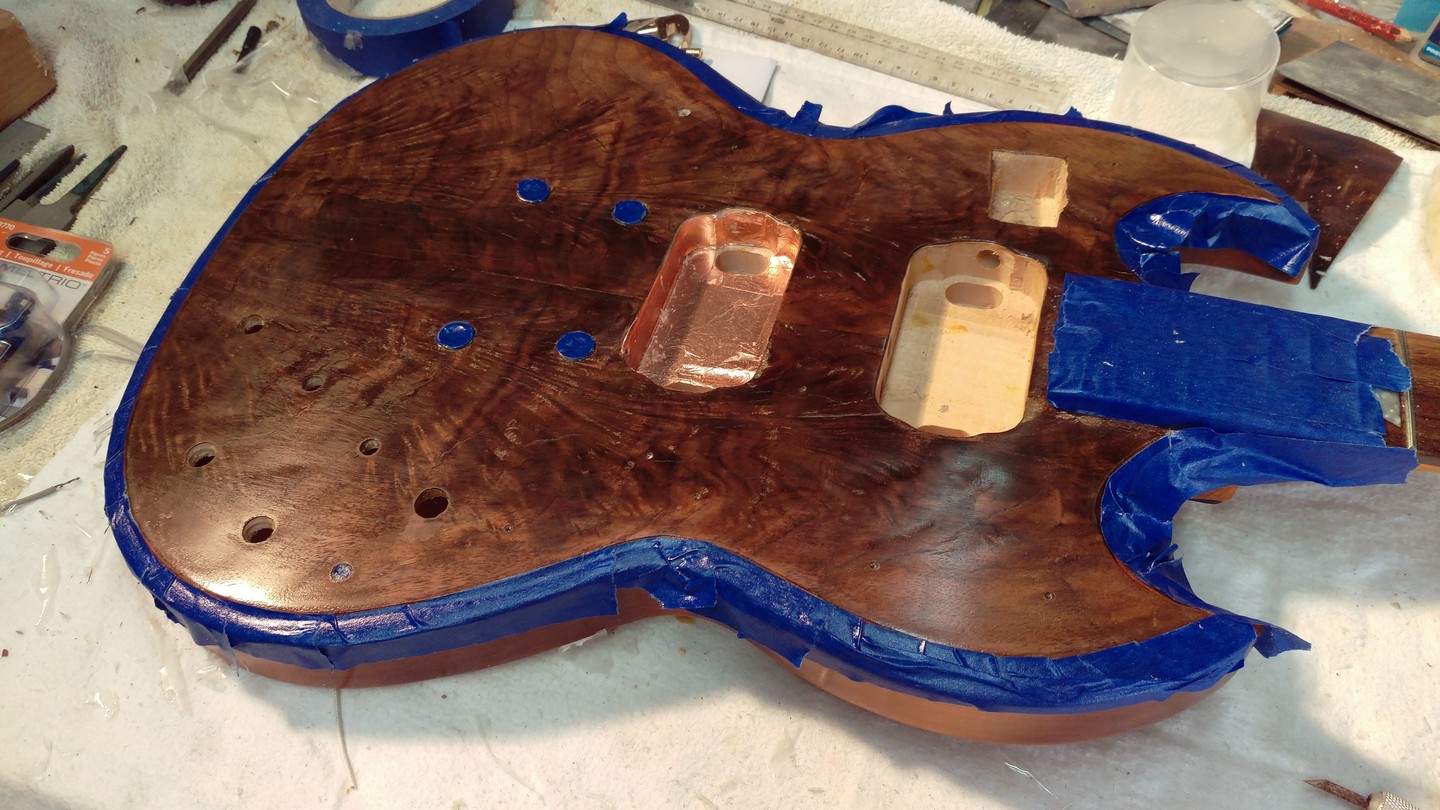

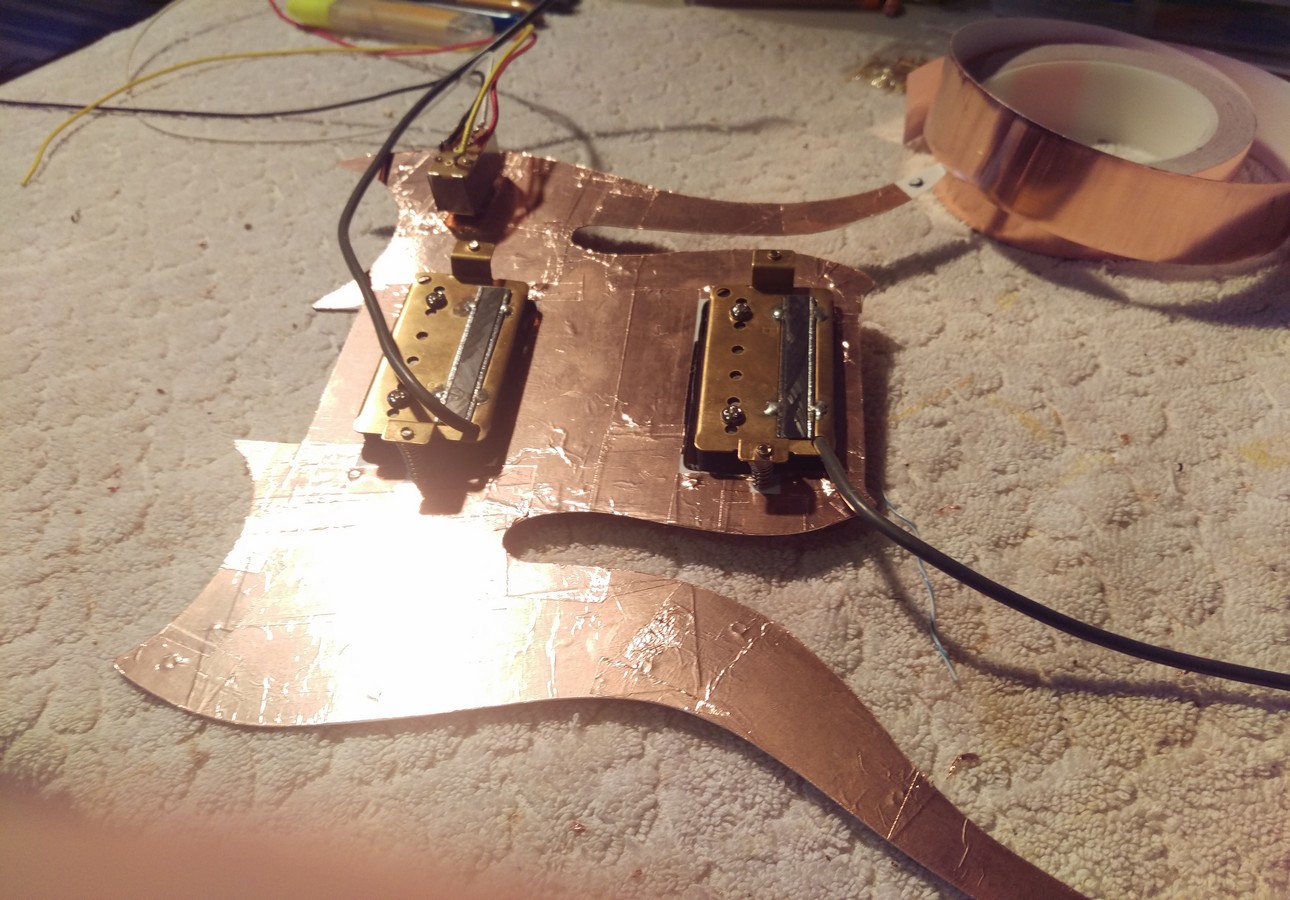

so while ive been laid up at home i finished the copper insulation to the cavities and the back of the pickguard and control plate cover.
Attachment 17166 Attachment 17167

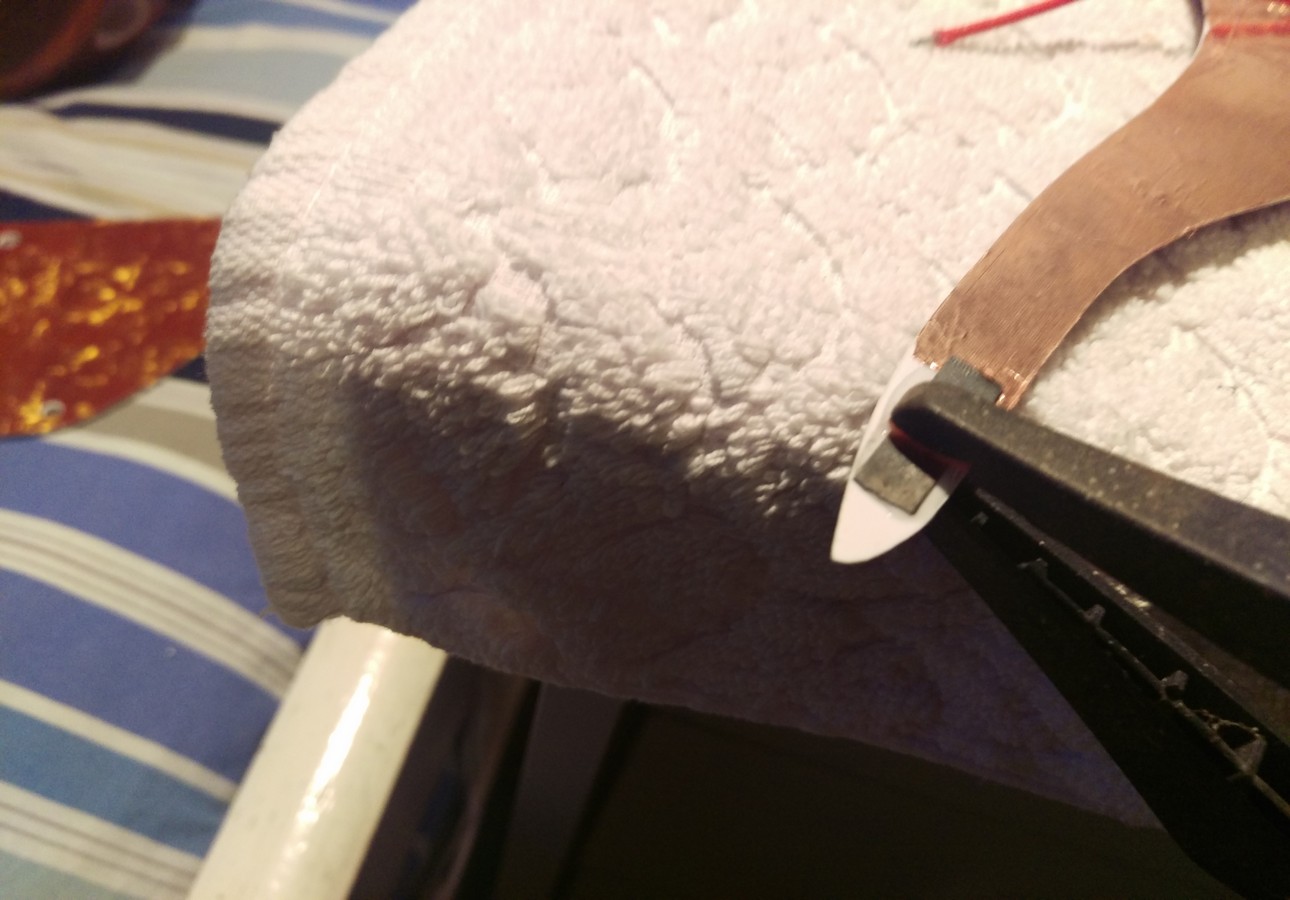

i next used Simons advice and glued 2 small bits of metal to the ends of the pickguard for the magnets. I used an old scalpel blade cut in two.
Attachment 17168

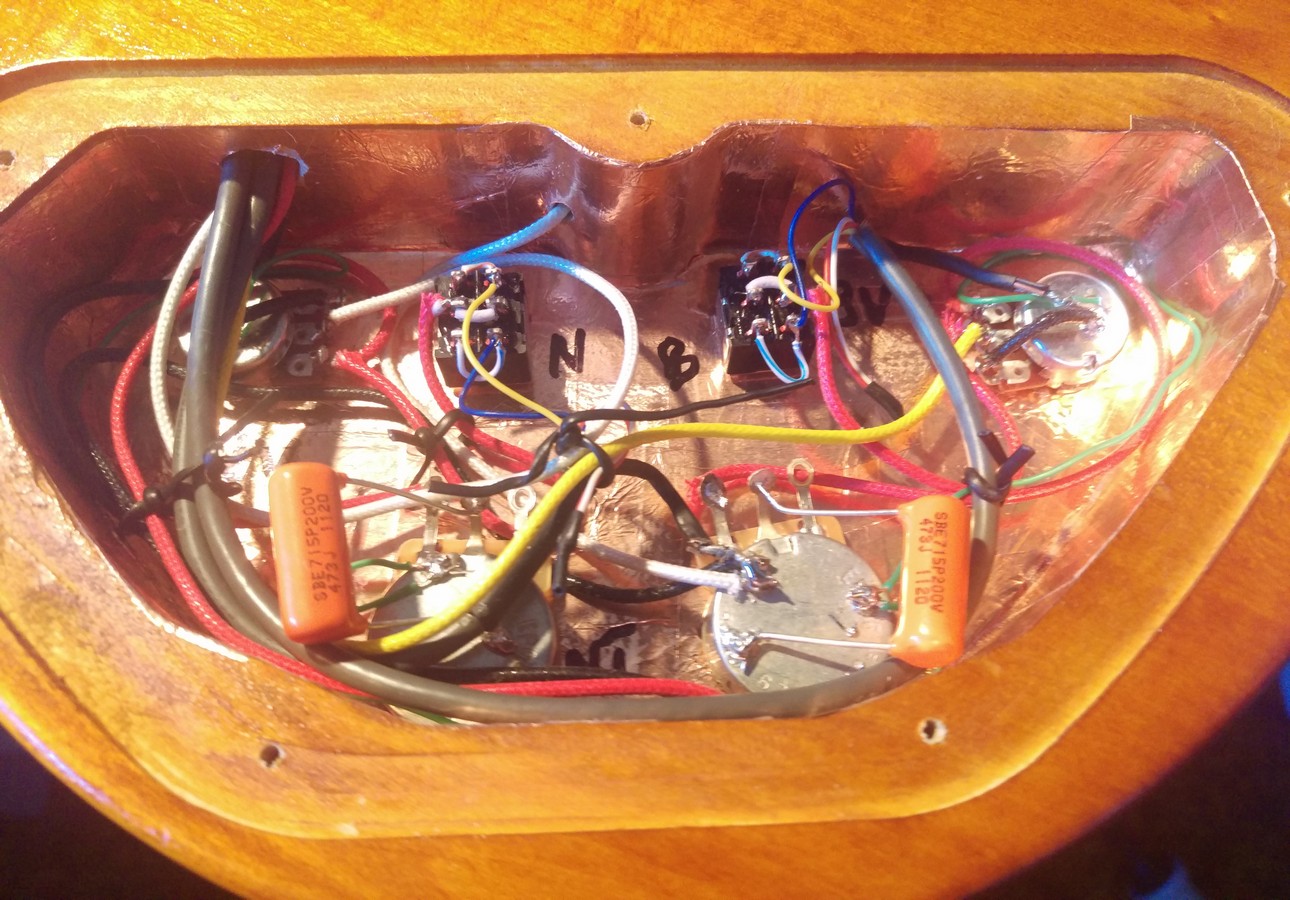

i next finished all the wiring and tested it and it works fine.
Attachment 17169

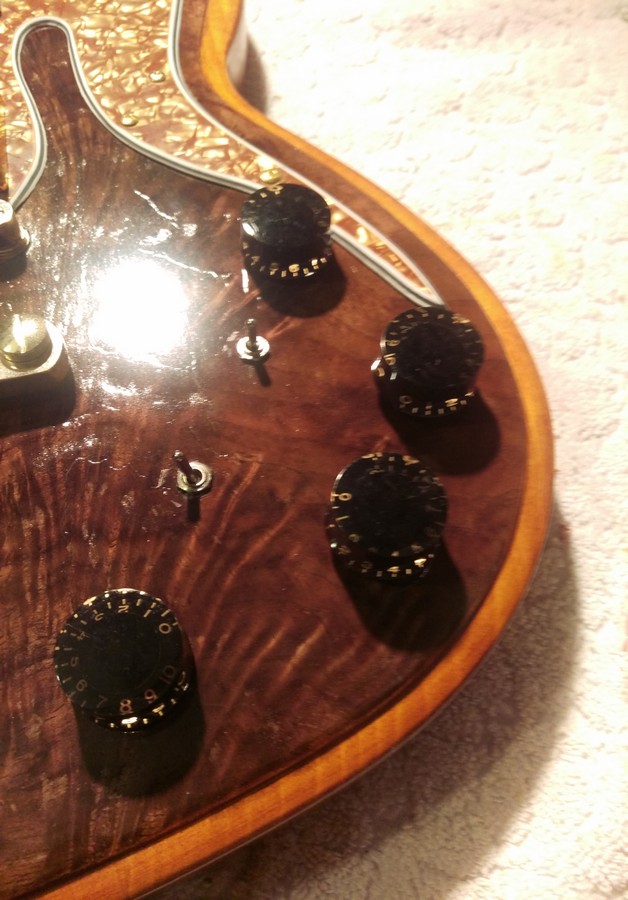

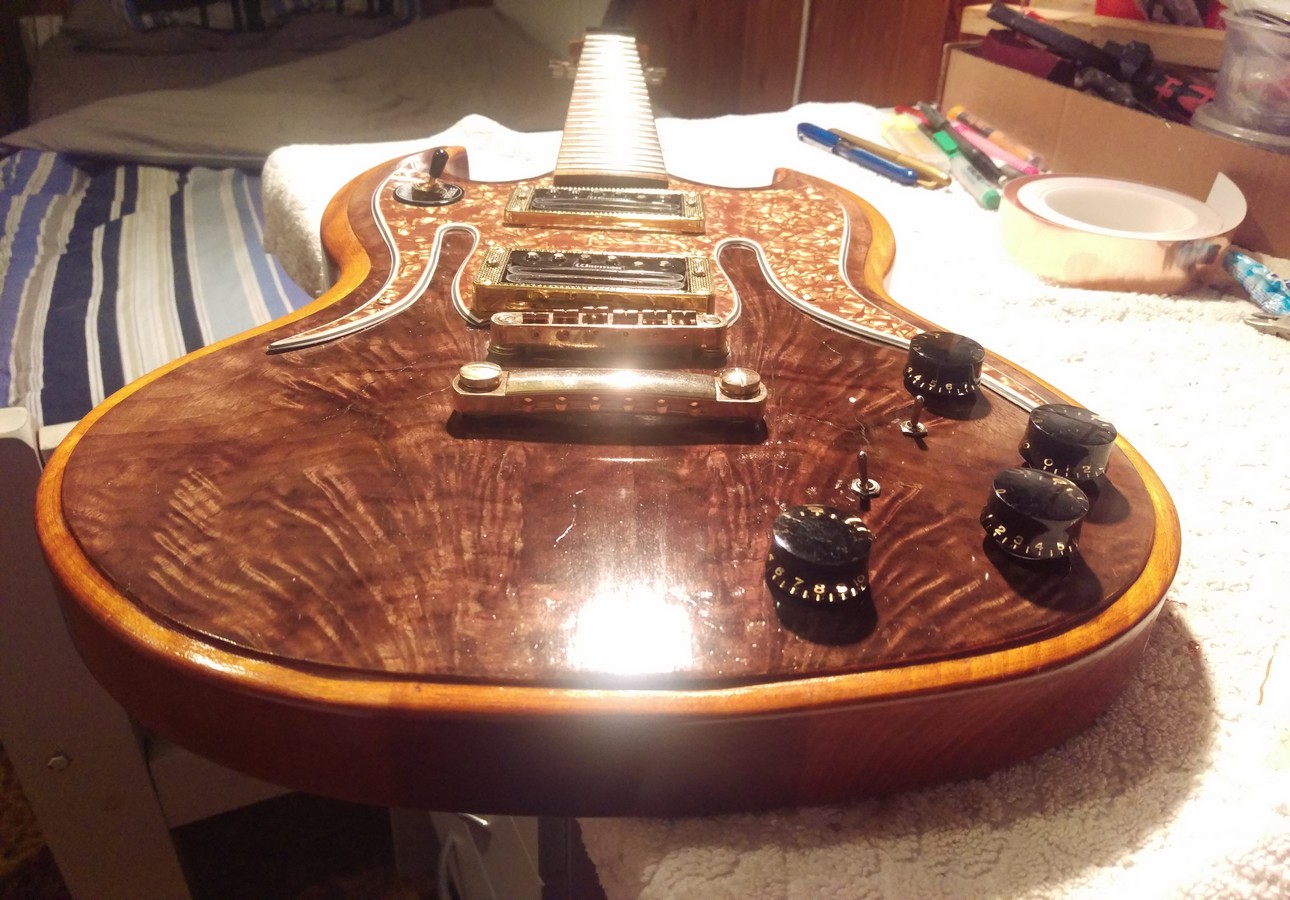

Next i fitted all the knobs and strung it up with some old strings i had to check again for alignment.
Attachment 17170
THATS WHEN I NOTICED........These pics say it all... Back to the drawing board.
Can you pick the mistake.......

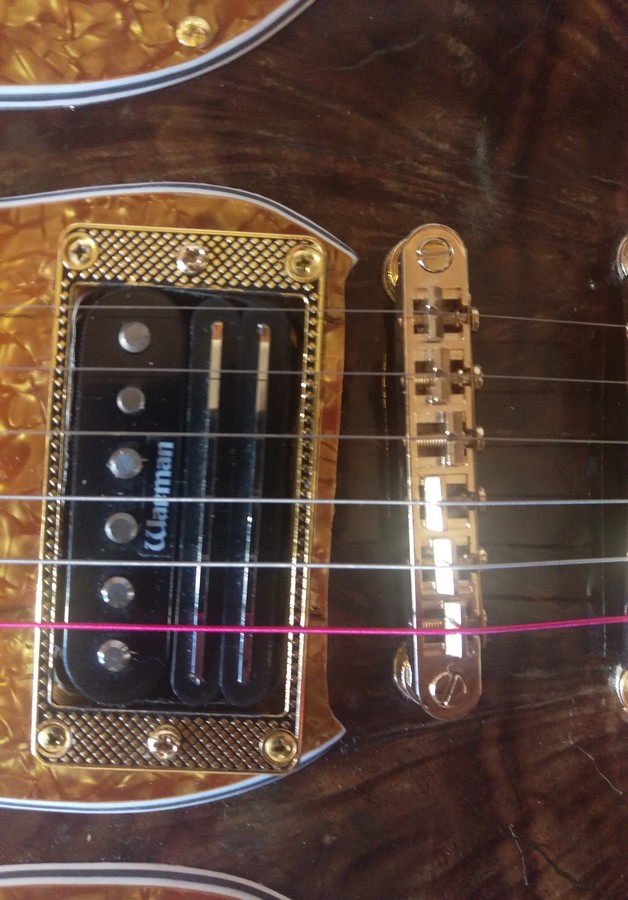

This one..
Attachment 17171
Then maybe this one...
Attachment 17172

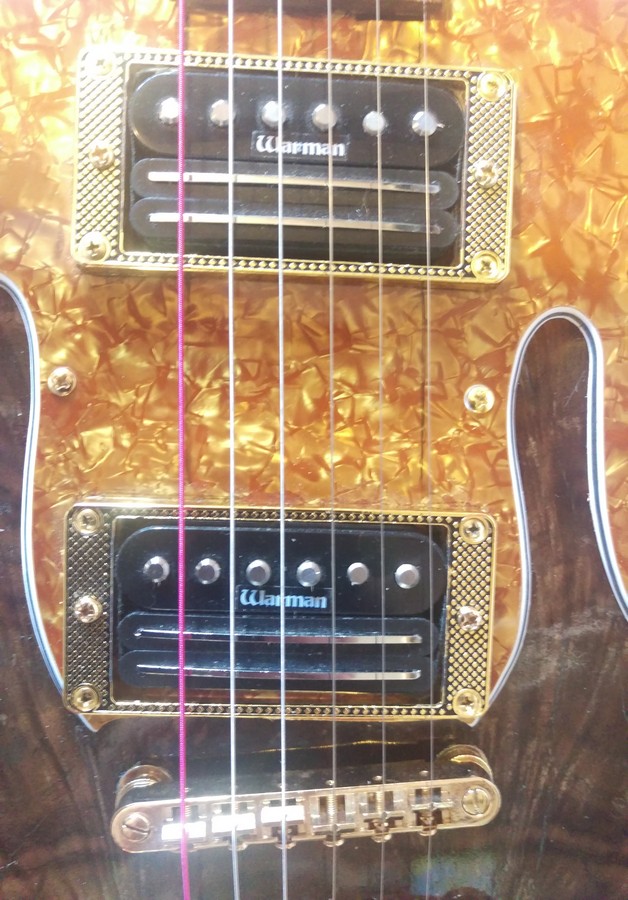

Youll definitely see it on these ones.
Attachment 17173 Attachment 17174
Its not that the pickup holes on the pickguard were cut crooked, they weren't, i just didn't line them up when i cut out the rest of the pickguard. If i slide the pickguard over about 10-15ml then they line up perfectly.
So back online to ebay, and another pickguard is being delivered. You live and learn.
The upside, the pickups sound awesome!!
So this is how the guitar is looking at the moment and how it should look for the pickups to line up properly.
Attachment 17175
Oh I would have said bad words. At least you know its all Pickguard and not routs.
looking awesome Nitro other than the pups not lining up. Looks like the pickguard shape isn't entirely centred and you presumed the middle of the pickguard they would line up.
Oh well as you say lesson learnt.
So the pups sound great with the poles not lined up with the strings, that's a good sign !
