SG-2 by Nitroburner1000

Quote:

---

Originally Posted by Simon Barden

If you haven't already done so, just try all your cavity connecting holes for size before you go too much further. Especially your bridge pup hole to the control cavity has to pass two six-core + ground pickup leads plus three or four (four for a switch ground wire if you aren't using shielded connection wires) wires too/from the selector switch, plus maybe one or two ground wire for the cavity foil grounding connections. Make sure both pup cavities have enough room to run the cables through them without getting in the way of the pickups and causing them to tilt or sit up high.

If you need to get a drill or a Dremel out to create some extra or wider channels, I'd do it now.

Hopefully you won't need to - but better safe than sorry.

---

Already there and done mate, read page 33 i didnt just enlarge the holes i drilled extra ones, look at the pics

Quote:

---

Originally Posted by FrankenWashie

ooo not long now!

---

Yea mate, cant wait, just wiring and setup to go

So just a quick question to all the long time members...... Why is the name mentor under my name? I didnt put it there, i thought the name was just for the really smart forum members who continually help everyone, i still feel like a beginner and dont feel like ive done much to help at all.

It's simply a post count thing. 500 and you become a Mentor.

Quote:

---

Originally Posted by nitroburner1000

So just a quick question to all the long time members...... Why is the name mentor under my name? I didnt put it there, i thought the name was just for the really smart forum members who continually help everyone, i still feel like a beginner and dont feel like ive done much to help at all.

---

Yeah, it's a little unnerving, puts a lot of pressure on the shoulders!!

Quote:

---

Originally Posted by Zandit75

Yeah, it's a little unnerving, puts a lot of pressure on the shoulders!!

---

yea, you bet

Quote:

---

Originally Posted by Simon Barden

It's simply a post count thing. 500 and you become a Mentor.

---

ok bit of a priveledge

A few small updates....

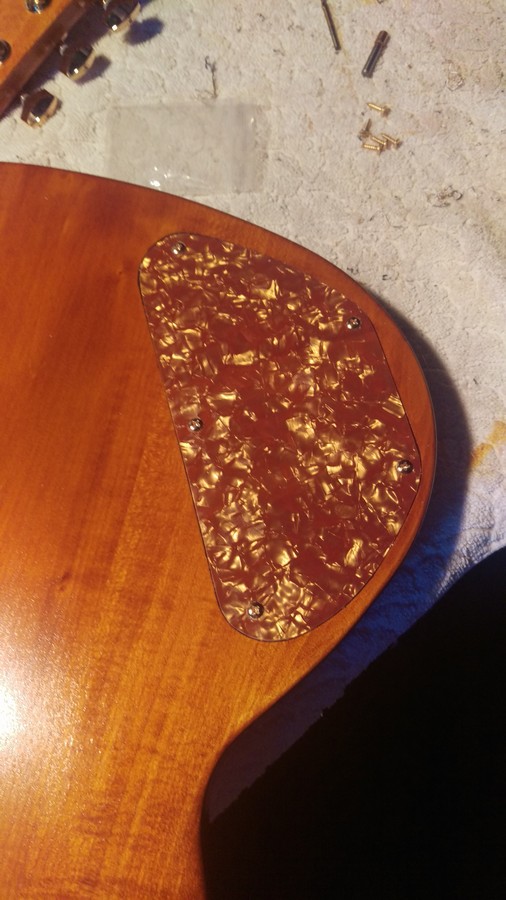

Completed the electrics rear cover plate.

Attachment 16176 Attachment 16177

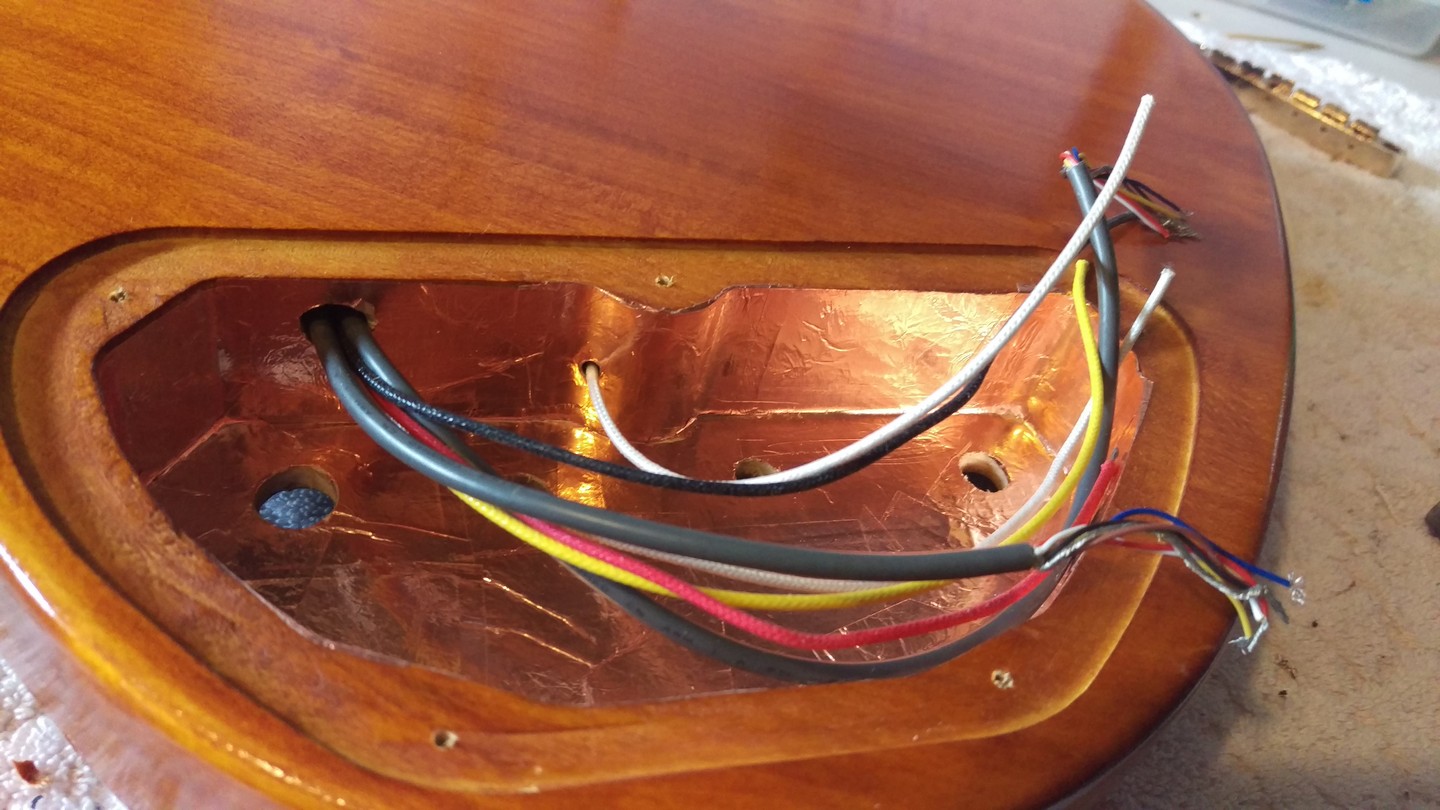

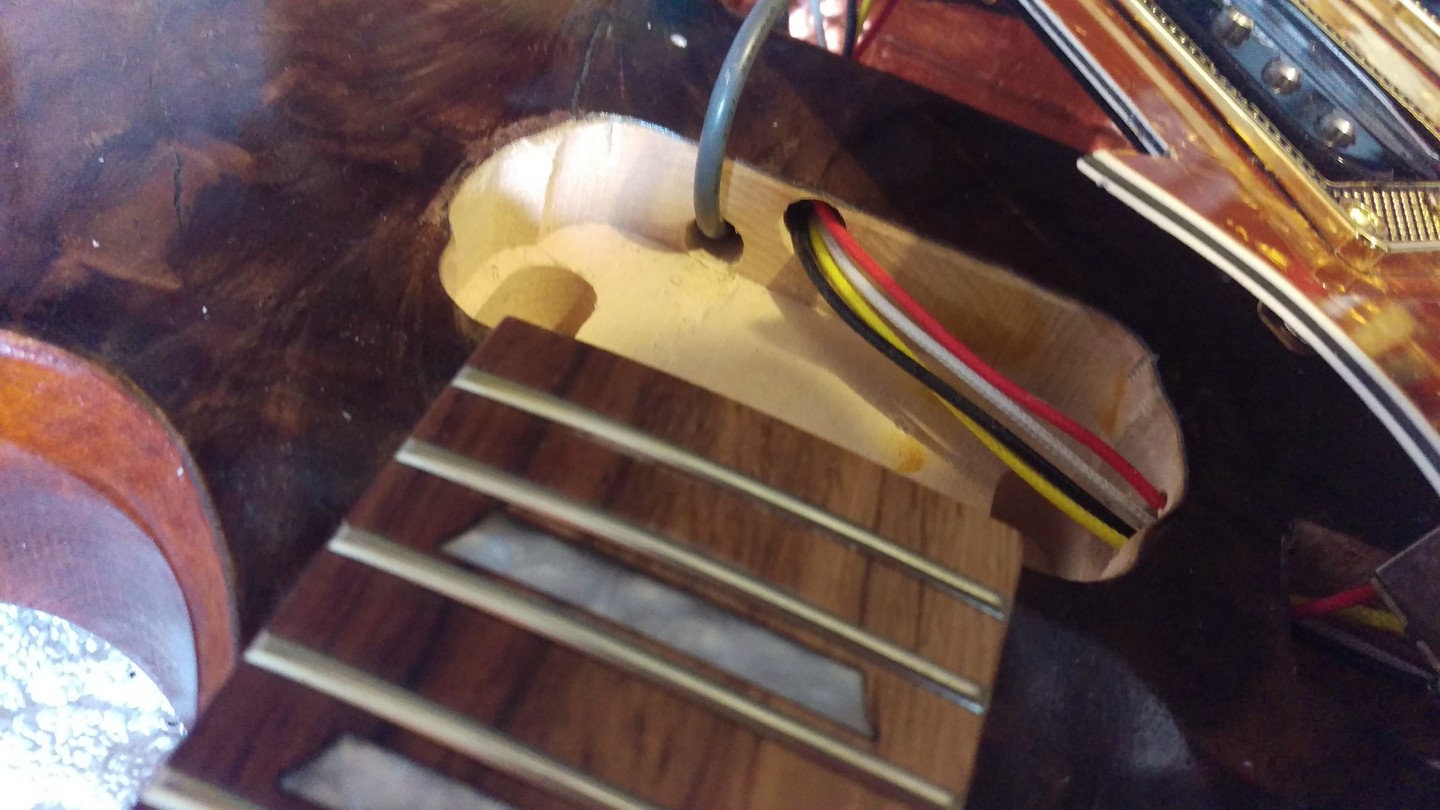

Started the wiring of the 3 way selector switch and fed through the wires to see if the holes i drilled were sufficient.. Bingo...all ok.

Attachment 16178 Attachment 16179 Attachment 16180

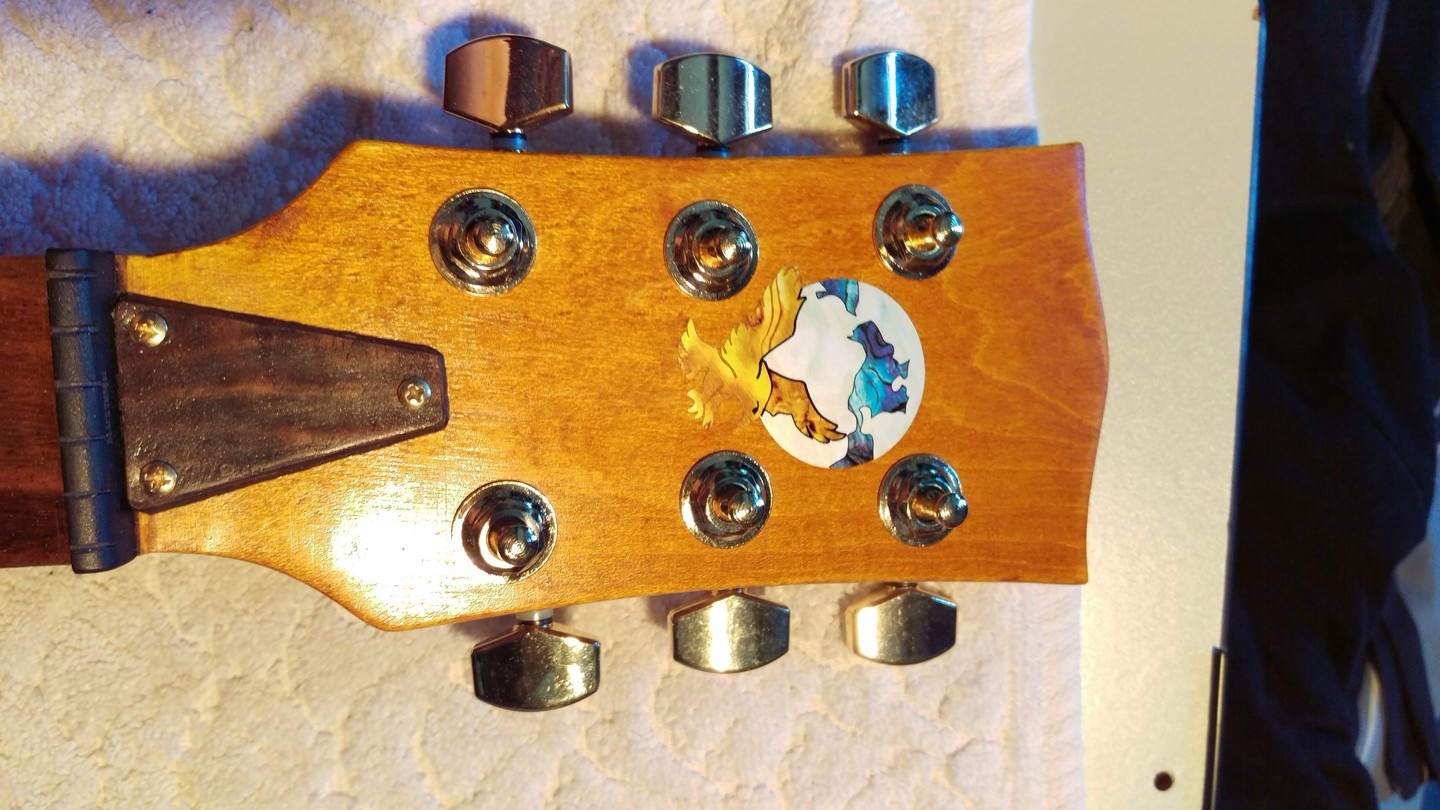

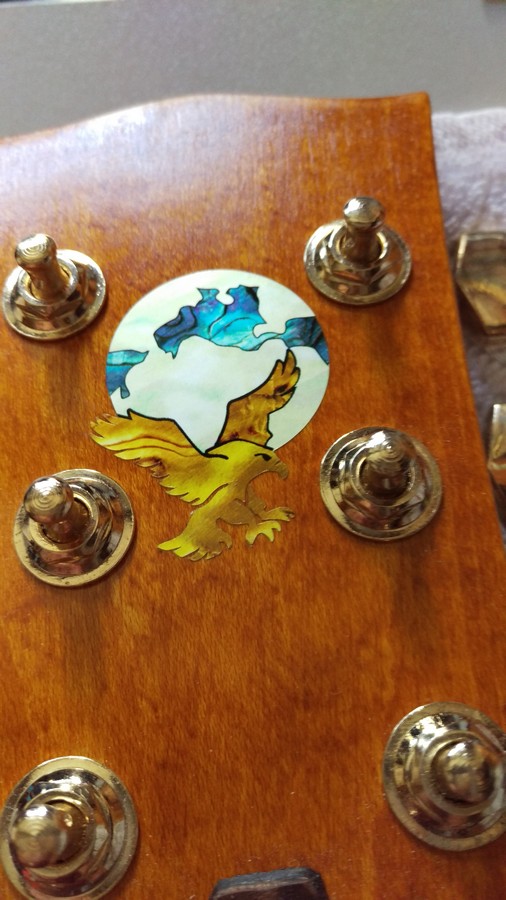

Been waiting for a headstock logo transfer and it arrived today in the post.
Still have to clear coat it. just wanted something simple, might put a small personalized name on it yet, ill see. Its white and gold m.o.p.

Attachment 16181 Attachment 16182

Nice logo.

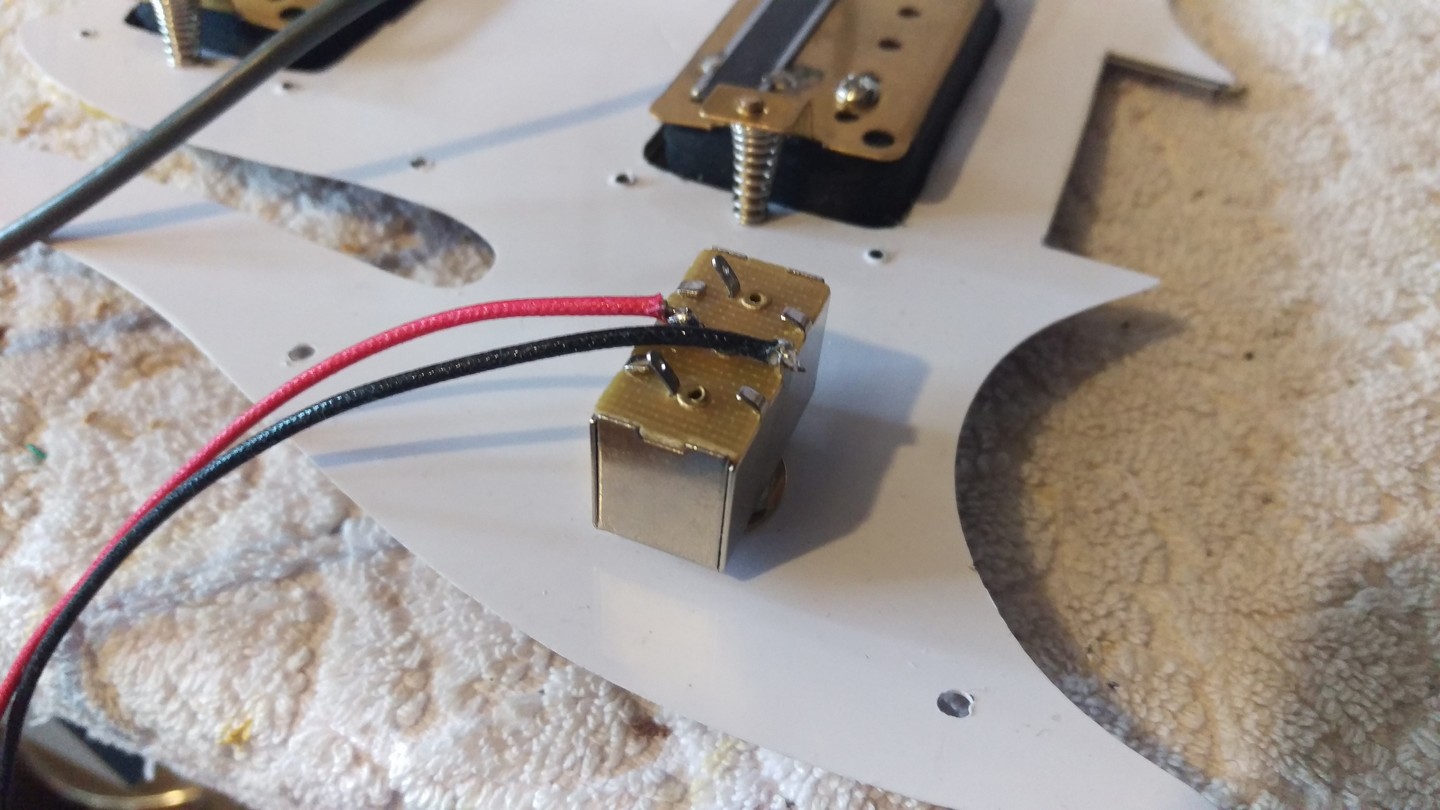

Looking at the neck pup wiring picture, I think you may have some issues with the wires interfering with the pickup leg and height adjustment screw, as they are currently coming out of the selector switch hole right where the leg and screw goes. Have you tried fitting the pickup in with the wiring there?
