2nd - SG-1F mod to a trip hum!

Quote:

---

Originally Posted by wazkelly

If there is room wire it up like a Strat using a 5 way blade style switch.

Sent from my SM-A520F using Tapatalk

---

That was my original idea for the 5 pickup positions. I’m no wiring genius what so ever.. was wondering, would 3x vol/tone push/pull and a master vol work? So I have a tone for each pup and use the master vol, and then if I want all 3 on but want to mould the sound use the volumes for each pup plus master for overall level?! And then also have the switch for the pickup variations when on tone?! Am I crazy? Haha

Quote:

---

Originally Posted by ShazzRandom

That was my original idea for the 5 pickup positions. I’m no wiring genius what so ever.. was wondering, would 3x vol/tone push/pull and a master vol work? So I have a tone for each pup and use the master vol, and then if I want all 3 on but want to mould the sound use the volumes for each pup plus master for overall level?! And then also have the switch for the pickup variations when on tone?! Am I crazy? Haha

---

Sounds feasible, a bit like explorer or V setup with an additional volume control.

Sent from my SM-A520F using Tapatalk

your SG and my Vee might be related by colour ;P What pick ups are you going to use?

Quote:

---

Originally Posted by wazkelly

Sounds feasible, a bit like explorer or V setup with an additional volume control.

Sent from my SM-A520F using Tapatalk

---

Do you know where I can get a schematic for this setup?

Quote:

---

Originally Posted by Dedman

your SG and my Vee might be related by colour ;P What pick ups are you going to use?

---

Quite possibly Dedman! Haha
I’m just gunna use the stockies for now. Wouldn’t mind some EMG H4’s or something some day... gotta save for them haha

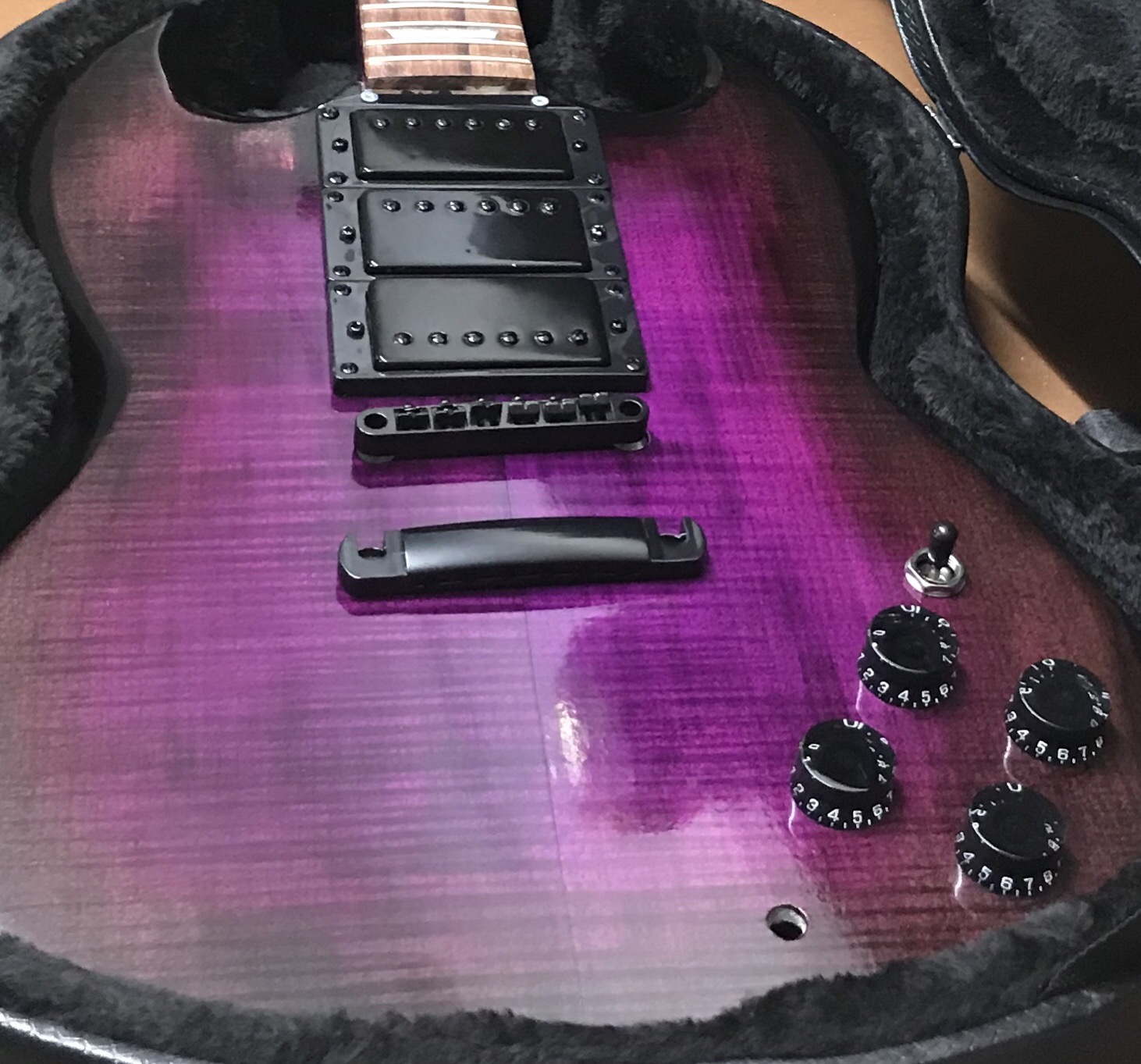

So I’ve fixed the pickups in place. Everything else is just seated, she’s going to look like such a beast when she’s done! P.s the Husband got me a nice hard case for her, for my birthday! Winning!
Attachment 23255 Attachment 23256

That looks pretty awesome! Well done!

What about the fretboard, are you going to stain it darker?

Quote:

---

Originally Posted by Swanny

That looks pretty awesome! Well done!

What about the fretboard, are you going to stain it darker?

---

Cheers swanny! I’ve done a coat of lemon oil to treat the timber, didn’t come up quite as dark as I was hoping.. but now it’s piled not sure there’s much I can do

Quote:

---

Originally Posted by ShazzRandom

Cheers swanny! I’ve done a coat of lemon oil to treat the timber, didn’t come up quite as dark as I was hoping.. but now it’s piled not sure there’s much I can do

---

Most stains will penetrate almost anything! If not, just give it a rub with 400 sandpaper to loosen up the fibres.

I think the best option for a 3 humbucker layout is to add a 2nd 3-way toggle which allows you to switch the middle pup in by itself or with any combo of the others. But, that would require drilling a new hole for the extra toggle switch and risk your finish.

To keep just the current controls, you're probably better off having a volume for each pickup and a master tone. The volume for the middle pup can either just 'blend' it with the other pups or be a push/pull so you can switch it in/out of the circuit.
