DMS-1 The King's 4th Pitbull build

Hi Oli.
Having already done one, I'm hoping for an easier ride this time.

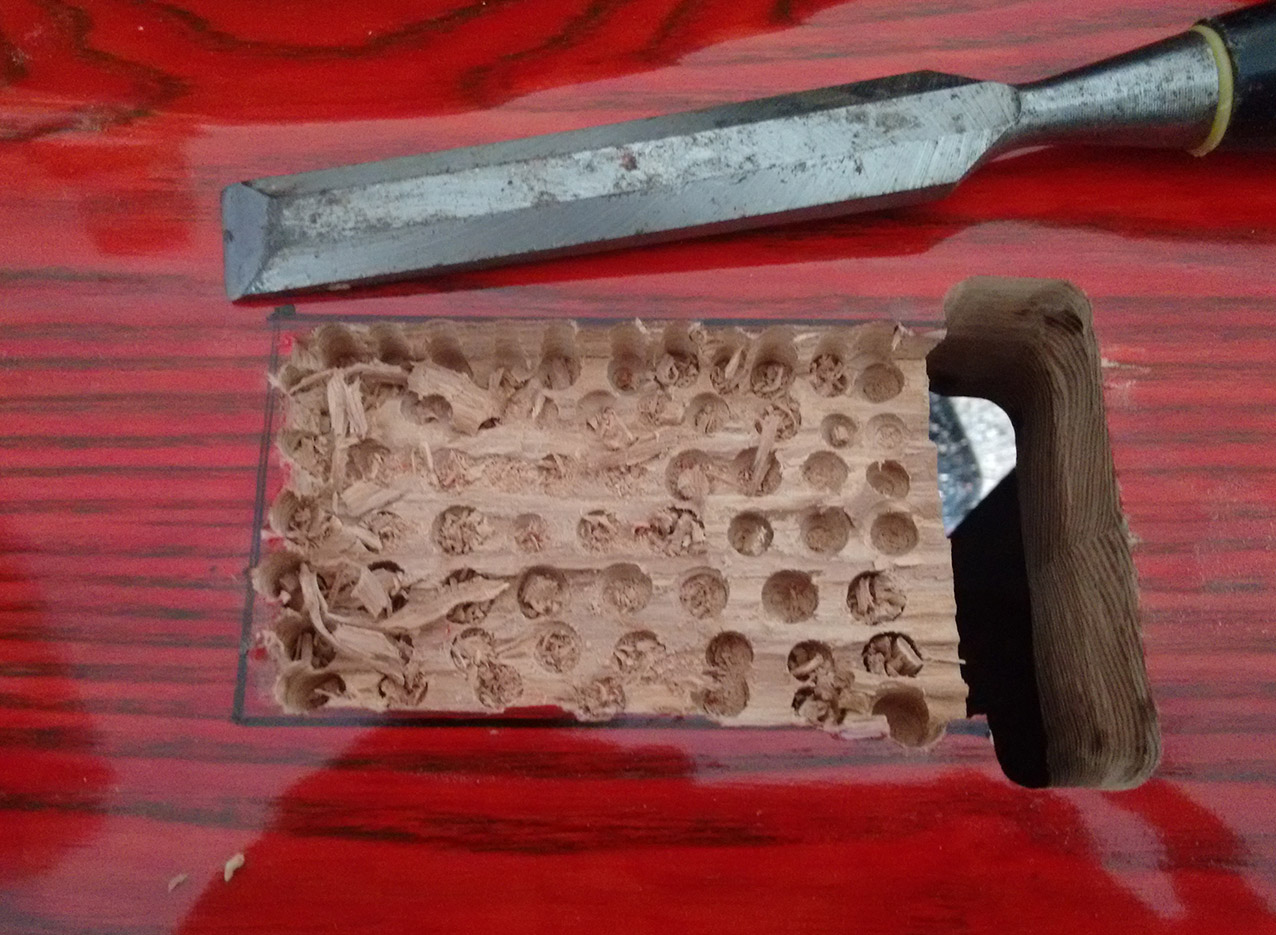

Not having a router means making the cavity a bit of a saga.

Attachment 38256

Attachment 38257

Next comes the spring cavity.

cheers, Mark

Cool looking bridge.

Nice job Mark

Thanks Sonic and Robin.
Not having a router certainly makes a difference.
Attachment 38266
Attachment 38267
Attachment 38268
The red dye certainly looks different without the 40-odd coats of Tru-Oil
Attachment 38269

cheers, Mark.

Finally got it back in one piece.

Now comes a prolonged 'settling in' period.
Put the old strings back on in case some of them snap during the 'wearing in'.

Attachment 38270

cheers, Mark.

Nice work.

Trem spring cover plate or no cover plate?

Quote:

---

Originally Posted by Simon Barden

Nice work.

Trem spring cover plate or no cover plate?

---

Hi Simon. I put a cover on the Strat Trem-King but ended up just leaving it off.

Probably leave this one off the time being...Hendrix didn't need one (on at least one video).

cheers, Mark.

Yes, but then again, his Strat did burst into flames. ;)

Judging by your post times, a lot happened between 3:51pm and 3:54pm!

Complete assembly in 3 minutes!

FWIW, if you're going to do more of these mods/conversions, you can pick up a fixed-based router (aka: laminate trimmer; edge router) pretty cheap. I think I paid $65 at the BGS for my Ozito. I only use it a couple of times a year, but it's handy to have and I didn't want to spend much for just that reason.

IIRC this build originally was undertaken specifically because it was a hard tail :o

Hi McCreed.
Sometimes I take a break and post some shots, whereas what happened here was various steps that I forgot to photograph.

Thanks for the tip regarding a cheaper rout alternative...I'll definitely check it out.

My first Pitbull guitar was a hardtail strat that I intended to be a Tele/Strat hybrid.

cheers, Mark.
