Thanks for that inside info, really looking forward to getting into it when I get back.Quote:
Originally Posted by Sonic Mountain
Sent from my iPhone using Tapatalk
Printable View
Thanks for that inside info, really looking forward to getting into it when I get back.Quote:
Originally Posted by Sonic Mountain
Sent from my iPhone using Tapatalk
Cheers, Sonic.Quote:
Originally Posted by Sonic Mountain
*Reality Check*
Decided that as the buzz-word for this project was 'work-horse', a one-trick-pony approach was not ideal.
So I decided to include the neck pick-up.
Attachment 30557
Now awaiting the upgraded 3-way switch and jack plate.
cheers, Mark.
[edit]
Doh!! plan was to 'top-load' the first stringing up to check for intonation.
Unfortunately discover that the original 'Fender' bridge is 'string through' only.
Attachment 30558
Looks like you have screwed the bridge down already. This is what I was thinking of doing but have read not recommended because of wet sanding. Although I’ve also read to put tooth picks in the screwed holes will work.
If I leave the screwing until after i’ve painted. Marking the guitar to find the centre and getting it in line with the neck seems pointless. Am I just over thinking this?
Sent from my iPhone using Tapatalk
You can do it either way, you just have to be careful.
If you do it after paint you can just use some painters tape to protect the surface while you mark and drill your holes.
Less holes during wet sanding means less chance of water getting in a swelling the wood.
Like most things with guitars there is more than one approach, the best way is to just try one, either way you'll learn something.
I really appreciate you answering my questions, you must get the same questions over and over.
Thanks again [emoji106]
Sent from my iPhone using Tapatalk
What will happen if the bridge is in the wrong place on your finely polished masterpiece?Quote:
Originally Posted by I’ll give it a go
It won't apply to me this time as I'm not doing a painted finish.Quote:
Originally Posted by I’ll give it a go
The objective from the start was to get the guitar assembled and playing before any finishing takes place.
If you are concerned about water getting into the holes you can plug 'em up with balled up glad-wrap or something.
I was hoping to get the intonation definitely sorted before drilling the string-through holes but now I'm going to bite the bullet and rely on my measurements have got me safely in the ball-park.
cheers, Mark.
Blu tak is also worth its weight in gold to temporarily plug holes [emoji3]
Doh! Didn't see that sonic had already replied.
Anyway. Following this 'drill-a-straight-hole-through-wood' tutorial https://www.youtube.com/watch?v=5SZA03DVITA
Here's my straight hole jig drying.
Attachment 30561
cheers, Mark.
Thanks Mark and Bakersdozen, top tips.
Sent from my iPhone using Tapatalk
No worries.Quote:
Originally Posted by I’ll give it a go

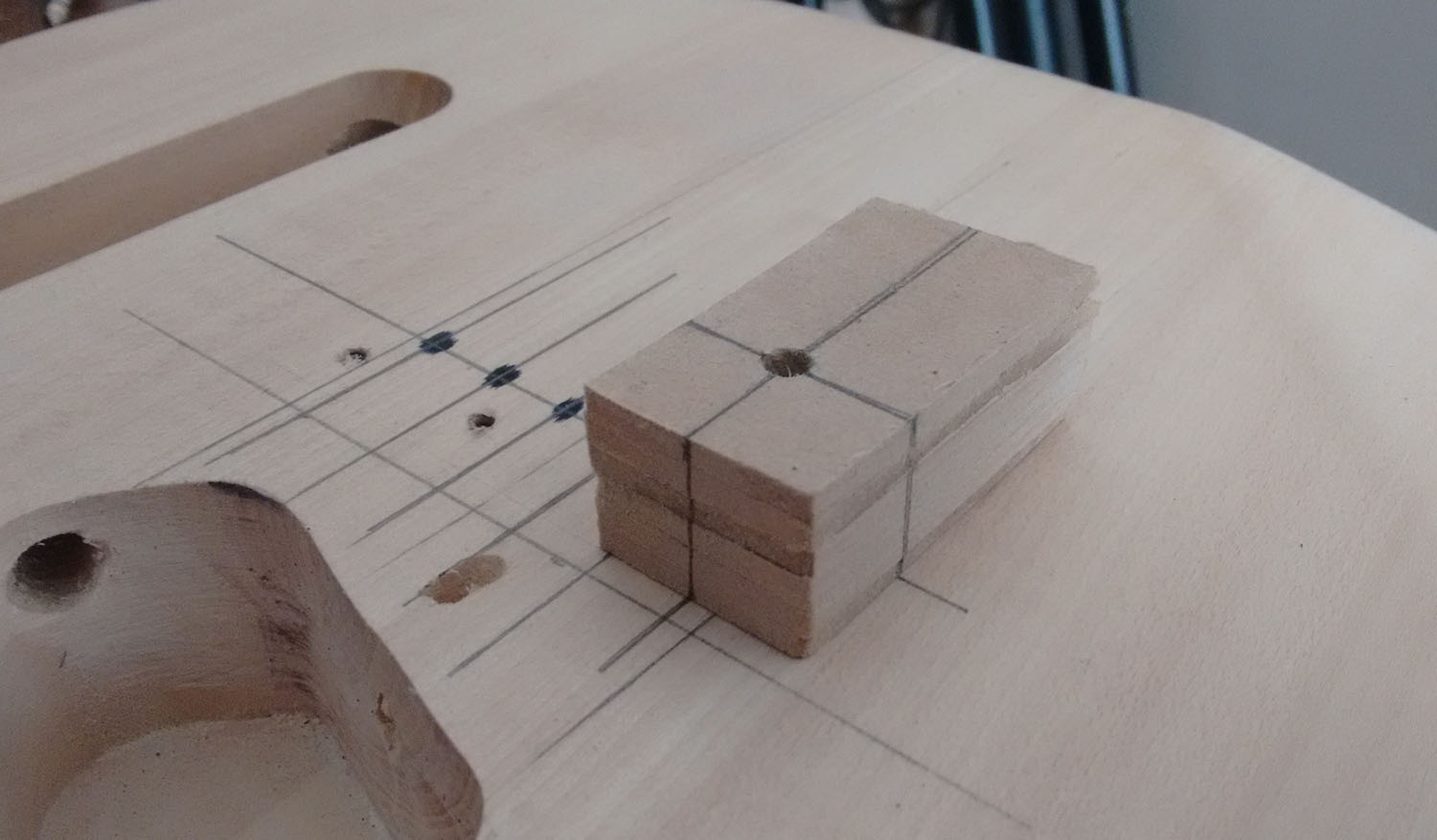

Here we go...straighten the edges and mark it out.
Attachment 30562
Fingers crossed...
Attachment 30563
First 2 edge holes I drilled right through.
Marked out from those on the back where the other 4 should go...
Then drilled them half-way from each side (back and front of guitar).
Attachment 30564
Attachment 30565

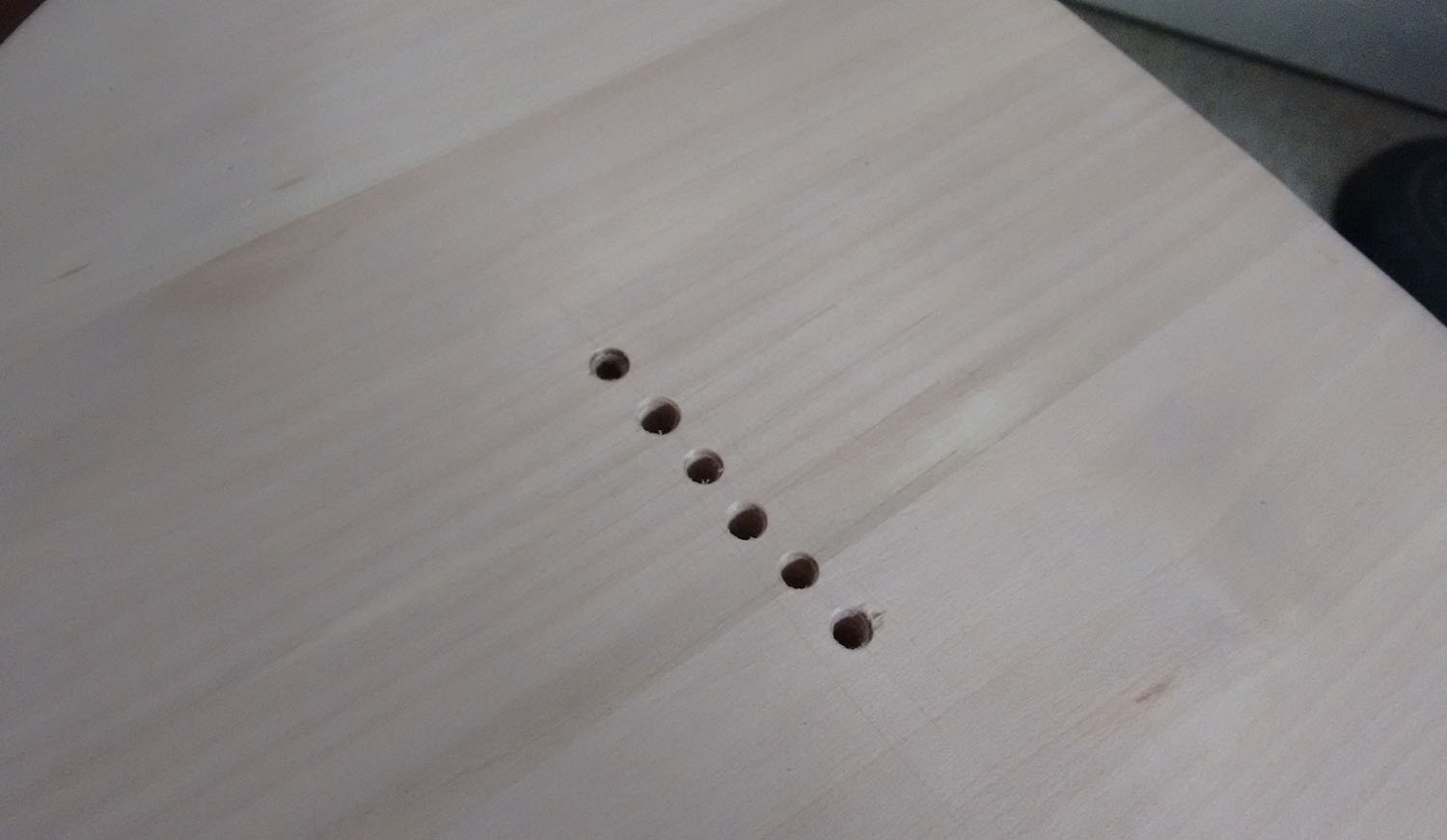

After the clean up, not too bad for a first go.
Attachment 30566 front
Cheers, Mark.
Only 5 shots per post.
Attachment 30567 back.
When I got the string-through for my first build (STA1-H).
I received 2 of these, so the second one will go on this build.
Attachment 30568
cheers, Mark.
Your on a role Mark, that’s looking pretty good mate.
Sent from my iPhone using Tapatalk
Thanks. I hope my exploits are a bit of a help when you tackle you're own project.Quote:
Originally Posted by I’ll give it a go
One more shot
Attachment 30569
cheers, Mark.
They certainly are mate. [emoji106]Quote:
Originally Posted by king casey
Sent from my iPhone using Tapatalk

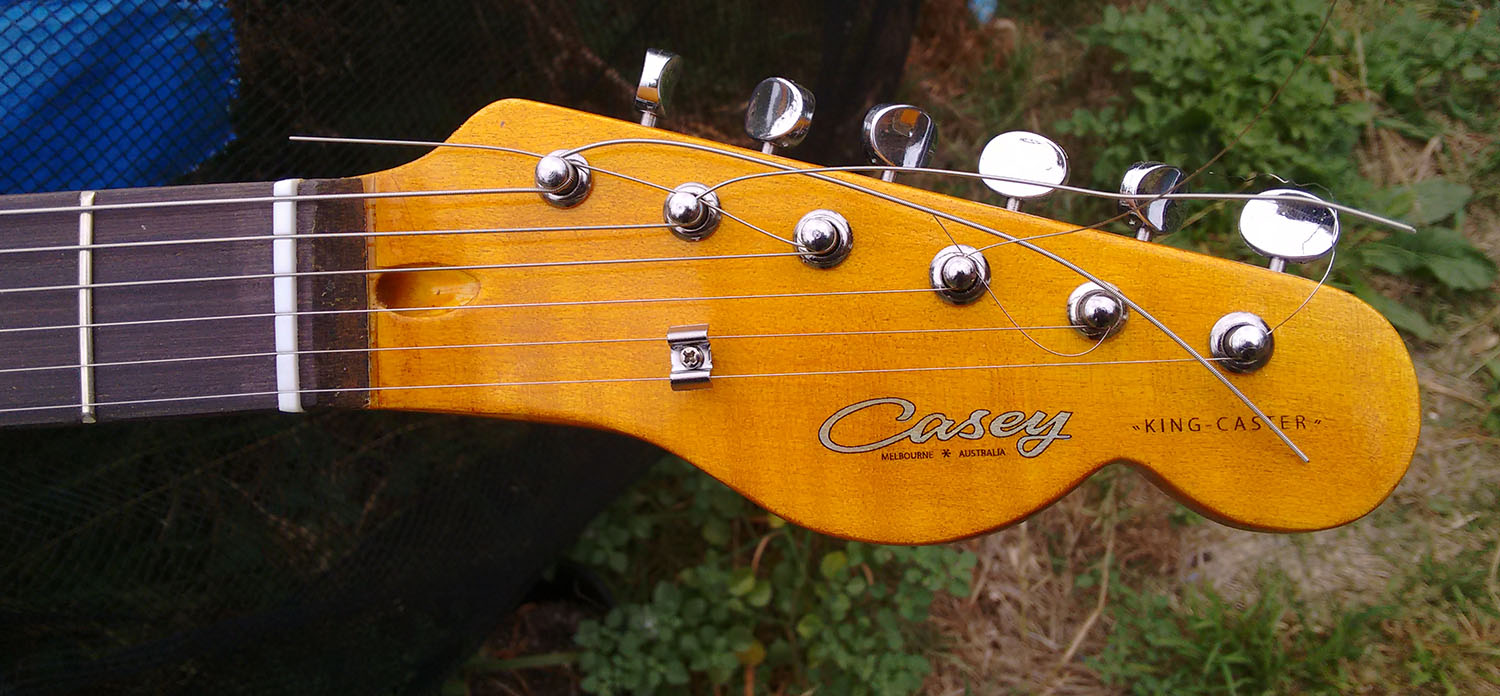

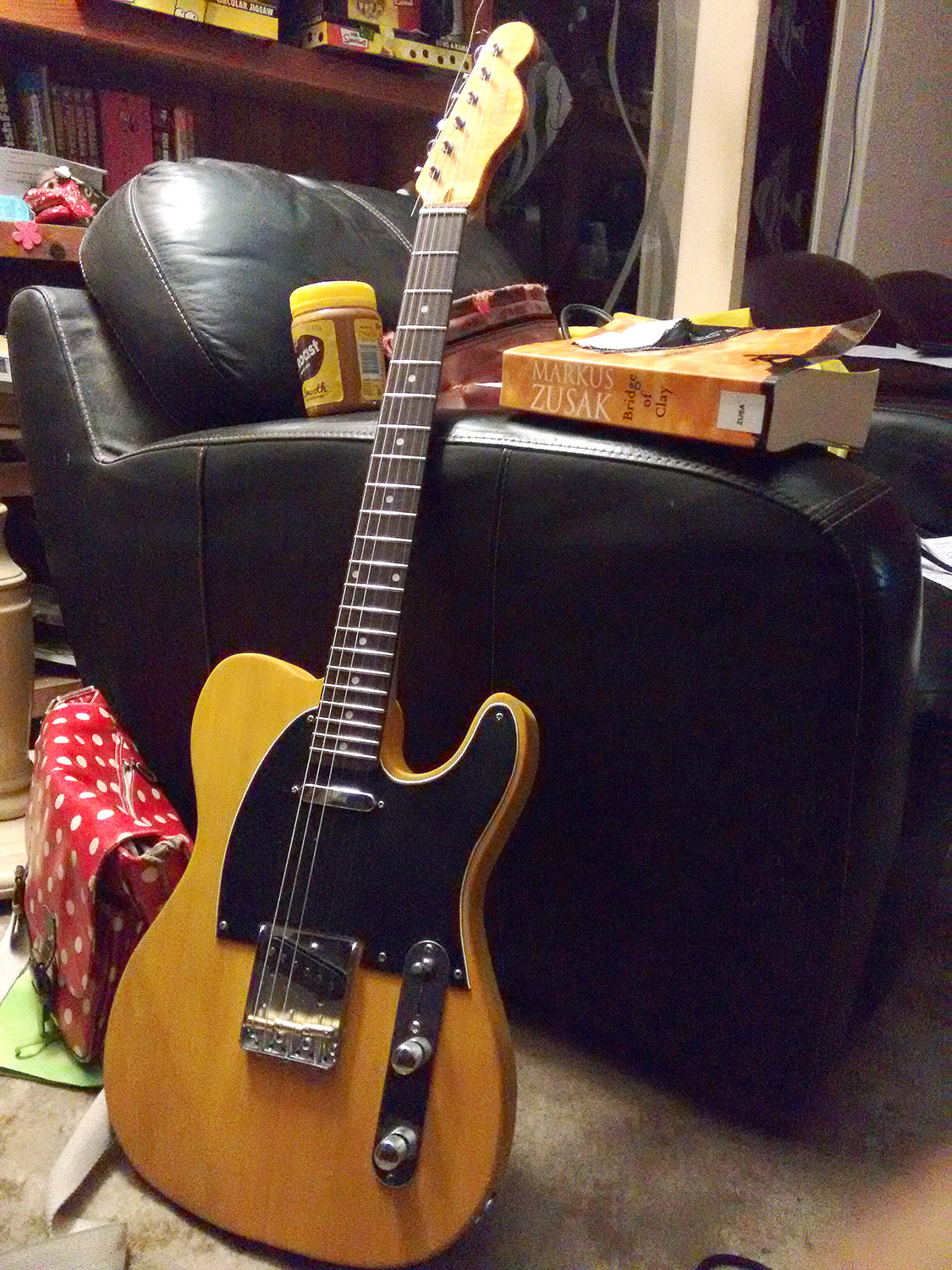

It's got the strings on. No electrics as yet.
Switch and jack never showed up (despite the promise) so I'll need to solder up the kit one if I don't want to wait until next week.
Attachment 30571
cheers, Mark
That’s looking really good now, such a downer when stuff doesn’t turn up on time.
Are you watching your items to be delivered on a tracker?
Sent from my iPhone using Tapatalk
I get notifications that 'your parcel is coming today' but not on a lot of small stuff.Quote:
Originally Posted by I’ll give it a go
On a positive note though, I wired up the electrics and find that intonation wise it's all good.
Phew! Re-locating the bridge after drilling the string-through holes would have been a nightmare.
Neck required further fret dressing and I filed the bottom of the nut down.
Should be ready to tackle the finishing stage.
cheers, Mark.
Great to know you can progress to finishing knowing that your fit is solid and I surprises to follow [emoji3]
It sure it Bakersdozen.Quote:
Originally Posted by Bakersdozen

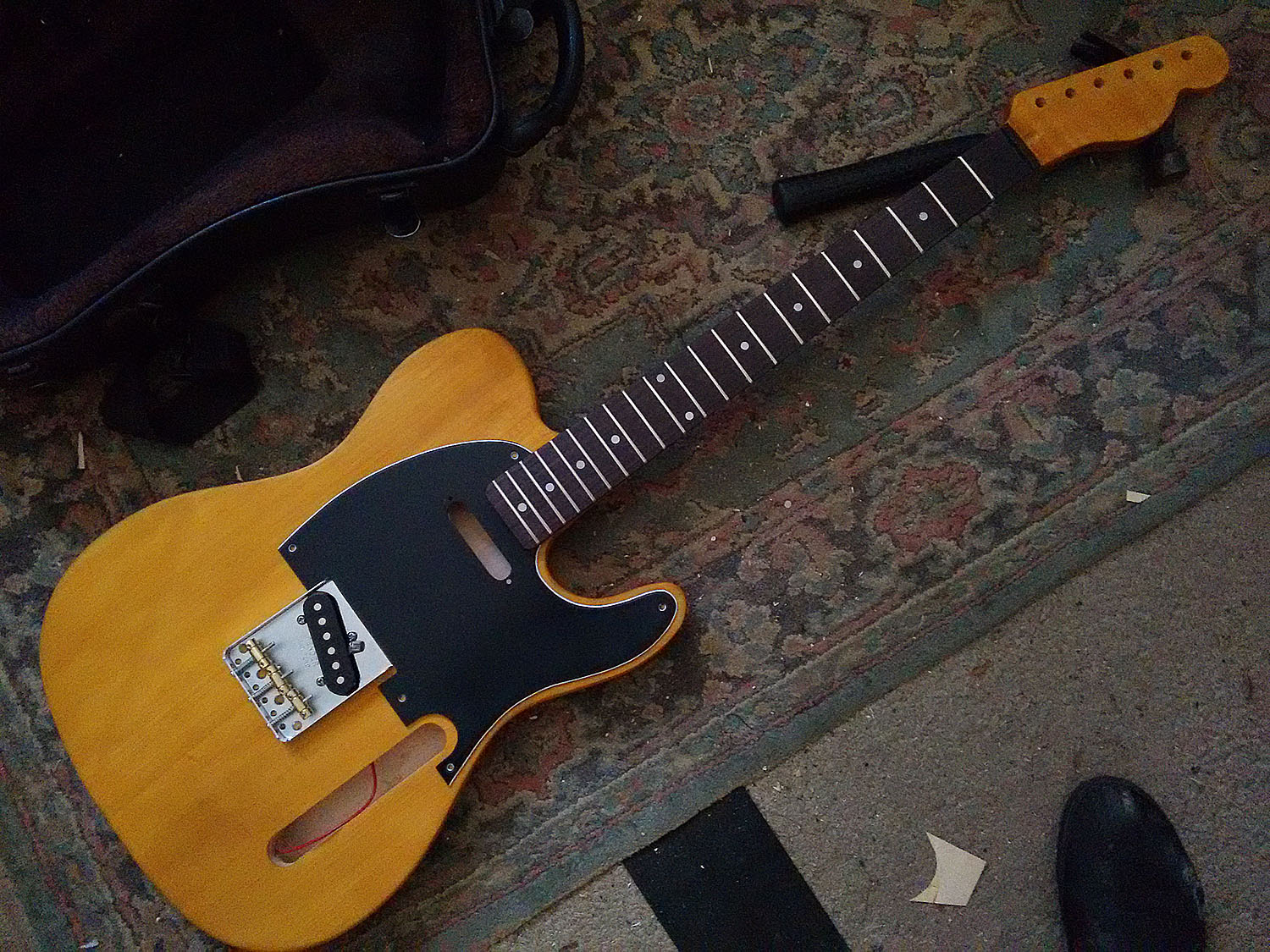

There aint gonna be much to the finishing of this guitar, but knowing that it's already a decent player before re-assembly is a bonus.
Attachment 30579
Then I can get some vaccuuming done.
cheers, Mark.
That’s looking pretty schmick now Mark. I also didn’t see any bits on the floor, too busy looking at that awesome guitar your building.
Sent from my iPhone using Tapatalk
You got the first coat on already?
Hi. I have a cupboard full of Feast & Watson Golden Teak and it's on everything!Quote:
Originally Posted by I’ll give it a go
Only kidding. I'll probably leave it at the one coat.
The neck will get the usual treatment.
Golden Teak and SCA clear gloss acrylic.
The body I'm gonna leave as is to pick up whatever battle scars occur.
I've de-glossed the scratch-plate to fit the image.
Tried for a 'fresh from the showroom' finish on my JM-1 and despite having the patience of a saint, it just didn't pay off.
Once you start playing them, the pristine finish quickly starts to pick up knocks and scratches.
Therefore this time it's a rough and ready player's guitar off the line.
cheers, Mark.
O.K. Here's another gormless foray into the unknown

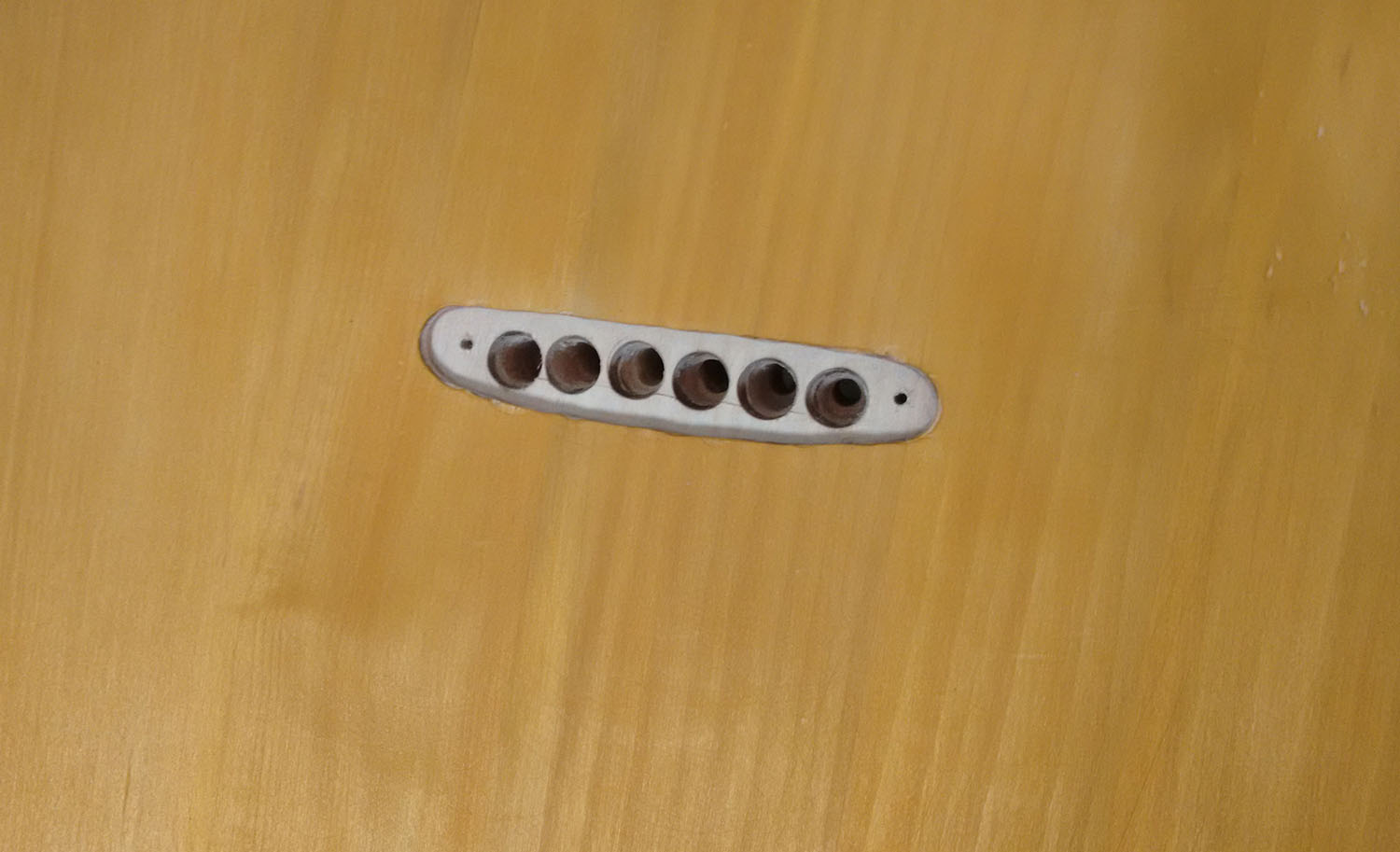

Let's have a go at counter-sinking the string-through adapter.
Attachment 30584
Attachment 30585
Doh!! Fail!!
cheers, Mark.
Oh well nothing ventured nothing gained.Quote:
Originally Posted by king casey
Sent from my iPhone using Tapatalk
One thing I have noticed is that you do not have any screw holes for your neck pick up. I think you said you had changed your scratch plate. On some other builds I’ve noticed screws on their pick guards. On the pit bull videos they have screw holes but the pick up is screwed under the pick guard and attached to the guitar. I think it looks a little untidy having holes where the pick up is, would I be able to attach my pick up to the pick up guard if I wanted? All my electrics will be from the stock build.
On that shot I hadn't yet drilled the pickup holes, however I since have.
The Tele Squier that I started out with had no pickup holes and the pickup was mounted to the body with springs and foam under it.
Having it set this way means you have to adjust it with the pickguard off the guitar.
So ugly though it may be, it's more convenient to have the screws on the outside.
cheers, Mark.
Easter holiday is over...but alas not for the postie.

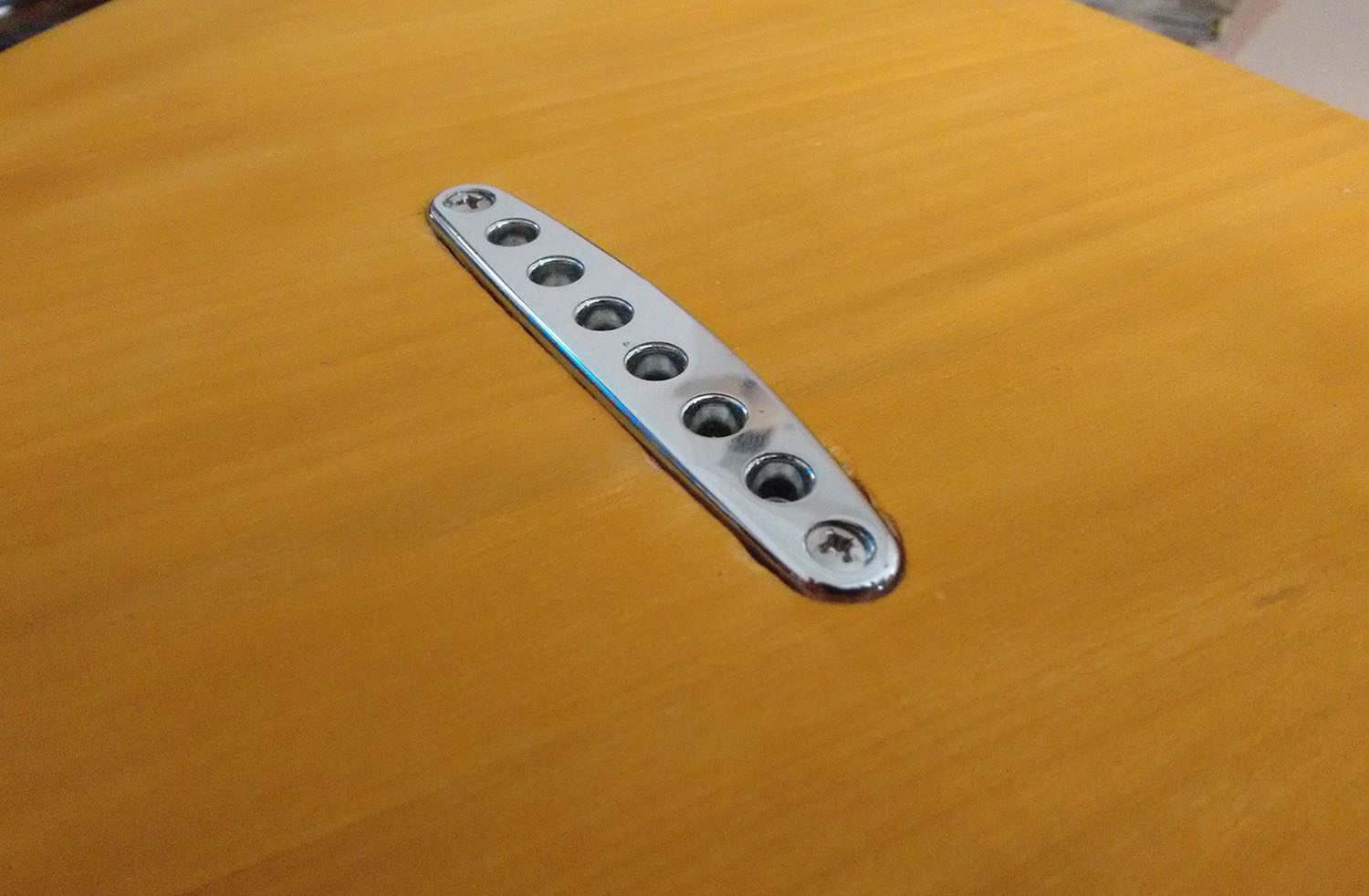

Closing in on the finish...
Attachment 30920
Attachment 30921
cheers, Mark.
Looks king tight mate! Great work on the flamey flame HS veneer
Cheers Bakersdozen. I'm just happy the holes are 'reasonably' straight first time (this time).Quote:
Originally Posted by Bakersdozen
Just when you get the hang of something, it's time to stop.
[edit]...and with that build 3 has caught up to build 2.
Attachment 30922
cheers, Mark.
That’s looking tidy mate, good work. Love it.
Sent from my iPhone using Tapatalk
Cheers.Quote:
Originally Posted by I’ll give it a go

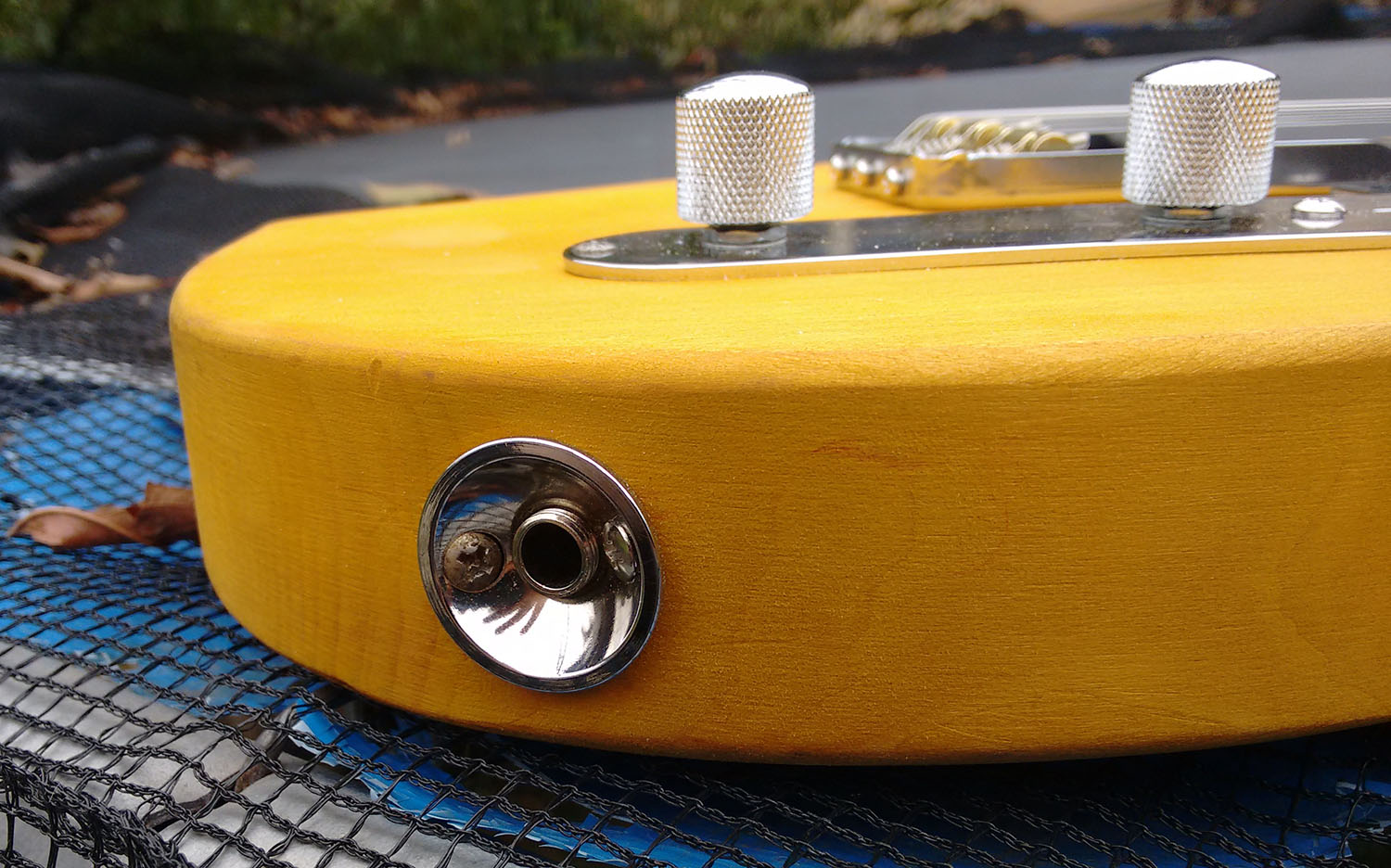

The jack and switch finally showed up late this afternoon.
So I've now almost completed it.
Put the Chinese strings on and broke the high 'E' before reaching pitch.
The 'G' string seems a bit quieter than the others so I'm guessing it really needs some decent strings.
I'll get it fine-tuned tomorrow.
Attachment 30924
cheers, Mark.
Looking very tasteful. Well done!
Thanks DarkMark.Quote:
Originally Posted by DarkMark

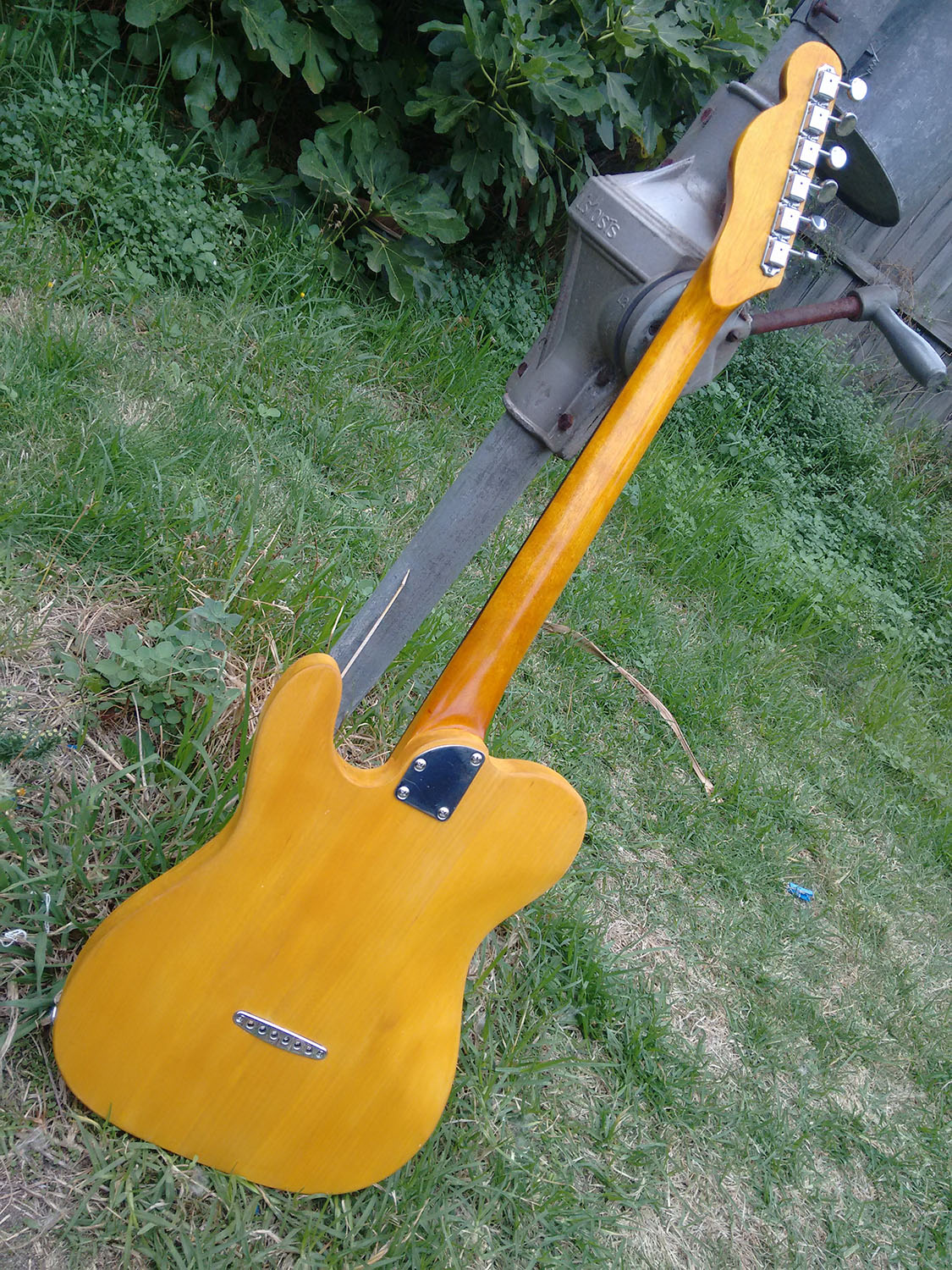

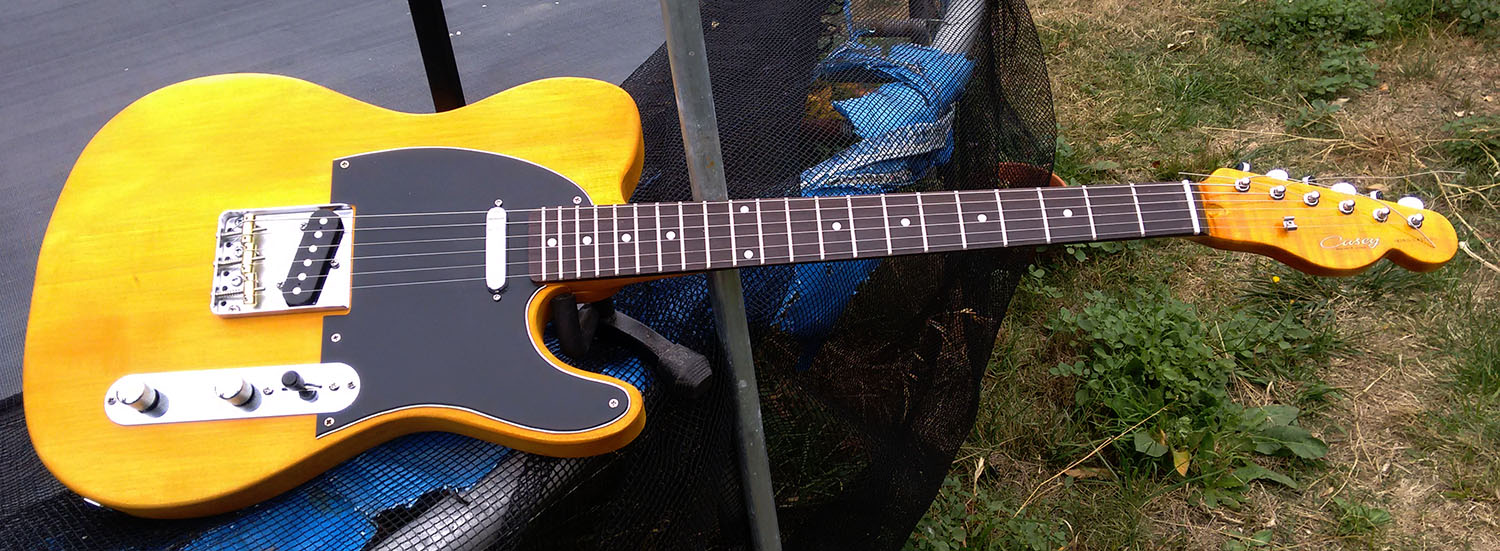

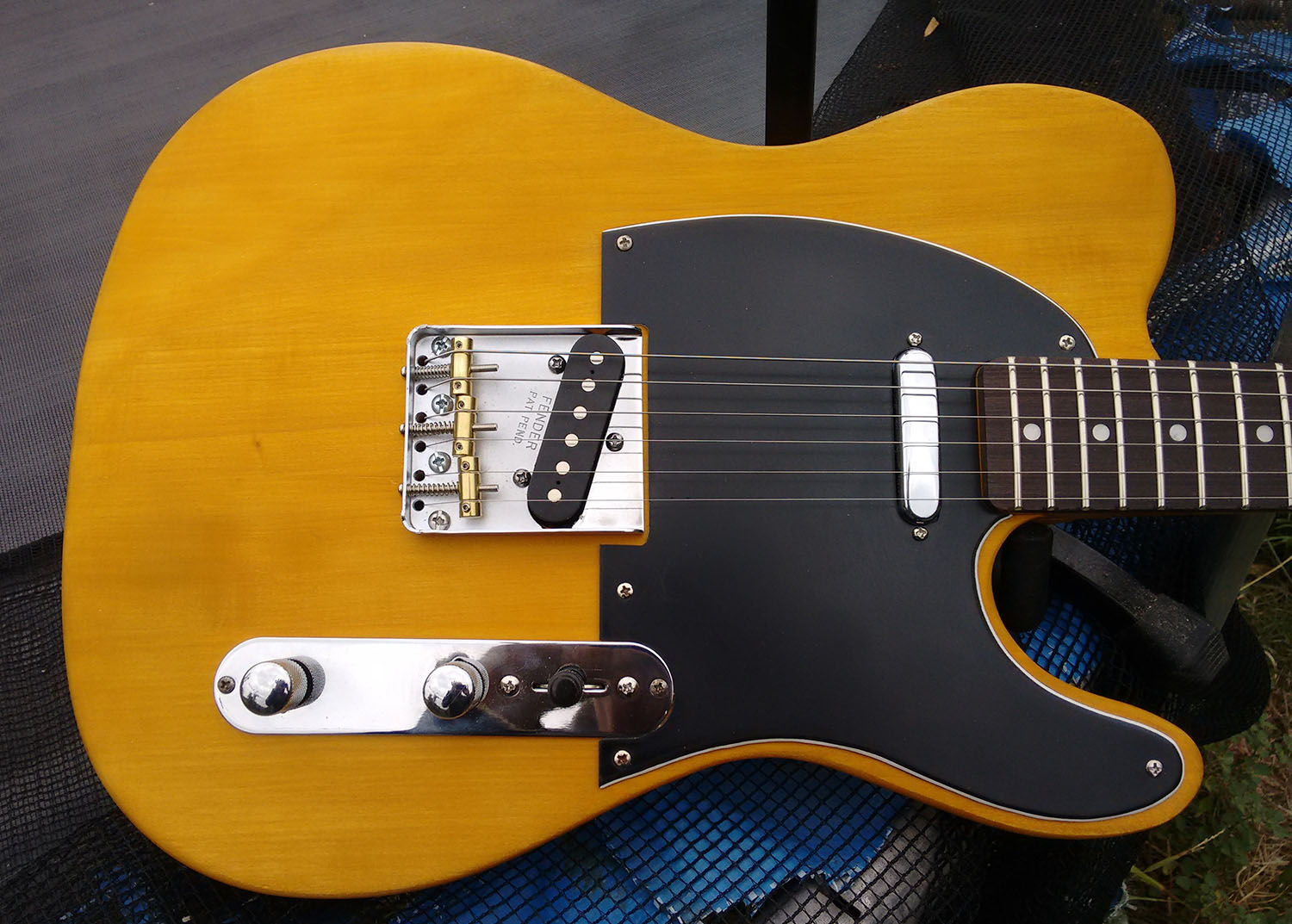

Here's a few outdoor shots.
Attachment 30926
Attachment 30927
Attachment 30928
cheers, Mark.
When you’ve finished will you be able to post a video of how it sounds?Quote:
Originally Posted by king casey
Sent from my iPhone using Tapatalk
A couple more...
Attachment 30929
Attachment 30930
Also a ten-thumbed tone-deaf talentless demo.
https://www.soundclick.com/html5/v4/...ongID=13867828
Done with Sonar w BReverb and Boost11.
I'm noodling around with the chords trying to map out the structure.
cheers, Mark.
I'm going to scale that learning curve regarding recording/uploading video.
I just need to gird my loins before opening Dreamweaver again.
cheers, Mark.
Wow she sounds awesome, nice tones. Hope mine will sound the same.
Sent from my iPhone using Tapatalk
Nice and smooth King! Very nice!
Thanks IGIAG and Frankie
Bear it in mind that I don't have a dedicated guitar amp.Quote:
Originally Posted by I’ll give it a go

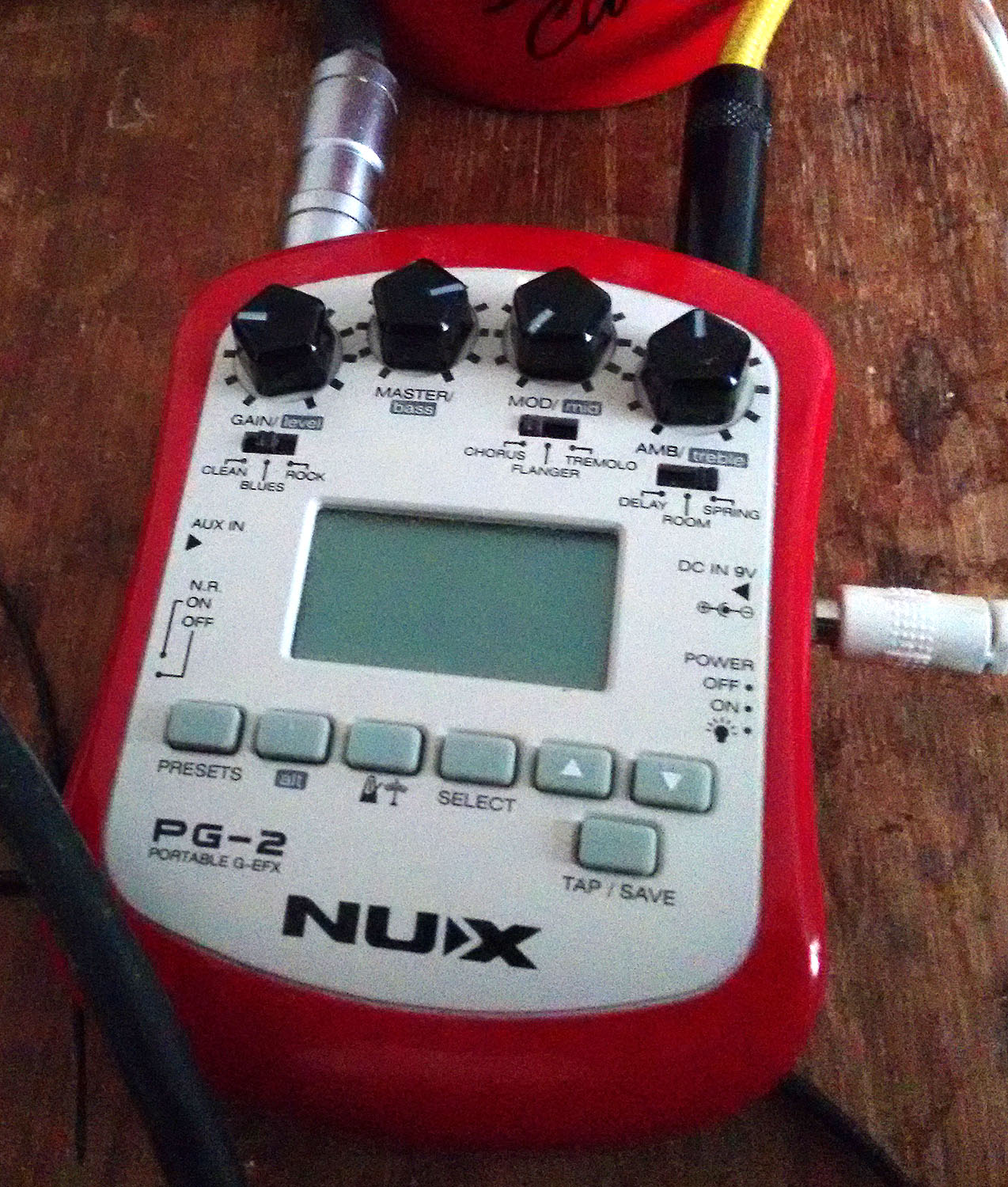

I'm going into this...
Attachment 30931
https://www.ebay.com.au/sch/i.html?_...rs=spell_check
...into Focusrite Scarlett Solo
cheers, Mark.
Mate that’s awesome, all I have is a pignose. That will have to do for now.Quote:
Originally Posted by king casey
Sent from my iPhone using Tapatalk
