It is possible to sharpen blunt files with citric acid so maybe that will work on rasps too.
Google sharpening file with citric acid.
Printable View
It is possible to sharpen blunt files with citric acid so maybe that will work on rasps too.
Google sharpening file with citric acid.
Yep. I had been meaning to buy a rasp but hadn't had time, or always remembered later after shops had closed. I've now picked one up and have been using it for further work.Quote:
Originally Posted by JimC
I really like the shape / design of the S2 guitars. Whether it functions as well as a traditional forearm cut I'm not sure. I see a lot of assembly and disassembly happening to get the look and feel right.Quote:
Originally Posted by JimC
Sent from my LG-H930 using Tapatalk
More carving. Body slightly reshaped further. Bevels are pretty much done, front and back. As there already were bevels on the back I mostly just adjusted those to match the new outline of the body, but I did add a belly cut, continuing into the bevels.
Lots and lots of sanding to do now.
https://uploads.tapatalk-cdn.com/202...83851ec89c.jpghttps://uploads.tapatalk-cdn.com/202...fb3c0b9d44.jpghttps://uploads.tapatalk-cdn.com/202...b2bd9dd702.jpghttps://uploads.tapatalk-cdn.com/202...21284d0ae4.jpghttps://uploads.tapatalk-cdn.com/202...620fa339d0.jpghttps://uploads.tapatalk-cdn.com/202...9c0445beb8.jpg
Sent from my LG-H930 using Tapatalk
Bit of sanding done to clean up the bevels. Looking and feeling pretty good. Some places will need to be filled but overall not too bad.
I was a bit worried about neck dive and there is a tad with just the neck and tuners. Adding the pickups and bridge though it balances nicely. The new bridge and pickups are more than double the weight of the originals, which is probably lucky.
https://uploads.tapatalk-cdn.com/202...423f240763.jpghttps://uploads.tapatalk-cdn.com/202...039248cc20.jpghttps://uploads.tapatalk-cdn.com/202...34b7a30a94.jpg
That's shaping up very nicely.
(pun intended)
You are probably completely over filing, but I wonder if the bevel in the treble side cutaway needs to extend a bit closer to the neck. If I knew how to do it I’d draw on the picture for you. It doesn’t need much, but to me I think it would look a bit more even.
I think I know what you're talking about. The uneven bevel is intentional though. It's 2.5cm all the way around except for the much larger bevel at the top. Trying to get it similar to the PRS S2 design which effectively has the centre line for the top flat shape shifted down by a couple of centimetres. The PRS bevel is maybe a little smaller though, but the kit already had a 2.5cm bevel so that's what I used.Quote:
Originally Posted by Fretworn

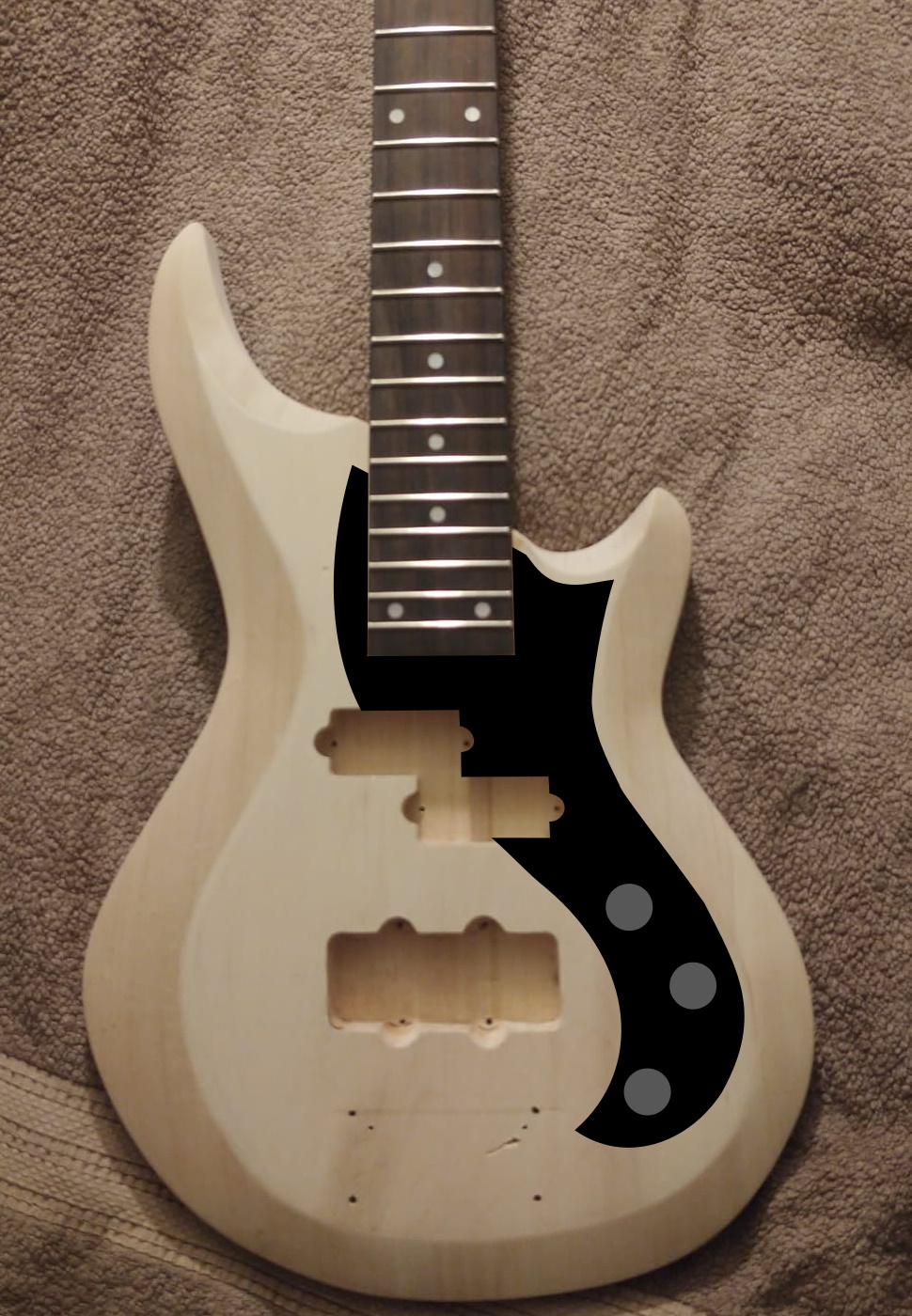

The other thing I'm tossing up between is whether I add a pickguard or not. A lot of traditional F style basses do have pickguards and I also like the look of the PRS S2 Standard and S2 Vela which both have pickguards. I've done a mock up of what I'm thinking. It also I think makes the curves look more balanced on the treble side.
What do you think? With or without pickguard.....
Attachment 37005
I like that pickguard - looks cool. But I guess it needs to be factored in with what finish your aiming for. What are your plans there?Quote:
Originally Posted by kuanjb
That is the question.Quote:
Originally Posted by Bakersdozen
The body has a veneer on the front and back which is a lighter colour to the core wood. So I'm thinking I need to do a solid colour. This was the intention from the beginning. Do a rattle can finish with a bit of pearl or metallic sheen to it. If I was to do that I could even cover over the back cavity with some ply wood and route from the front instead, using the pickguard as the control cover.

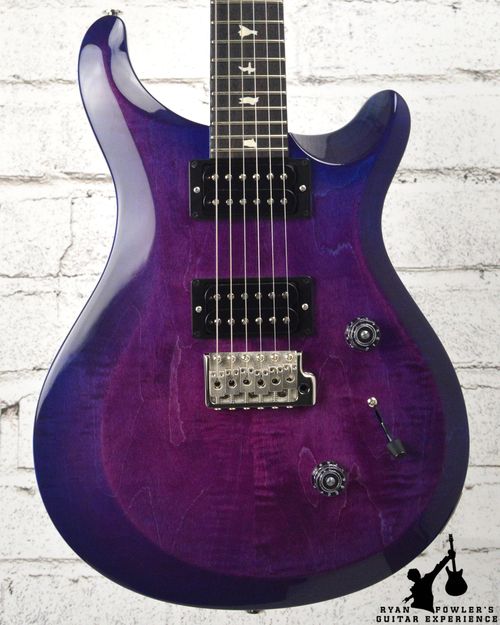

Another option I've been considering is trying to do a violet blue burst. I found a picture of an S2 done with that finish and I quite like it. The bevels are pretty much completely blue so might still be ok with the veneer. I can always try the stain and burst to see if it works and cover it with a solid colour later if not. I could even sand off the veneers....
Attachment 37006
Will also depend on the colour of the pickguard. I have a large piece of 3 ply purple pearl (white, black, white) which would probably look good on a solid black guitar. For a lighter coloured finish I like just plain black possibly 3 ply with a single white line.
I like the pick guard too.
It adds movement to the lines.
It looks a bit like a Phantom of the Opera mask. 🤔
Oh wow what an idea. I would so love to have the skill to make that happen on a build. Cliff what a great idea.Quote:
Originally Posted by Cliff Rogers
Hmmmmm....future idea.
Trying out some colours on the back. There's a few patches which are not taking any stain or ink so not sure what's going on there. Around the edge of the veneer it also took stain differently.
Still needs some work but I am getting colours similar to the PRS violet blue burst. Going to sand it back a bit to lighten up some areas and still need to work out how to cover the areas not taking stain currently.https://uploads.tapatalk-cdn.com/202...8c9ca5af4e.jpg
Sent from my LG-H930 using Tapatalk
But more playing with colours. Sanded, more stain added / reworked .
Still some issues with covering some patches. Not sure why as there's no joins for there to be glue or the like. I'm wondering if there's an issue with the timbermate filler and the sanding sealer I used. The sanding sealer specifically says for use prior to staining so it should have been alright.....
Anyway I'm still not sure about it. Not quite right.... and a bit blotchy. Centre looks nice, but not 100% happy with the edges.
https://uploads.tapatalk-cdn.com/202...7e36d6fd96.jpg
https://uploads.tapatalk-cdn.com/202...45cf86583b.jpg
Another attempt.
Sanded it all back and mixed up a different blue. Stained the whole thing purplish blue first. Wiped over the centre to lighten it. Then added a bit of magentaish purple to the centre. And finally a bit more blue around the edge.
I'm liking this one much more. But it turns out the wood on the edges is much more yellow coloured so the blue isn't quite a nice as in the centre. Hope it looks OK when it dries, and with a clear coat on it.https://uploads.tapatalk-cdn.com/202...fb42742aee.jpg
Sent from my LG-H930 using Tapatalk
I like the wet colour of the photo I posted. Unfortunately when it has completely dried it came out quite a lot lighter. And the magenta completely disappeared. The colour didn't look bad..... but what I then noticed was a whole heap of scratches which I hadn't noticed previously.
I'd used a cheap detail sander to help sand off the previous stain and in the process it left some marks. I'd also sanded with some higher grade sand paper by hand but obviously not enough and the scratches weren't evident until the stain settled in them.
https://uploads.tapatalk-cdn.com/202...e57f375c5d.jpg
So off it all came again, by hand this time. It wasn't too bad as it left the grain slightly stained blue which I thought would be good anyway. I mostly left the edges.
https://uploads.tapatalk-cdn.com/202...34cfe7d1ac.jpg
Next, I did a light blue wash over the whole back, which I lightened in the centre further, leaving it darker around the edges. Next I did a diluted mahogany spirit based stain which I had slightly tinted blue to make it a bit more purple. This was done over the whole back including the edges. I then sanded the centre to lighten it up.
https://uploads.tapatalk-cdn.com/202...df9dd436ee.jpg
And finally finished with further blue around the edges and a touch of magenta in the centre.
I'm doing a water based PU clear on this one so it shouldn't darken. I think it looks pretty close to the violet blue burst on the S2 I posted previously.
https://uploads.tapatalk-cdn.com/202...5c8830c663.jpg
Now for the front and sides.
So I came across this bass when I was looking at various guitar things on the net. Looks very similar to the shape of this bass, though the carve of the bevels is slightly different. Interesting....
https://www.schecterguitars.com/imag...BLK%20TILT.png
https://www.schecterguitars.com/bass...4-black-detail
I got new dyes..... so of course I redid the stain again.https://i.imgur.com/Lofp8Ds.jpghttps://i.imgur.com/0KICK37.jpg
Is it my imagination or is Tapatalk making all images look really bad now? Changed over to using Imgur and it's way better.
