Super confused about this kit's wiring...

Thanks guy - I'll add that last wire this arvo and see if it works. First time soldering so I'm not holding out much hope lol

Also just realised (looking at Simons better res image) I've wired the pot lugs back to front. Better fix that too!

good stuff John, a DIY pedal you need a good wiring diagram otherwise you would have no chance of getting it to work.

John, you are really pointing it out of the park if this is your first pedal. Good on you:D

Ha ha, Andy, I wouldn't get too excited just yet - still gotta get it to work lol

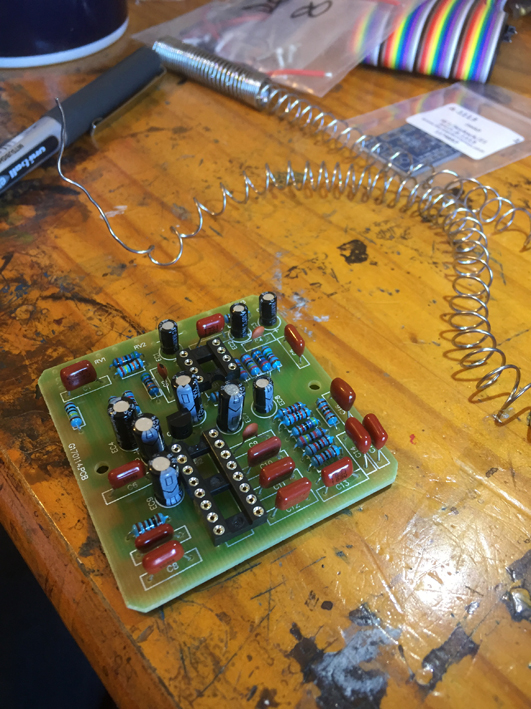

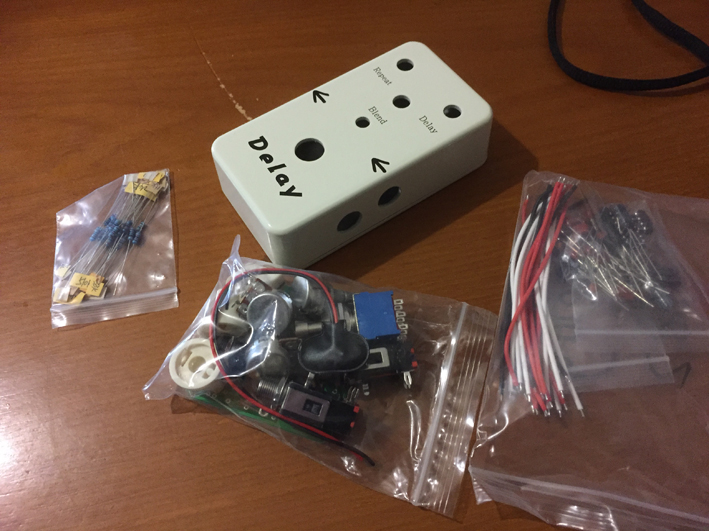

My little man came home sick today so I didn't get a chance to do anything else with the delay, but here's a pic of the kit as it came, and a progress shot I took yesterday of the board

Attachment 22369 Attachment 22370

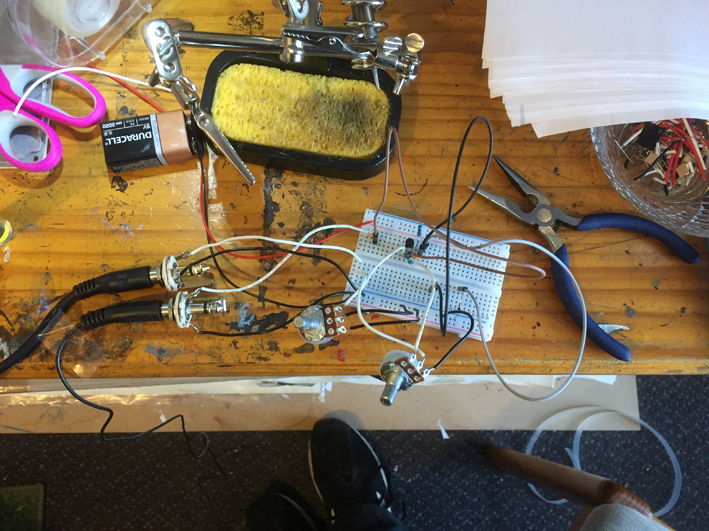

I did manage to find the time today to breadboard a distortion circuit that I found here:

http://tonefiend.com/tonefiend-diy-c...cts-resources/

Attachment 22371

I know it's a super simple circuit, and it's not soldered or anything yet, but it was a pretty nice feeling hearing it work.

I play in a classical Chinese ensemble, and so I'm electrifying one of my instruments in an attempt at a kind of Classical Chinese/Doom fusion. Today was the first day I actually had the distortion I wanted to try out the sound, so I was pretty excited.

Attachment 22372

Quote:

---

Originally Posted by JohnH

...Classical Chinese/Doom fusion

---

Now there's a genre I've not heard of before!!!

that,,, I gotta hear

2nd ... Um.. 3rd the two above comments....

Interesting looking instrument too....

Quote:

---

Originally Posted by JohnH

but it was a pretty nice feeling hearing it work.
Attachment 22372

---

Definitely

The only thing that could make it make more bizarre would be to have the work 'surf' in there somewhere... chinese classical/surf/doom fusion

Ha ha, yeah, it's not the most obvious combination of musical influences. They're not as dissimilar as you'd first think though - a lot of the ensemble pieces we play are super slow tempo, and are made up of effectively endlessly looping melodies. I reckon with a bit of fuzz (and some very low tuning) it could be a winner lol

Will have to work on getting the surf in there though...
