That's a nice looking guitar Jack has there.
Printable View
That's a nice looking guitar Jack has there.
And defintly powder coated mechanics ;)
Well i ll give it a try !
Hey Ami, I have a few of the PBG supplied Bigsby style trems here.
Would be happy to post one out to you to experiment on.... Would be a real pain the backside if it doesnt work and you end up with a manked trem :p
Email me your postal address to dingobass at pitbullguitars dot com dot au and I will send you one.
Wouhou, my guitar has been dispatched yesterday, can t wait!
Dingo, i sent you a mail :)
Guitar finally managed to cross my door !
Time for some pics!
Attachment 7730
I must say i m really happy to start this journey but also ...
Attachment 7731
Attachment 7732
Attachment 7733

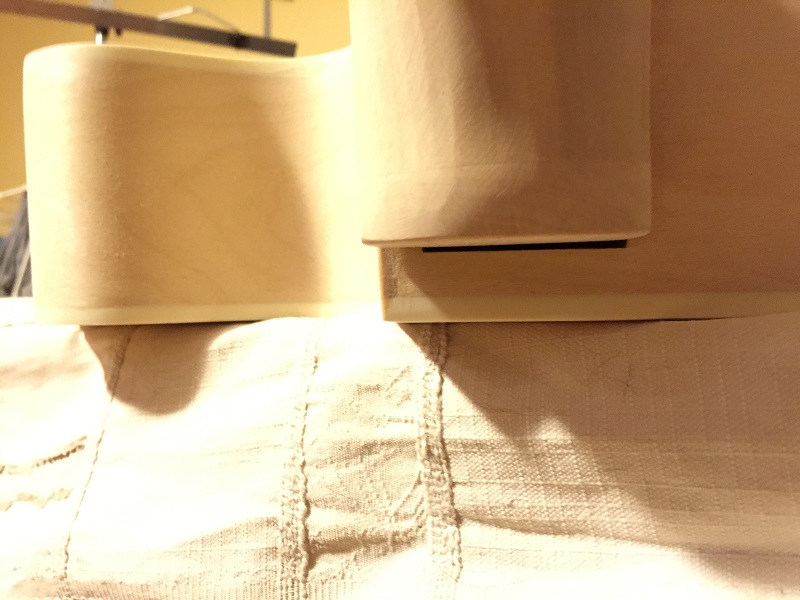

A bit worried about that neck dry fitting...
As it is my first build, i don t know if it's a common gap or not but i m sure i will have to work on those gaps ...
Hi Amid, kit looks great other than the neck fit. Looks like you will need to sand down under the fingerboard around 20th fret to the end of the fingerboard. Draw a pencil line on both sides from the existing corner to the end of the fingerboard so the fingerboard will lye flat on the body, and that should eliminate the gap on the front of the body neck join.
Once you get the fingerboard sitting flat on the body then you may have to glue thin veneer on each side of the neck pocket to make it a tight fit.
Does that make sense ?
The first picture shows the underneath end of the fingerboard is too proud causing the gaps
Yeah i see except i think i may just have to start sanding where the perpendicular angle is (wich doesn t end perpendicular at all).Quote:
Originally Posted by wokkaboy
The other side just slide in the pocket so sanding won t help.
Hi Amid, once you get the angle of the neck heel/fingerboard same as the body neck pocket it should fit snug and the heel bottom should touch the pocket. I think you understand now what to do
Well i m still lost about that neck fitting.... :mad:
I don t want to do any mistake so i sand micrometters after micrometters but still it doesn t seem to fit the way it should be... On one hand i never saw a guitar with a neck pointing that way and on the other hand i watched all builds of GR-1SF and they all seems to have that "not square" routing cavity on the neck... So where is the problem?
I don't want to start anything else before that neck is properly fitted to me so i m kinda stuck.

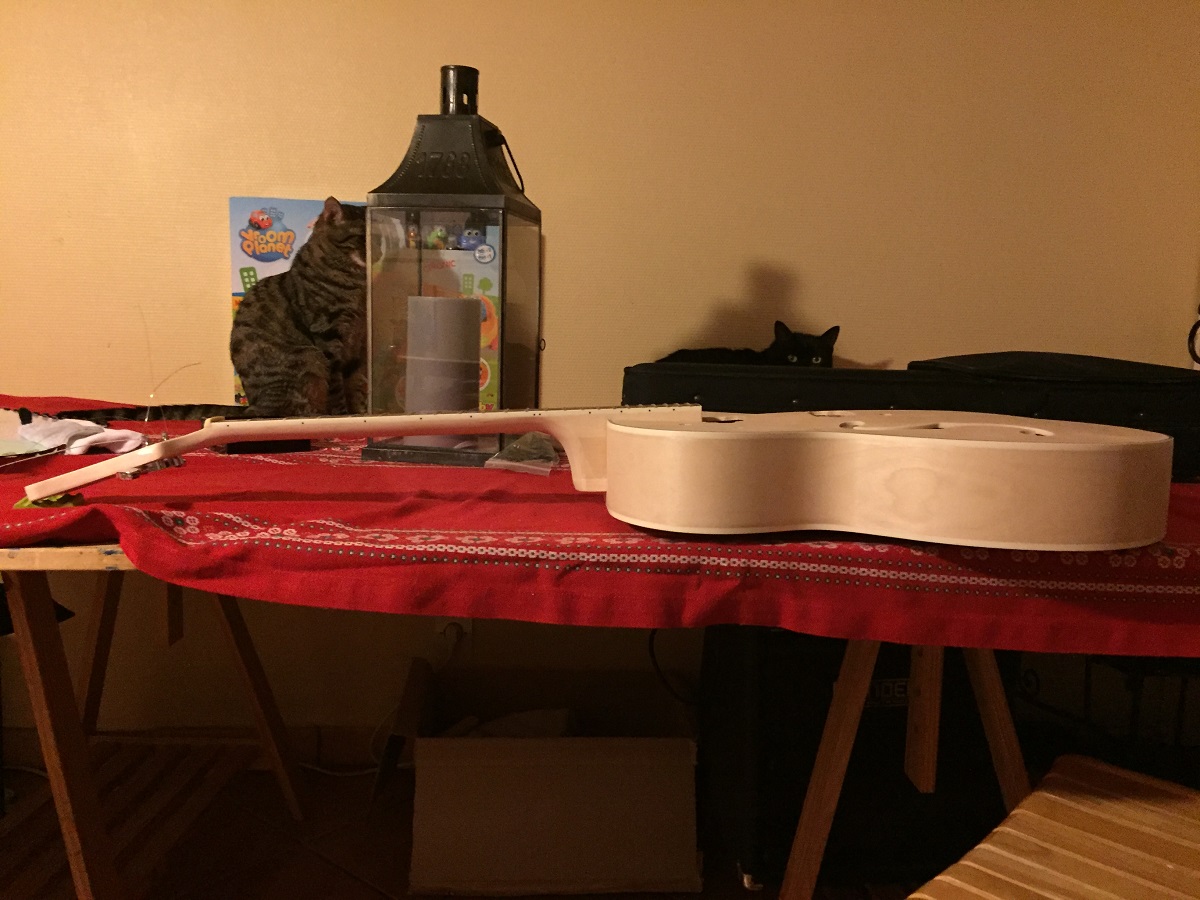

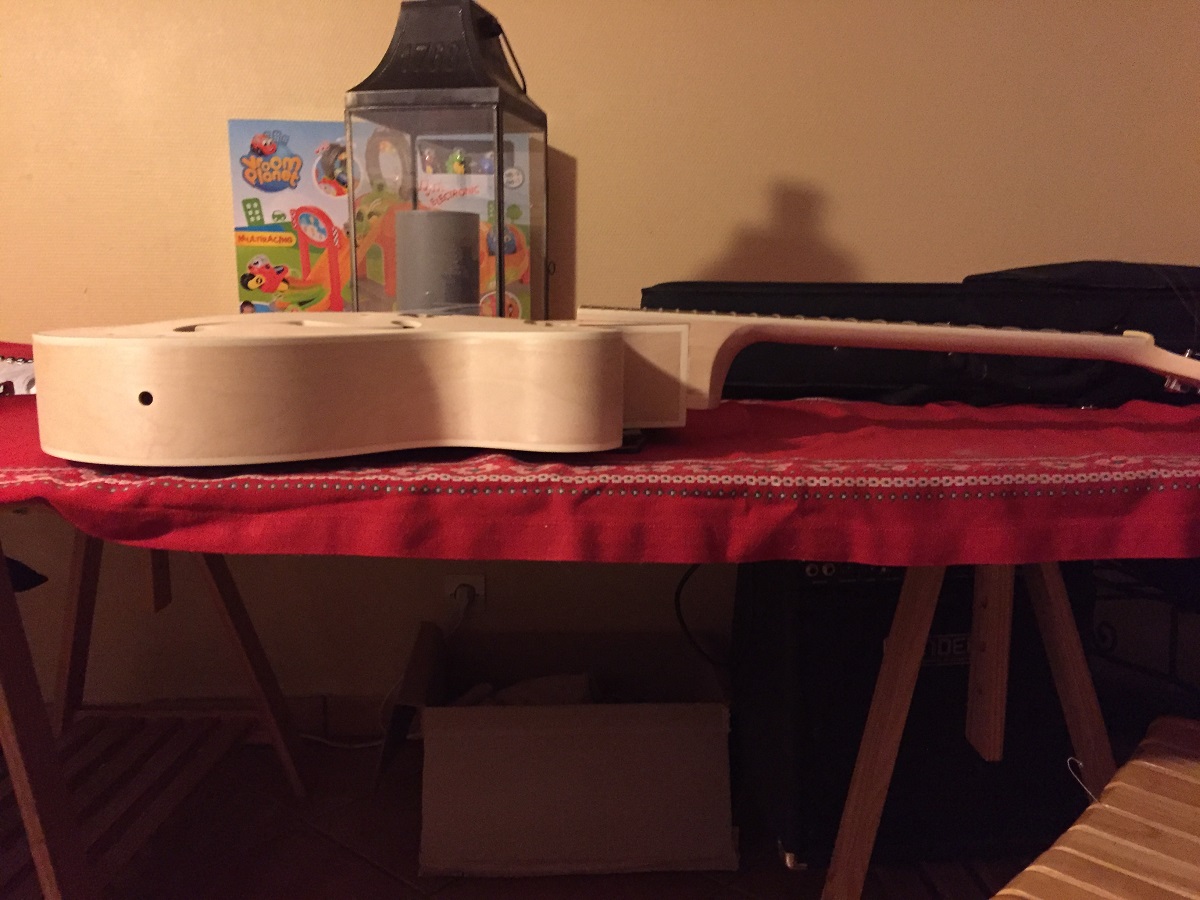

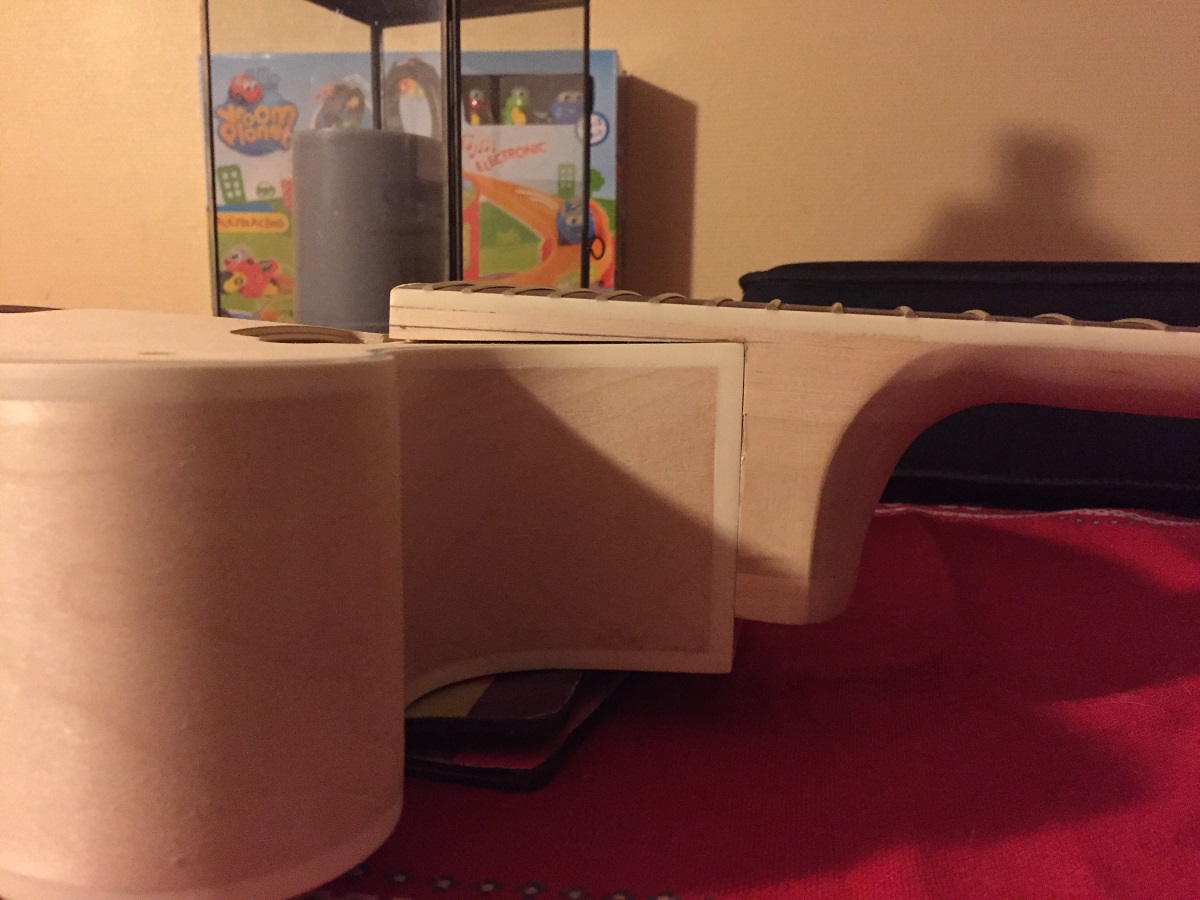

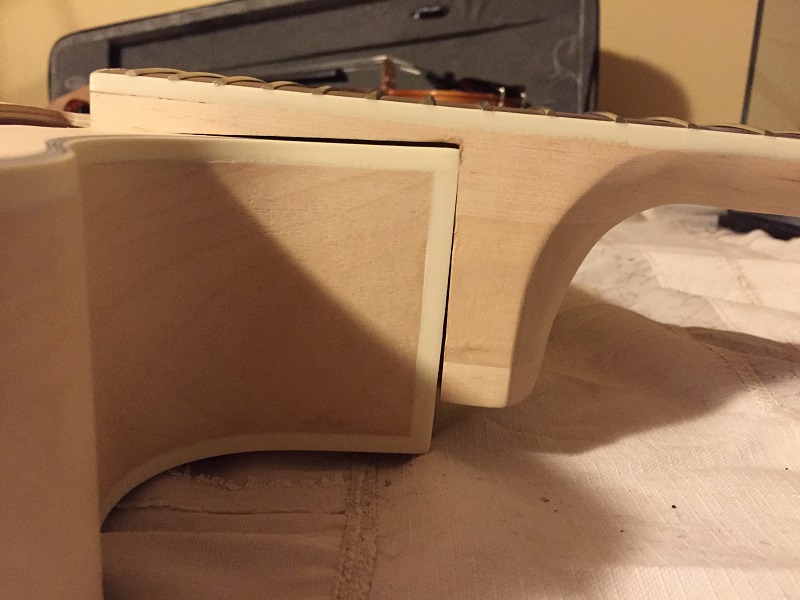

Attachment 7939
Attachment 7940
Attachment 7941
Attachment 7942
Amid my neck fit looked average initially however is now looking really good as I've taken the time to ensure it is right in the slot where it should be. It took some effort to get it there without clamps.
