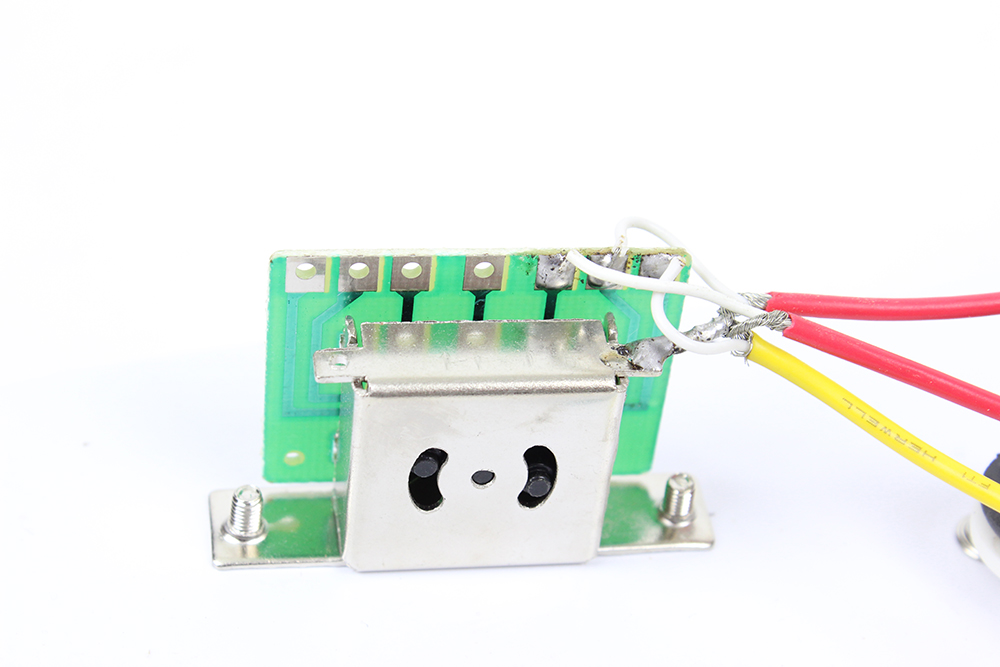

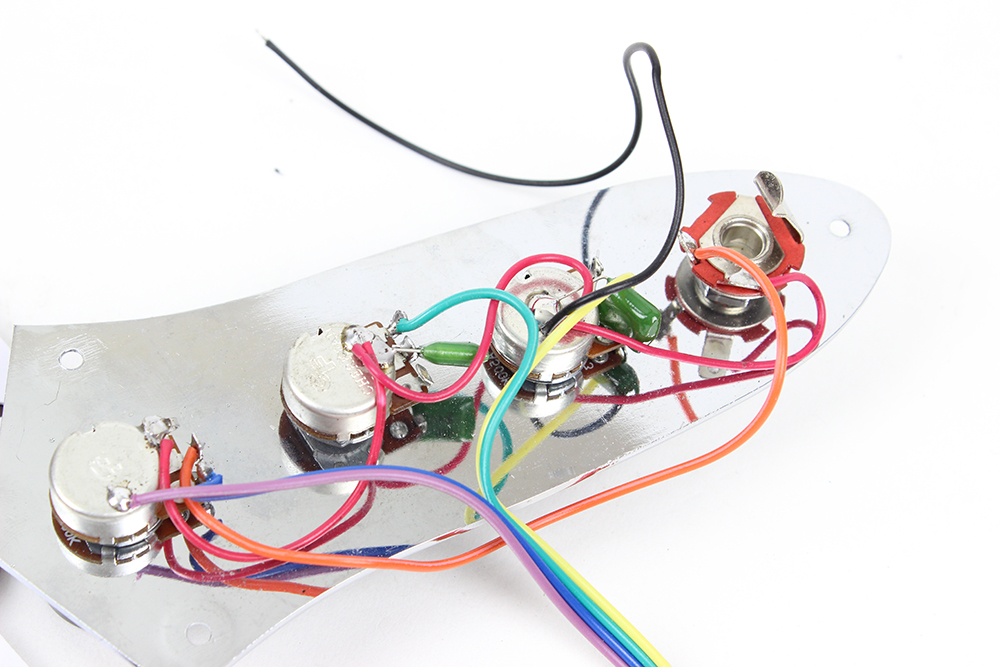

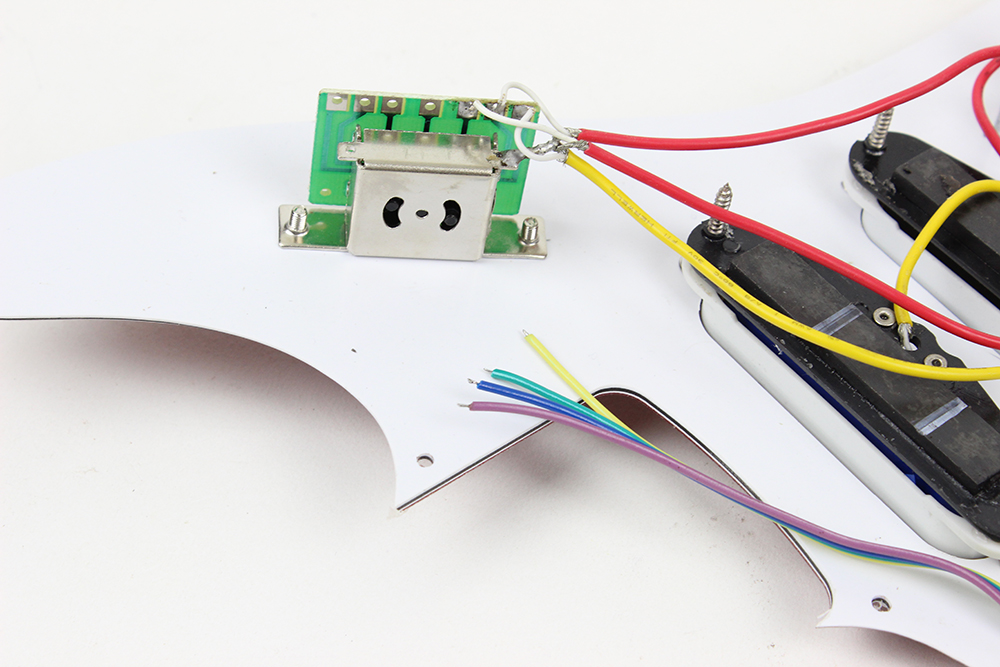

Here are some photos of what appears to be the "new" wiring on the JM-1 kits. As Weirdbits noted, these colours are always subject to change, depending on what colour wires the factory has on hand at the time of production.
Attachment 9833
Attachment 9834
Attachment 9835
Attachment 9836
Attachment 9837
To match the above batch of wiring colours:

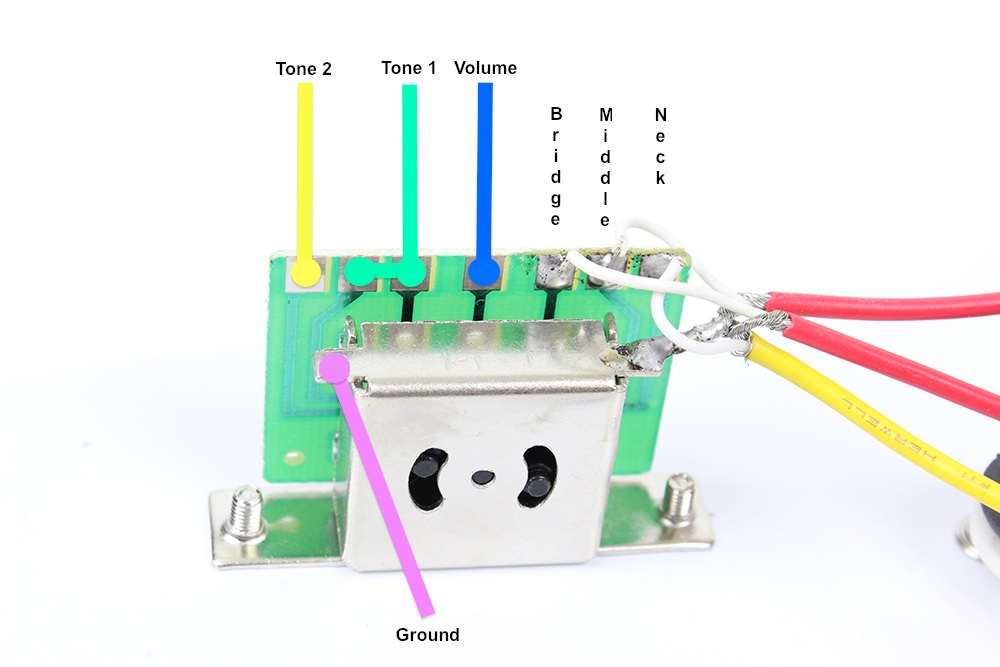

Tone 2 (yellow) = Bridge, Tone 1 (green) = Middle and Neck, Volume (blue), Ground (purple)
Attachment 9850
(there are other ways to configure the tone controls, depending on what you want)
Thanks Weirdy, "Above and Beyond" as usual.
Brendan is going to update the diagram to match the new colours and make it more straightforward for those less experience in wiring (myself included).
I recently bought JM-1 kit. i saw this thread and thought it would help me out but i'm confused my self? maybe because the wires i have are different colors? i'll attach some photos.
Hi Gibson.Fender, looks like you just need to connect the loose wires from the volume pot, tone 1 and tone 2 to the switch, as shown in the diagram above posted by Weirdbits.
So looking at your first picture, from left to right on the control plate is volume, tone 1, tone 2 and output jack.
You will have to run a common earth wire from the tremelo claw and solder to the casing of the volume pot.
All the other connections appear to be done
i think i posted this in the wrong thread?? but i have my answer now i'm pretty sure...
Hi Gibson.Fender, no this thread is fine to post your query.
Start a build diary as I said in the PM and let the forum enjoy your build experience.
Ask any questions you have in your build diary
Sorry for all this confusion.. i now know what goes where thankfully
but there is a black wire so is that he earth wire??
Looks like the colours have been switched around. Using Weirdy's pic substitute blue (in the pic) for green (yours), green(pic) for purple(yours), yellow(pic) for blue(yours) and purple(pic) for yellow(yours).
http://www.buildyourownguitar.com.au...0&d=1458990435
Hi Sean, yes looks like the black wire is the earth wire. Looks like its soldered to the back of tone pot 2 ?
The earth wire goes through a hole to tremelo cavity and there should be a little hook on the tremelo spring claw to solder this to
As Pablo has said, the wire colours are different so substitute the colours
