Lovely work on the binding, and that neck heel is sweet. I can’t wait to see the final finish.
Printable View
Lovely work on the binding, and that neck heel is sweet. I can’t wait to see the final finish.
What an amazing effort. Tough kit...and binding. Looking great.
Thanks Wayne and ozz
Here is a pic of the rear of the neck pocket cleaned up a little
Attachment 39948
Also reshaped the neck to blend into the body, may revisit this. Feels good but may be improved upon.
Attachment 39949
Trying to make the curly maple binding bend to a tight curve for the f-hole has not gone well so far using my hap-hazard methods.
Attachment 39950
Even after thinning the binding pieces from around 2mm to about 1mm thickness, it still wants to break on the figuring. Will have one more attempt and if that doesn't work, then no bound f-hole on this one.
Grant
More great work there!
I like the recessed neck plate too. A nice alternative to using individual (recessed) bushings.
Hi all, long overdue update. Did have another attempt to bind the f-hole, got the binding to curve a little better.
With that OK, glued and clamped the support piece underneath , thanks again to Weirdy for the clamp design.
Attachment 41580
Glueing in the pre-shaped pieces
Attachment 41581
Cleaned up and scraped flat, filled the gaps with maple sawdust and glue
Attachment 41582
And if this build wasn't taking long enough, decided to change the fret markers. First thought was for an ebony headplate to cut up, but none were locally available at the time. Had a look around and AusMOPsupplies have a timber section now, went with a piece of figured Gidgee, a local hardwood endemic to upper NSW and QLD apparently.
Attachment 41583

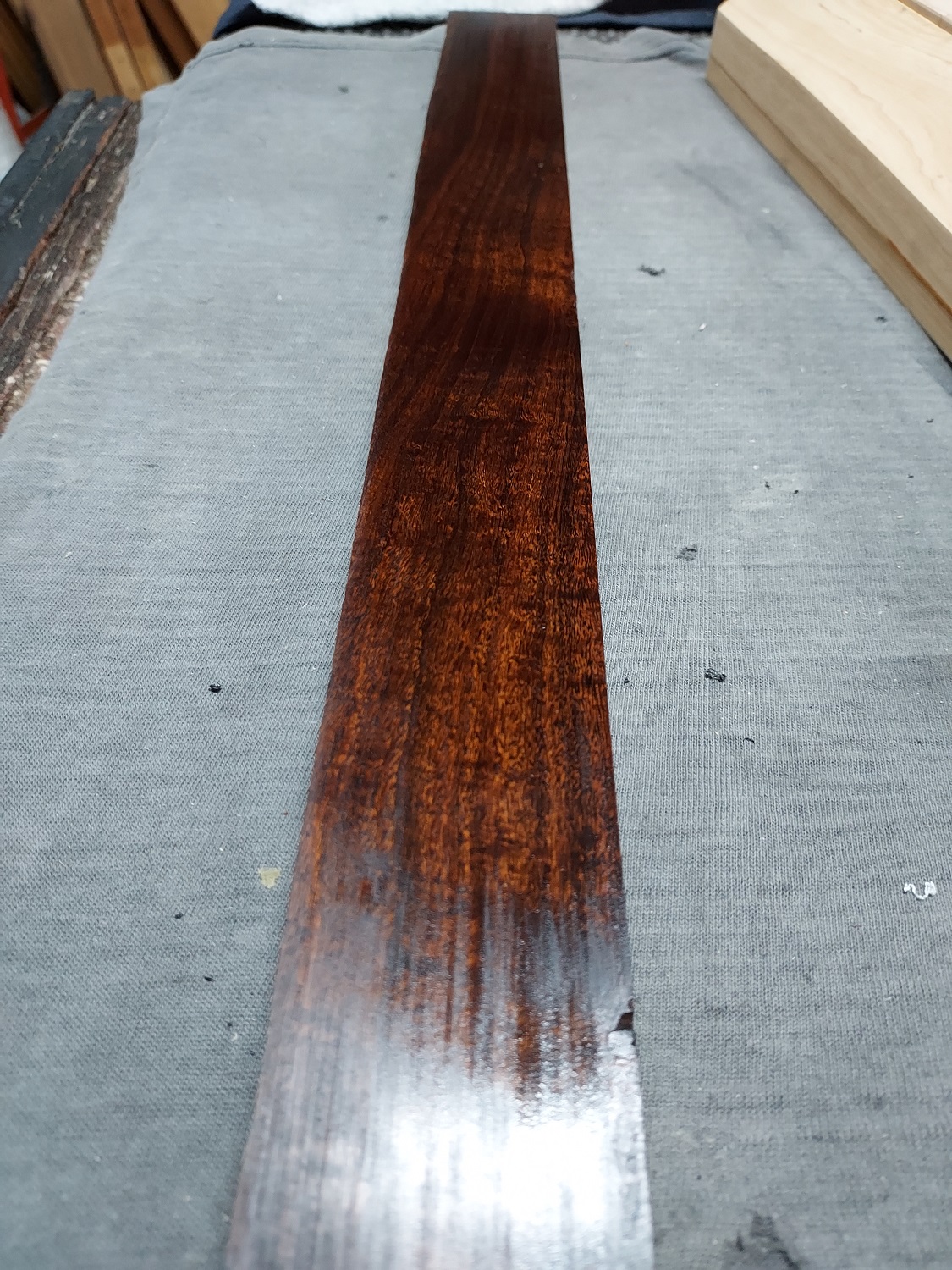

Cut a slightly over 3mm slice off the top of the Gidgee block with the bandsaw, once the blade marks were sanded flat it was still a little over 3mm thick.
Attachment 41584
cont.....
Copied hump block shapes from an Electromatic, they're not exact but close enough.
Attachment 41585
Patient is on the slab. Basic router sled using DAR pine double stick taped to a melamine shelf piece, scrap wood cut to make an interference fit between the neck and side pieces.
Attachment 41586
Made a larger base for the trim router from some 6mm clear acrylic
Attachment 41587
The factory dots at the twelfth were a little off
Attachment 41588
Used a spiral bit in the router to do most of the excavation and finished the shaping with chisels.
The new inlays ready to go in.
Attachment 41589
cont..
Clamping in new inlays
Attachment 41590

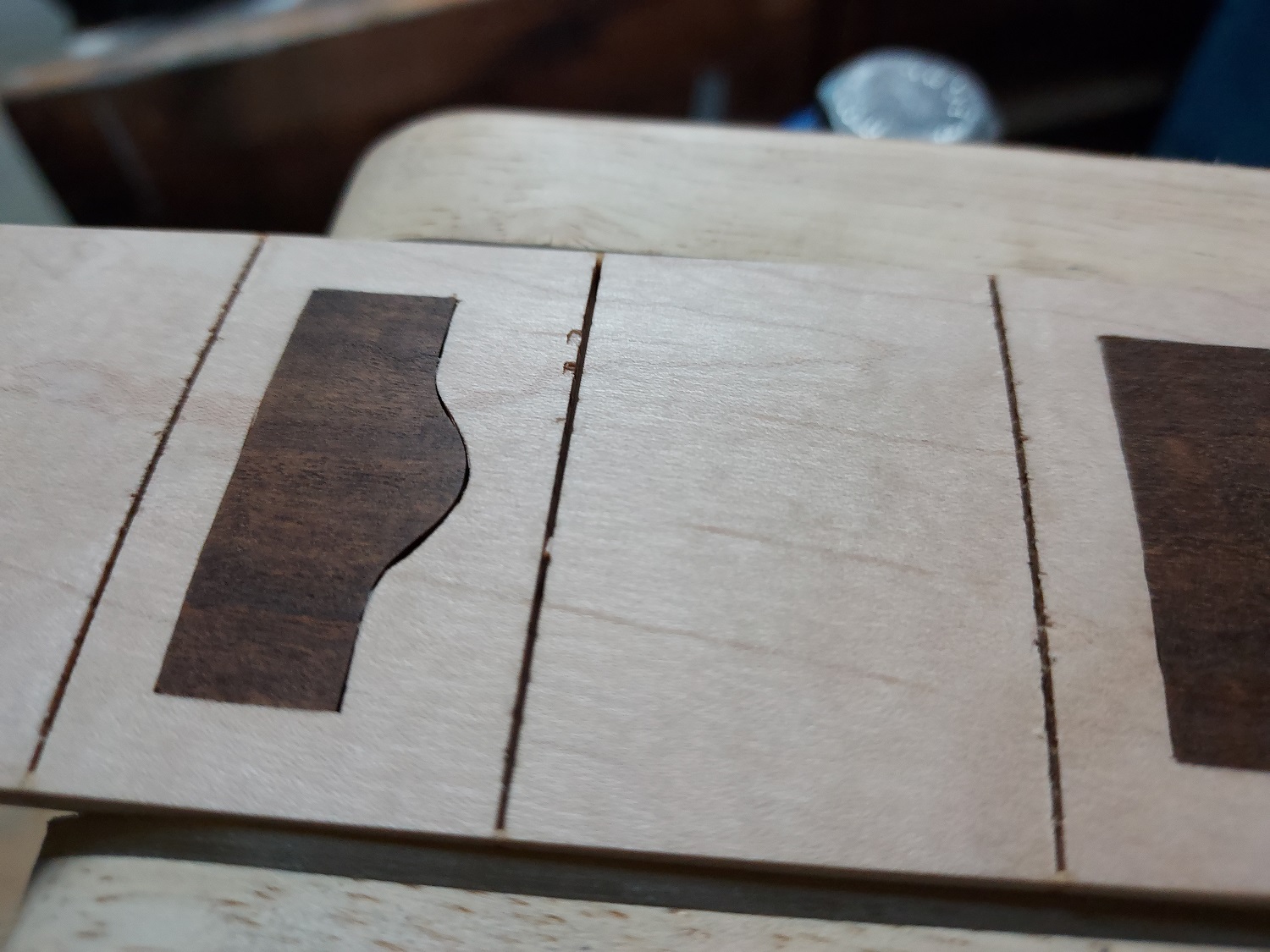

Not all went to plan, I went outside the lines a little on some but this at the 9th marker is the worst
Attachment 41591
Filled with maple sawdust and titebond and when wiped over with gum turps the fill is more noticeable than I would like.
Attachment 41592

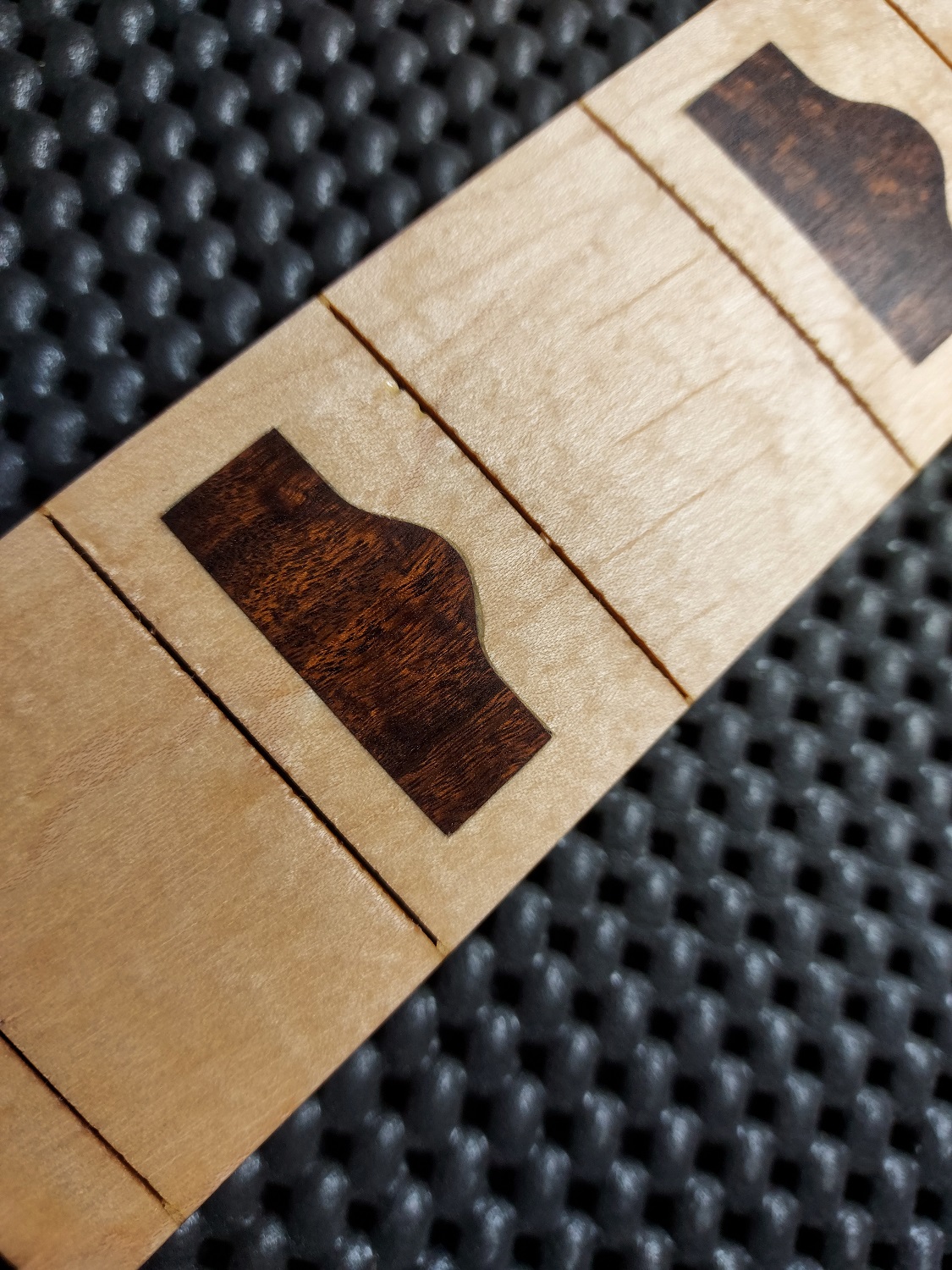

And an overall view of the fretboard
Attachment 41593
Grant
You gots skillz bro!
(and patience!)
+1. Great stuff.Quote:
Originally Posted by McCreed
Wow! That’s really awesome
